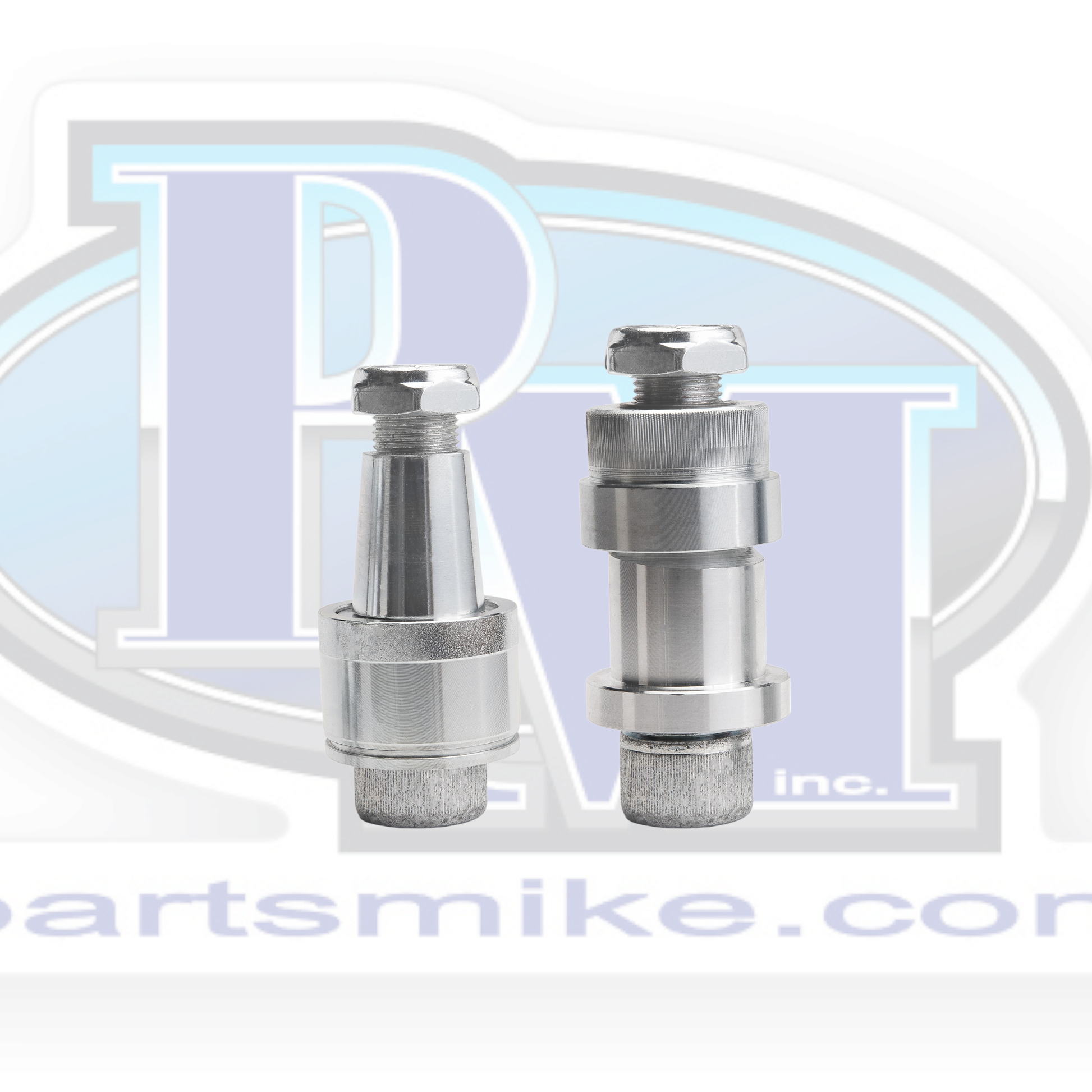

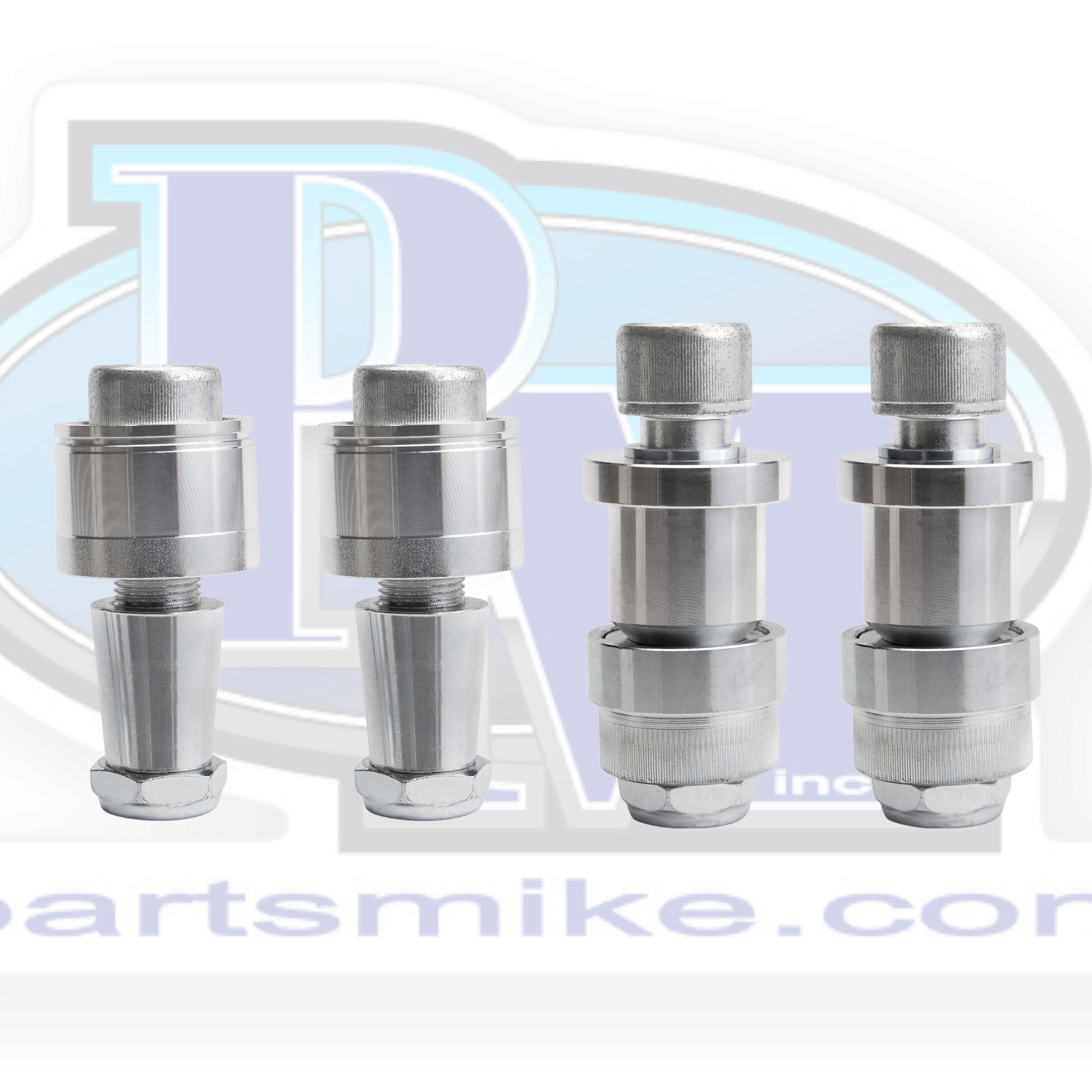

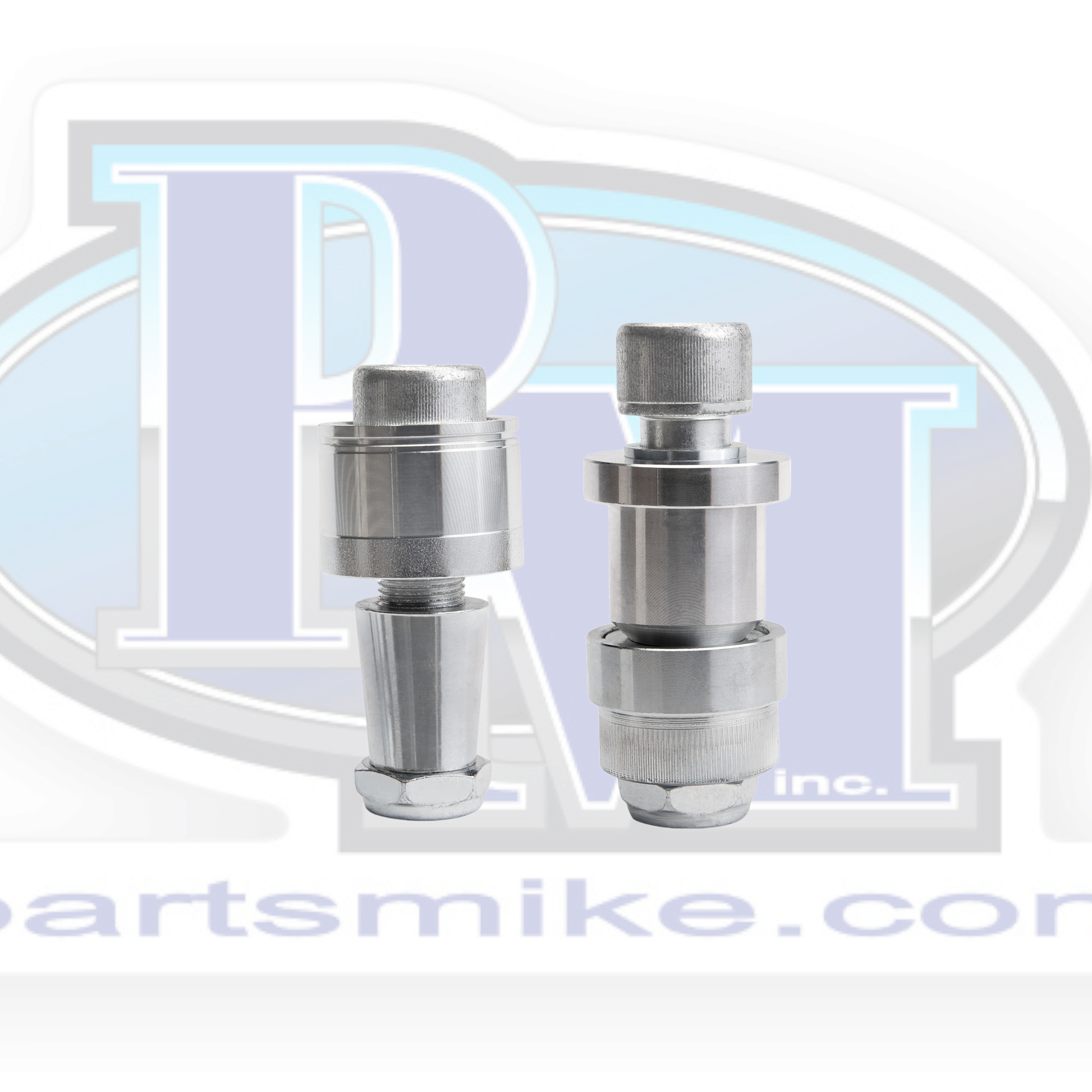

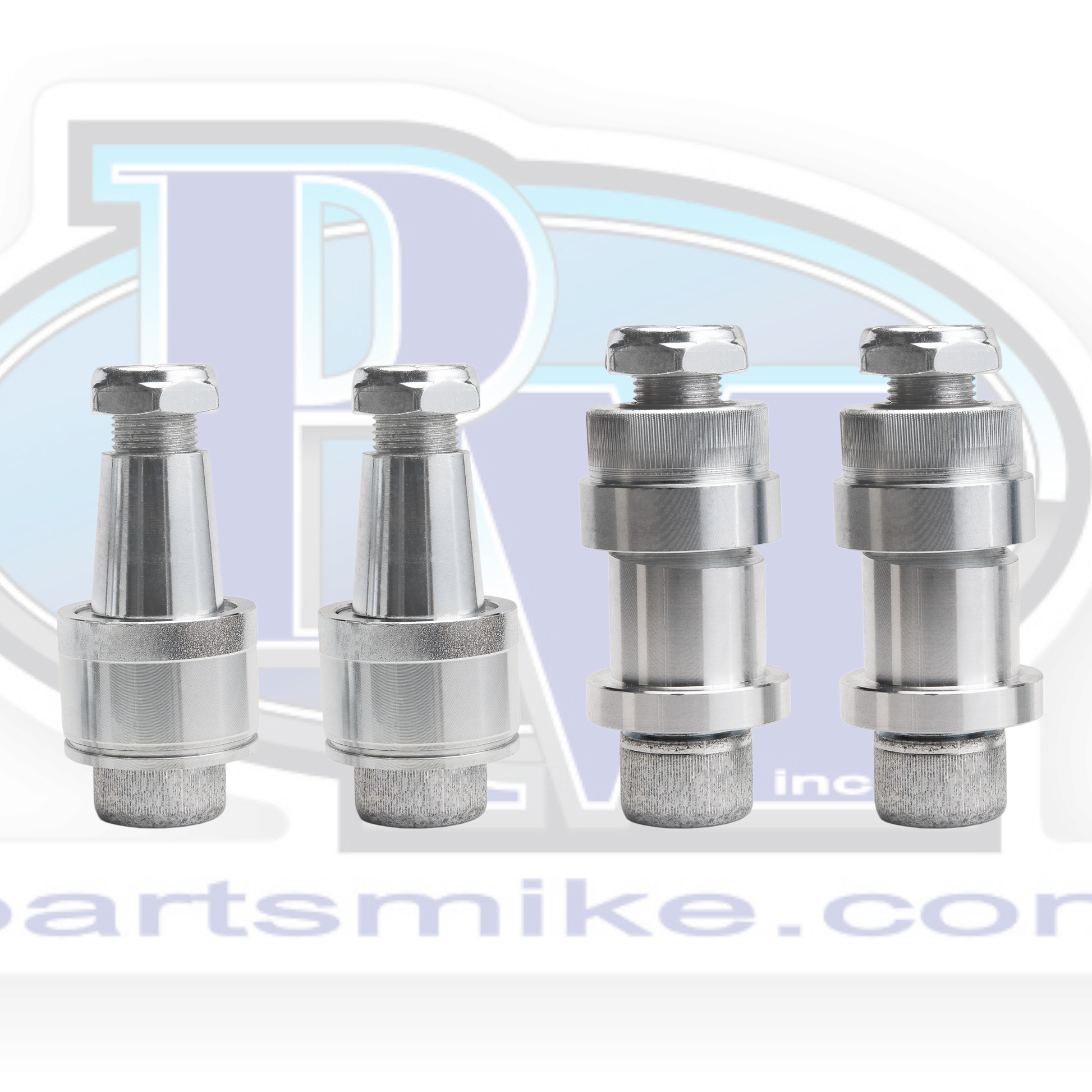

Ford Super Duty Dana 60 & Ultimate Dana 60, 0 Degree, Ball Joint Delete Kit

Ford Super Duty Dana 60 & Ultimate Dana 60, 0 Degree, Ball Joint Delete Kit

• 7075 Aluminum Split-tapered bushings with conical washer
• Huge 7/8″ Teflon lined Spherical Bearings
• All assemblies are greased and lubricated
• Choose from press-in or weld-in styles below
• 7/8″ Grade 12 Socket Head Cap Screw (170,000 psi tensile strength)
• 7/8″ Low profile locknut

Various Degrees available.

Please choose an option based off of the year vehicle your axle was originally installed in as well as your desired bushing offset (0 degree, 1.5 degree, or 3 degree). Off-road rigs generally benefit from a 3 degree bushing to gain negative camber while lifted rigs also benefit in that they can gain back the positive caster lost when lifting. The 1.5 degree bushing option is available for more “stock” applications. Popular settings are -3 degrees camber (mostly used in Ultra4 style builds), -1.5 degrees camber/+1.5 degrees caster, -1 degree camber/+2 degrees caster, and -.5 degrees camber/+2.5 degrees.
