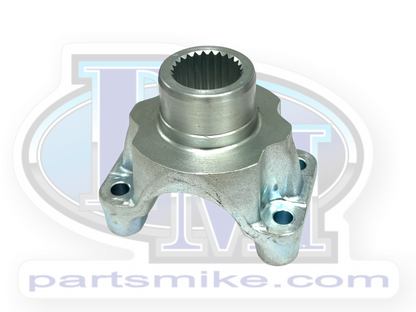

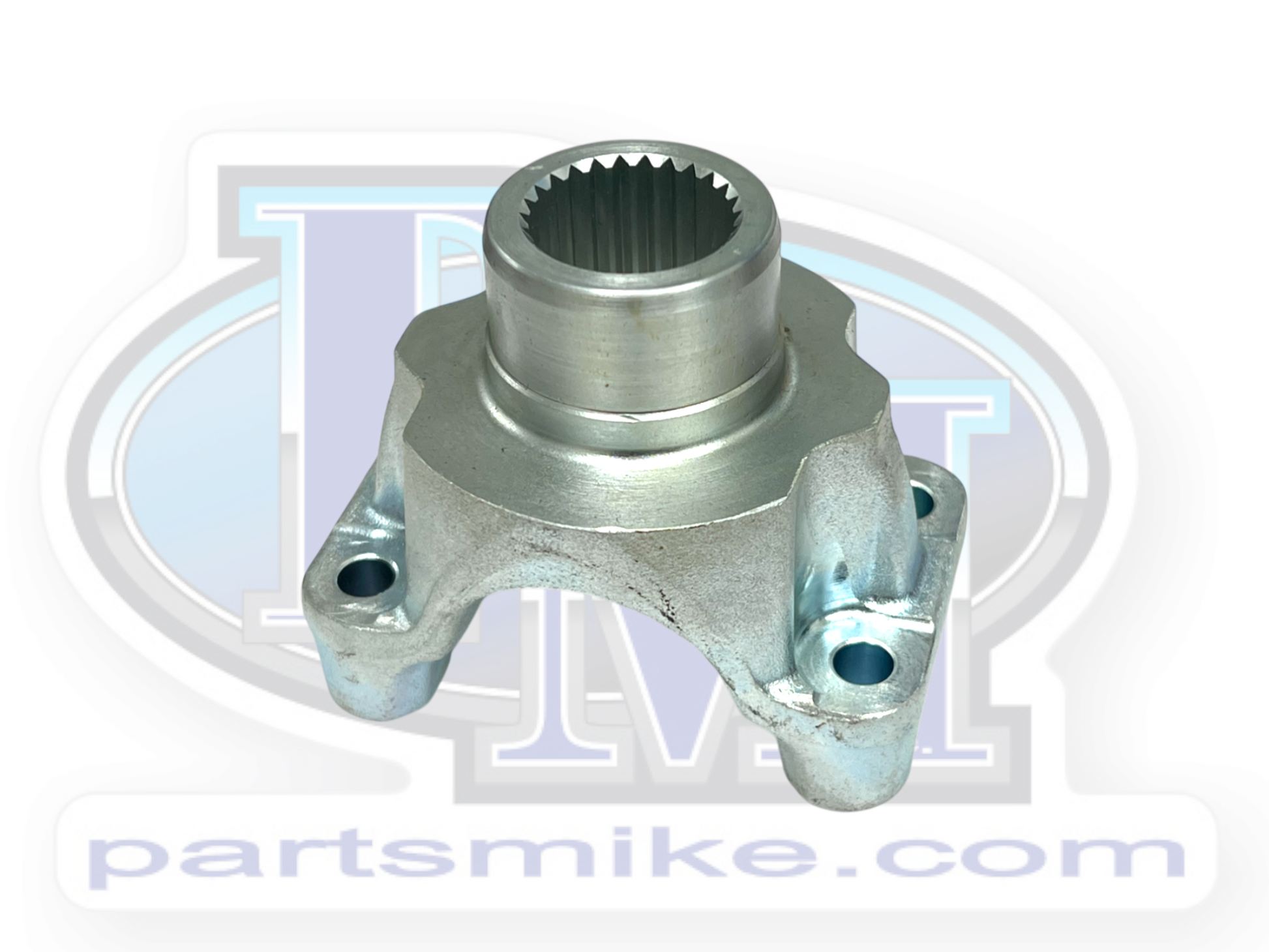

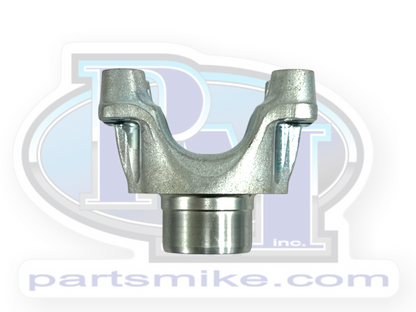

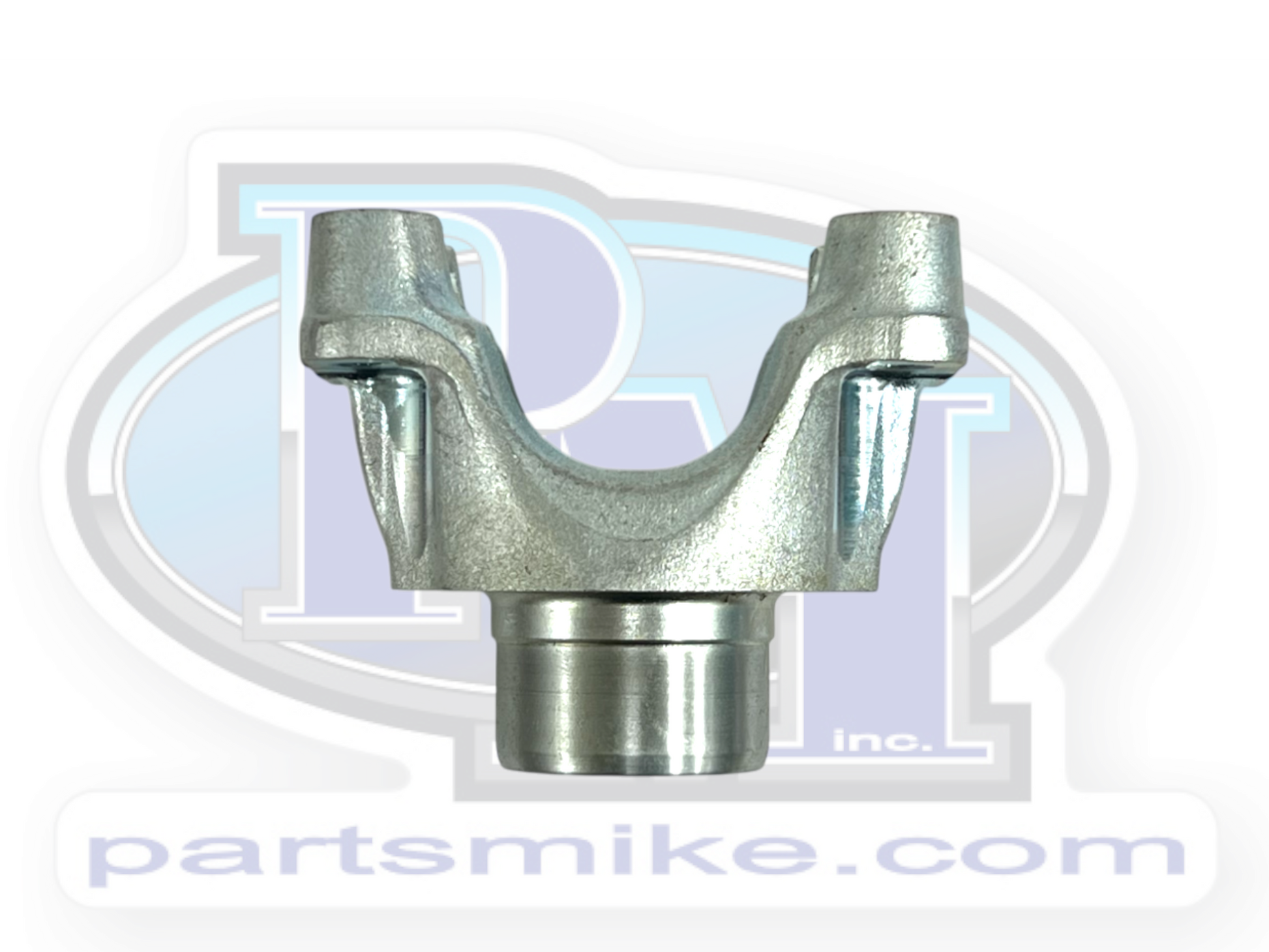

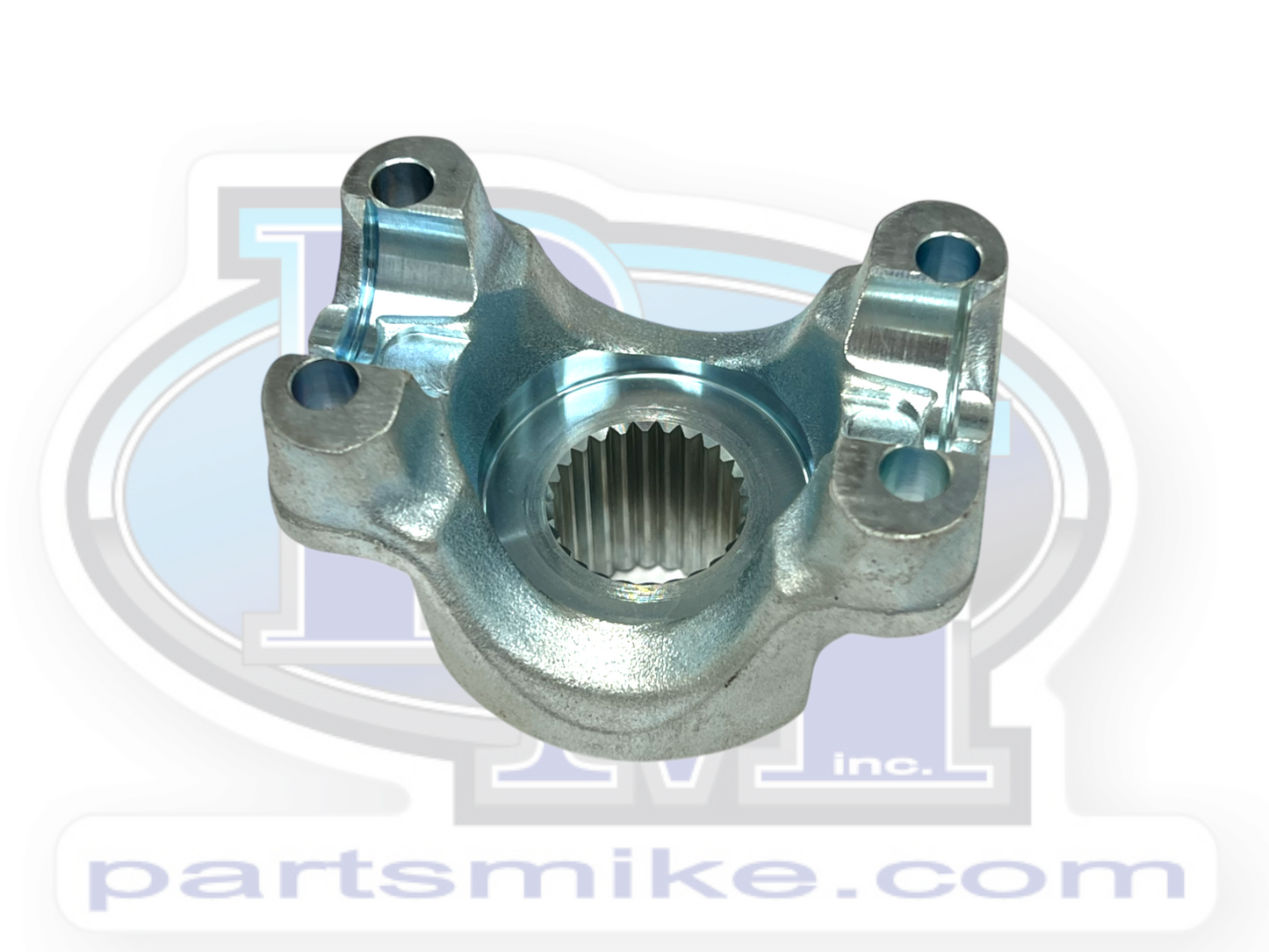

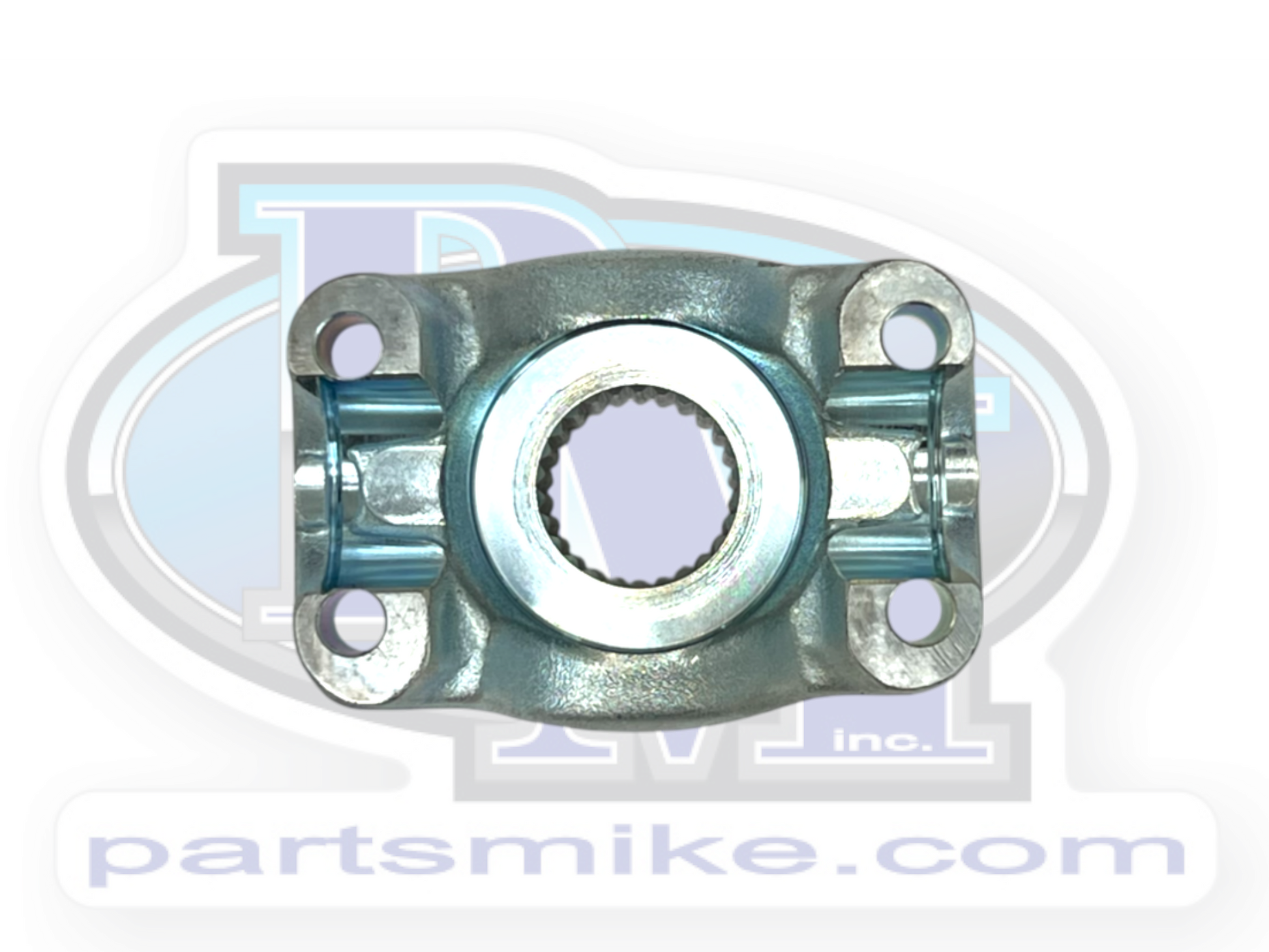

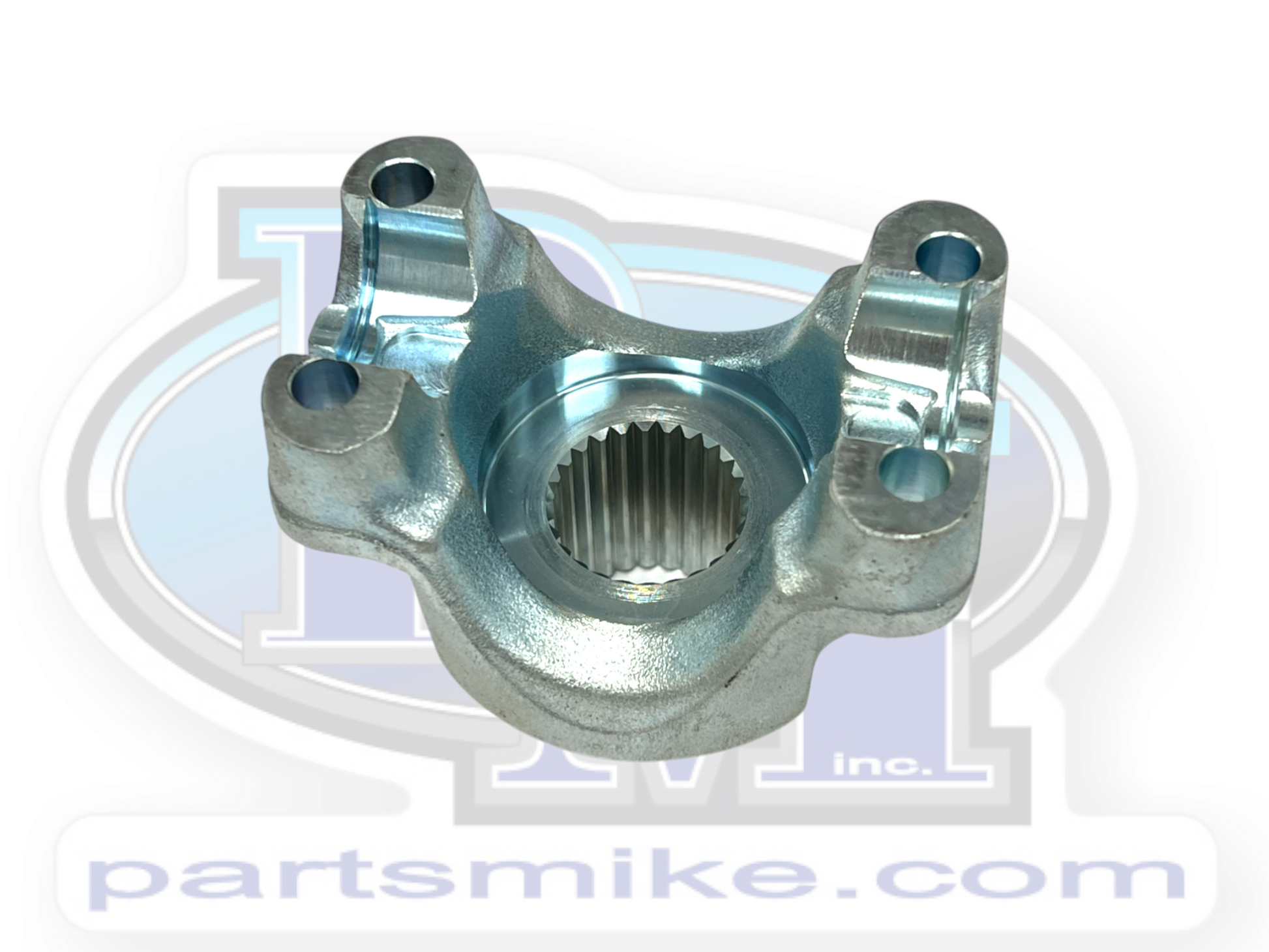

1310 End Yoke, 26 Spline Pinion / Transfer Case, Dana 30, Dana 44, Dana 300, (PM3112-1007) aka: 2-4-8091

1310 End Yoke, 26 Spline Pinion / Transfer Case, Dana 30, Dana 44, Dana 300, PM3112-1007

Dimensions (Reference Image)

A: Seal Surface: 1.550"

B: Through Hole: 1.500"

C: Overall Length: 3.033"

D: U-Joint Width: 3.217"

Major Spline Diameter: 1.147"

Counter Bore: 0

Splines: 26

Does not come with U-Bolts.

For U-Bolts order part number DAN2-94-28X

Cross Reference: 2-40-8091X

Qty. 1
