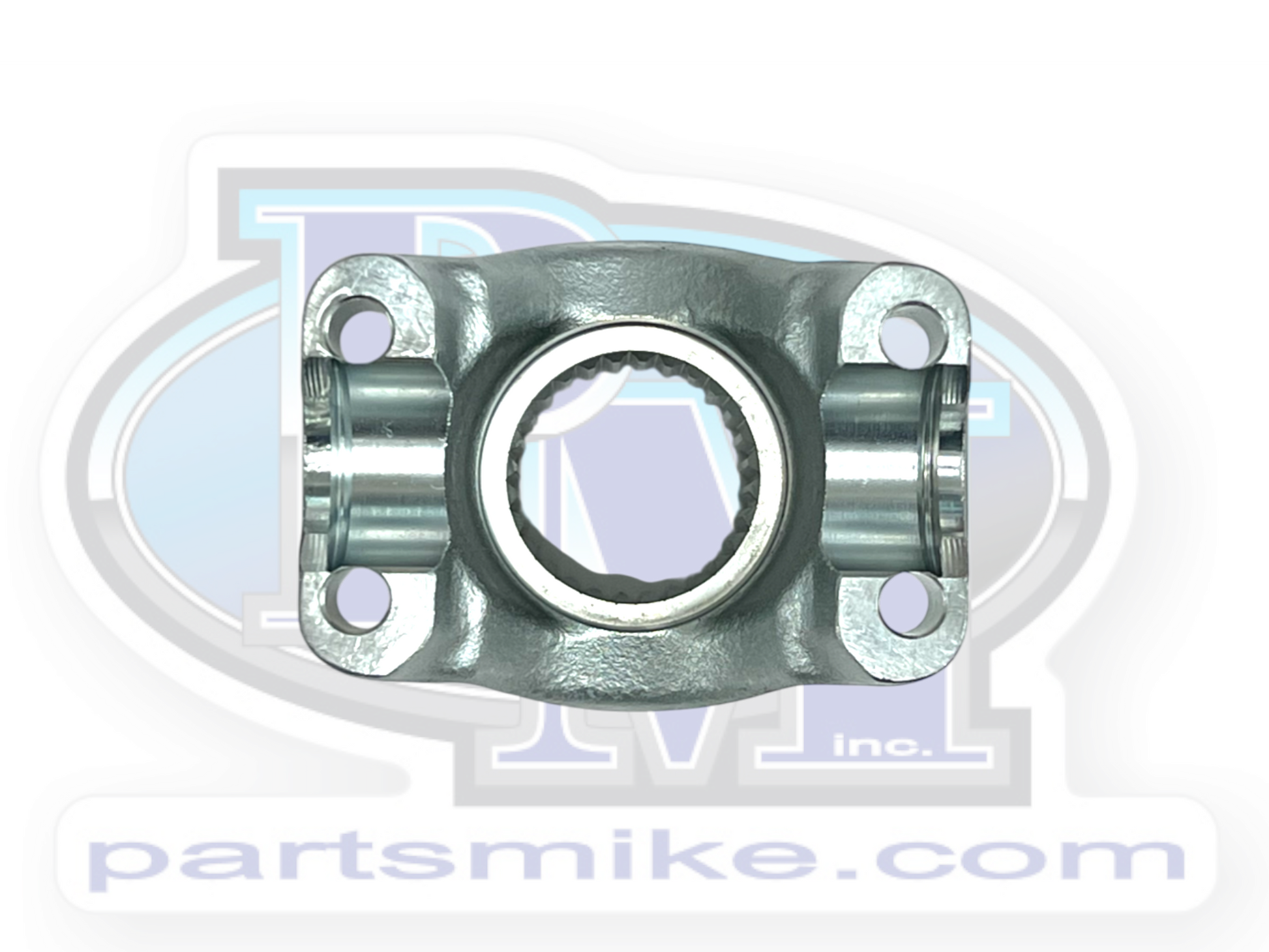

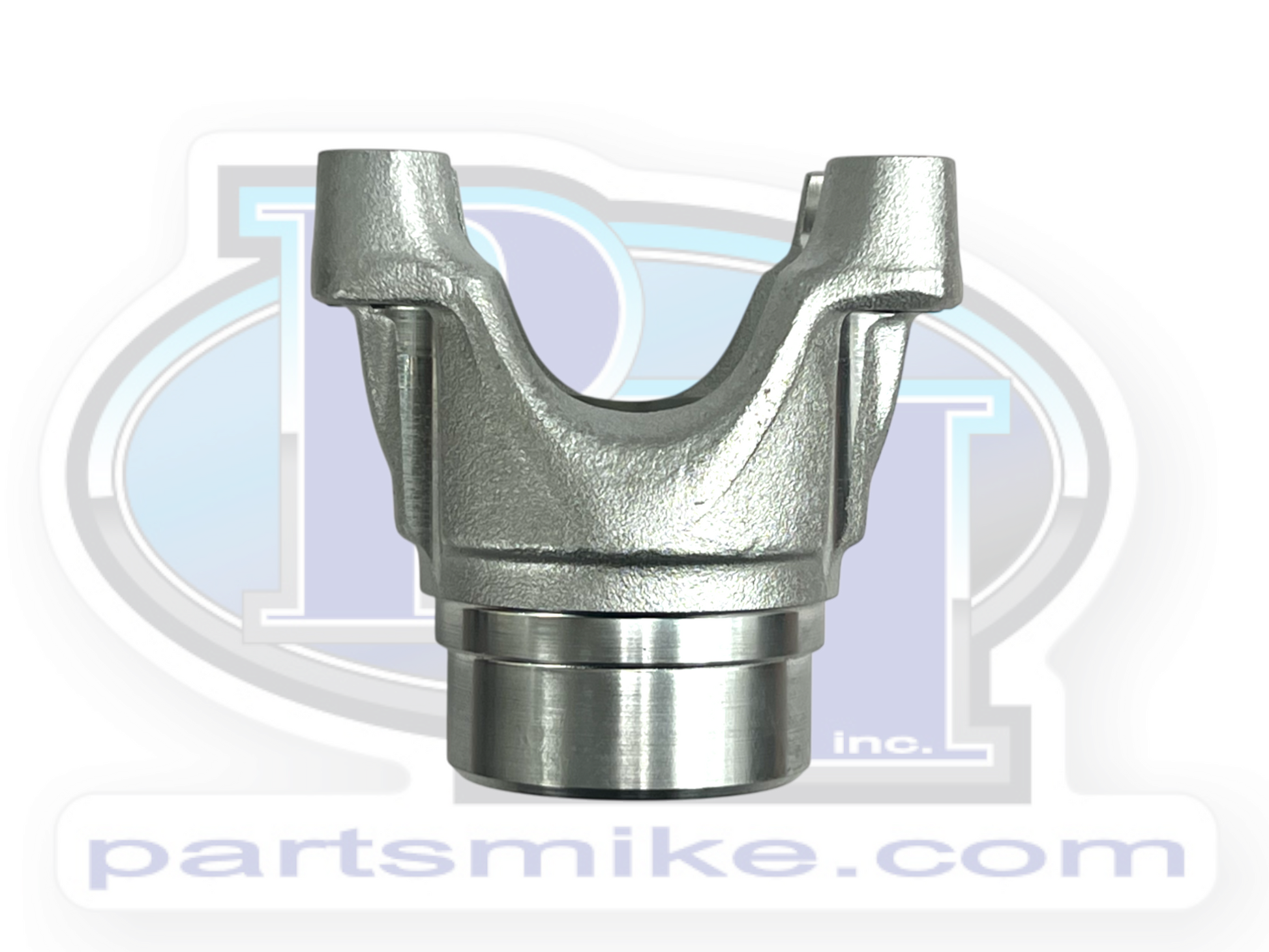

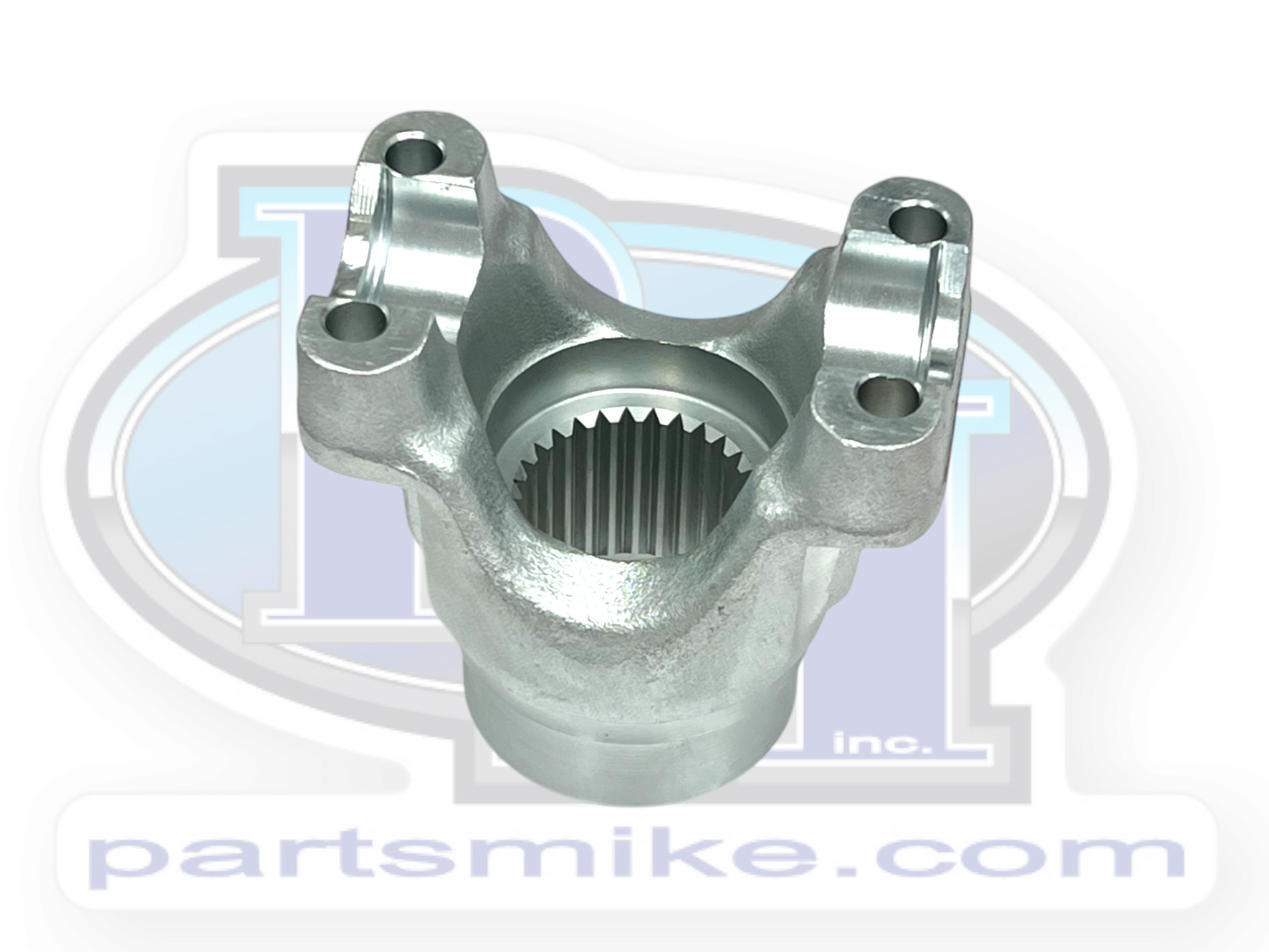

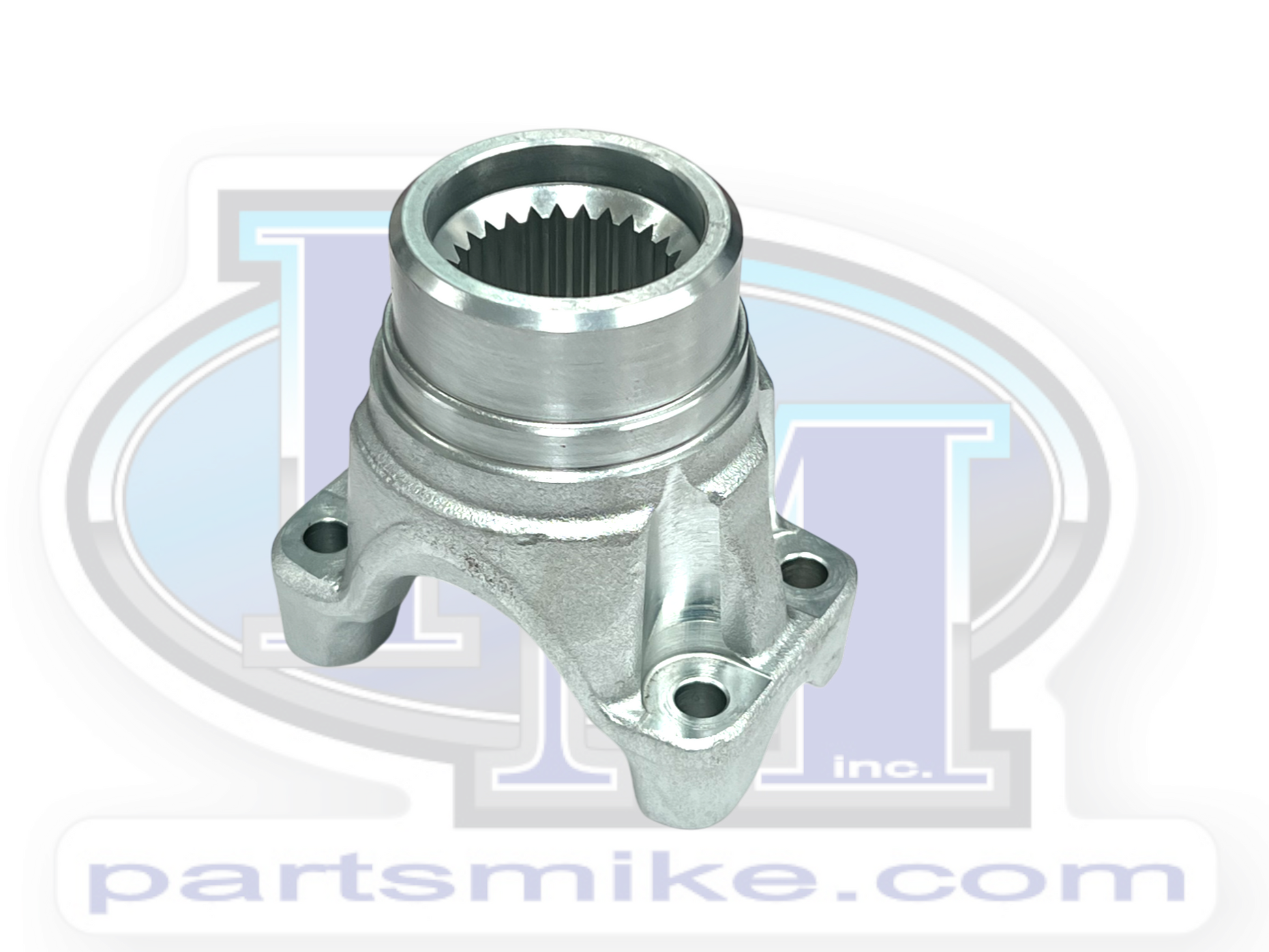

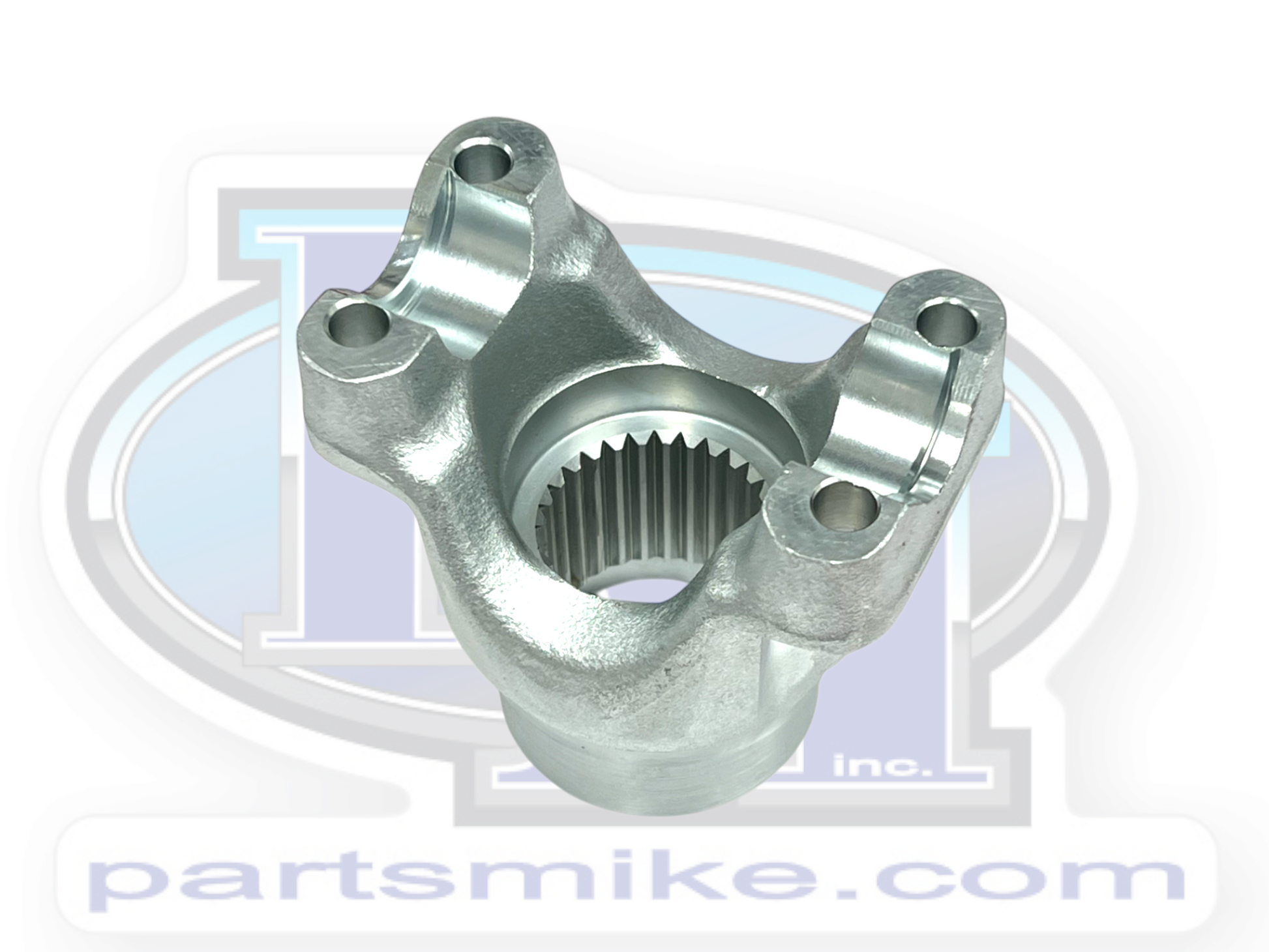

1310 End Yoke, 28 Splines, JL/JT M220 Rear Pinion, JL/JT Rubicon, Rear (M220), (PM3112-1004)

1310 End Yoke, JL/JT M220 Rear Pinion, JL/JT Rubicon, Rear (M220), PM3112-1004

Dimensions (Reference Image)

A: Seal Surface: 2.125"

B: Through Hole: 1.728"

C: Overall Length: 3.542

D: U-Joint Width: 3.217"

Major Spline Diameter: 1.483"

Counter Bore: .490"

Splines: 28

Does not come with U-Bolts.

For U-Bolts order part number DAN2-94-28X

Qty. 1
