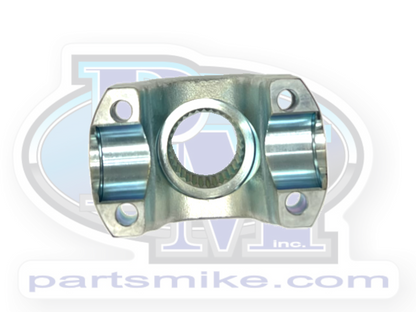

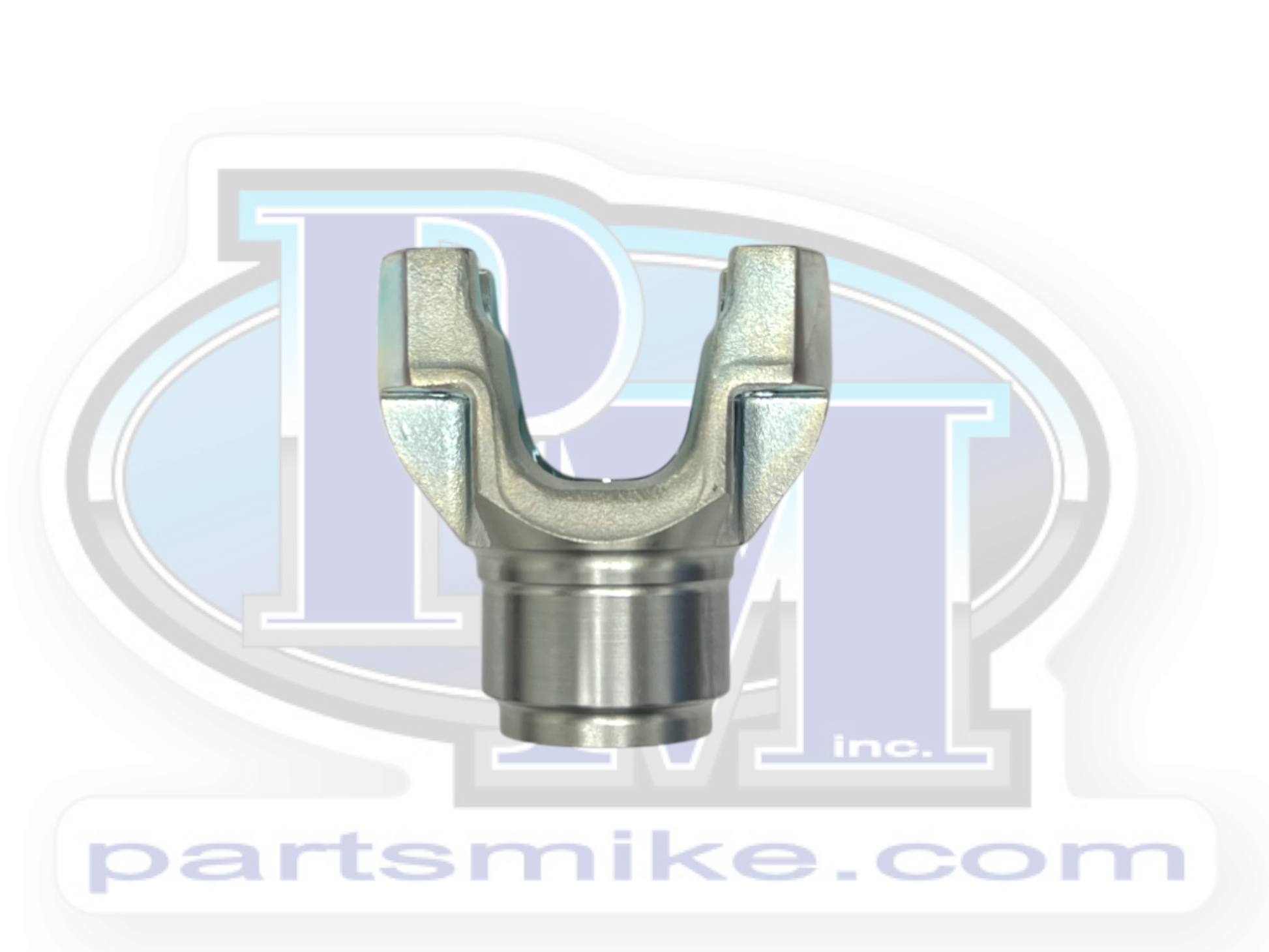

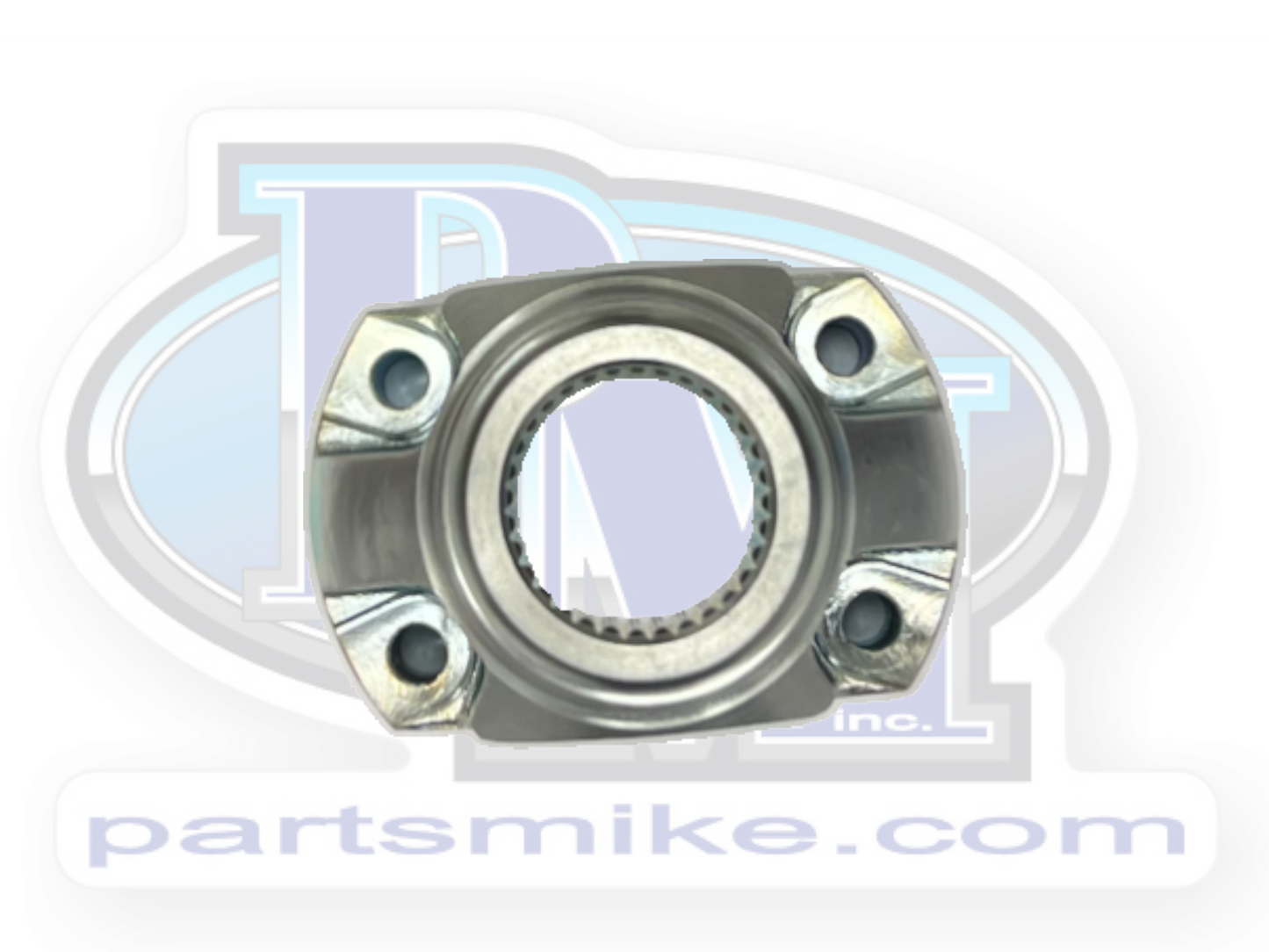

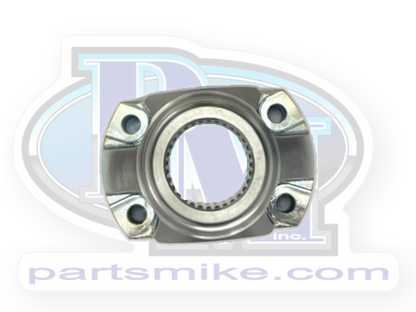

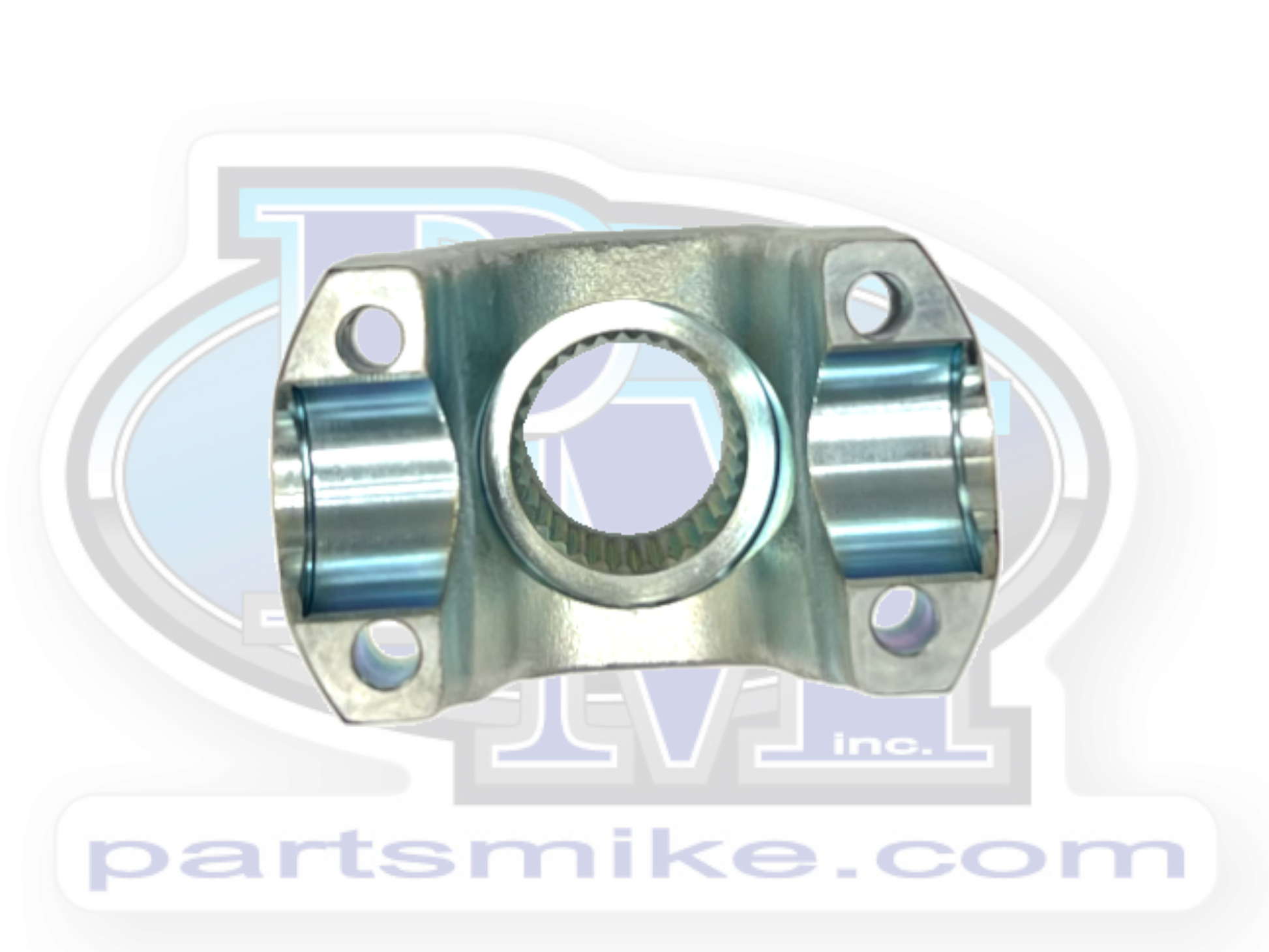

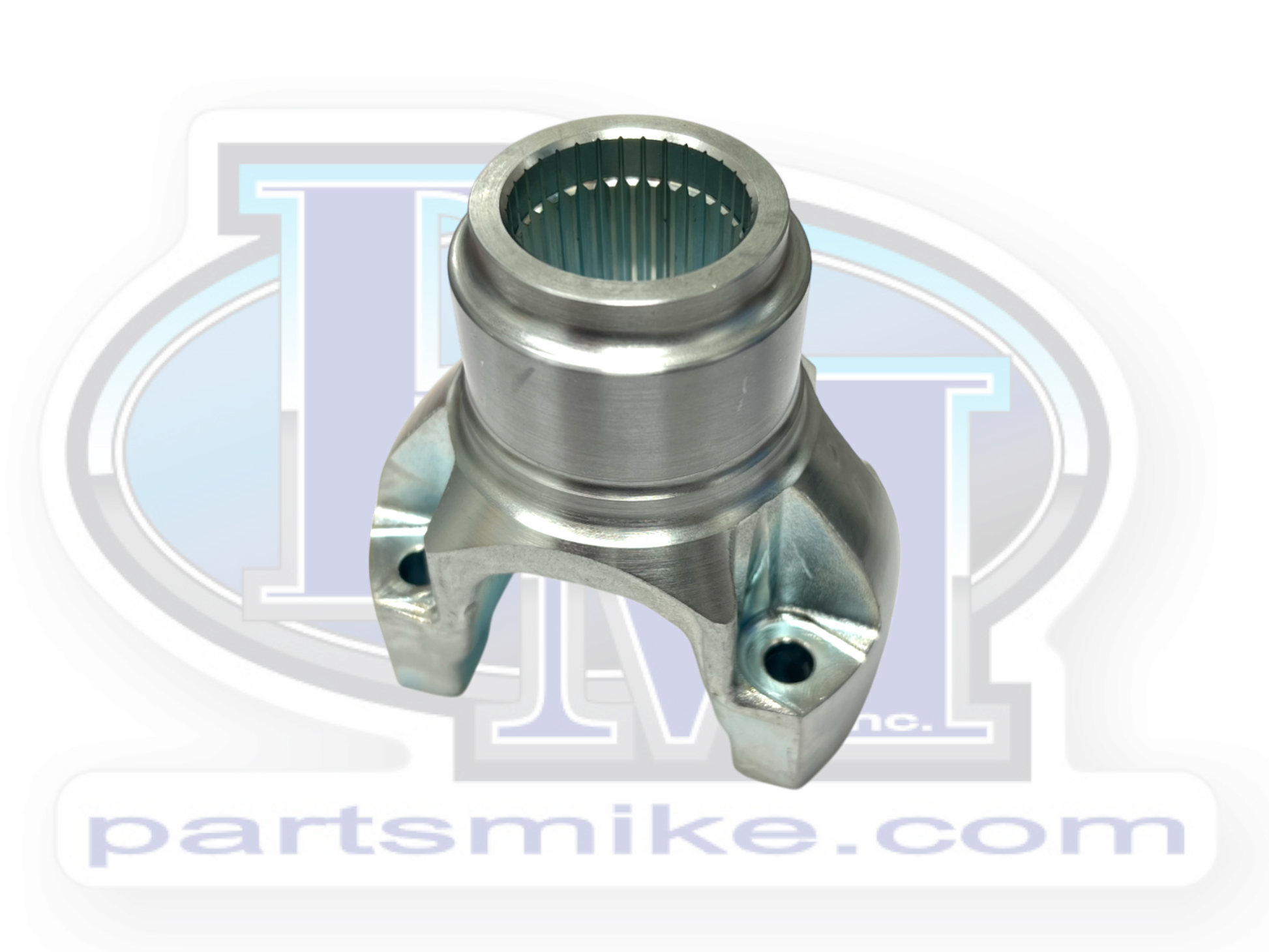

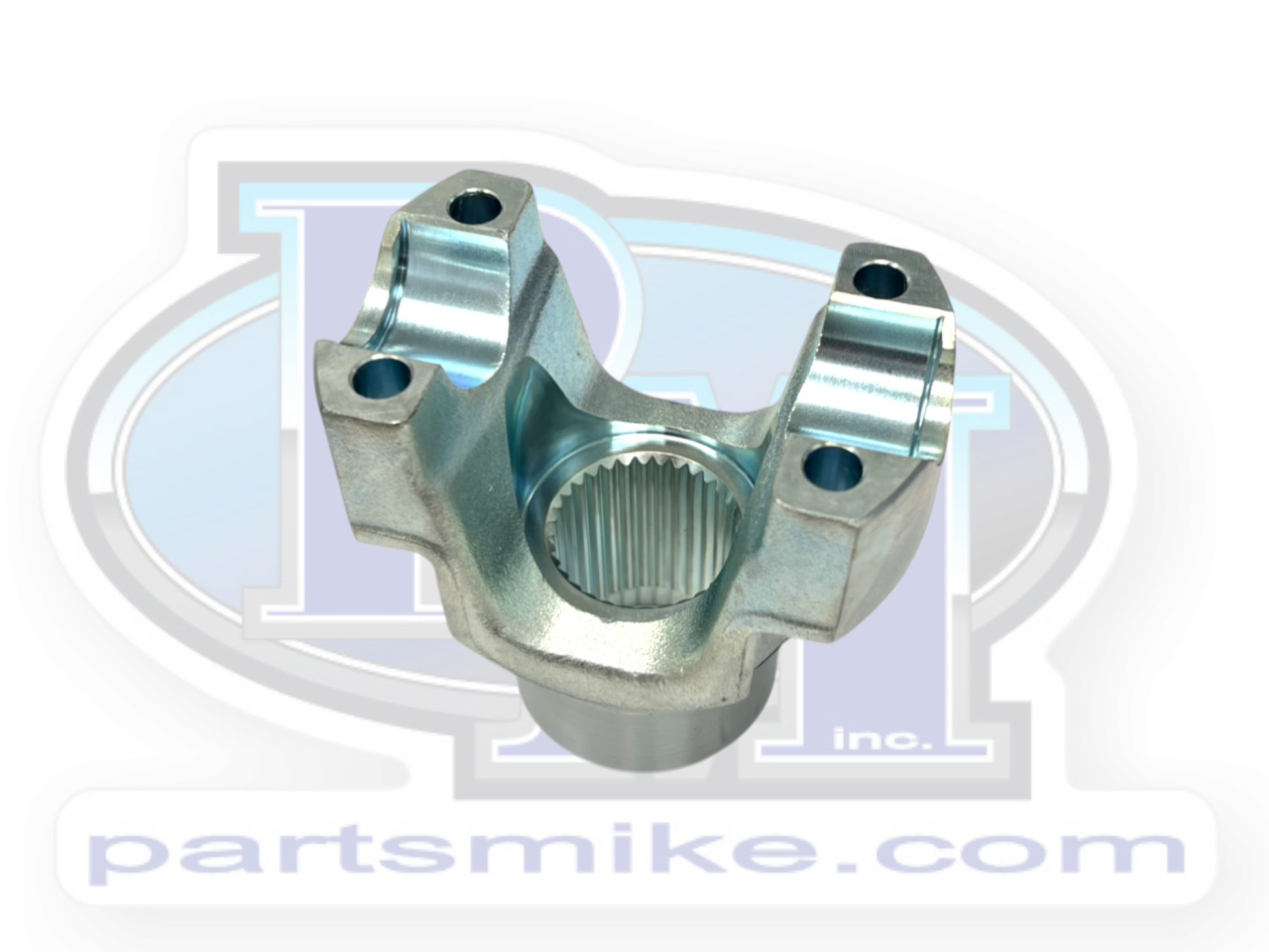

1350 End Yoke, 32 Spline, (PM3112-CV06)

1350 End Yoke, 32 Spline, PM3112-CV06

Dimensions (Reference Image)

A: Seal Surface: 2.126"

B: Through Hole: 2.000"

C: Overall Length: 4.000"

D: U-Joint Width: 3.630"

Major Spline Diameter: 1.385"

Counter Bore: .300"

Splines: 32

Does not include bolts.

For bolts, order DL3113-12PT-1.75"G

Replaces PM3-4-085

Qty. 1
