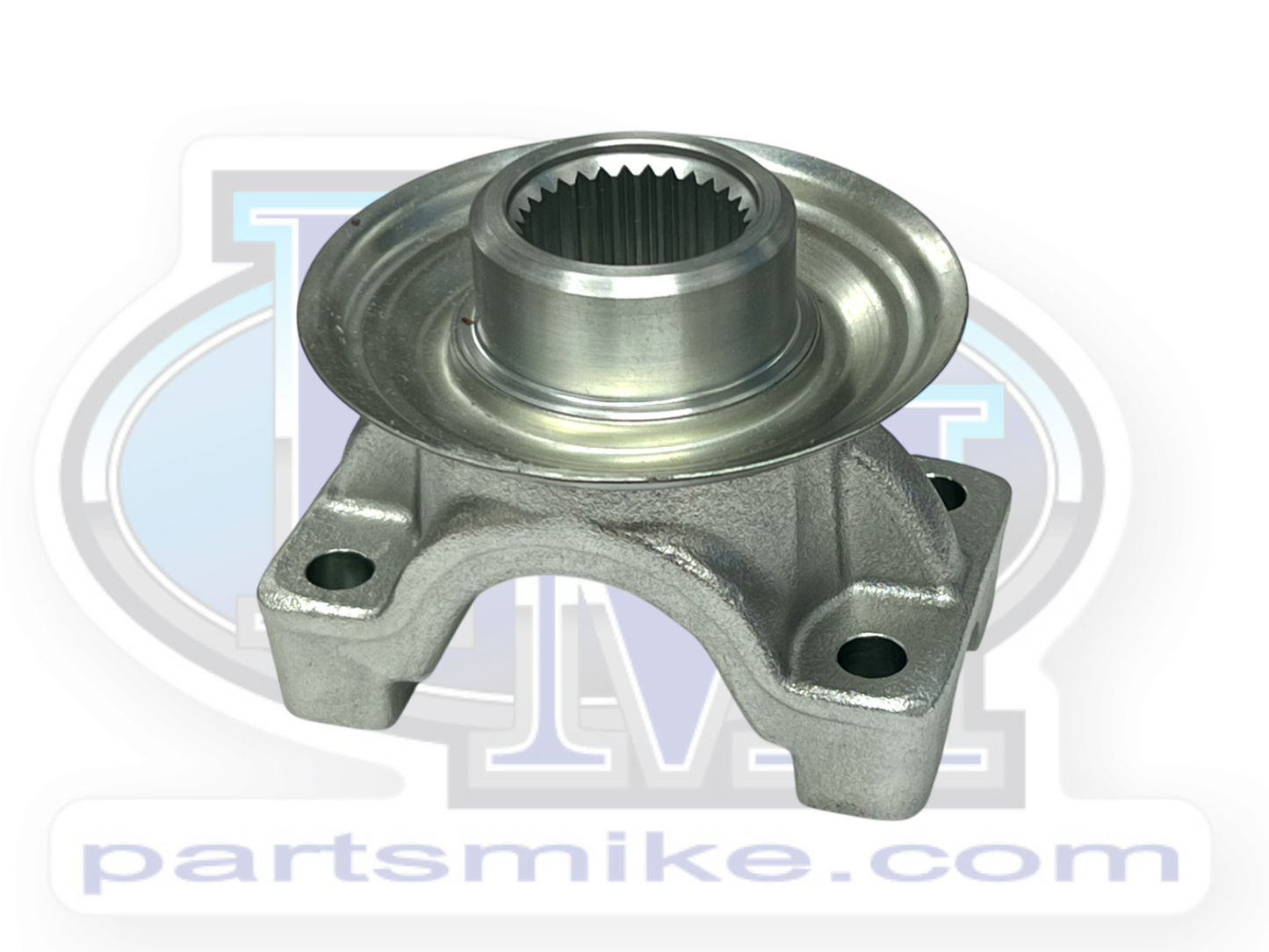

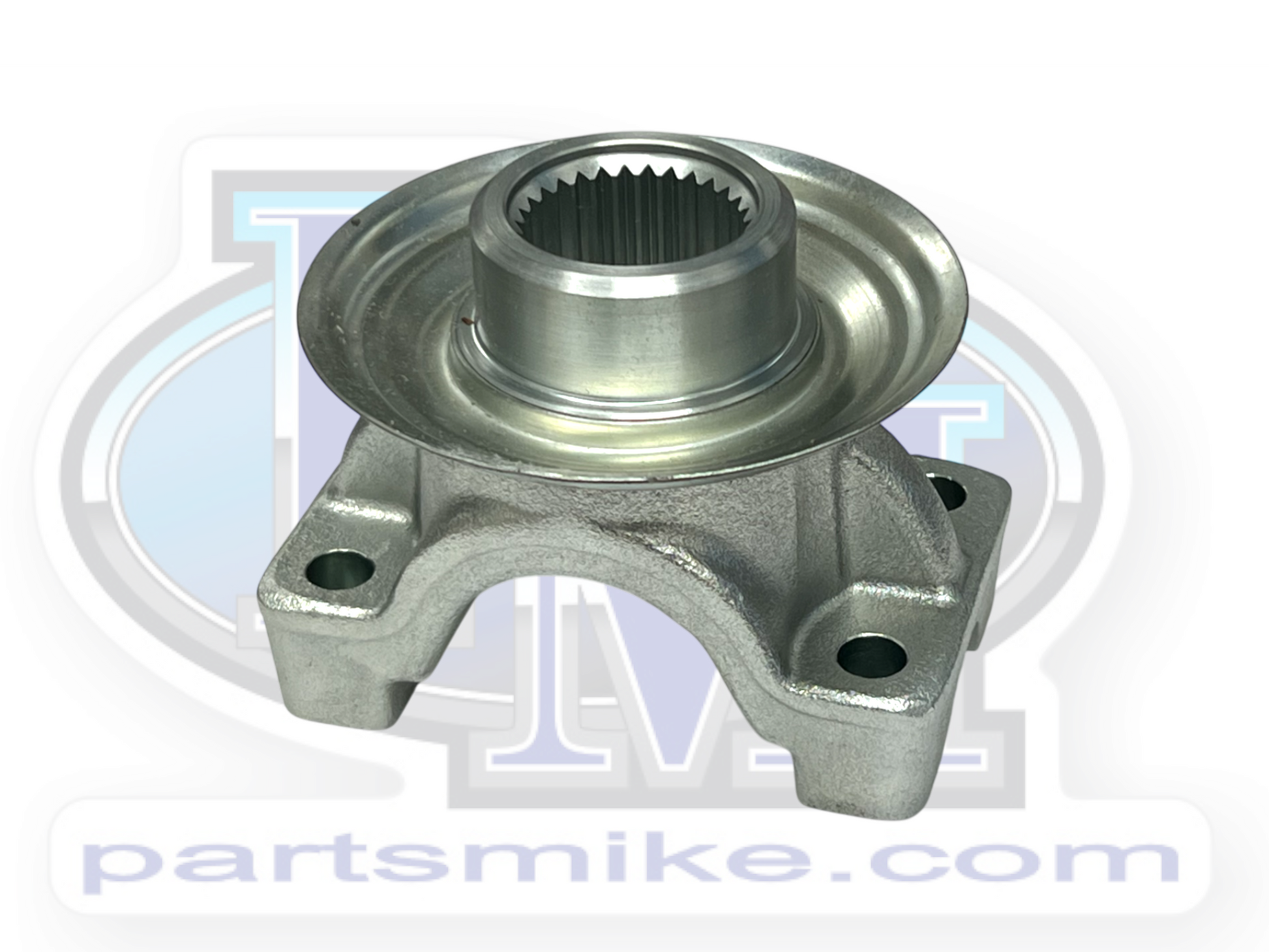

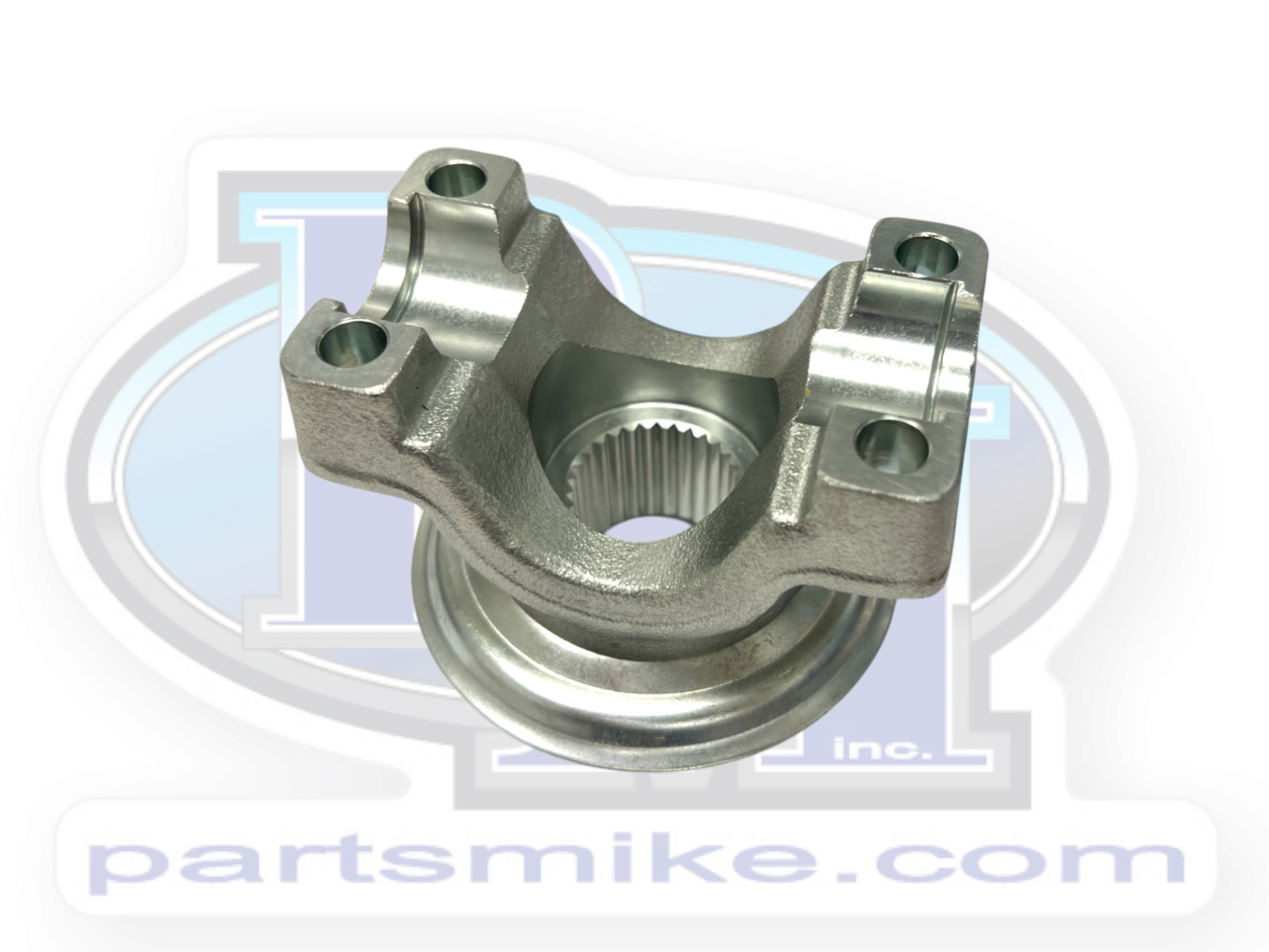

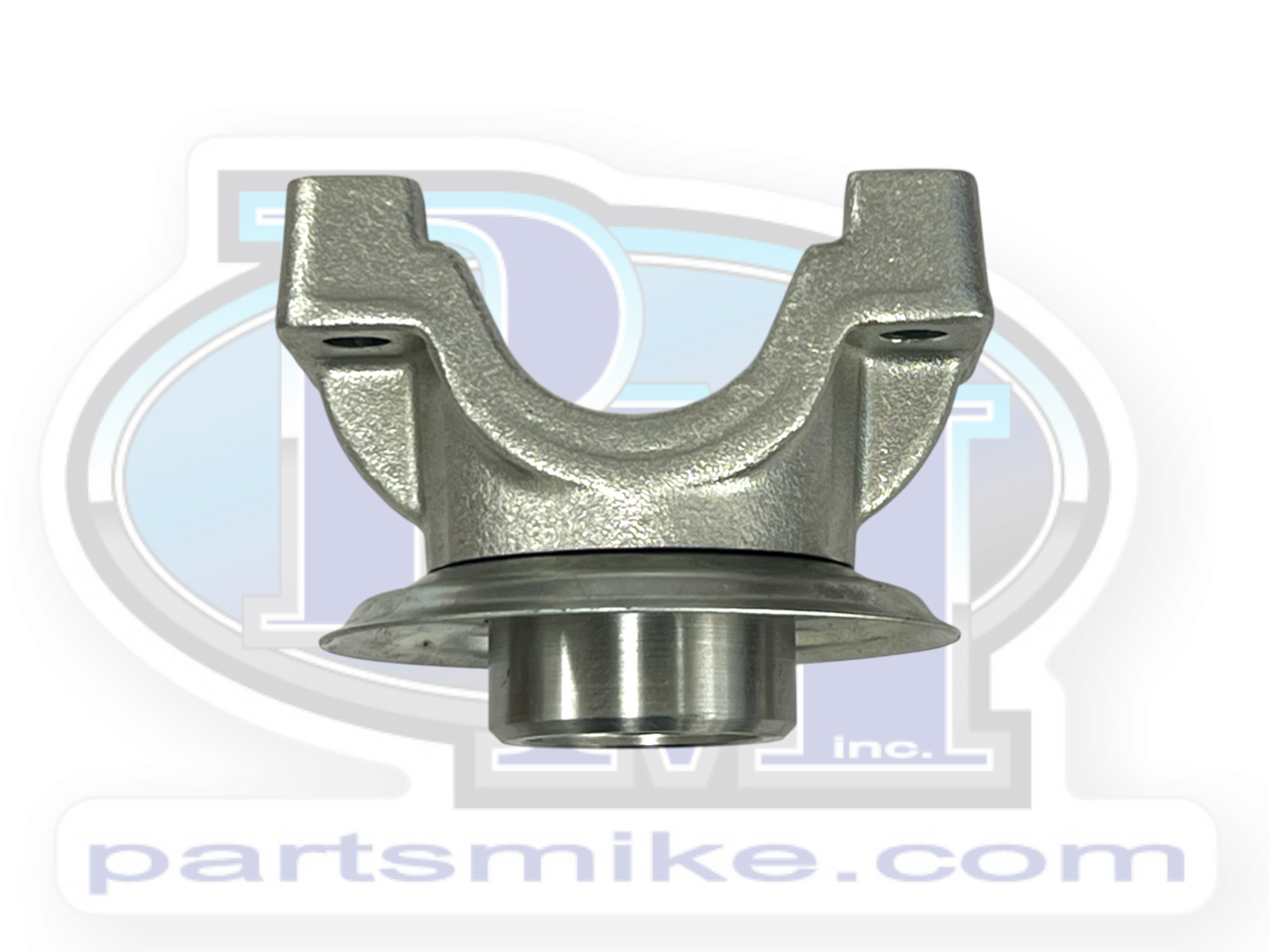

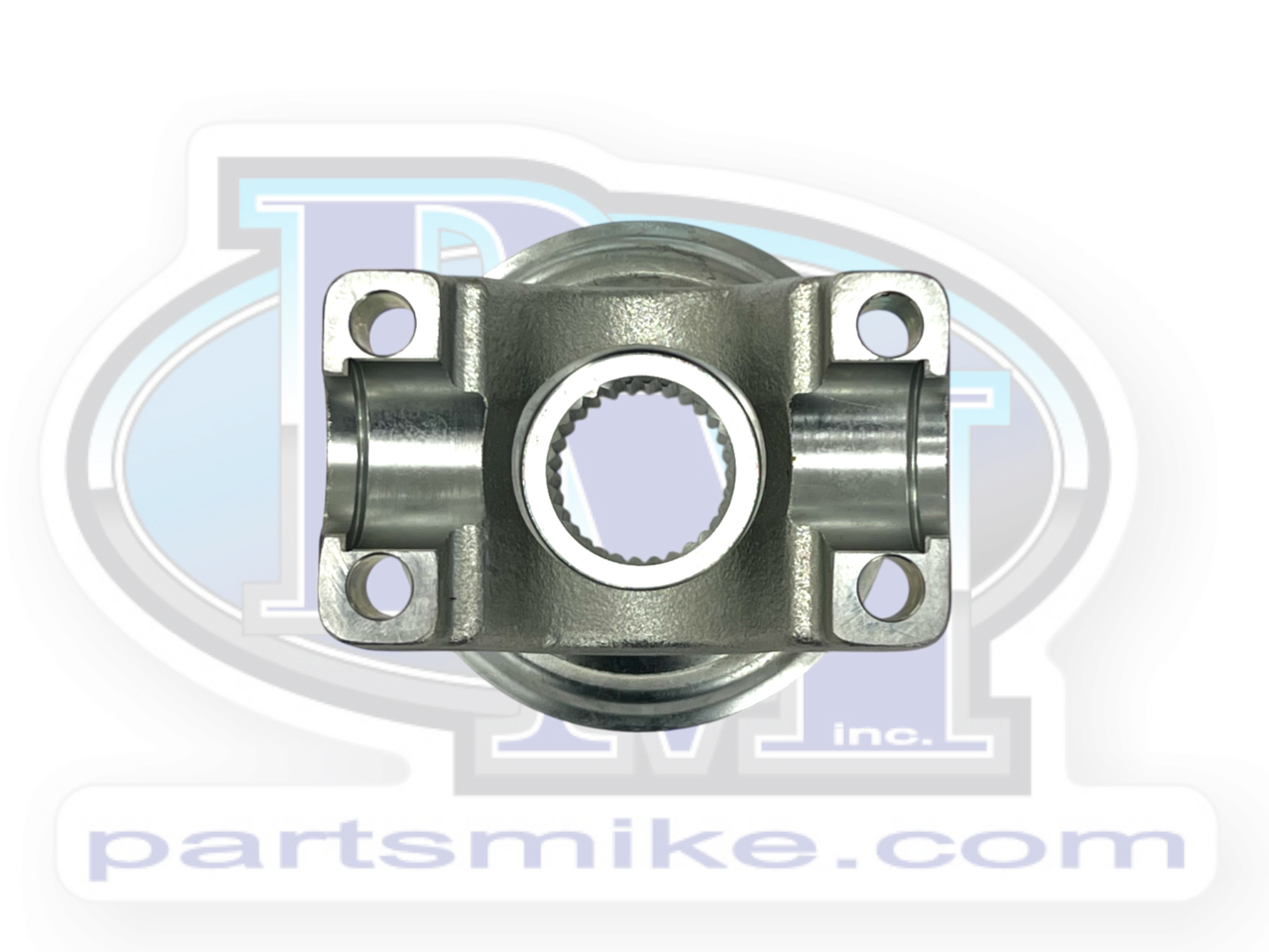

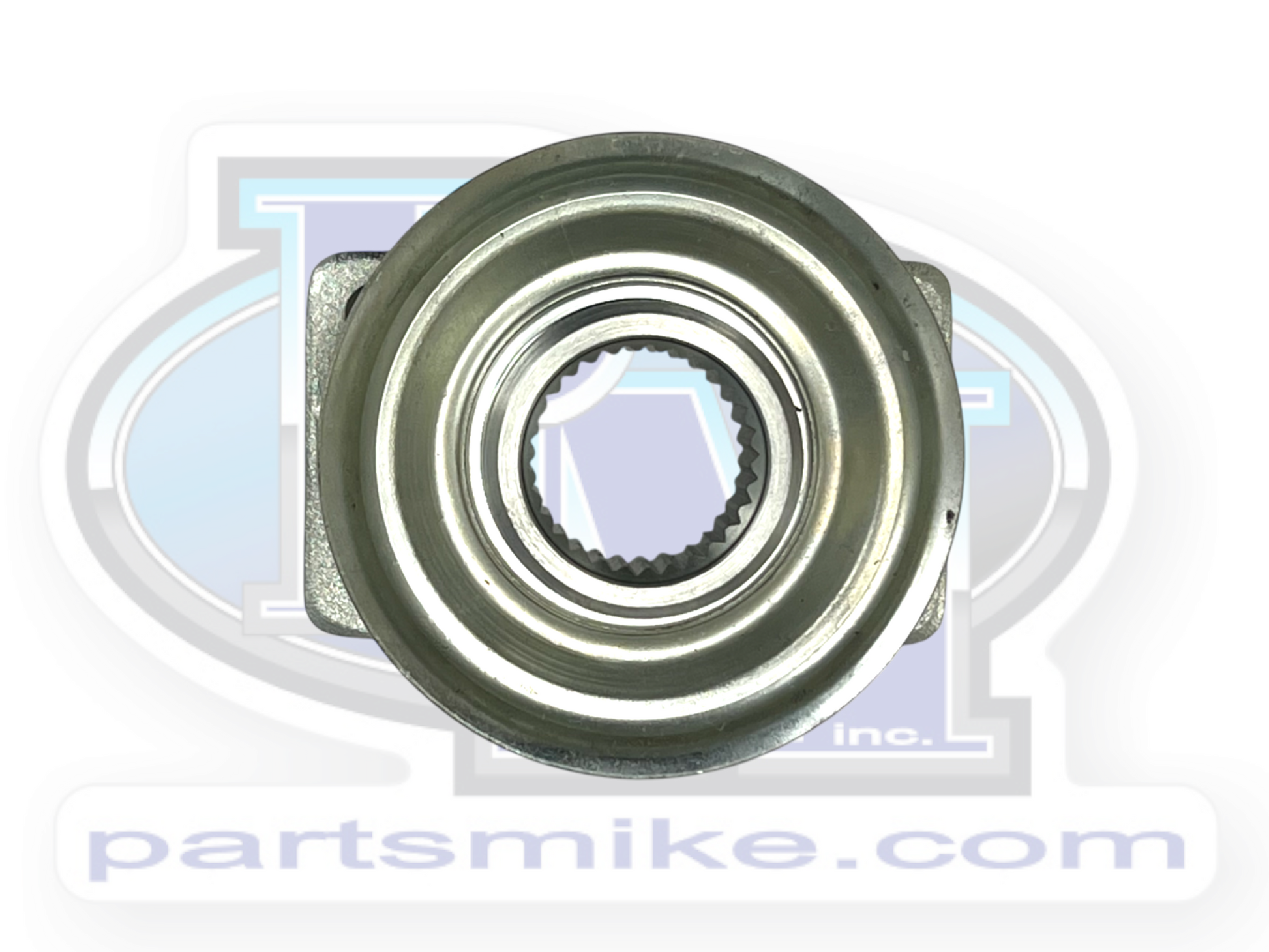

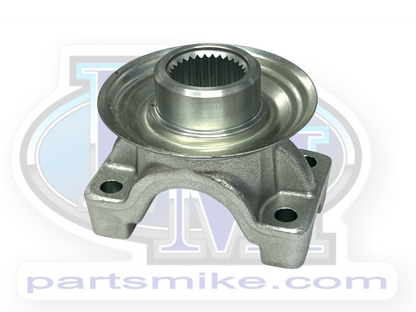

1350 End Yoke, Ford 8.8, 1350 U-Bolt Style, 30 Splines, (PM3112-5002)

1350 End Yoke, Ford 8.8, 1350 U-Bolt Style, PM3112-5002

Dimensions (Reference Image)

A: Seal Surface: 1.811"

B: Through Hole: 1.286"

C: Overall Length: 3.149"

D: U-Joint Width: 3.622"

Major Spline Diameter: 1.305"

Counter Bore: .070"

Splines: 30

Cross Reference: YY F880622

Qty. 1
