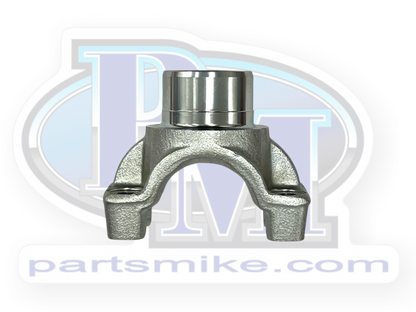

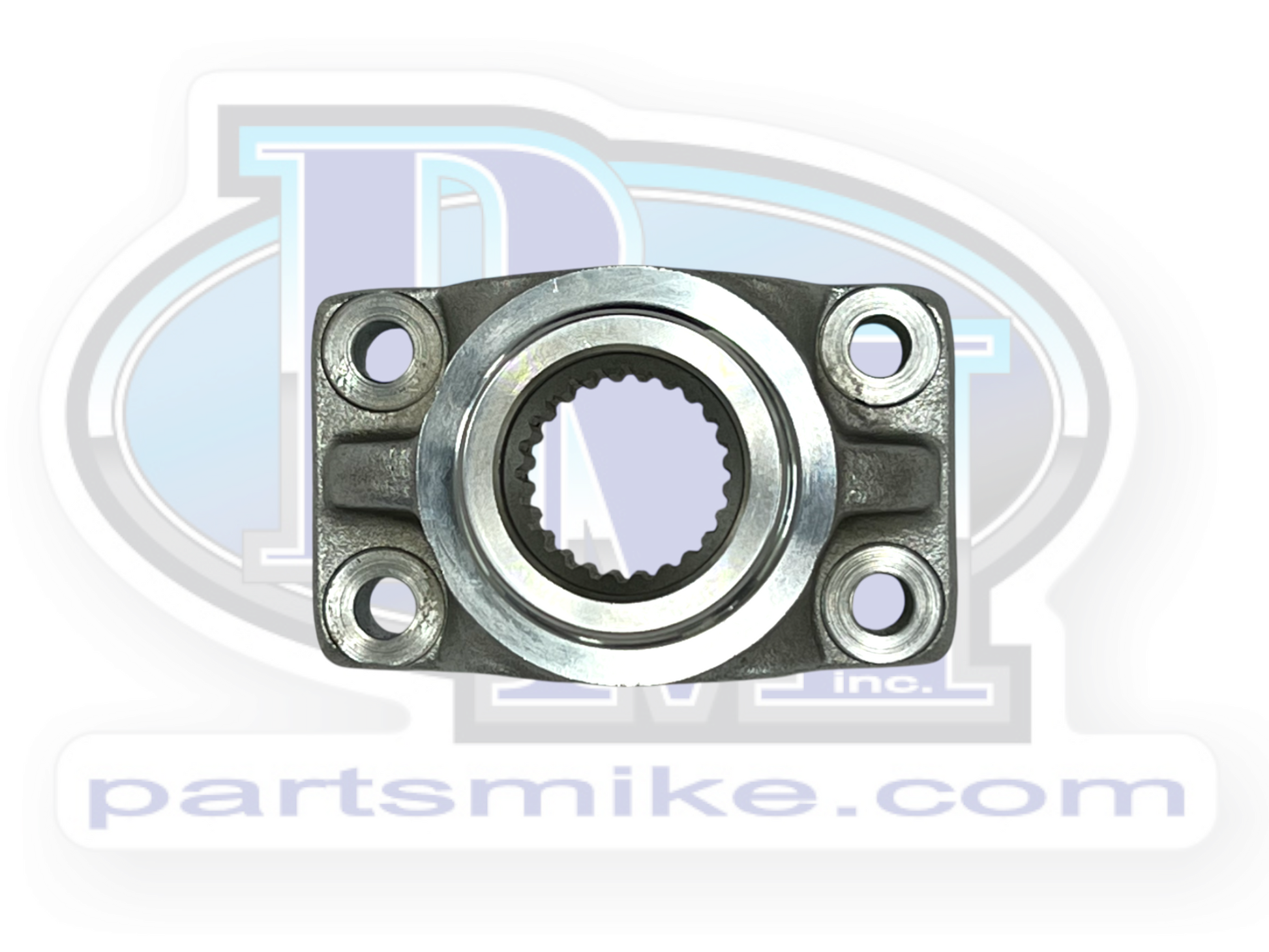

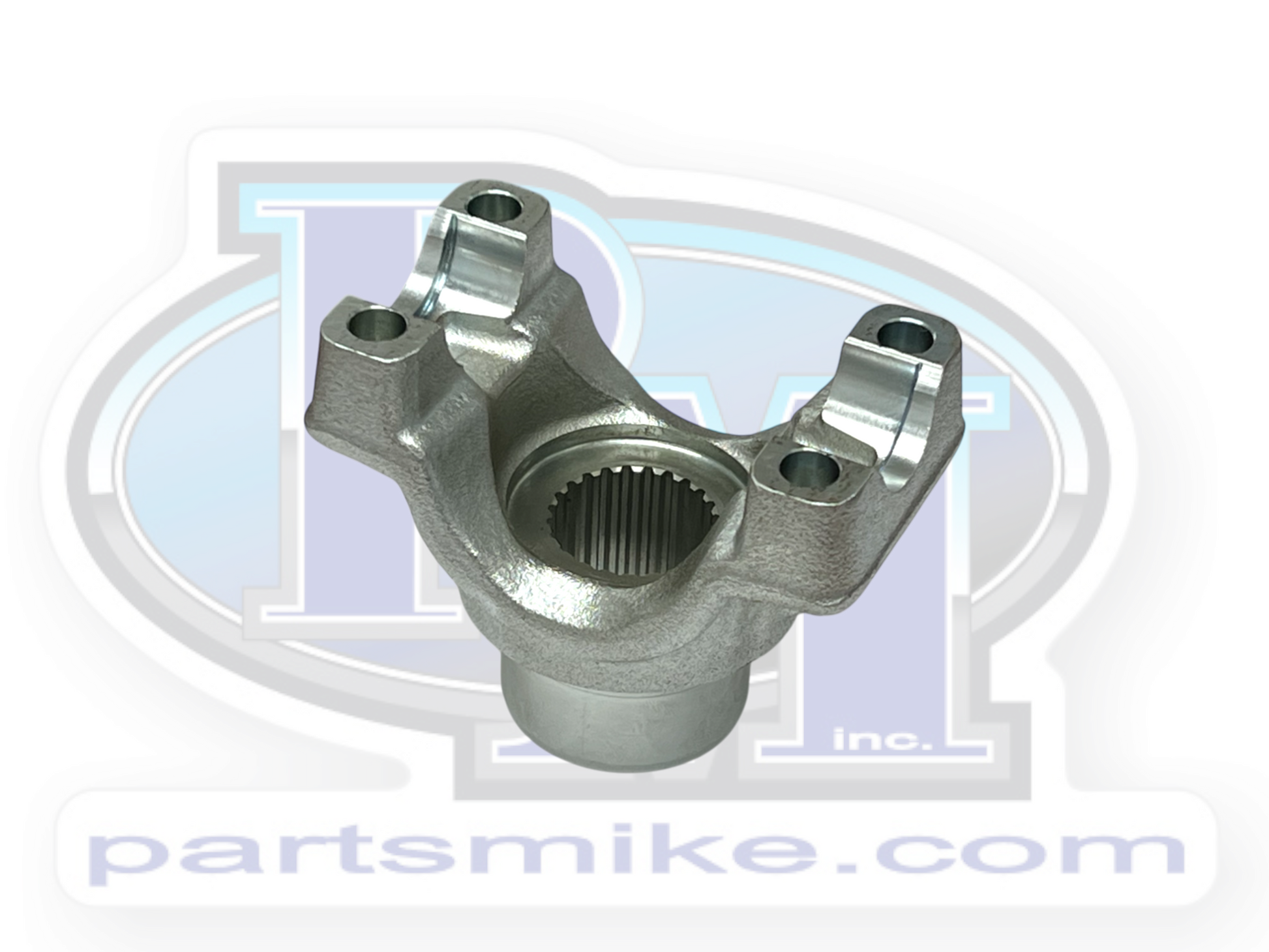

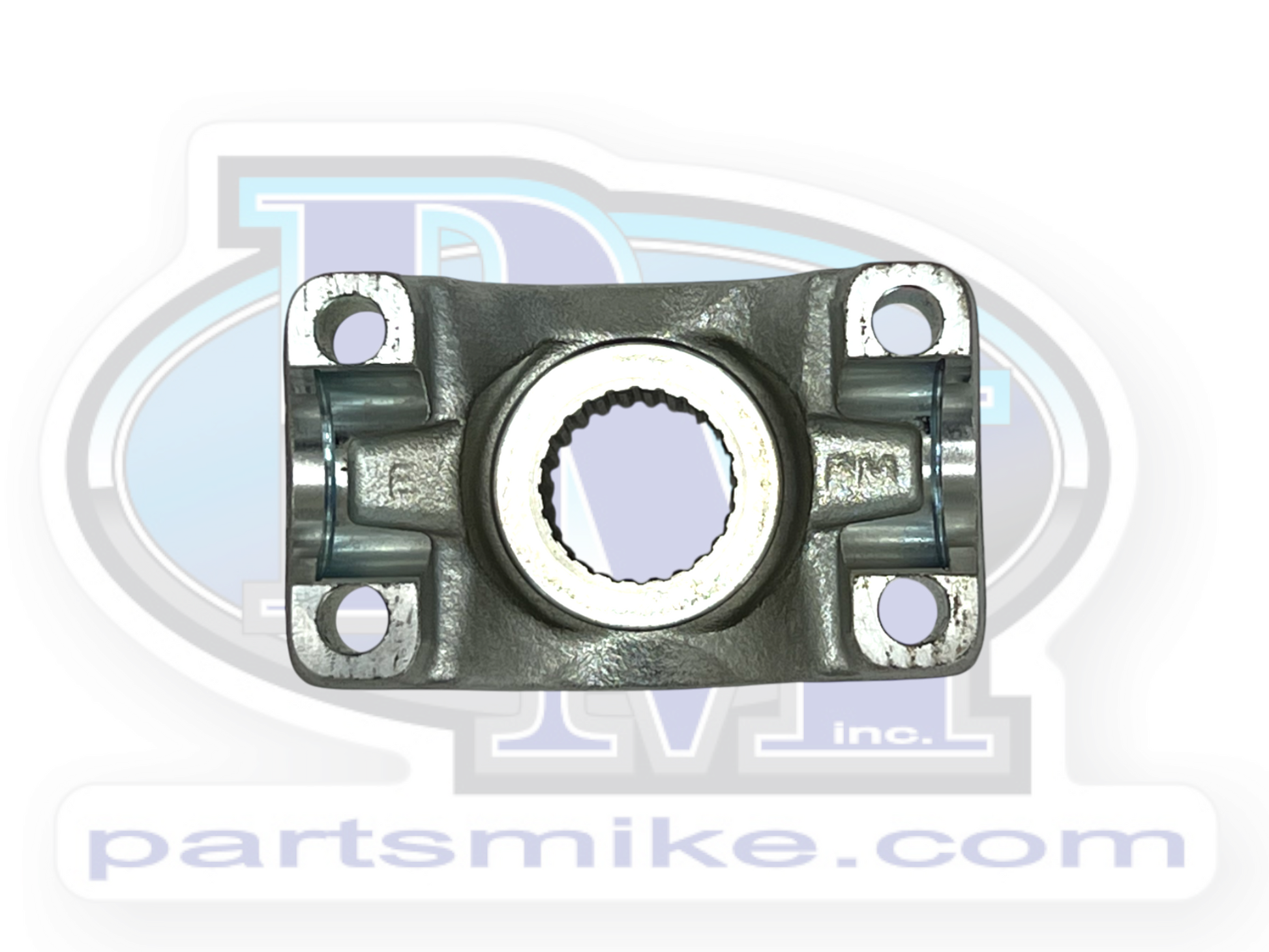

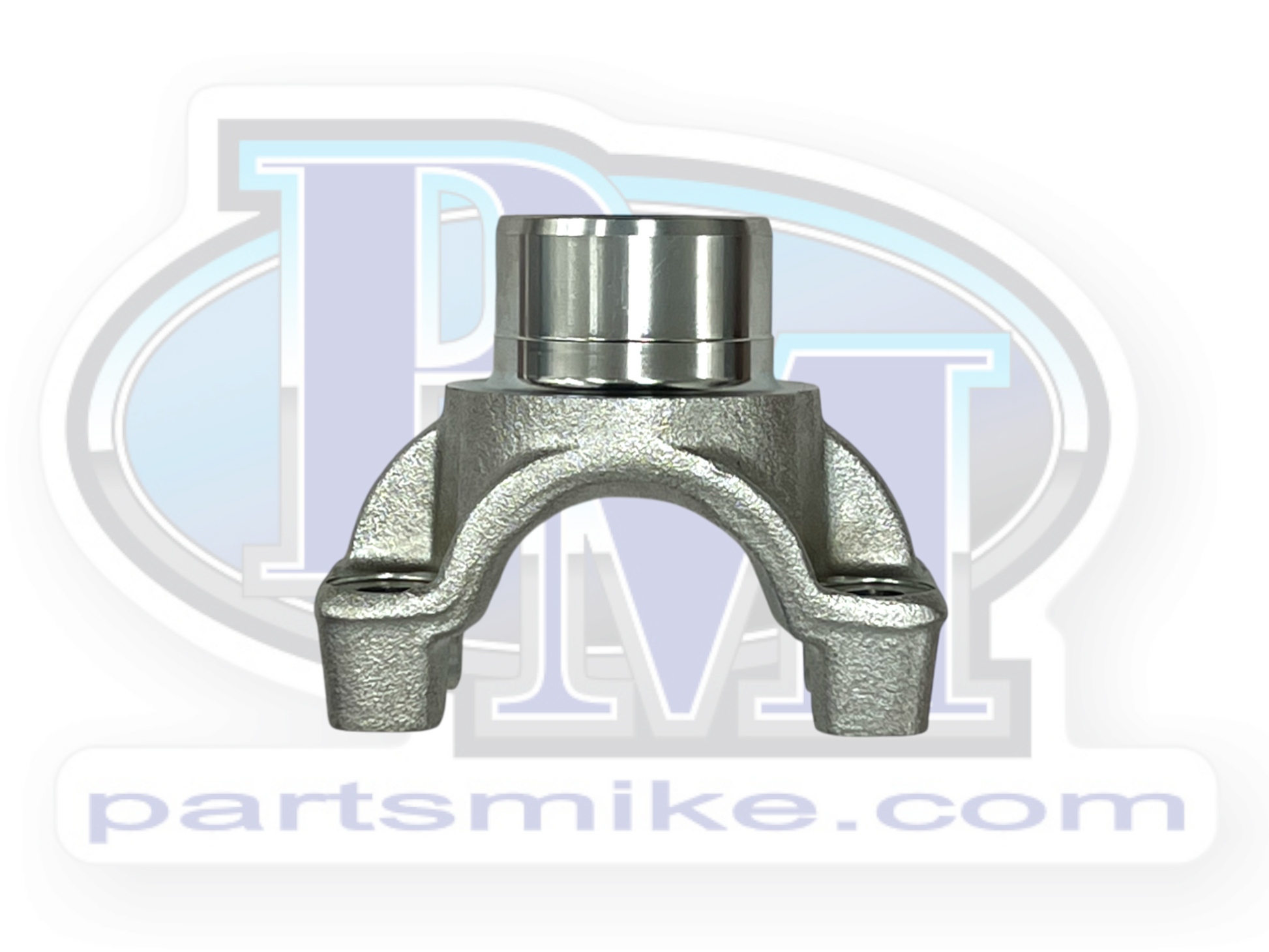

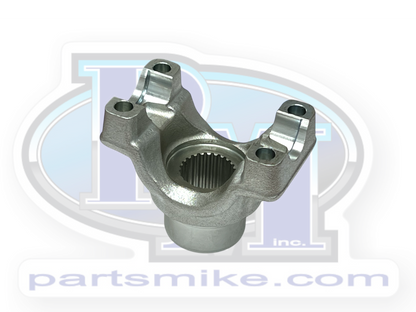

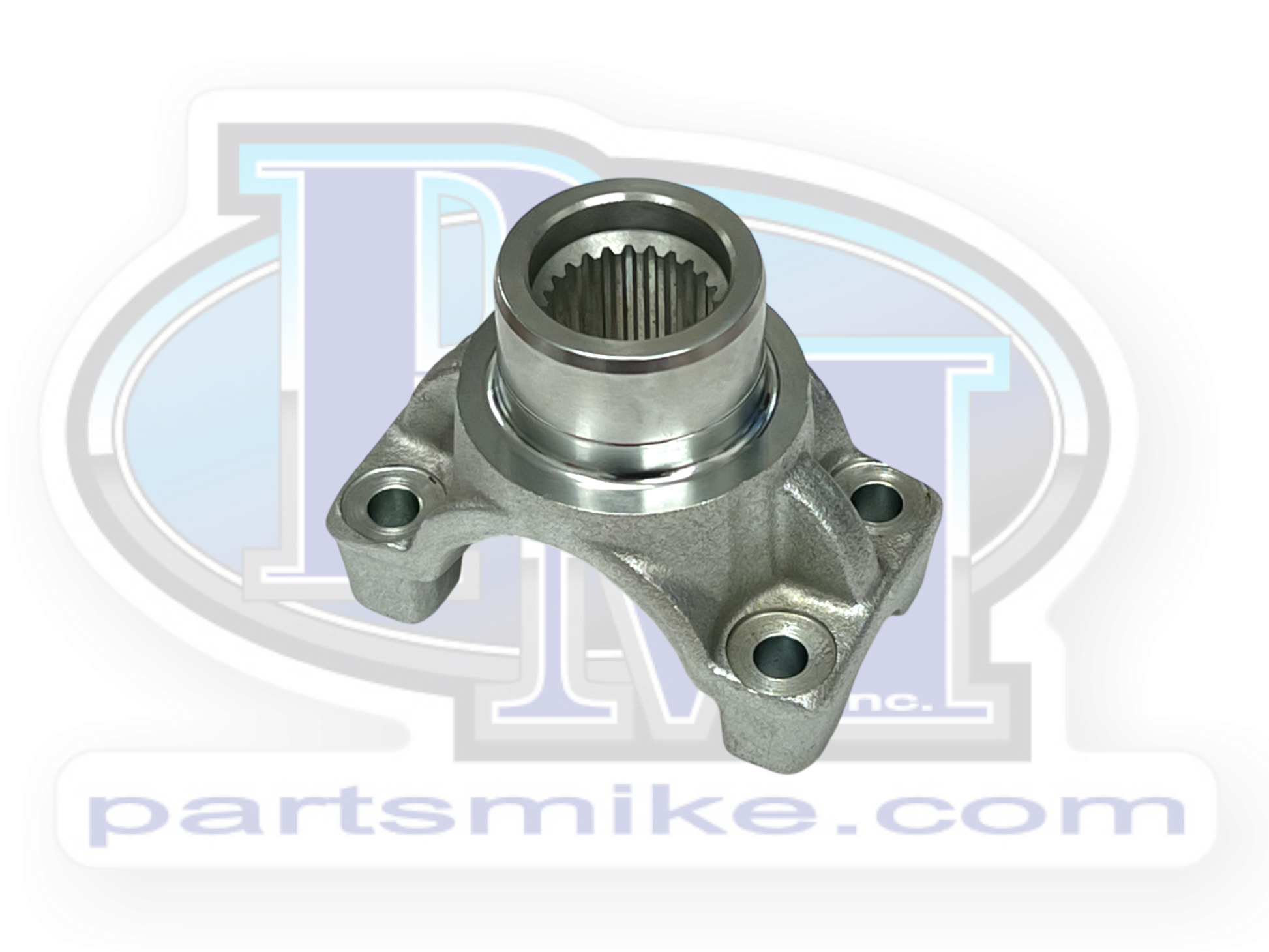

1350 End Yoke, JL, JT M200 Rear Pinion, 24 Splines, 1350 U-Bolt Style, (PM3112-5006)

1350 End Yoke, JL, JT M200 Rear Pinion, 1350 U-Bolt Style, PM3112-5006

Dimensions (Reference Image)

A: Seal Surface: 1.875"

B: Through Hole: 1.665"

C: Overall Length: 3.339"

D: U-Joint Width: 3.621"

Major Spline Diameter: 1.250"

Counter Bore: .300"

Splines: 24

Order Part Number DAN3-94-18X for the U-Bolts.

Cross Reference: PM3112-5006

Qty. 1
