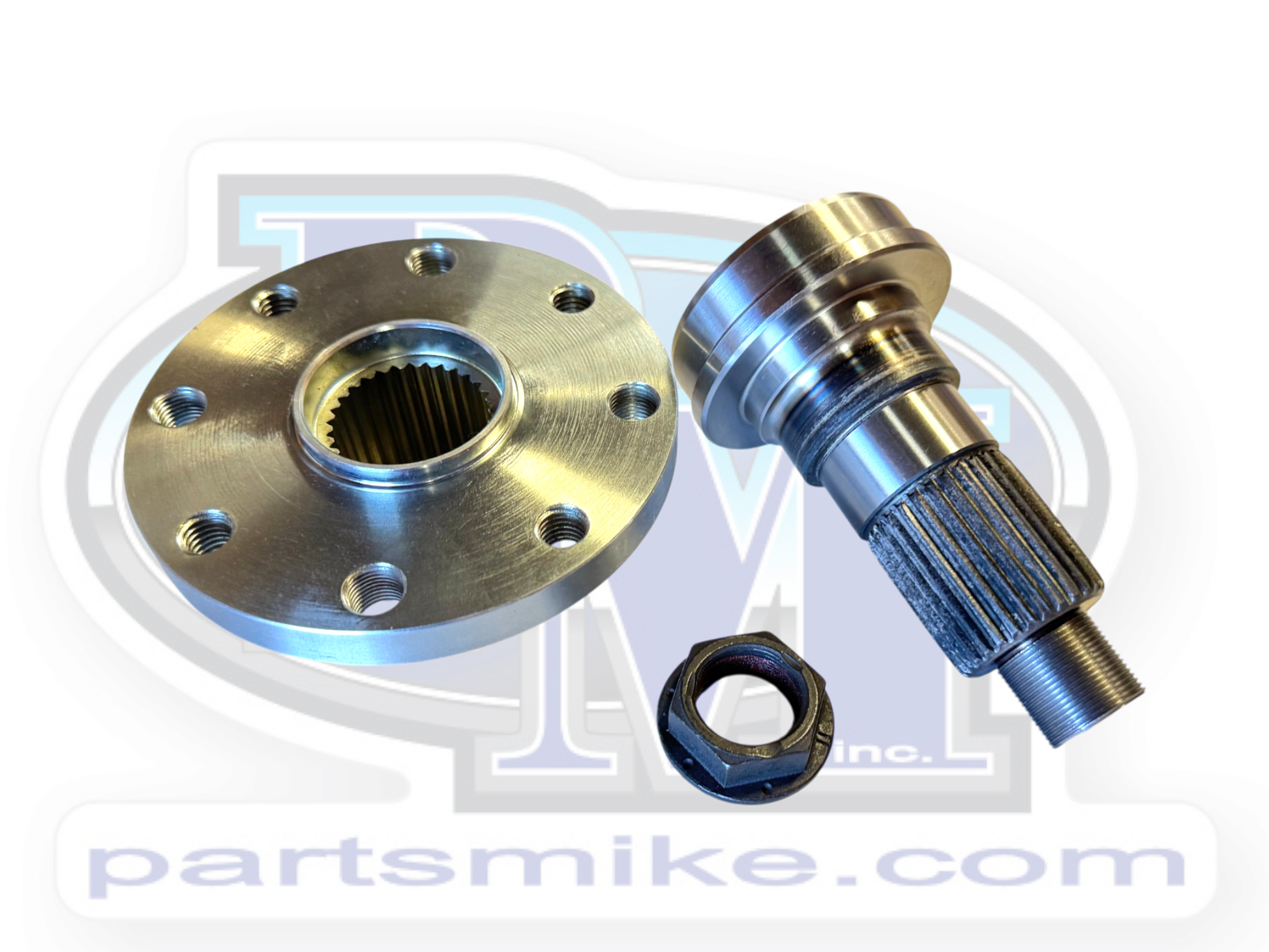

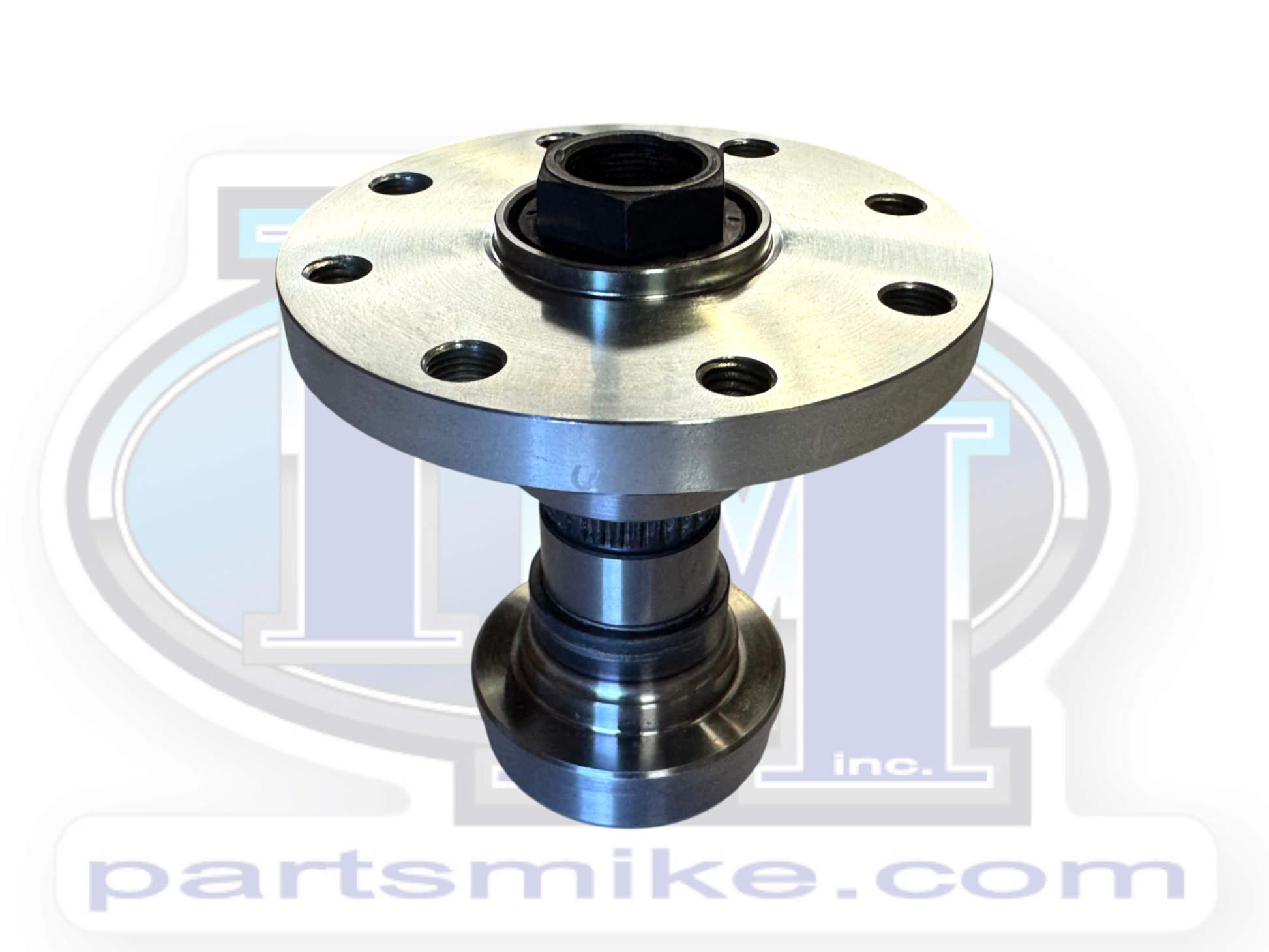

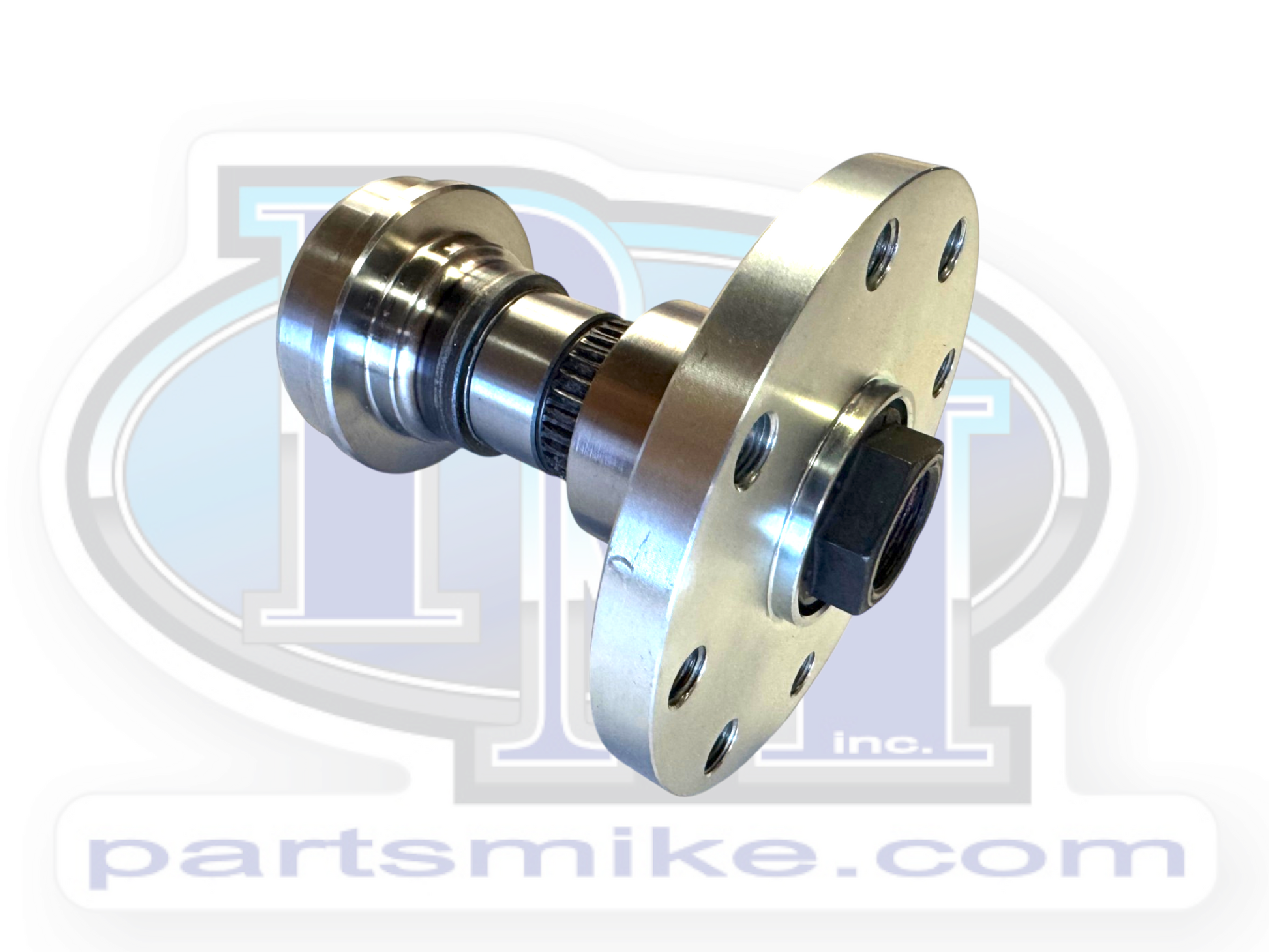

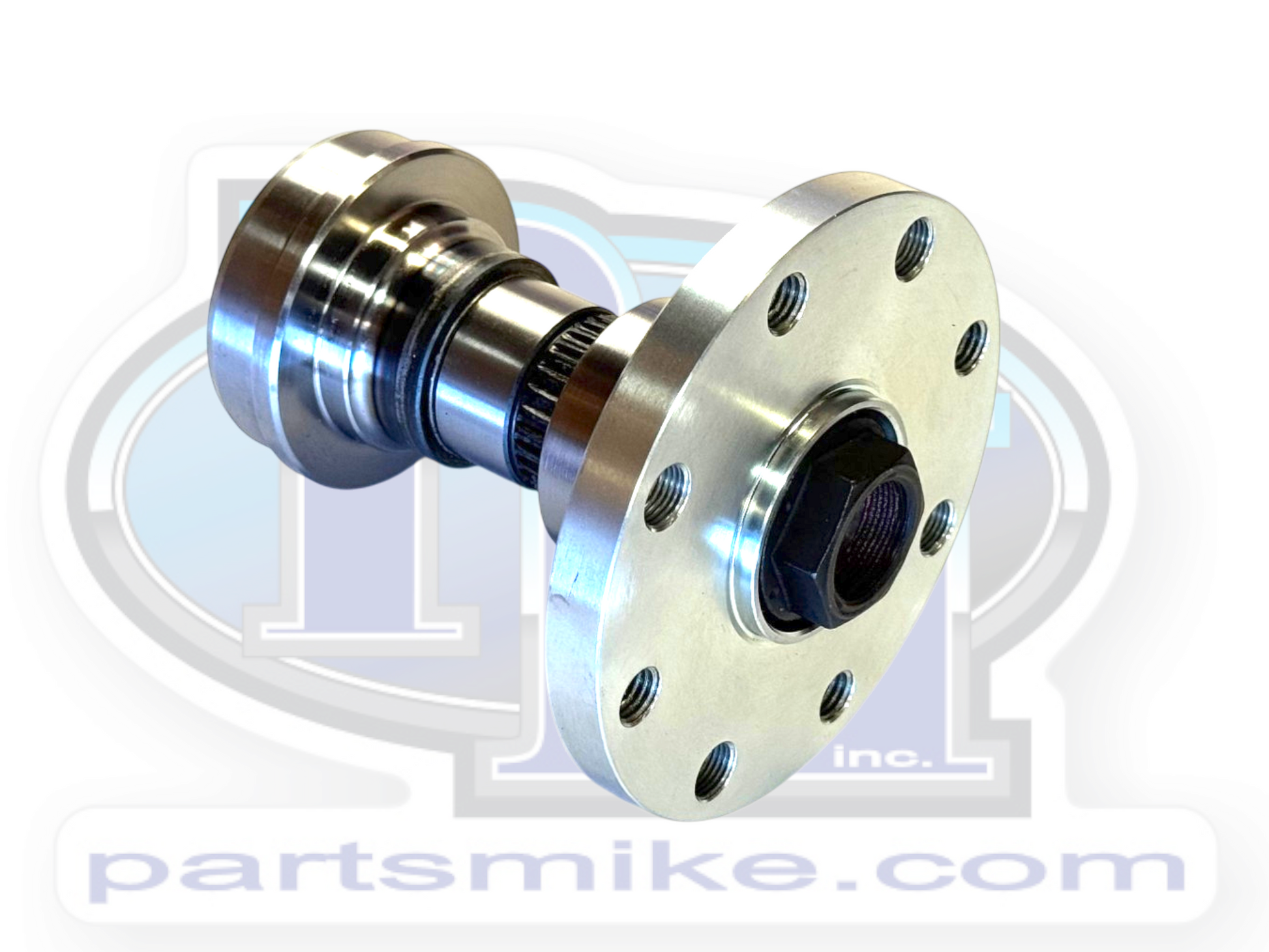

30 Spline Midship Kit, Companion Flange, Stub and Nut (PM3114-0030G)

30 Spline Midship Kit, Companion Flange, Stub and Nut.

Fits Tube Size

3" x .083" Wall.

Bolt Hole Pattern

(4.25" Round Bolt Hole Pattern)

4 - M12 x 1.75 tpi. holes

4 - 1/2" x 20 tpi. holes

(Companion Flange)

Dimensions

A: Pilot Diameter: 1.811"

B: Seal Surface: 2.200"

C: Through Hole: 1.625"

D: End of Flange Face to end of Seal Surface: 1.830"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .523"

Spline Major Diameter: 1.592"

Counter Bore: 0

Splines: 30

(Stub Shaft)

Dimensions

Tube Press Diameter: 2.844"

Bearing Surface Diameter: 1.574"

Spline Major Diameter: 1.566"

Spline Length: 1.653"

Midship Thread Diameter: 1" x 20 tpi.

Overall Length: 5.244"

Qty. 1
