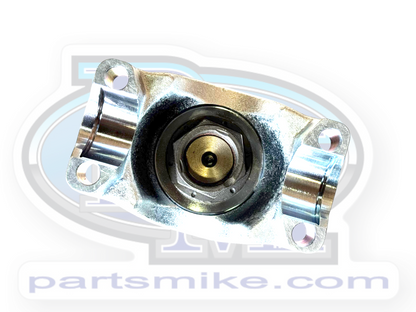

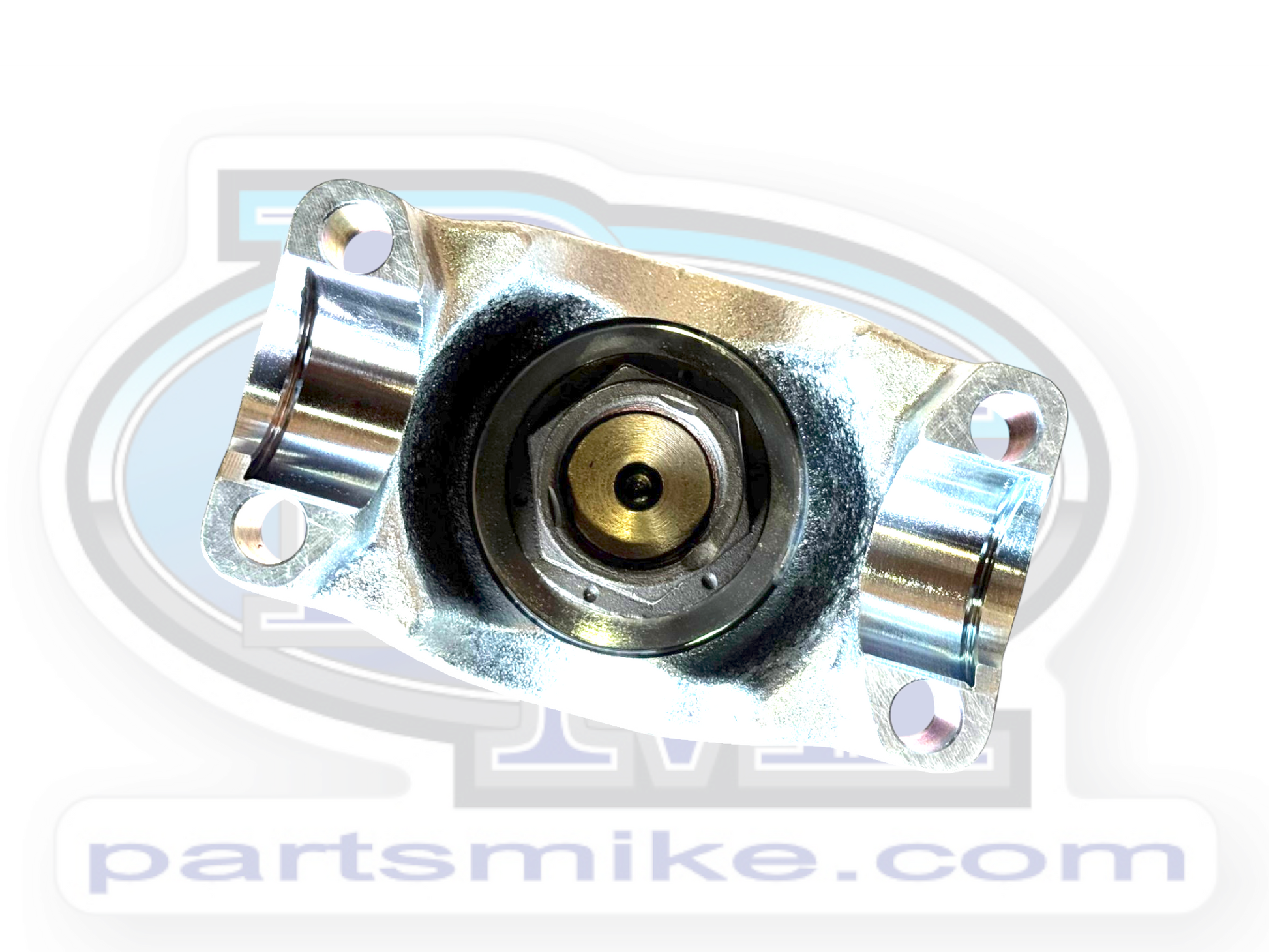

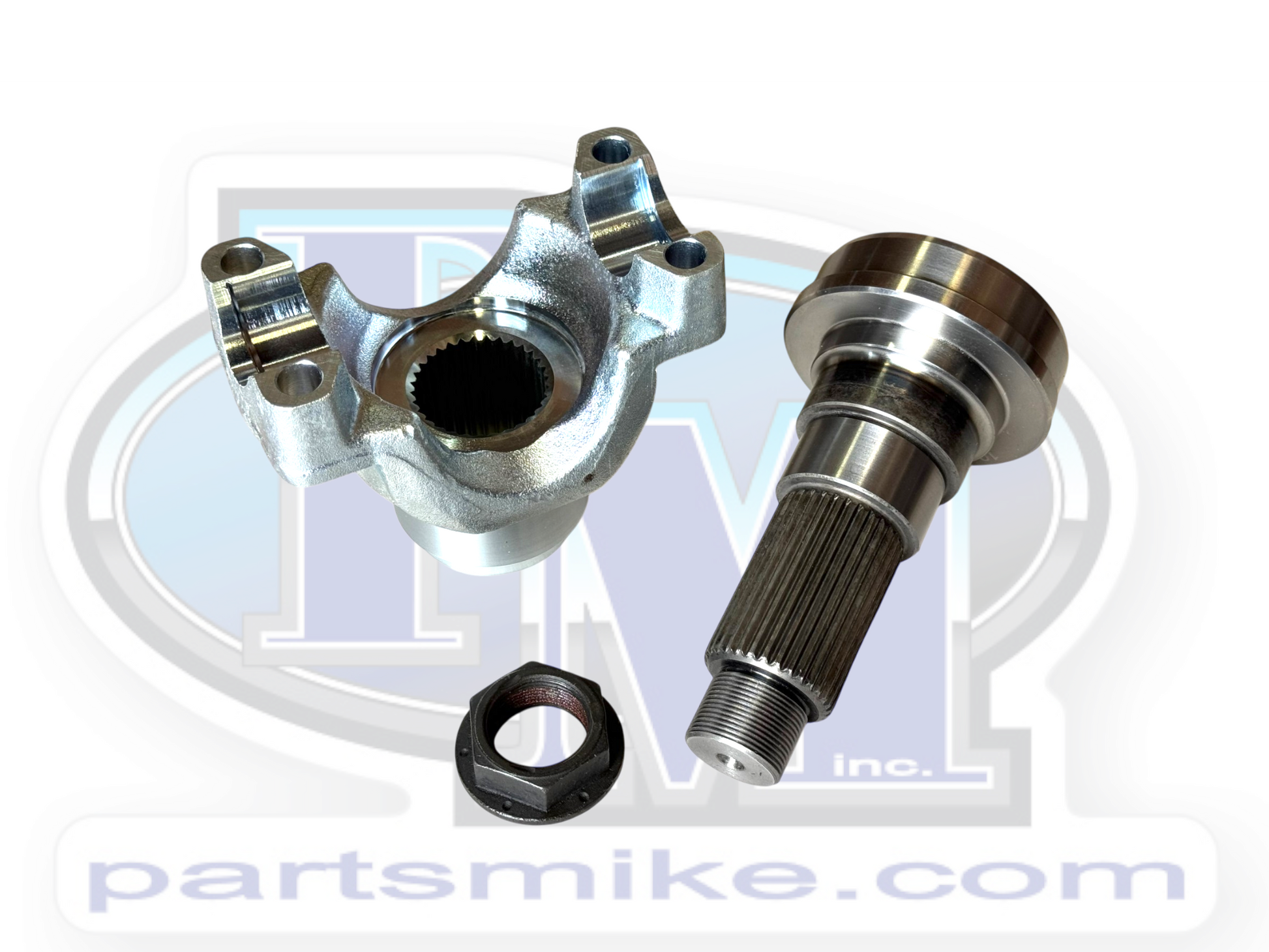

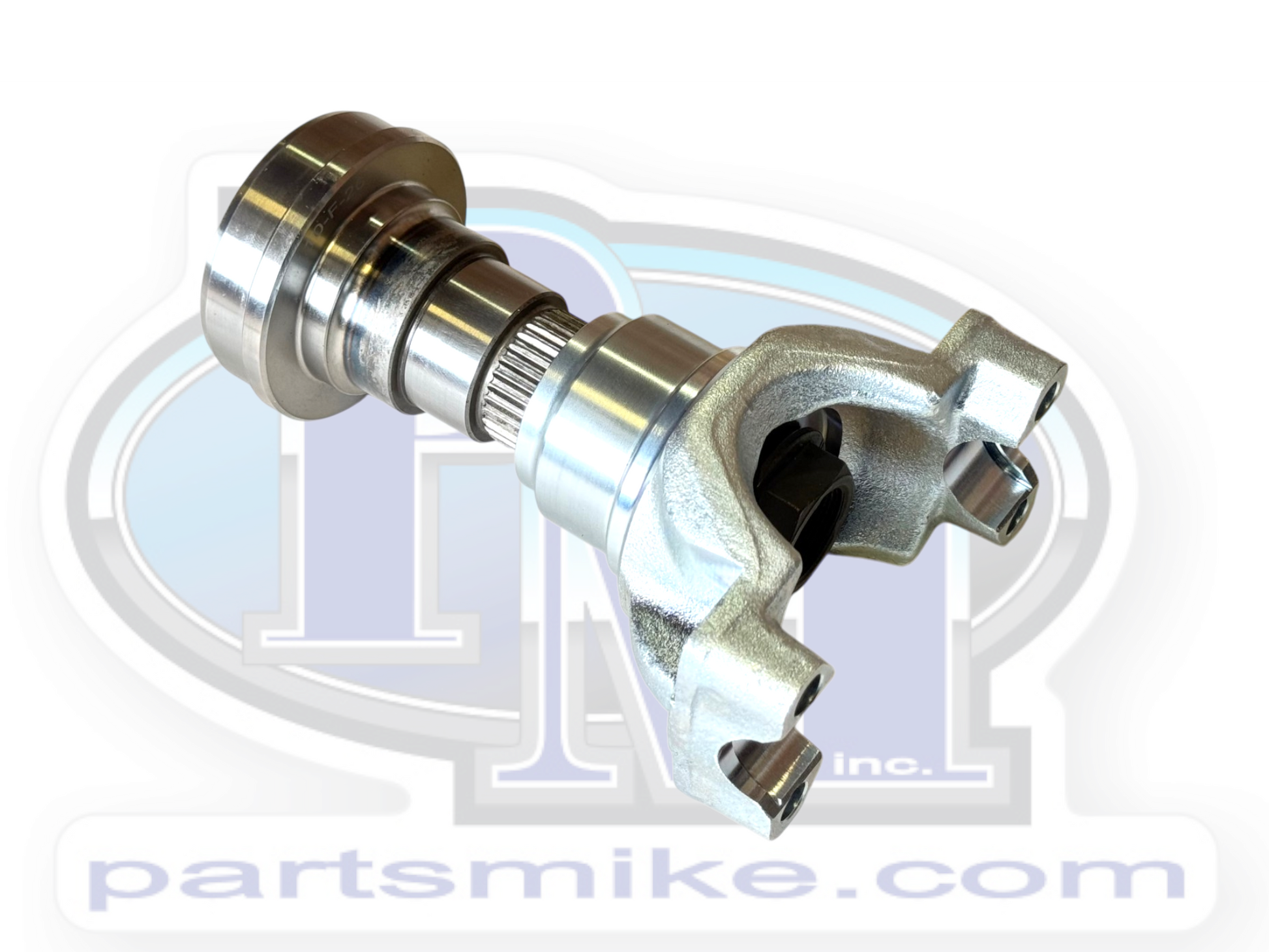

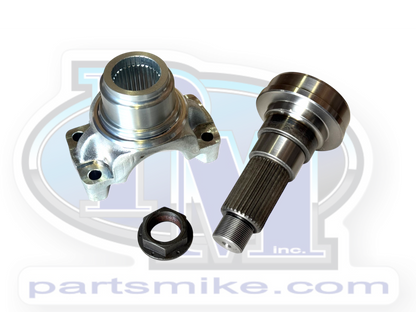

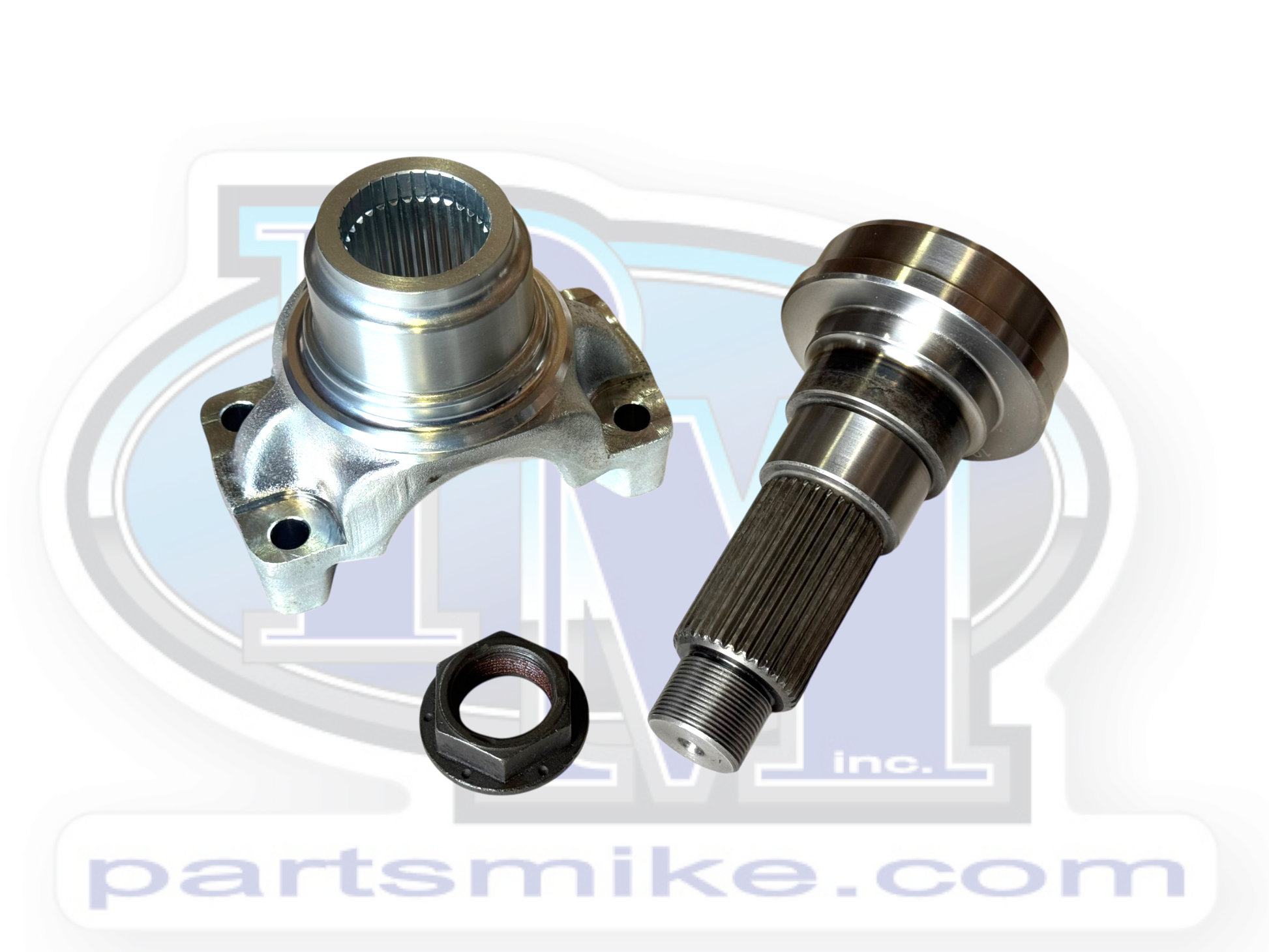

32 Spline 1410 Midship Yoke, Stub, and Nut (PM3114-0032G-1404)

32 SPLINE 1410 MIDSHIP YOKE, STUB, AND NUT

Tube Size

3" x .083" Wall

(End Yoke)

Dimensions (Reference Image)

A: Seal Surface: 2.125"

B: Through Hole: 2.027"

C: Overall Length: 3.720"

D: U-Joint Width: 4.182"

Major Spline Diameter: 1.400"

Counter Bore: .354"

Splines: 32

(Stub Shaft)

Dimensions

Tube Press Diameter: 2.844"

Bearing Surface Diameter: 1.574"

Spline Major Diameter: 1.374"

Spline Length: 2.027"

Midship Thread Diameter: 1" x 20 tpi.

Overall Length: 5.500"

Qty. 1
