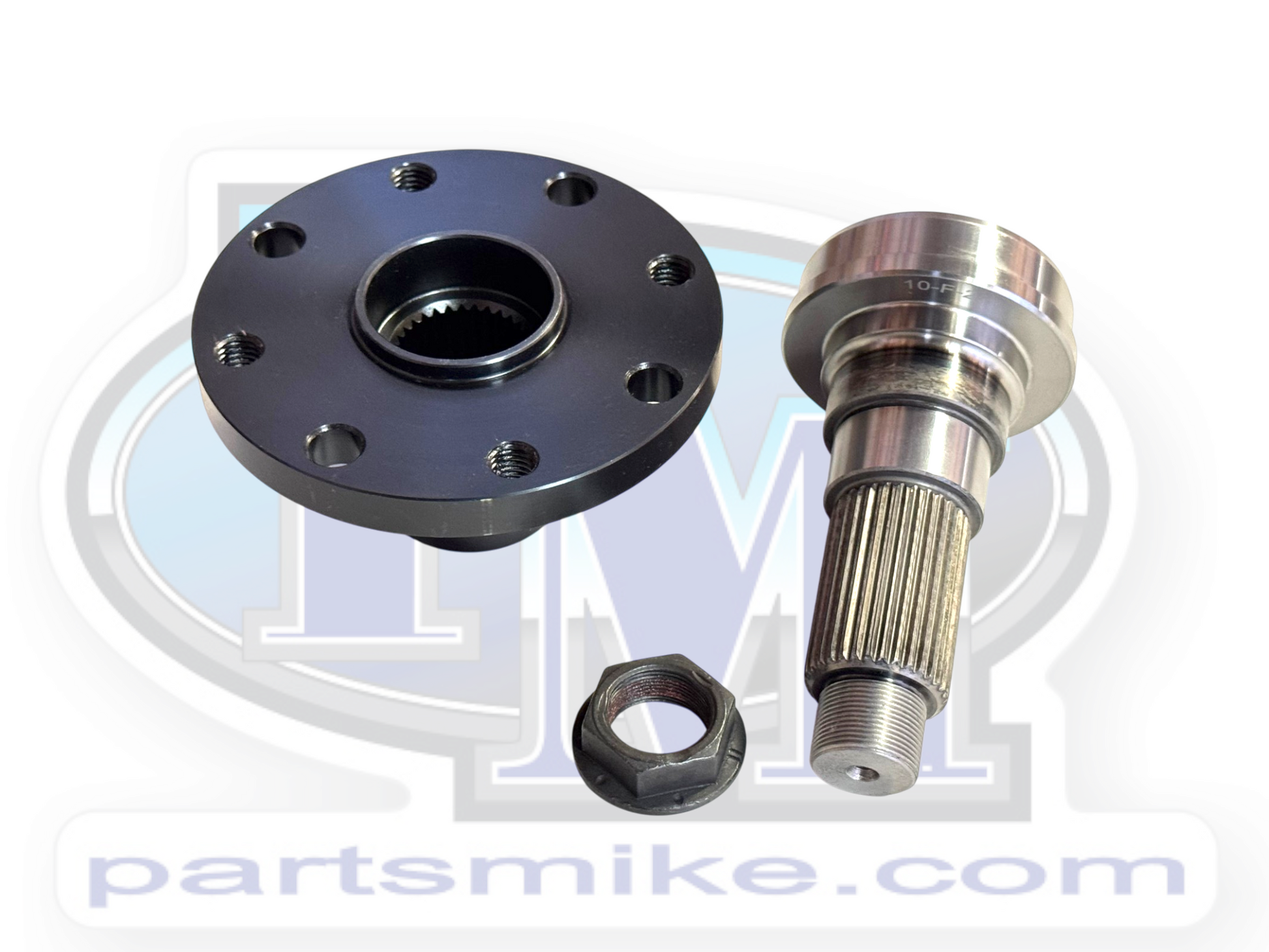

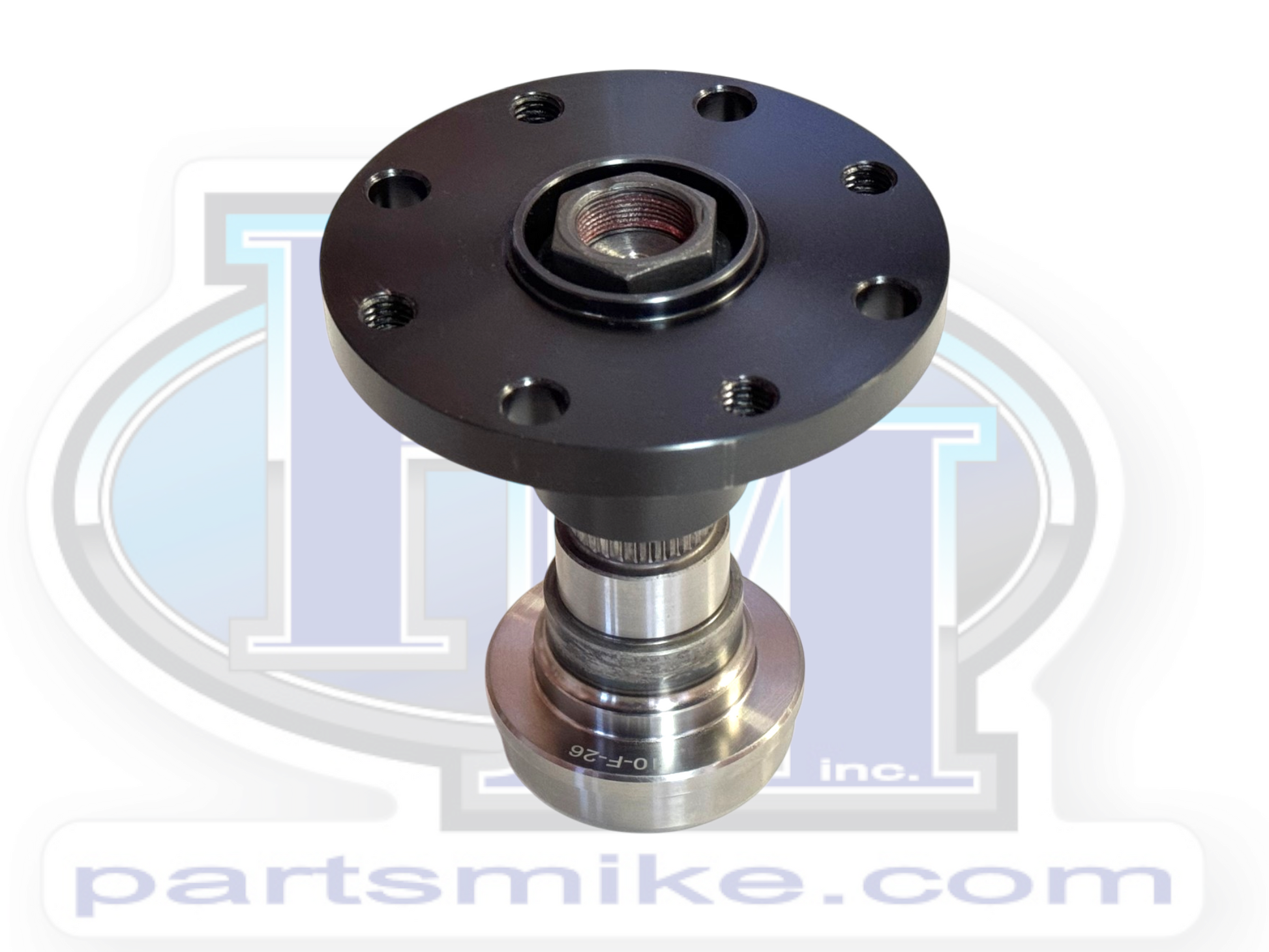

32 Spline Midship Kit, Companion Flange, Stub, and Nut (PM3114-0032G-4500)

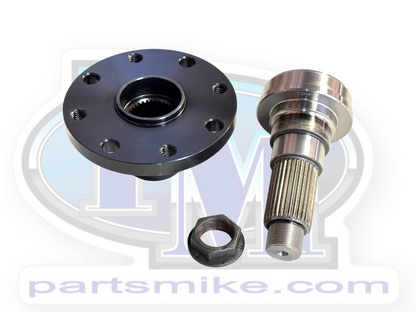

32 Spline Midship Kit, Companion Flange, Stub, and Nut

Fits Tube Size

3" x .083" Wall

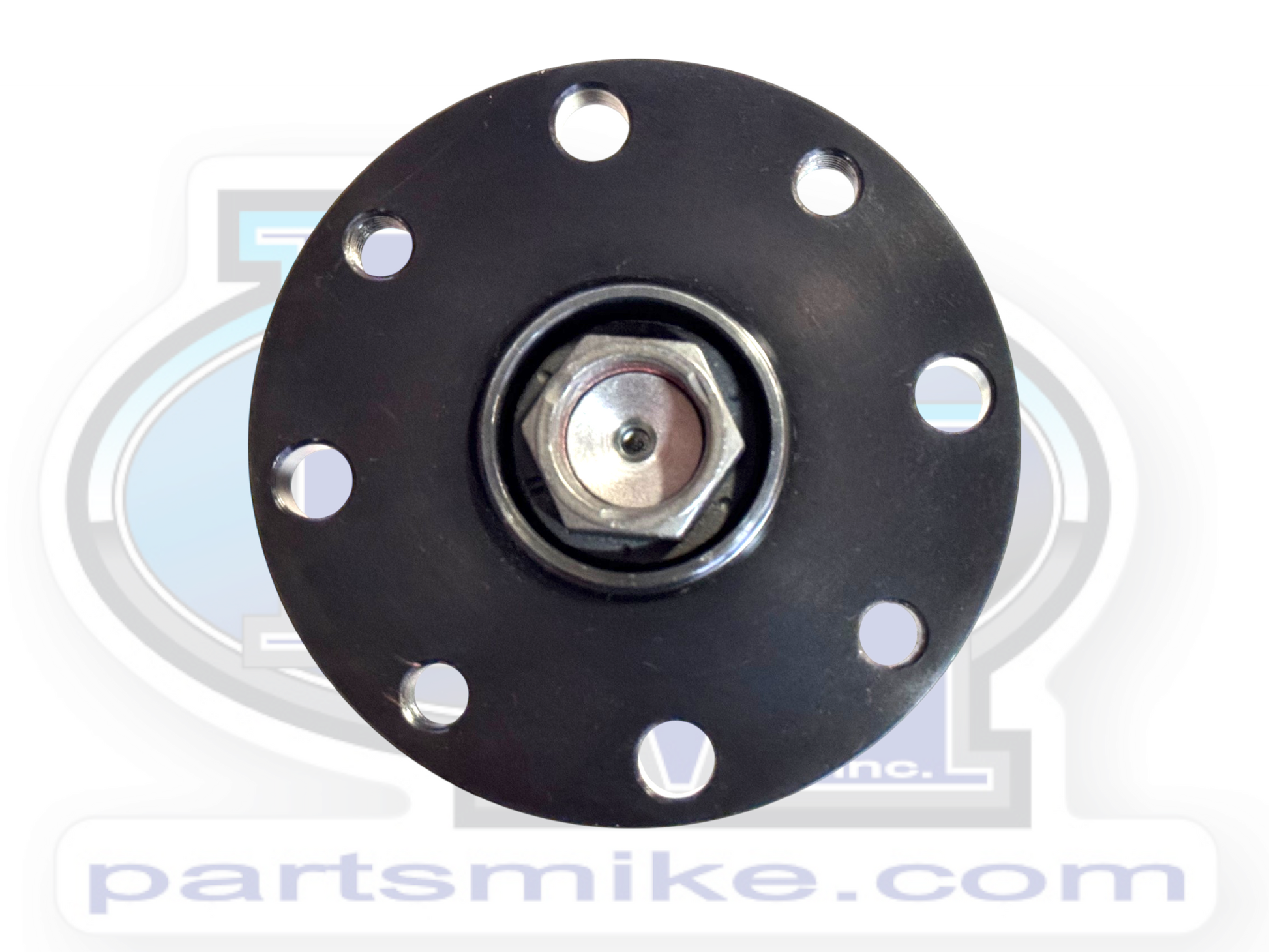

Bolt Hole Pattern

(4.25" Round Bolt Hole Pattern)

4 - M12 x 1.75 tpi.

4 - 12.2mm Through Holes

(Companion Flange)

Dimensions

A: Pilot Diameter: 2.00"

B: Seal Surface: 1.943"

C: Through Hole: 2.027"

D: End of Flange Face to end of Seal Surface: 2.531"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .523"

Spline Major Diameter: 1.400"

Counter Bore: .354

Splines: 32

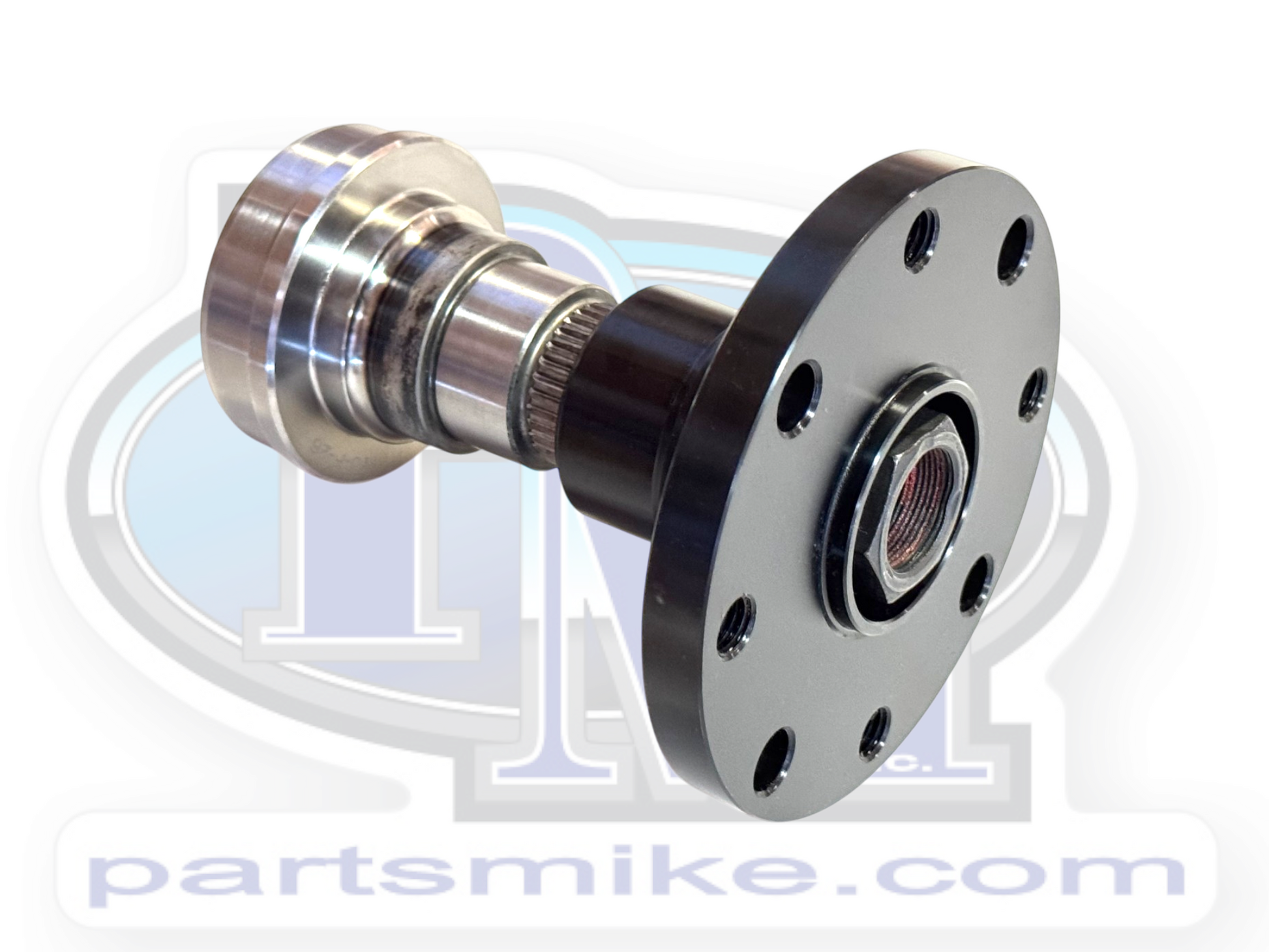

(Stub Shaft)

Dimensions

Tube Press Diameter: 2.844"

Bearing Surface Diameter: 1.574"

Spline Major Diameter: 1.374"

Spline Length: 2.027"

Midship Thread Diameter: 1" x 20 tpi.

Overall Length: 5.500"

Qty. 1
