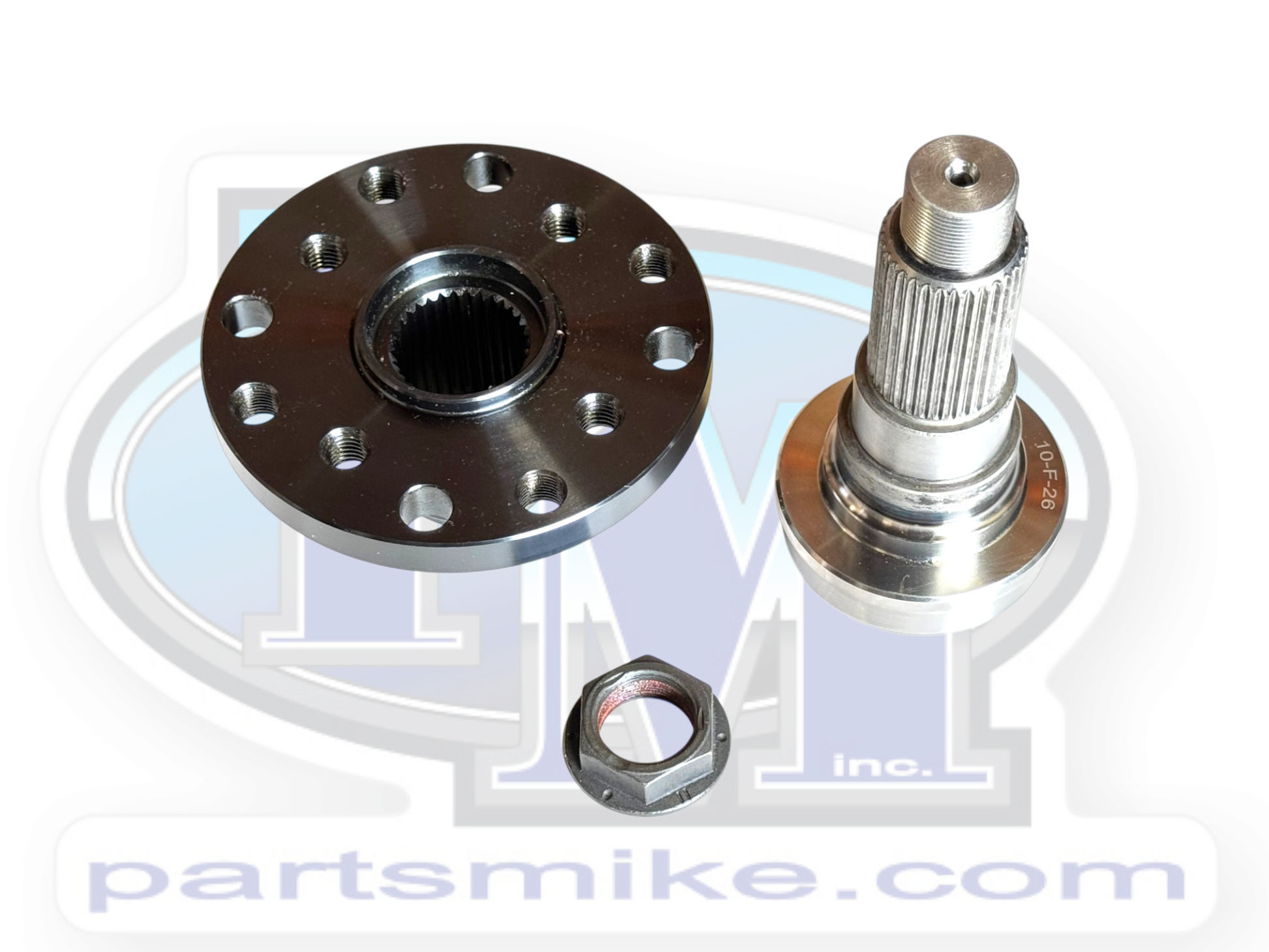

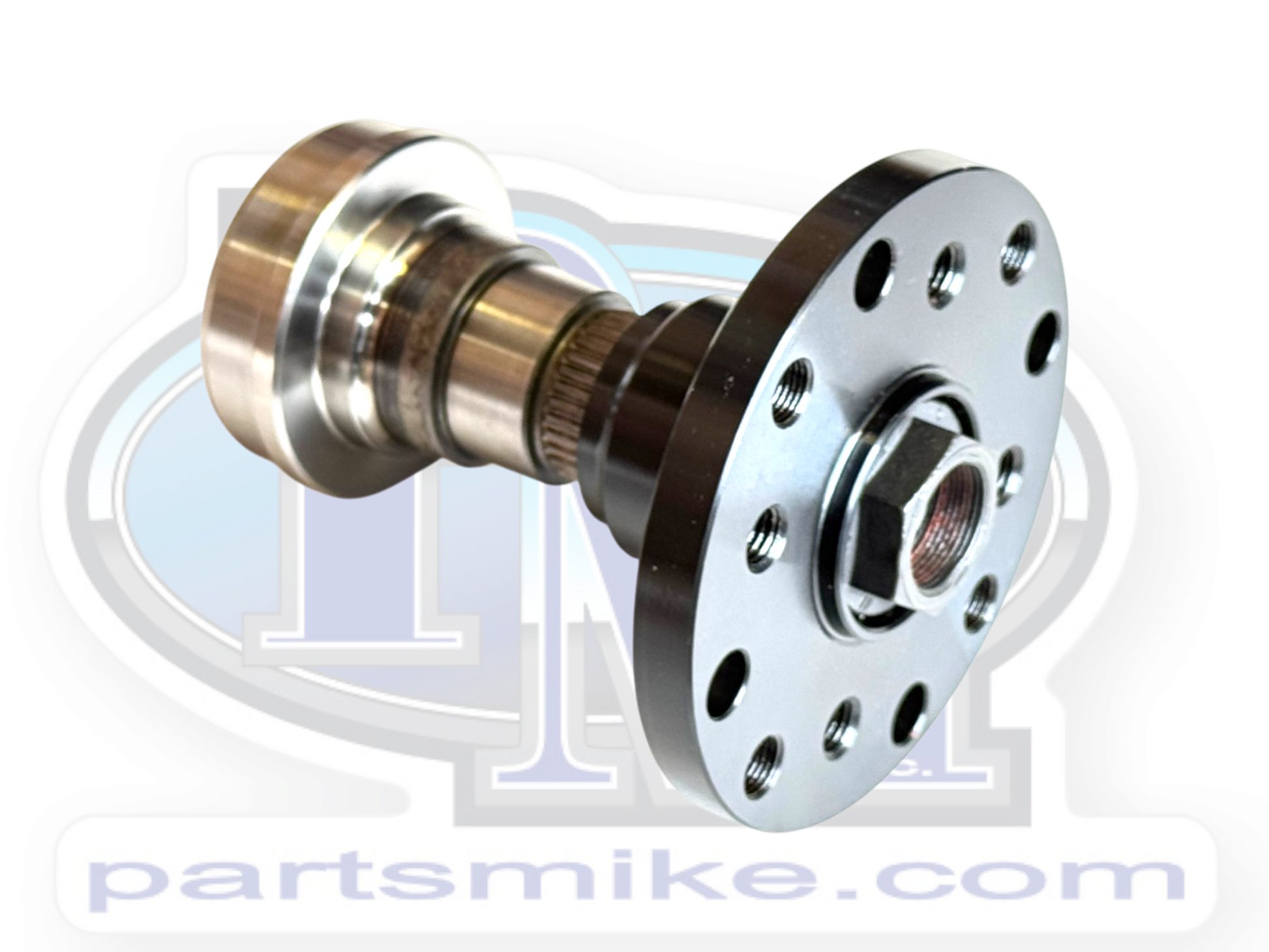

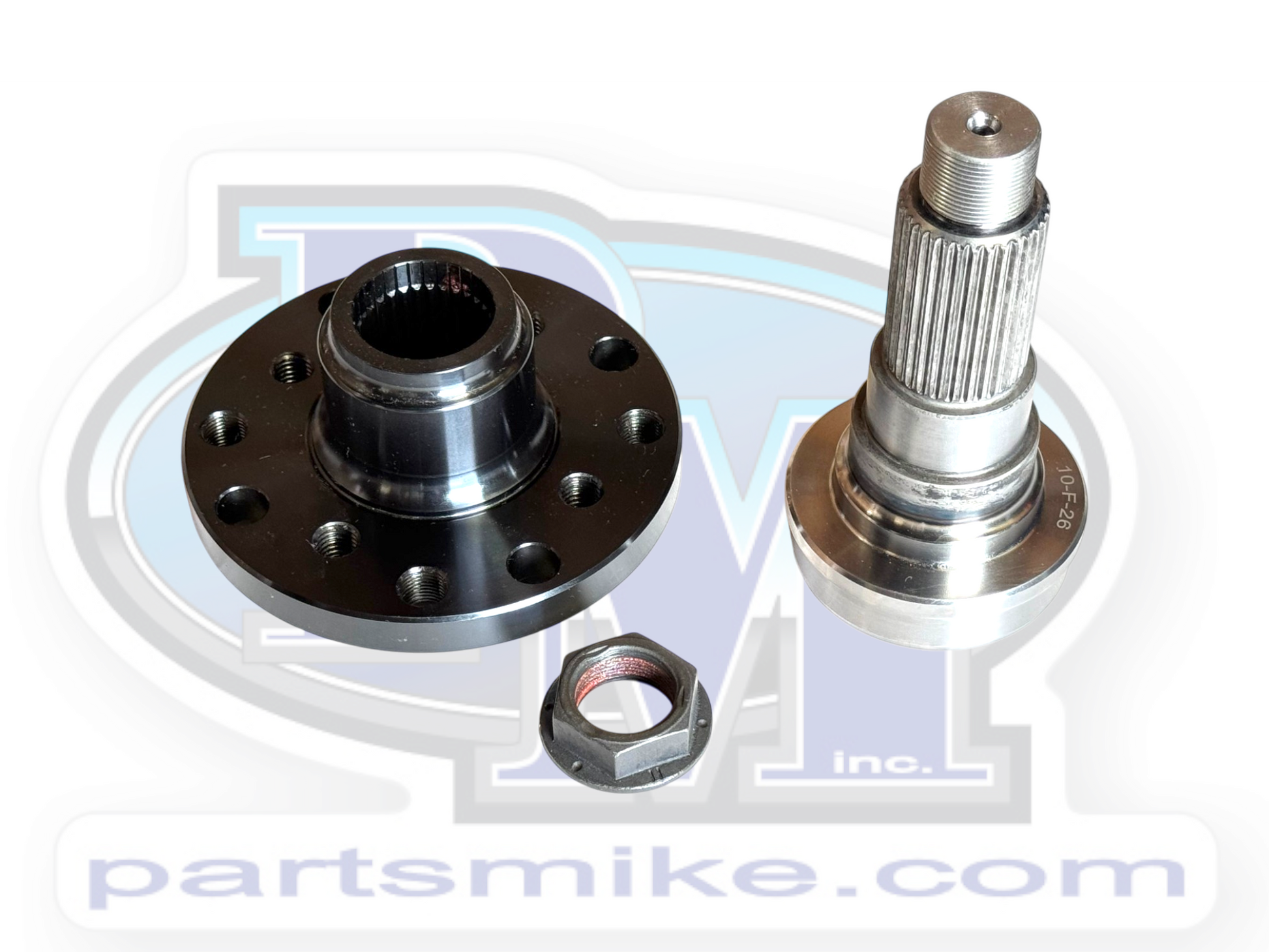

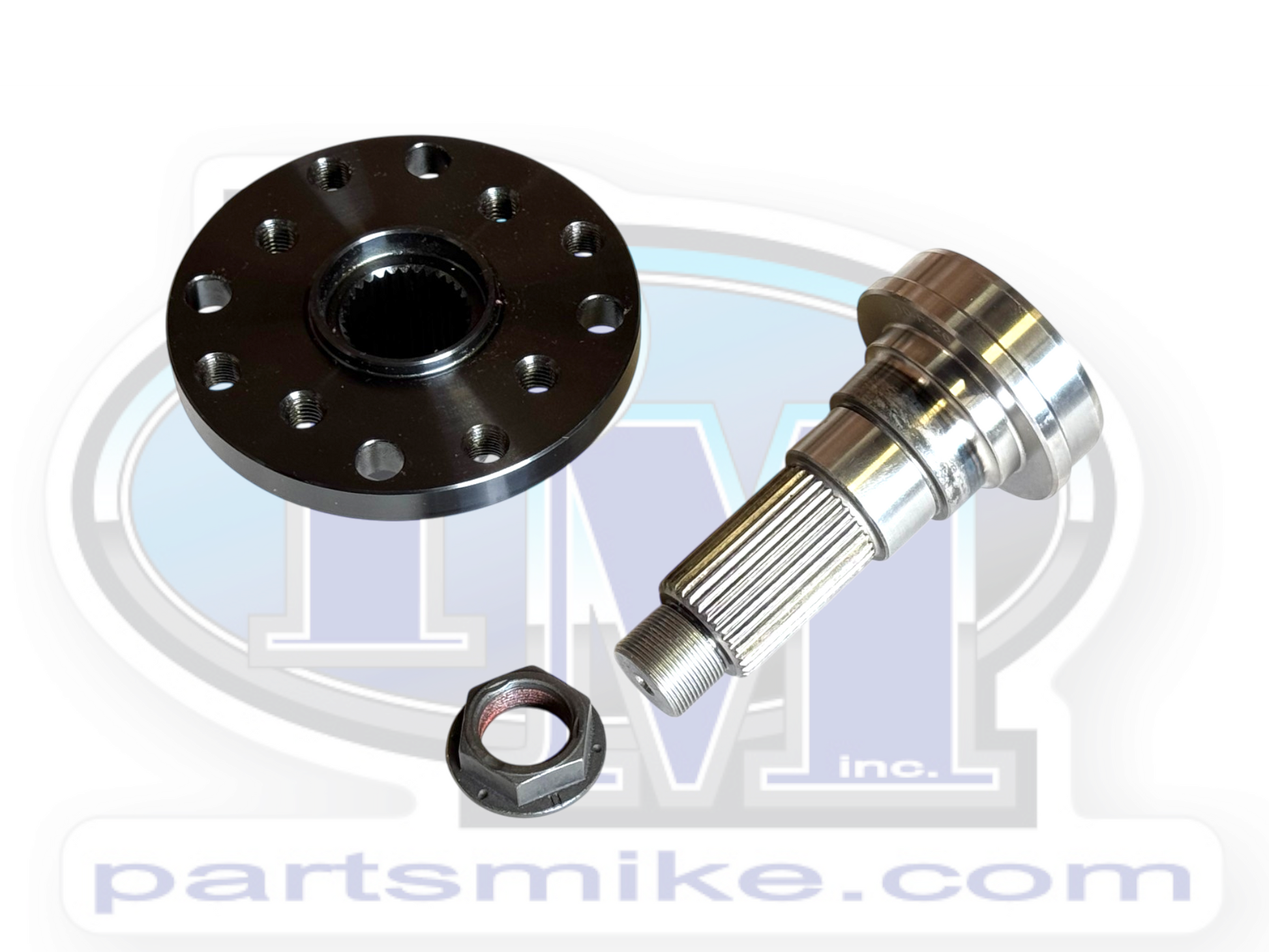

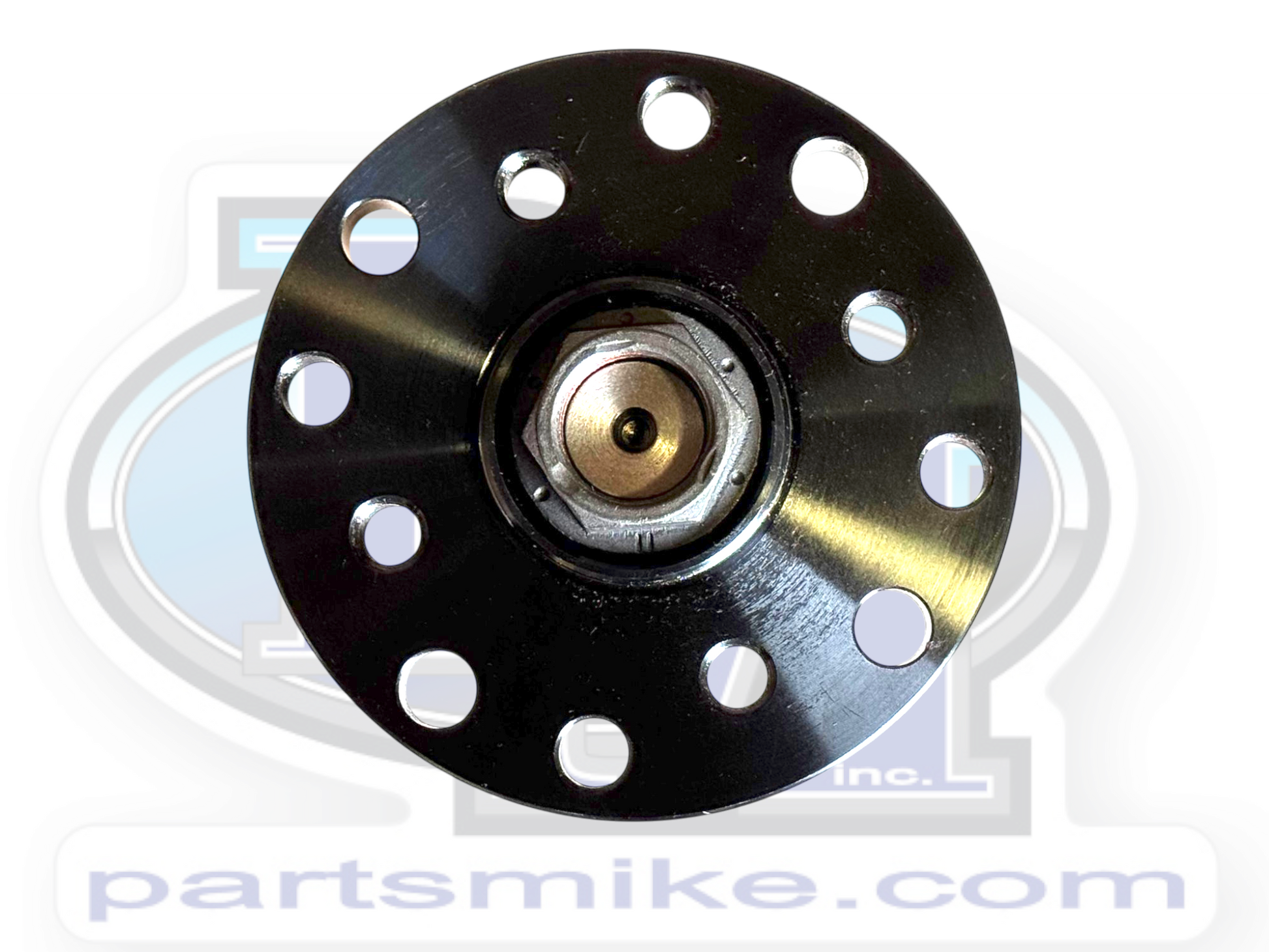

32 Spline Midship Kit, Companion Flange, Stub, and Nut (PM3114-0032G-3051)

32 Spline Midship Kit, Companion Flange, Stub, and Nut

Fits Tube Size

3" x .083" Wall

Bolt Hole Pattern

(3.5" Round Bolt Hole Pattern)

4 - M12 x 1.75 tpi.

(4.25" Round Bolt Hole Pattern)

4 - 11.5mm Through Hole

4 - 1/2" x 20 tpi.

(Companion Flange)

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 2.125"

C: Through Hole: 2.027"

D: End of Flange Face to end of Seal Surface: 2.200"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .523"

Spline Major Diameter: 1.400"

Counter Bore: .035"

Splines: 32

(Stub Shaft)

Dimensions

Tube Press Diameter: 2.844"

Bearing Surface Diameter: 1.574"

Spline Major Diameter: 1.374"

Spline Length: 2.027"

Midship Thread Diameter: 1" x 20 tpi.

Overall Length: 5.500"

Qty. 1
