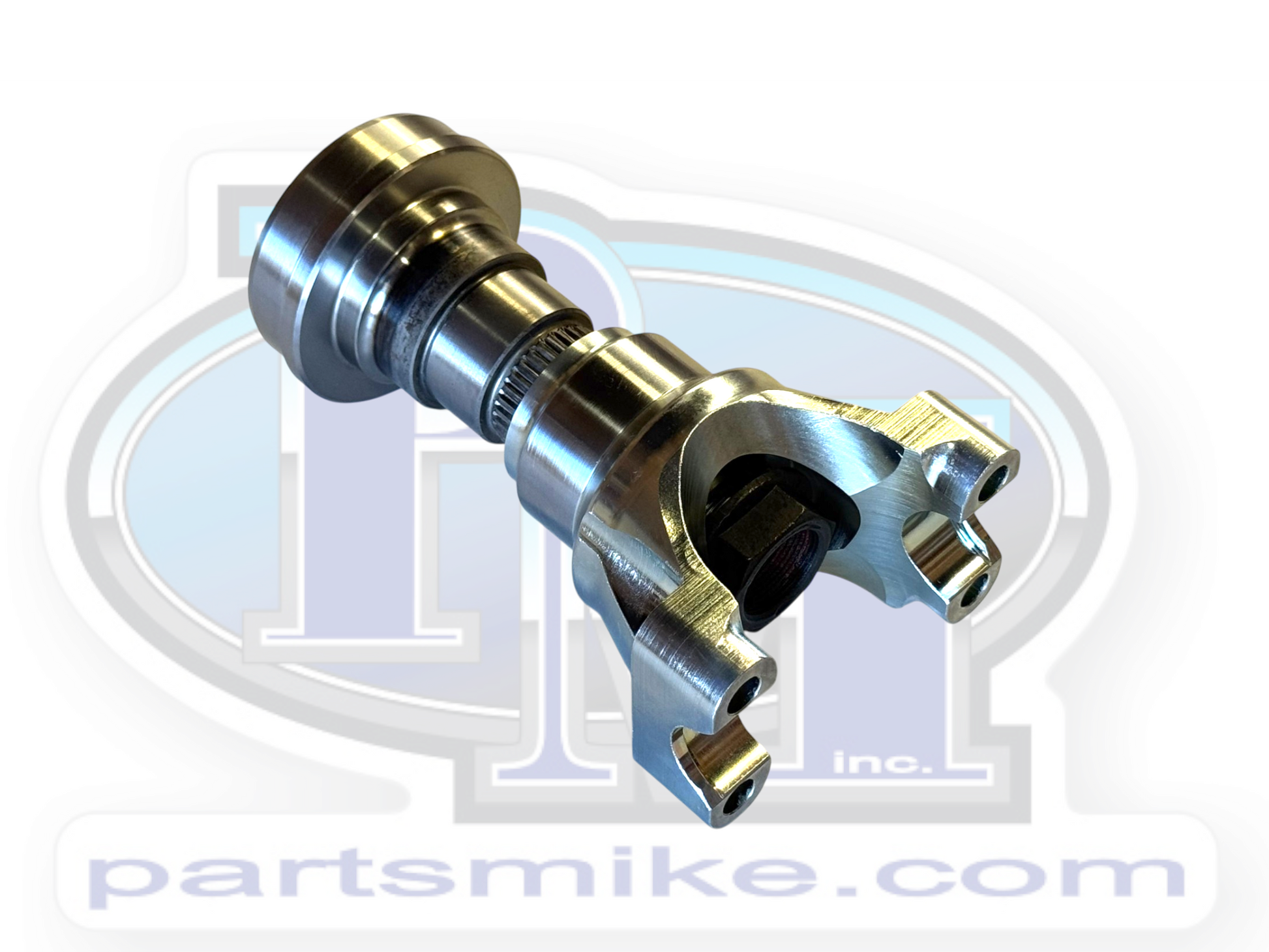

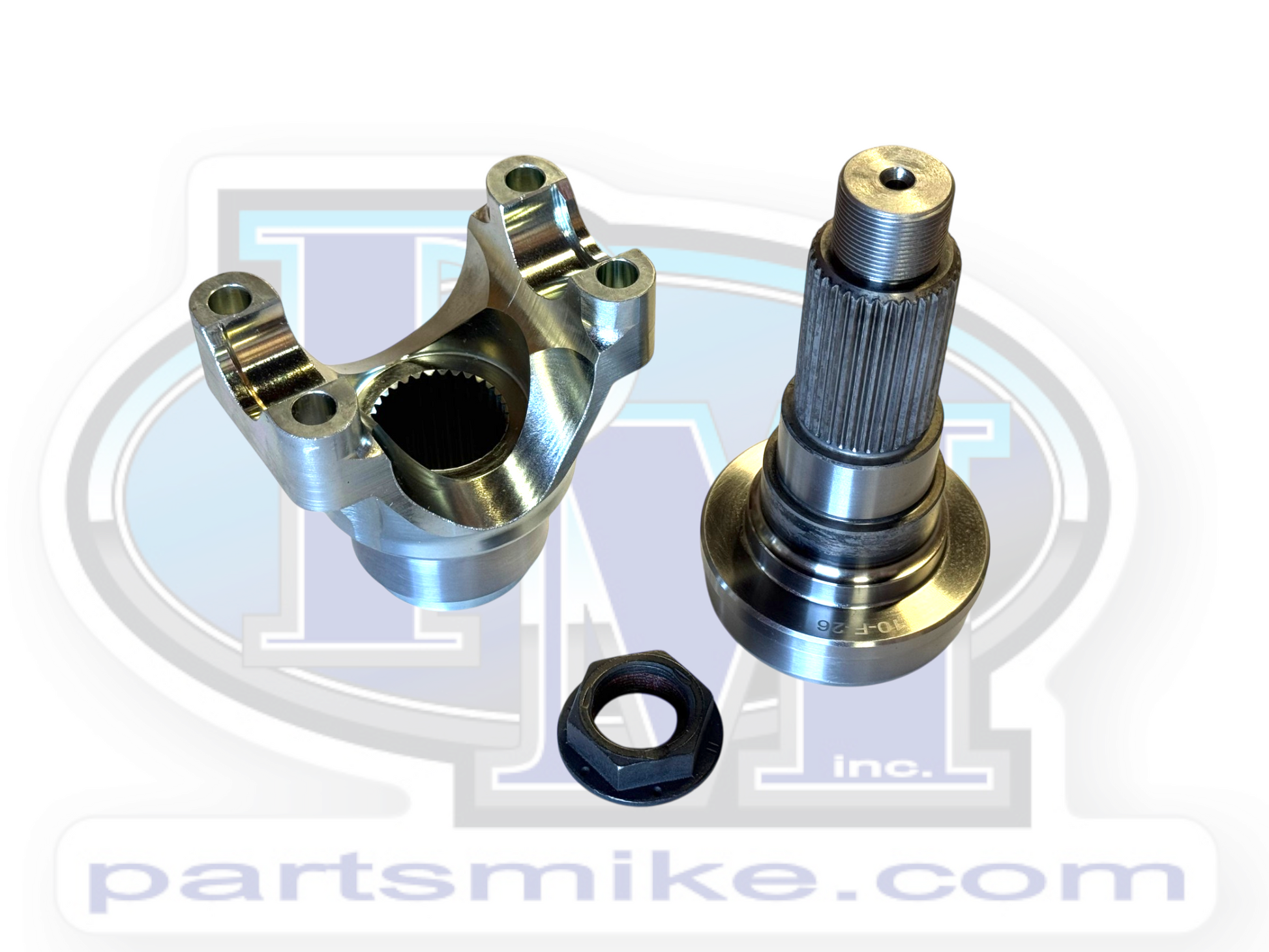

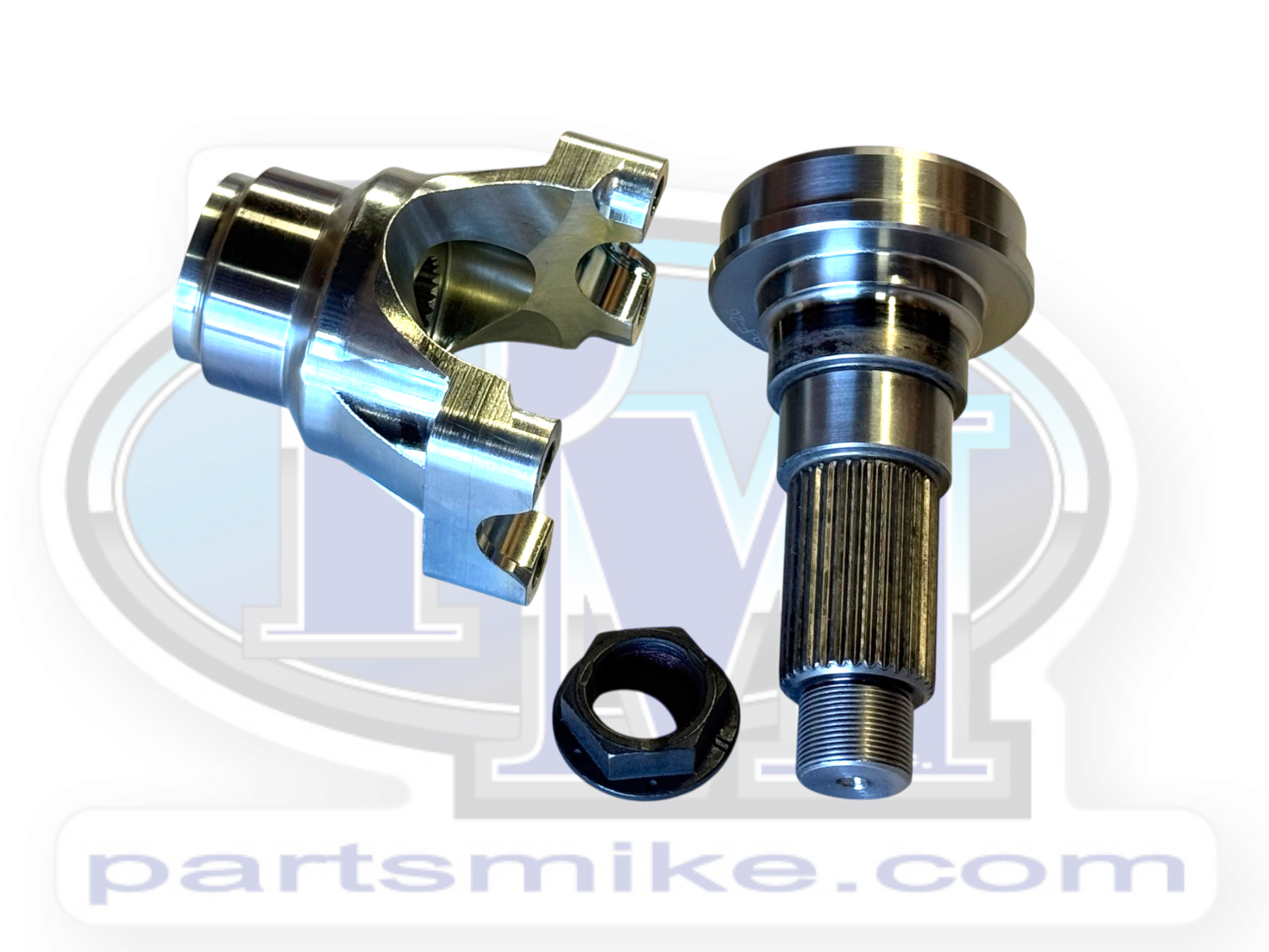

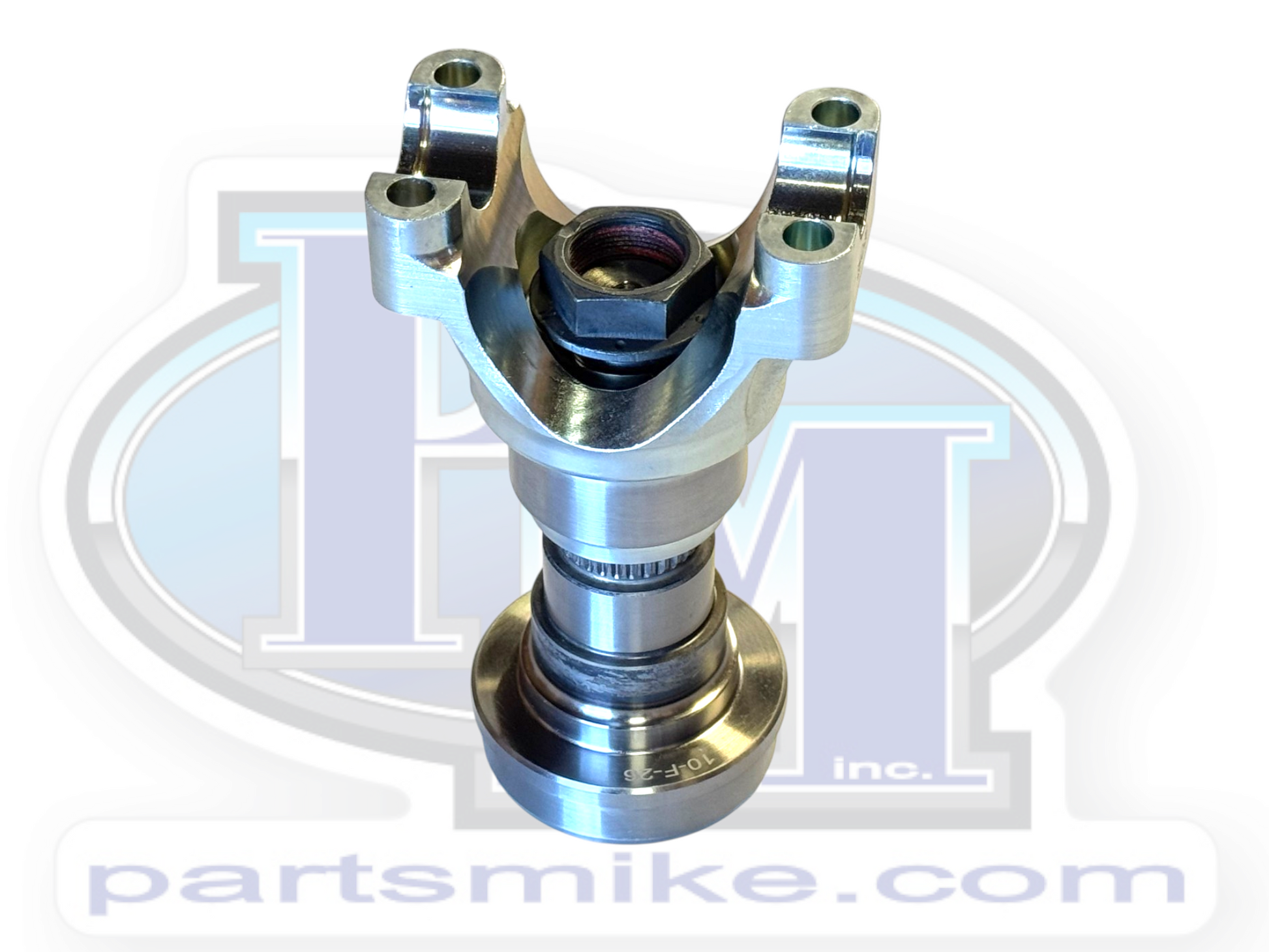

32 Spline Midship Kit, 1350 Yoke, Stub, and Nut (PM3114-0032G-5015)

32 Spline Midship Kit, Yoke, Stub, and Nut

End Yoke, 1350, Forged Chromoly, Non-CV

Tube Size

3" x .083" Wall

(End Yoke)

Dimensions (Reference Image)

A: Seal Surface: 2.125"

B: Through Hole: 1.980"

C: Overall Length: 3.795"

D: U-Joint Width: 3.625"

Major Spline Diameter: 1.400"

Counter Bore: .294"

Splines: 32

(Stub Shaft)

Dimensions

Tube Press Diameter: 2.844"

Bearing Surface Diameter: 1.574"

Spline Major Diameter: 1.374"

Spline Length: 2.027"

Midship Thread Diameter: 1" x 20 tpi.

Overall Length: 5.500"

Qty. 1
