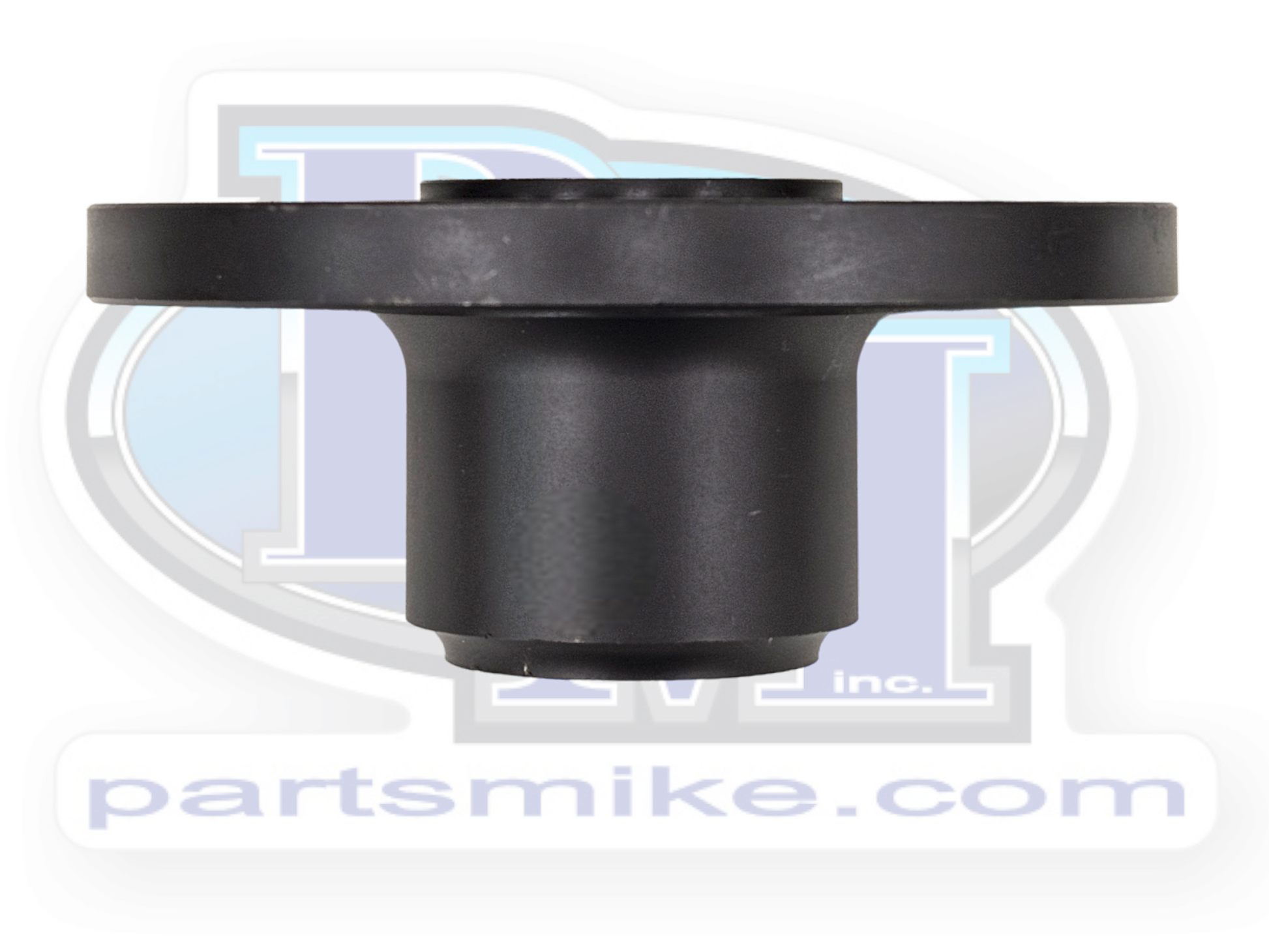

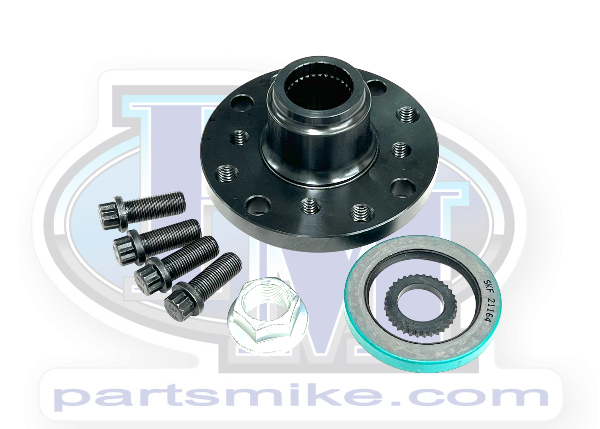

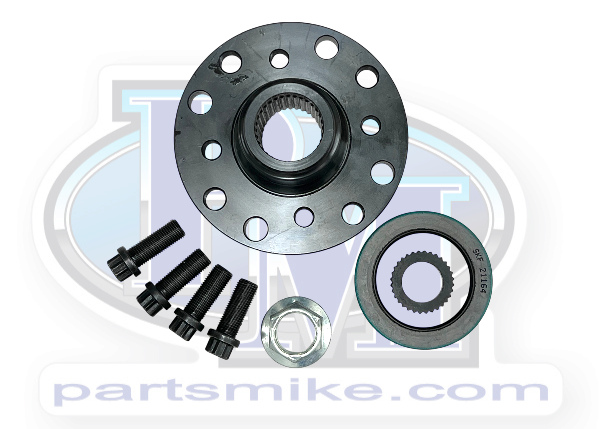

Atlas Transfer Case Flange Kit, Driveshaft Companion Flange, 32 Spline, 1310, 1350, 1410, (DM3051GK)

You've selected the kit for Atlas setups

1310/1350/1410 series flange can be used with CV or non-CV drive line flange yokes. The flange is made from 5140 forged steel, and warrantied for LIFE!

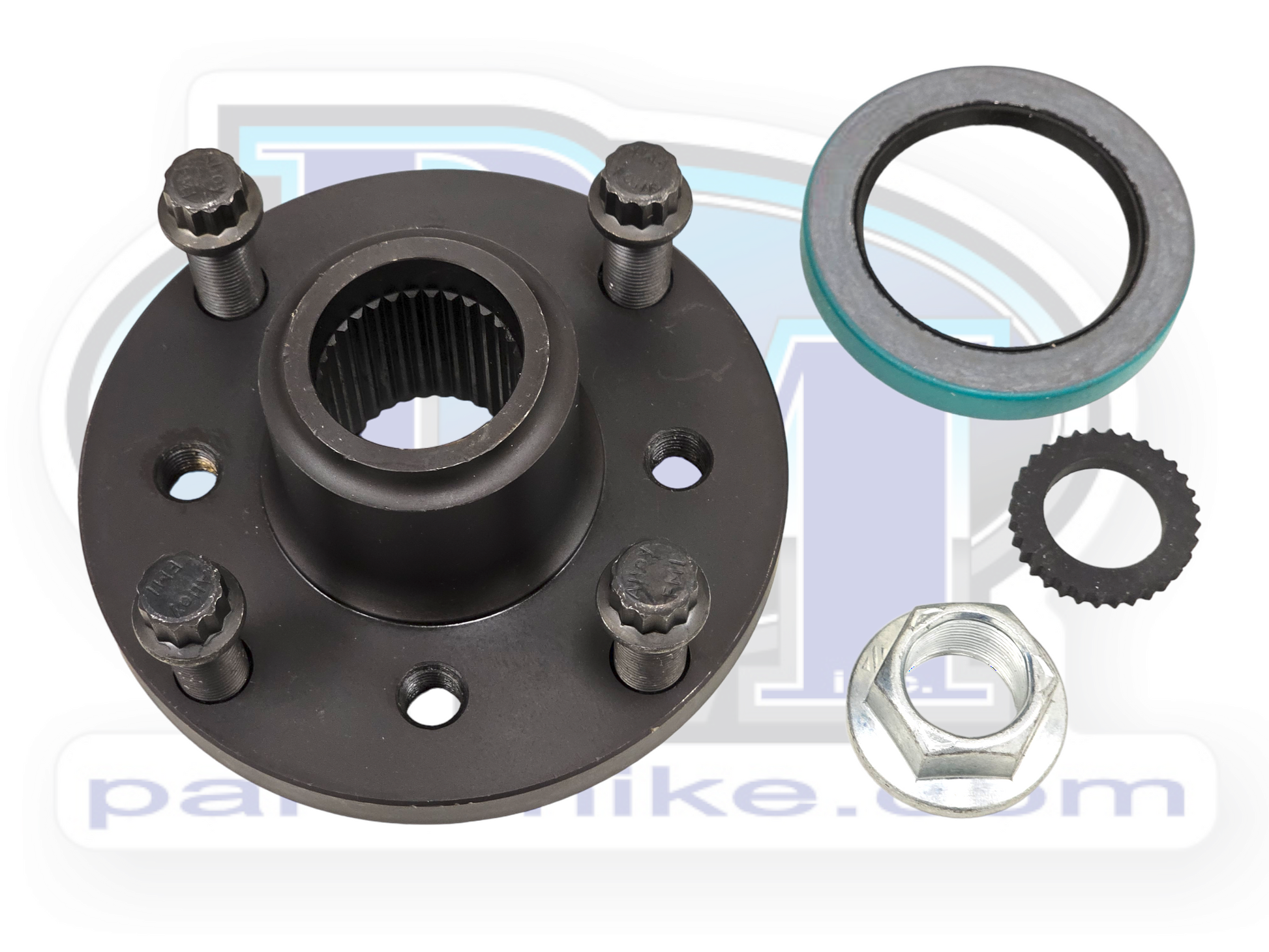

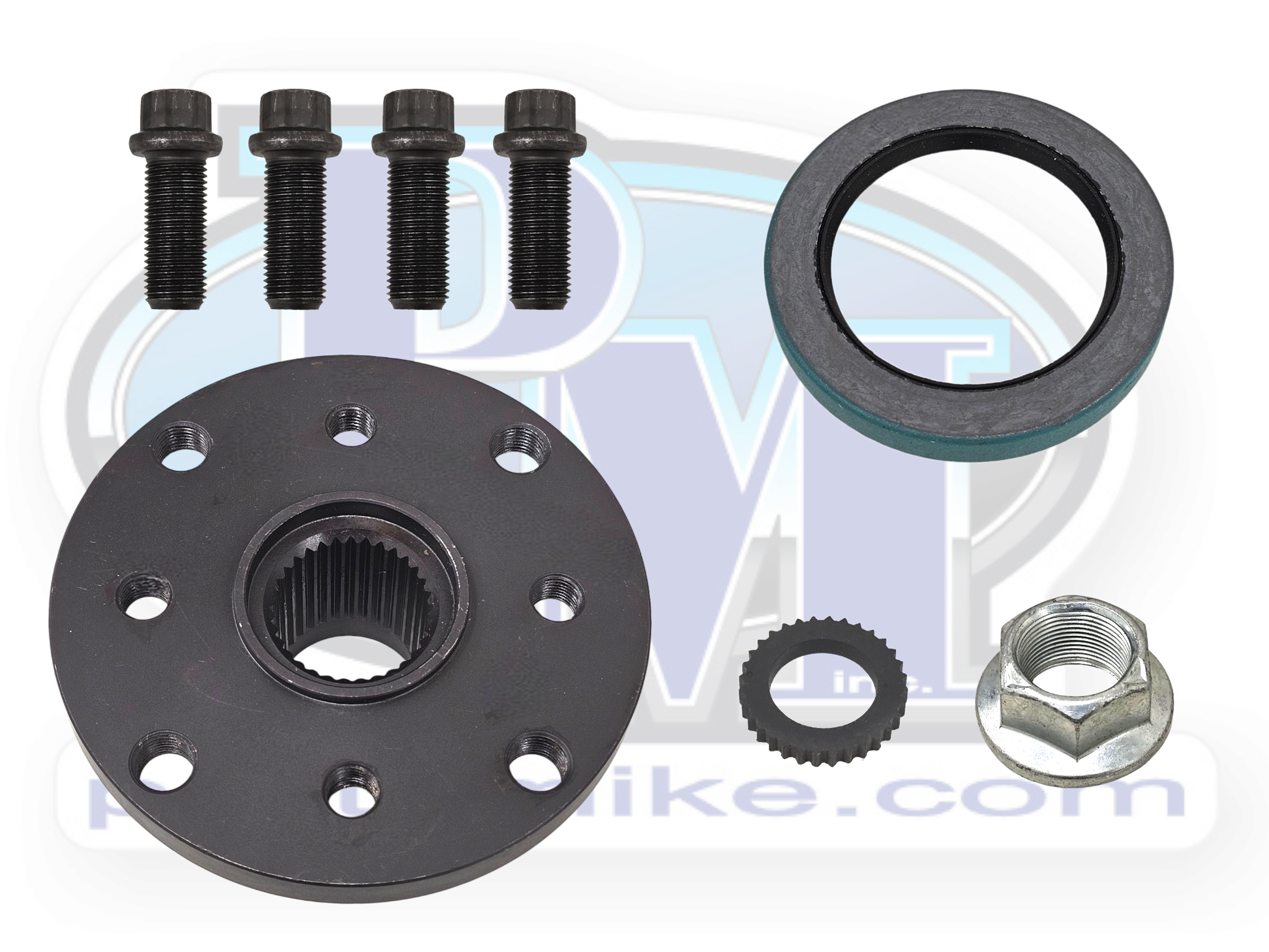

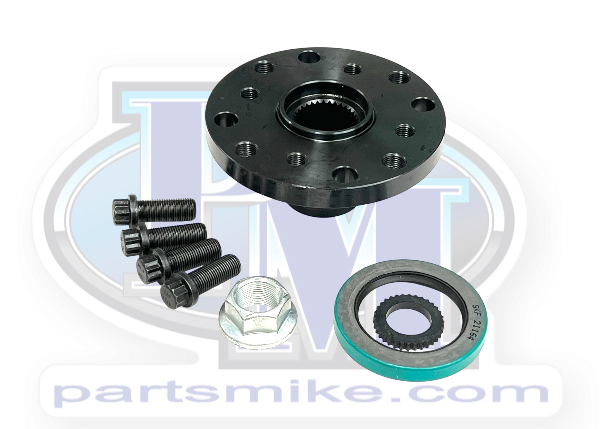

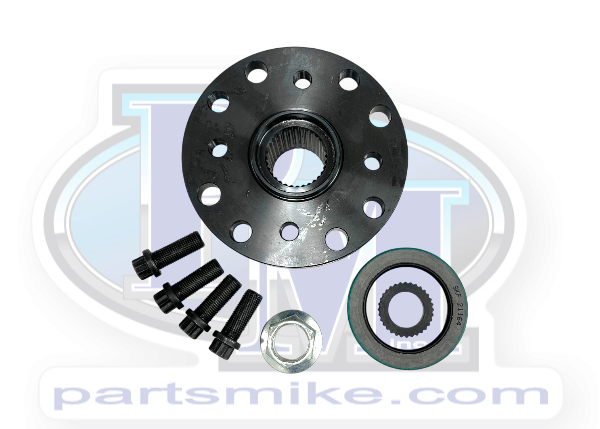

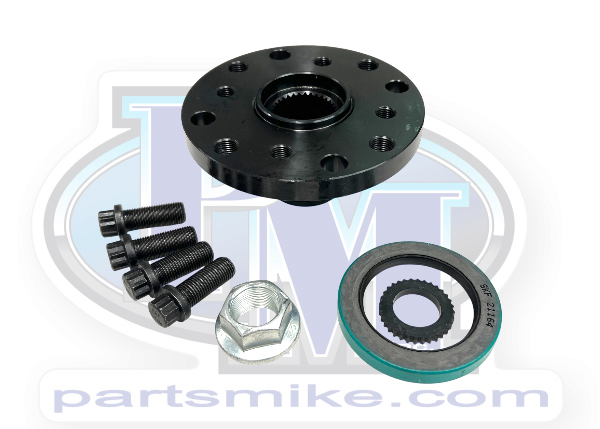

DM3051GK - For Atlas setups, or other 32 spline outputs that have a 3" seal bore.  Includes everything below.

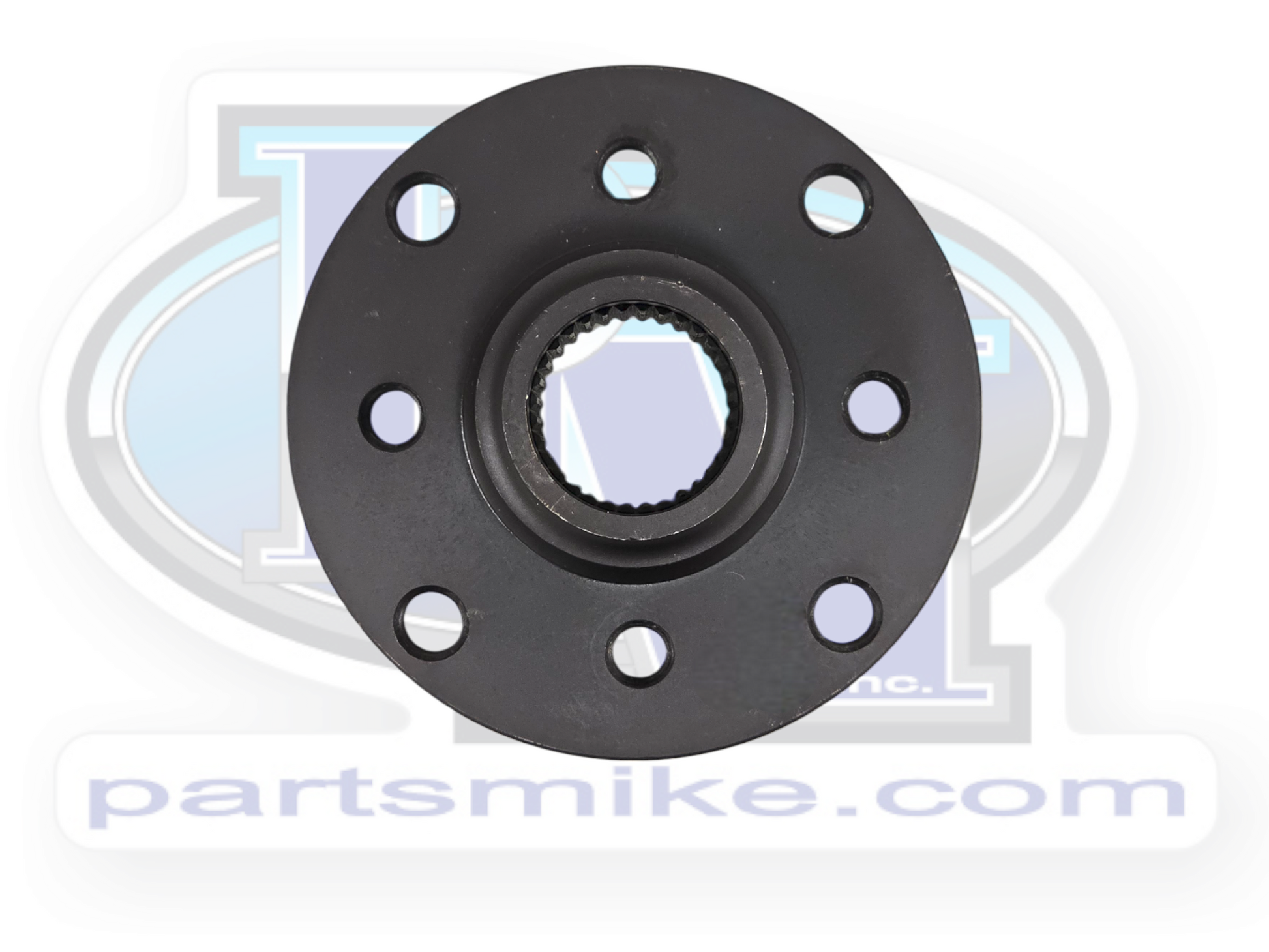

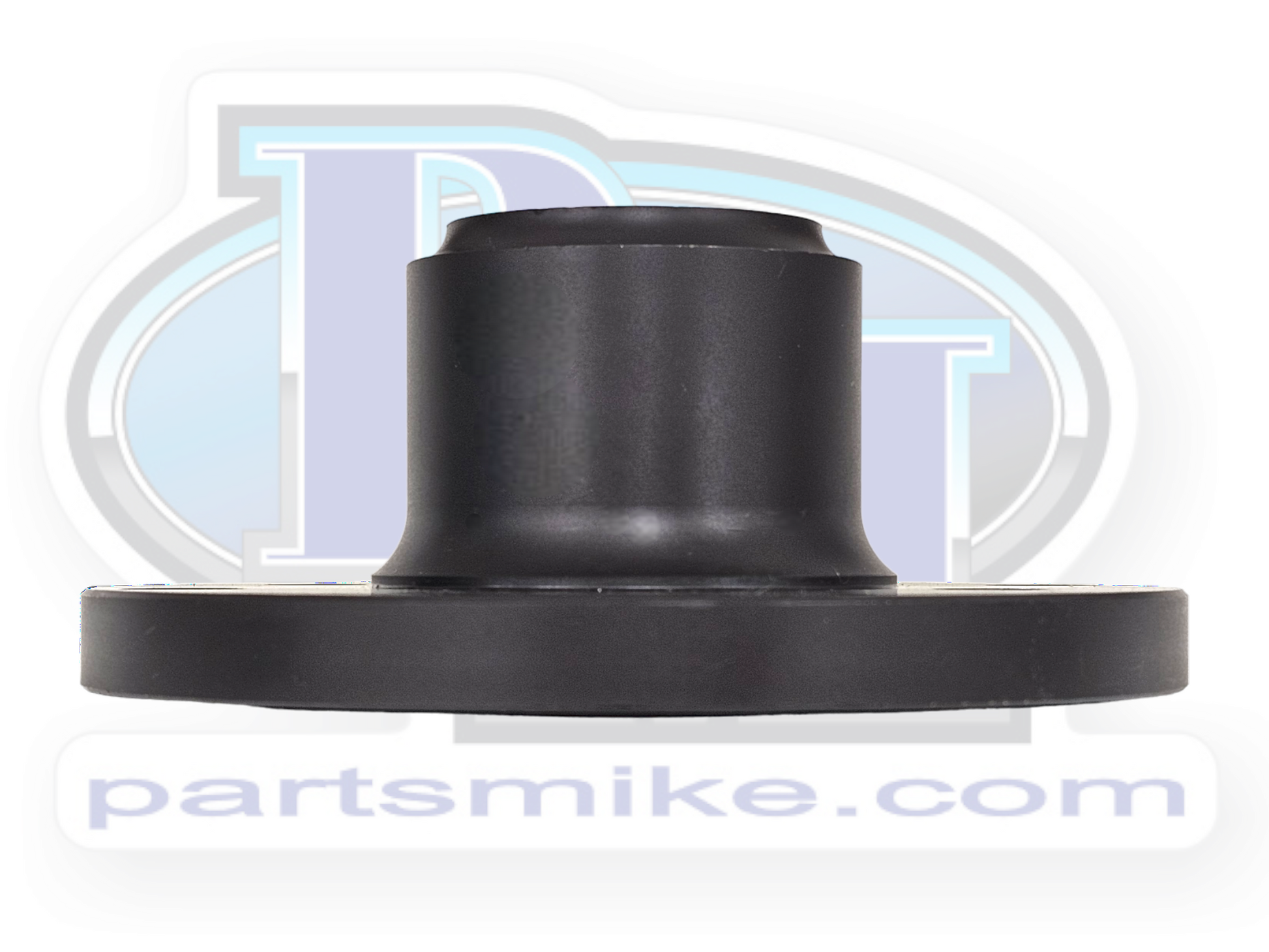

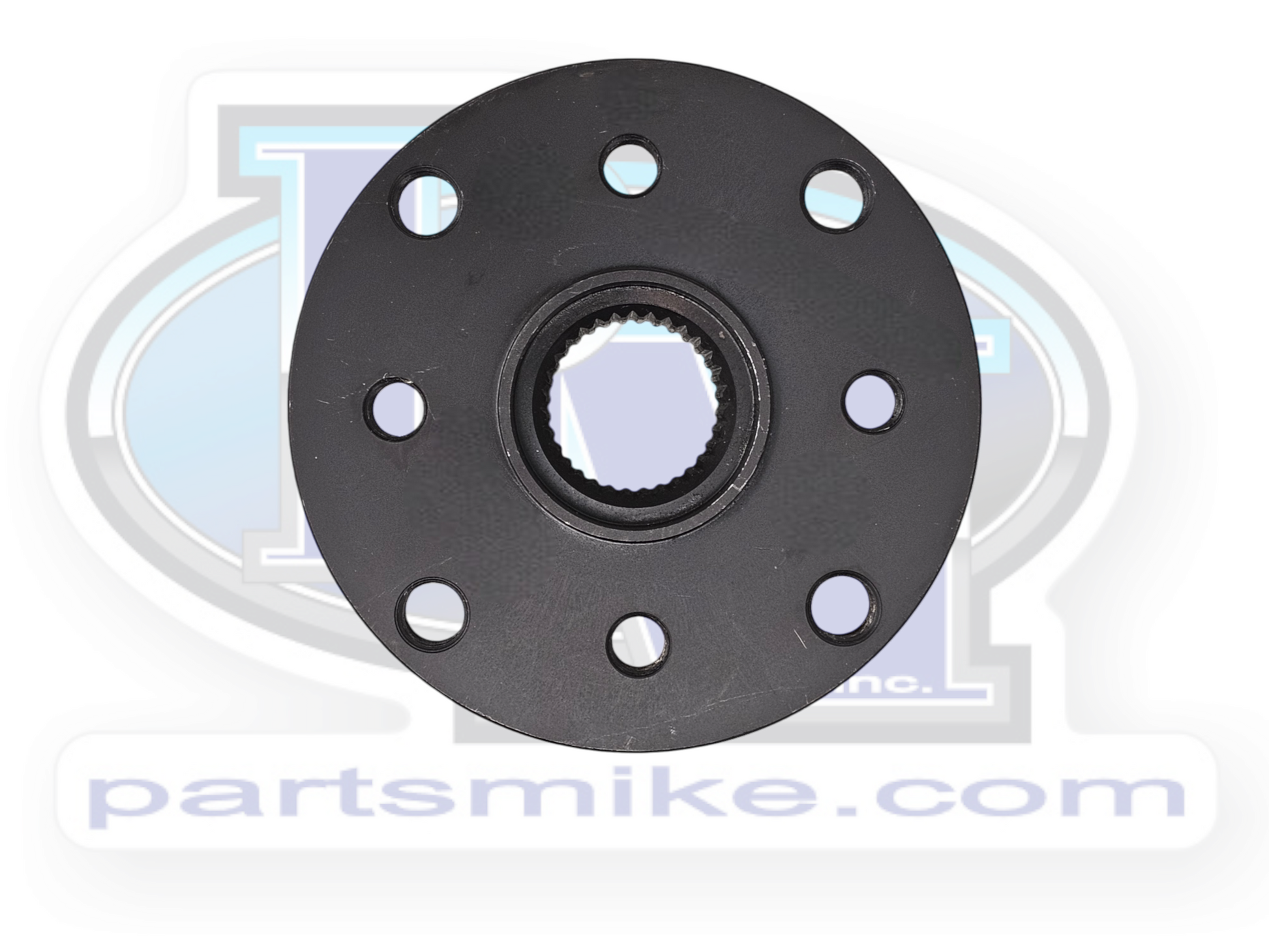

• Companion Flange: P/N: DM3051

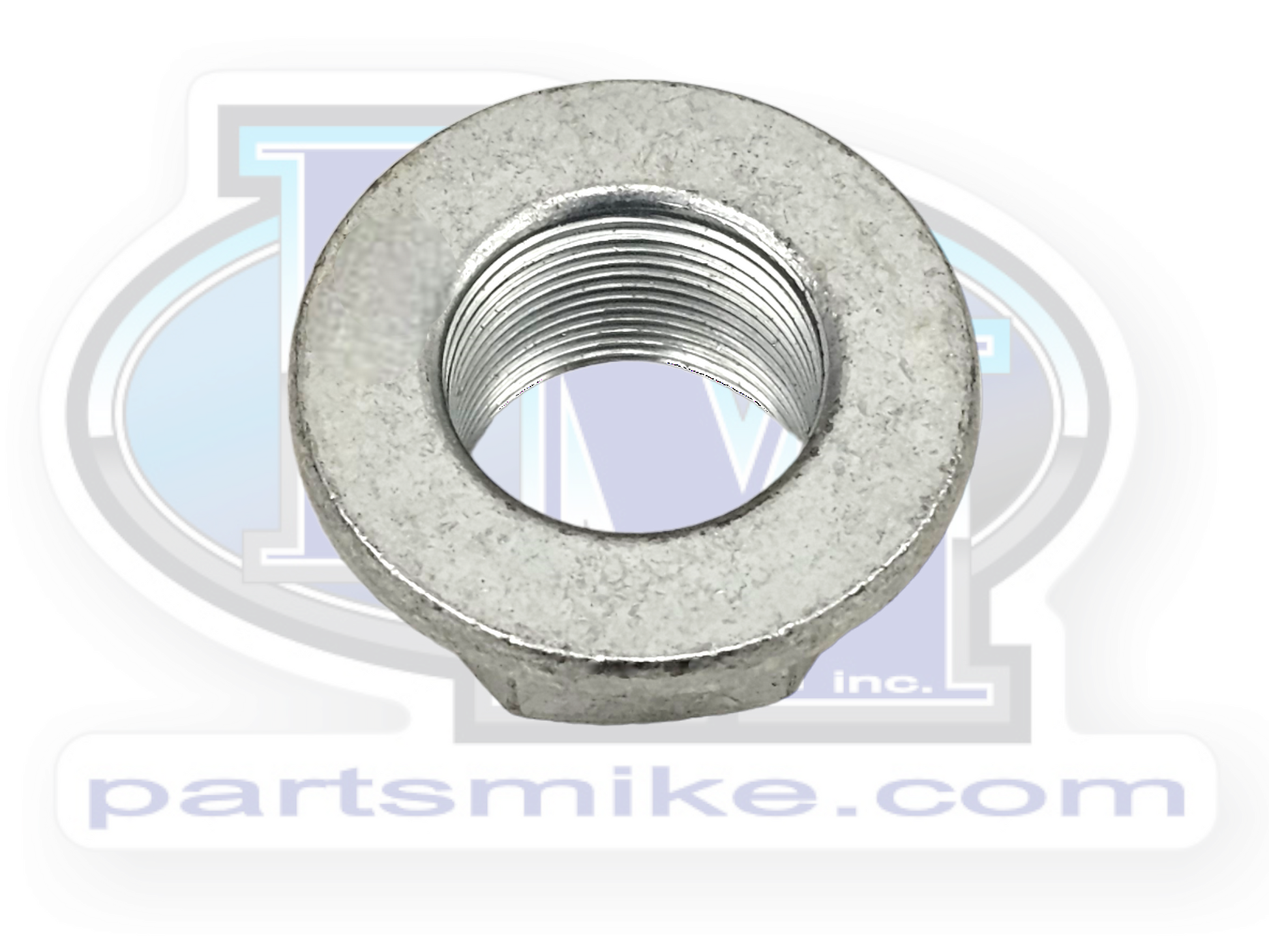

• Flanged Nut: P/N: 300476  7/8"-20, flanged, stover/top lock

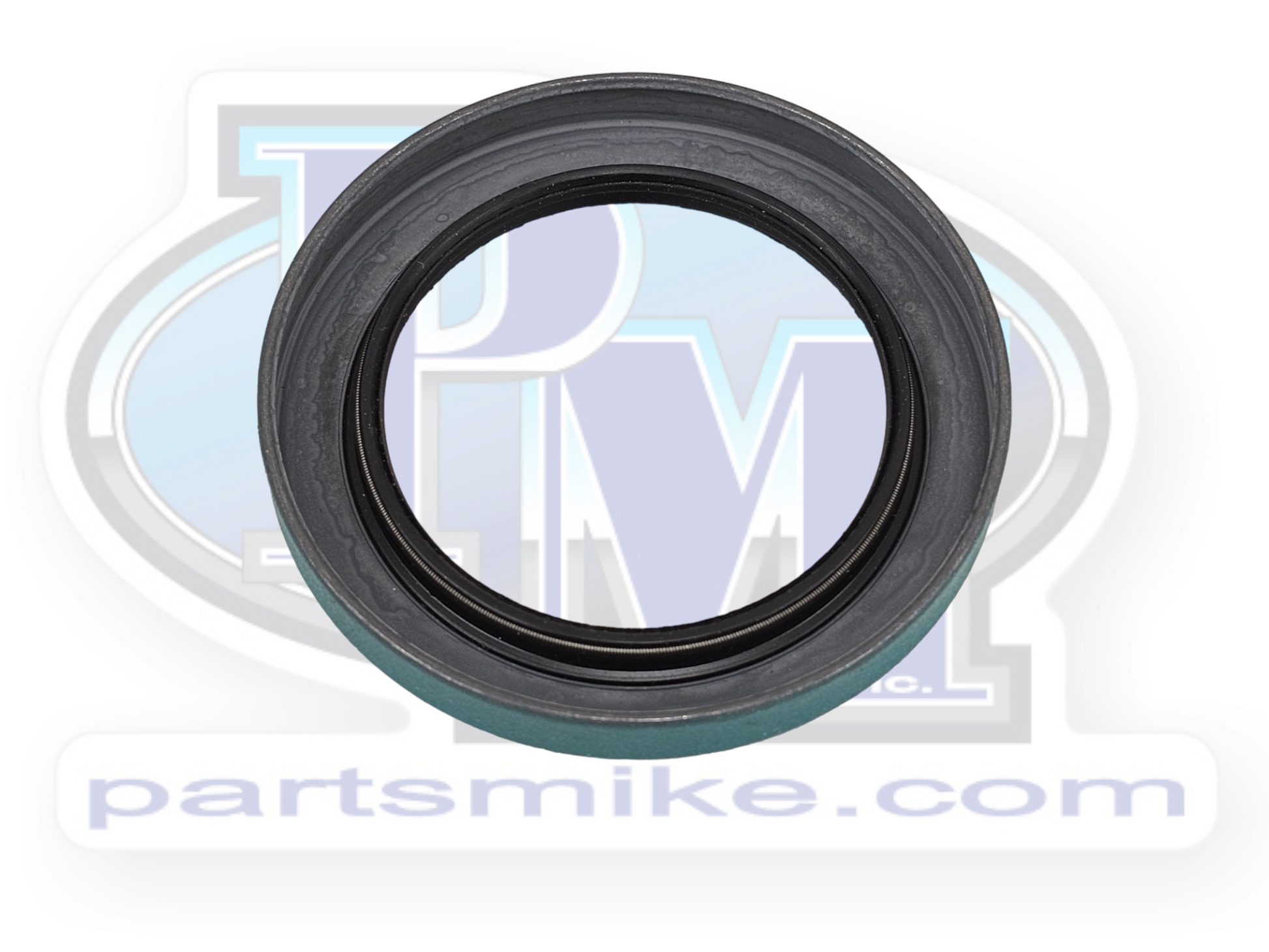

• Atlas Seal: P/N: CR21164 2-1/8" ID, 3.005 OD (for 3.000" seal bore)
• Yoke Seal: P/N: 611689 32 spline

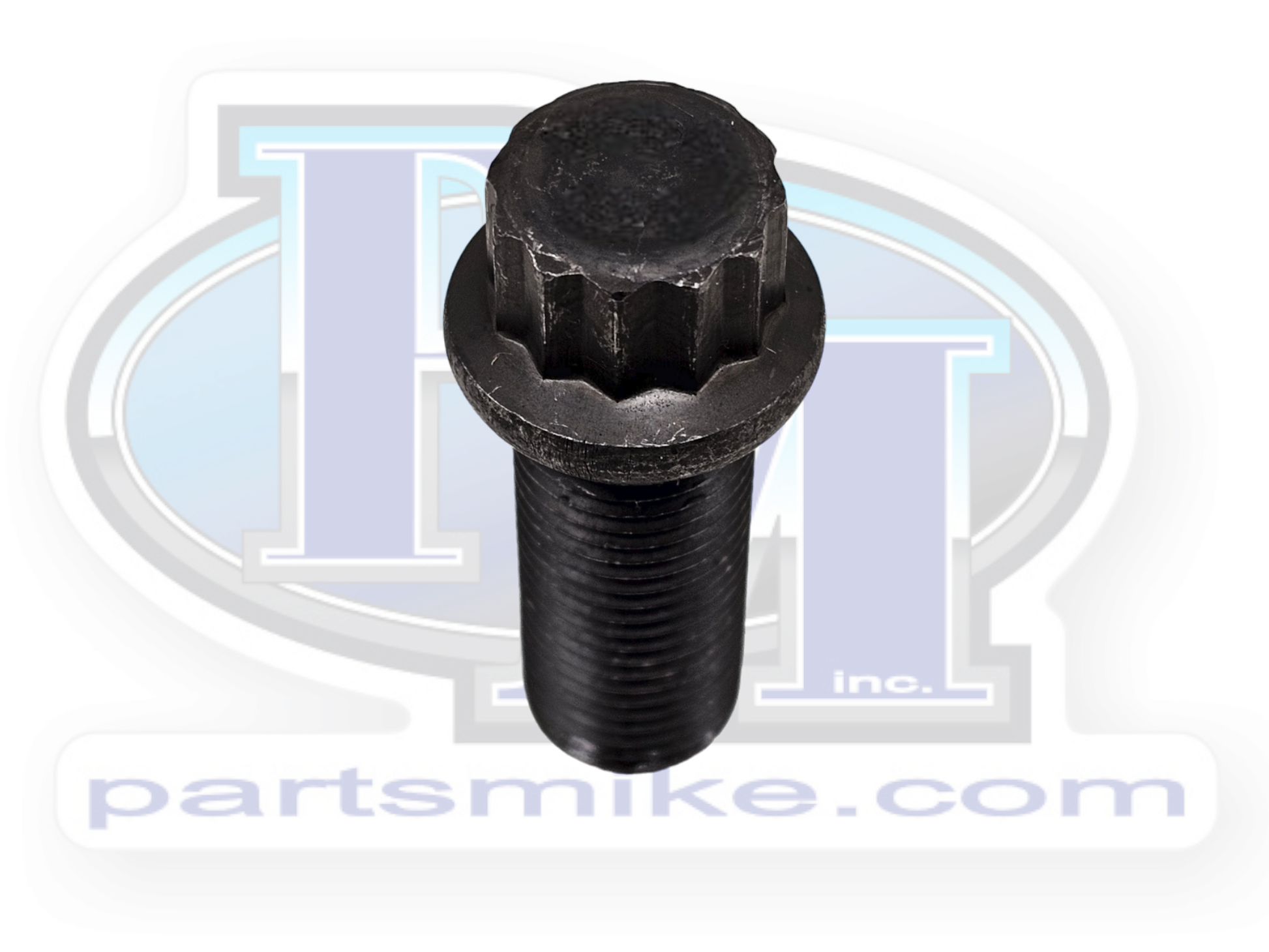

• Hardware: P/N: DL3113-12114  Four 1/2"-20 x 1-1/4" 12 point bolts (uses 1/2" 12 point socket or wrench)

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 2.120"

C: Through Hole: 2.020"

D: End of Flange Face to end of Seal Surface: 2.250"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .450"

Spline Major Diameter: 1.400"

Counter Bore: .300"

Splines: 32

Total Bolt Holes: 12

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

3.50" Center to Center (4 Holes - 7/16" x 20 tpi.)

Pattern 2:

4.25” Center to Center (4 Holes - 1/2" x 20 tpi.)

Pattern 3:

4.25" Center to Center (4 Holes - 1/2" through hole)

Qty. 1
