Companion Flange Conversion Kit for the Jeep Model 35 Rear Axle, 1310, 1350, 26 Spline (PM3111-M35)

Companion Flange Conversion Kit for the Jeep Model 35 Rear Axle Flange Conversion

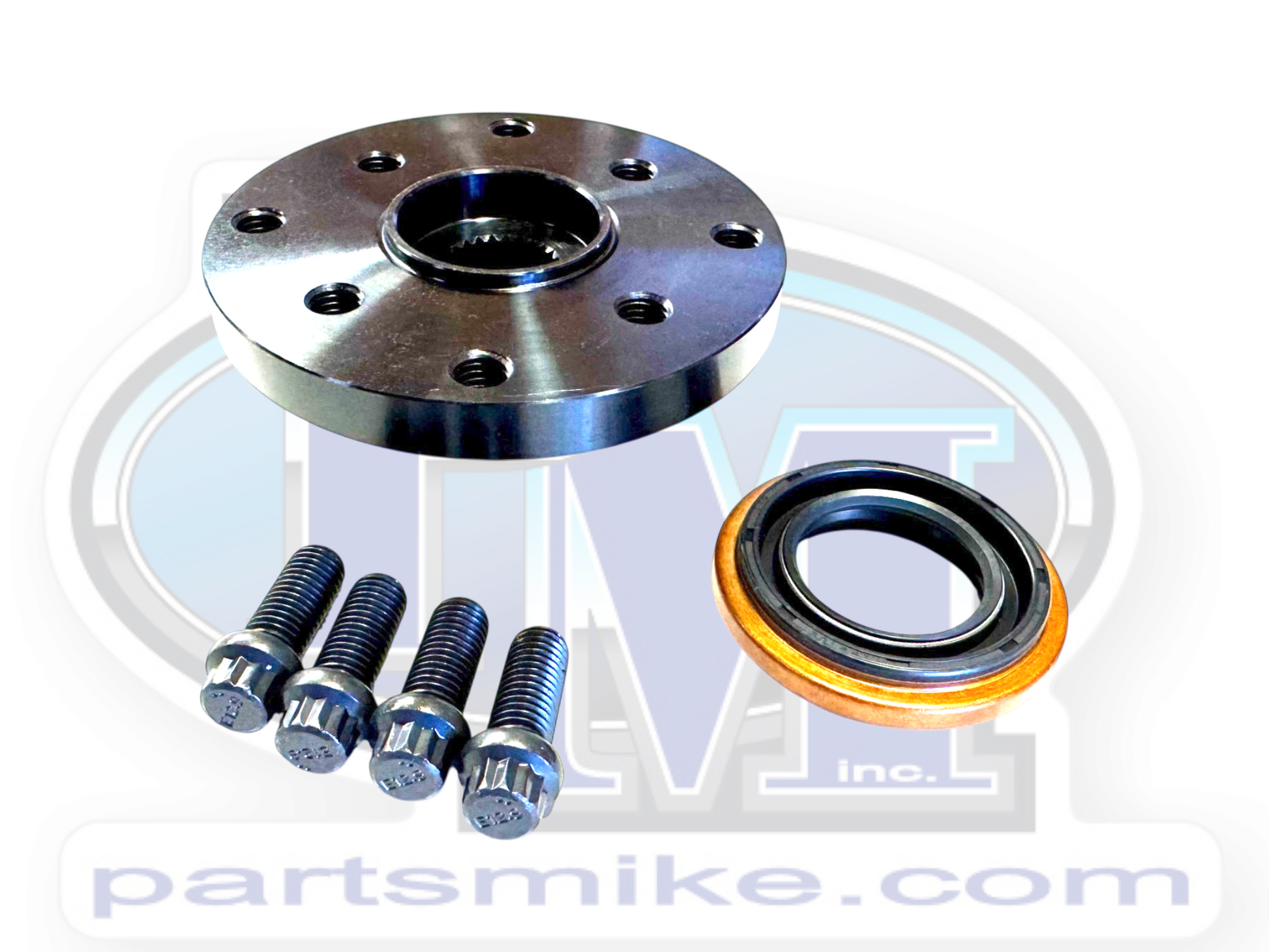

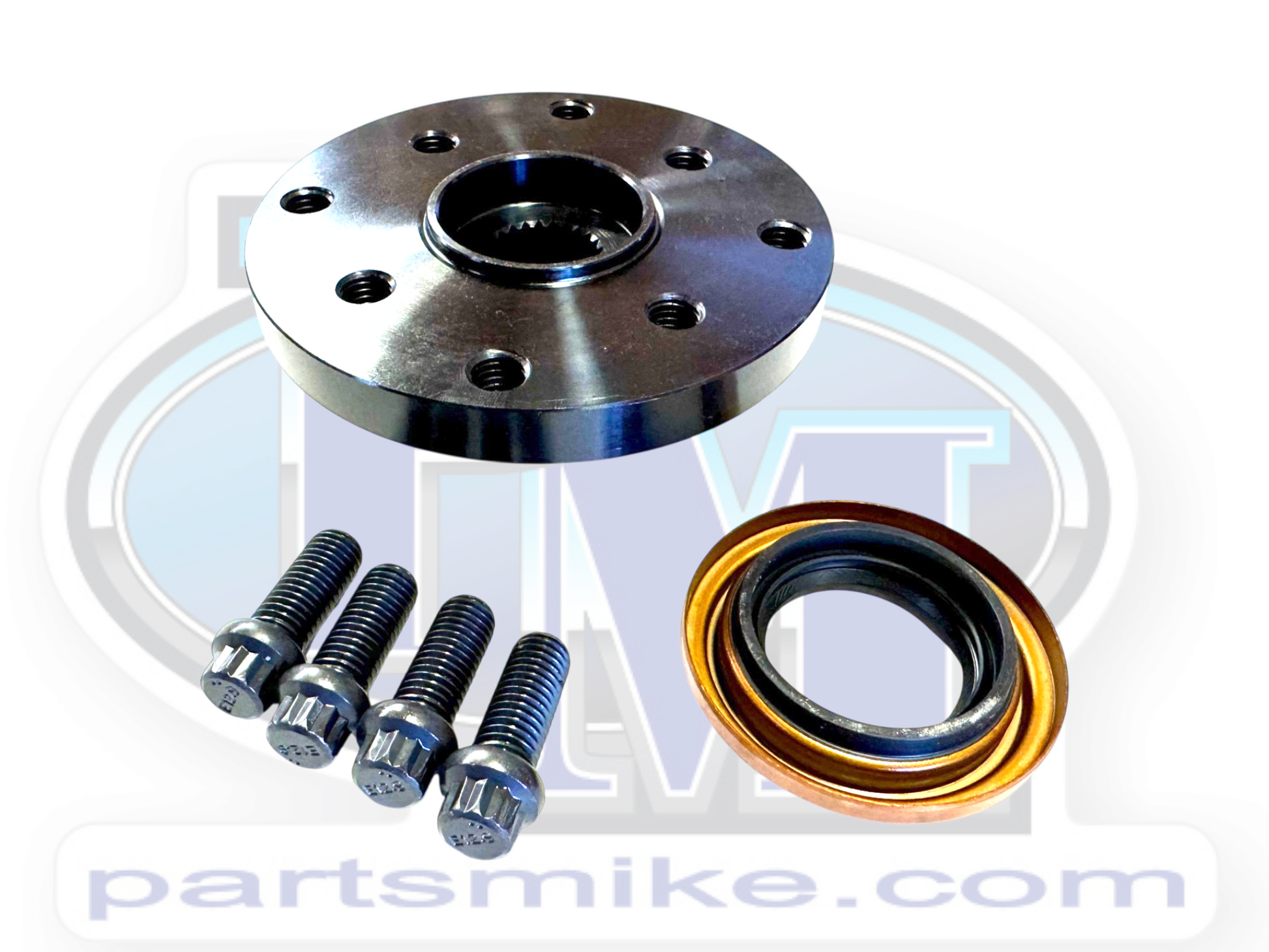

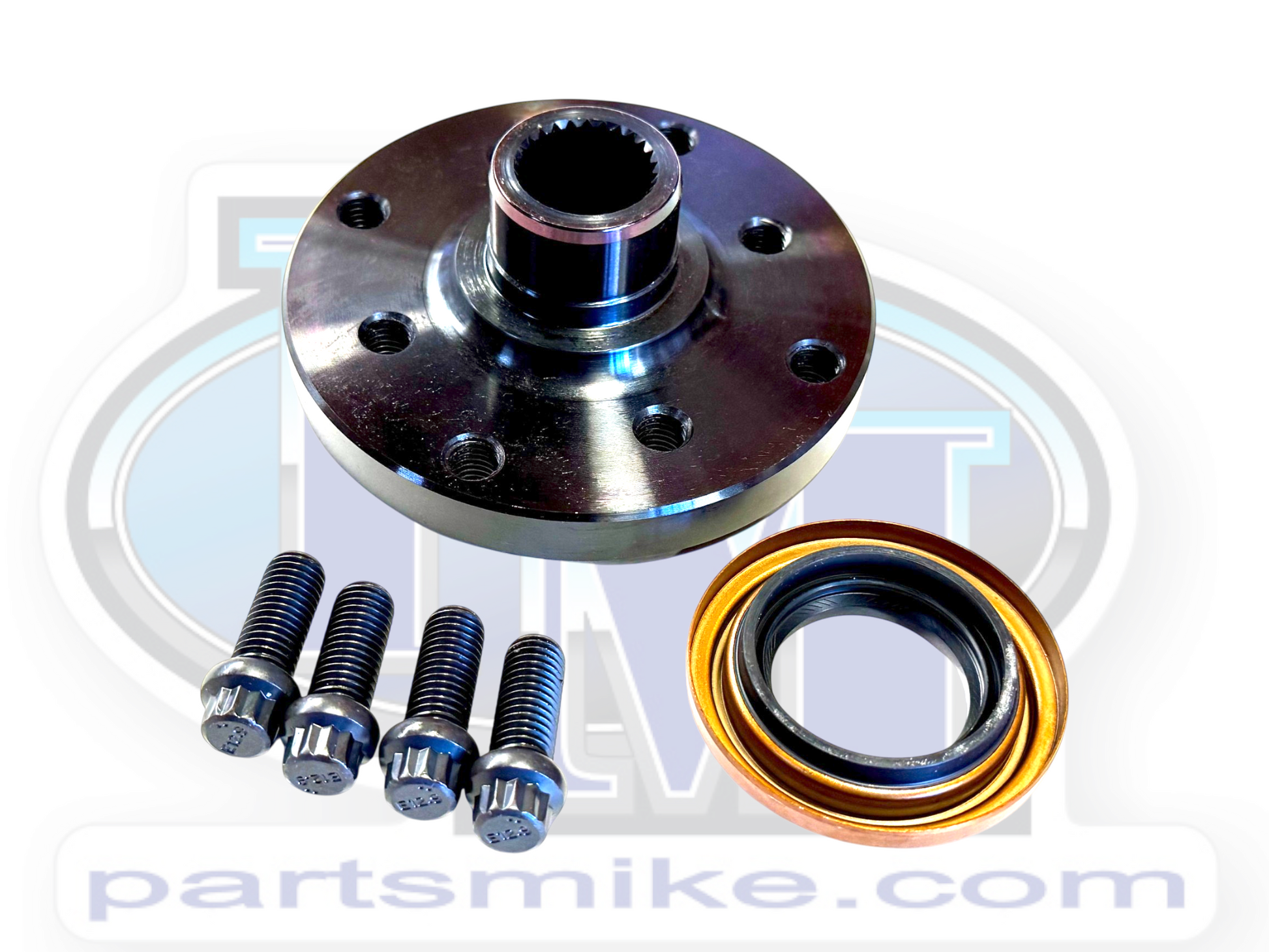

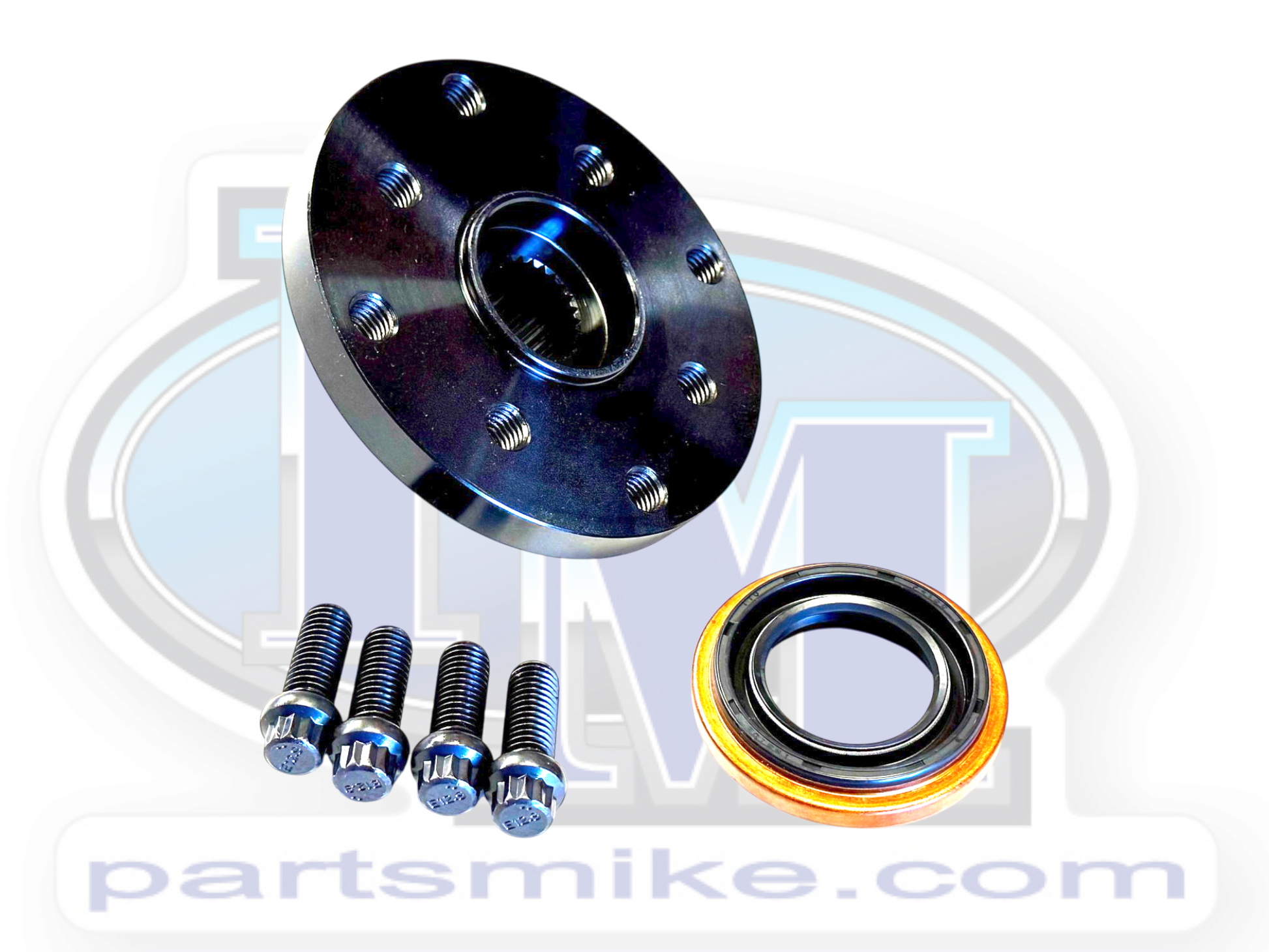

Kit includes 1 companion flange, 4 bolts, 1 seal.

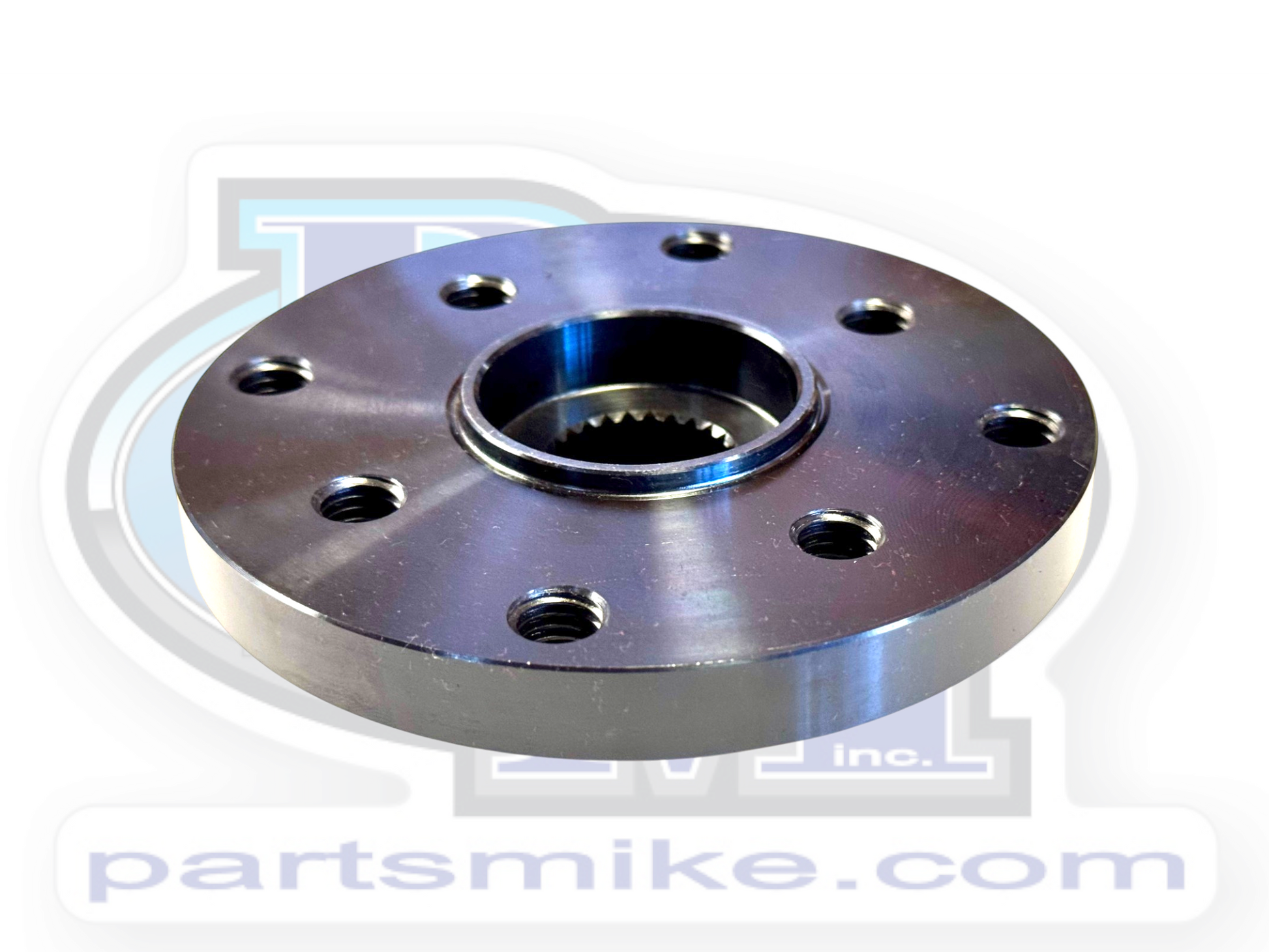

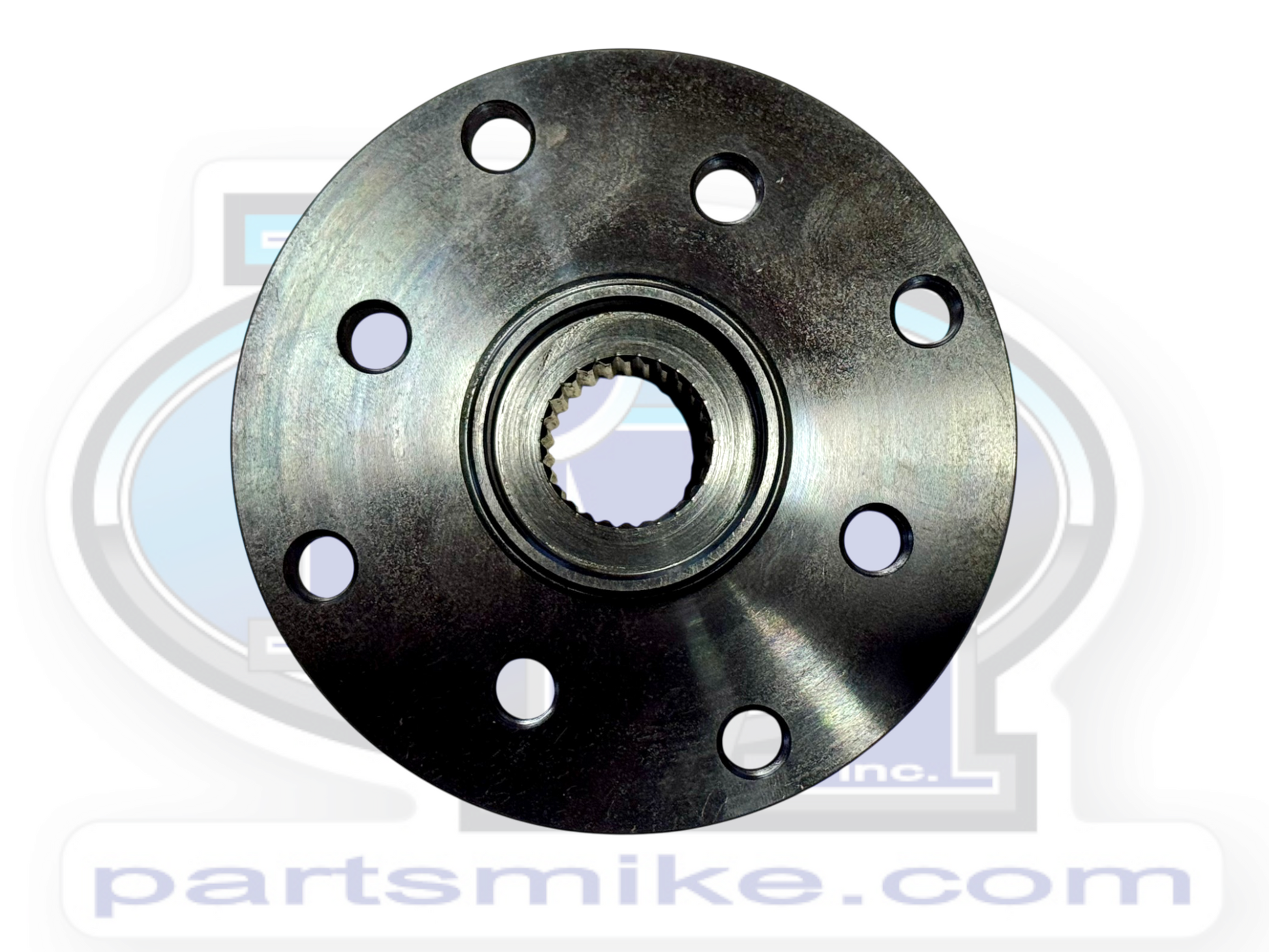

Companion Flange works with 1310, 1350 U-Joints.

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.553"

C: Through Hole: 1.489"

D: End of Flange Face to end of Seal Surface: 1.865"

Flange Face Outside Diameter: 5.103"

Flange Face Thickness: .578"

Spline Major Diameter: 1.150"

Counter Bore: 0

Splines: 26

Note: The M35 axle does not have a landing for the seal so you will need to be sure that the seal is squared up with the face of the axle housing. Be careful that you do not press it in too deep.

Qty. 1
