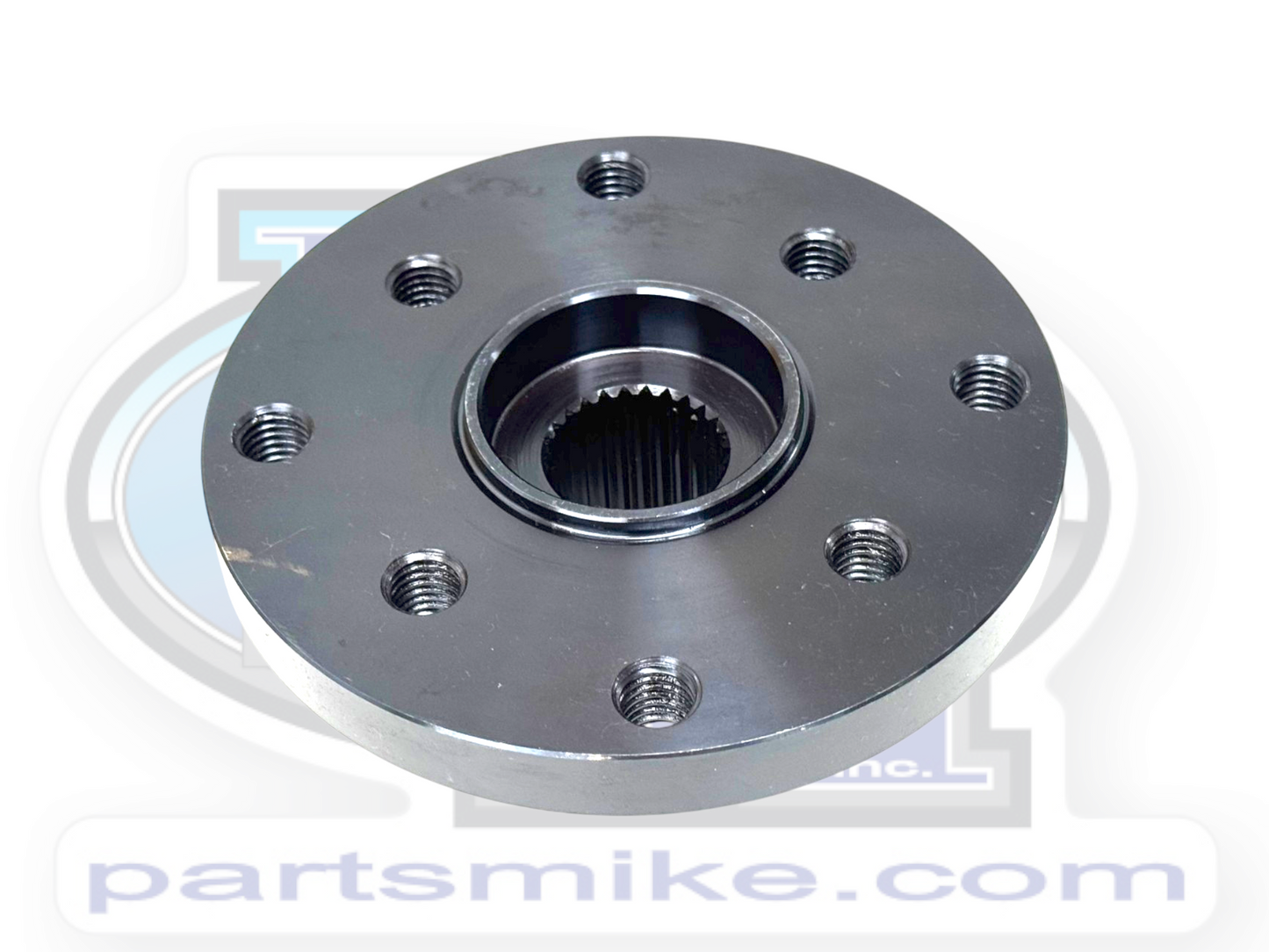

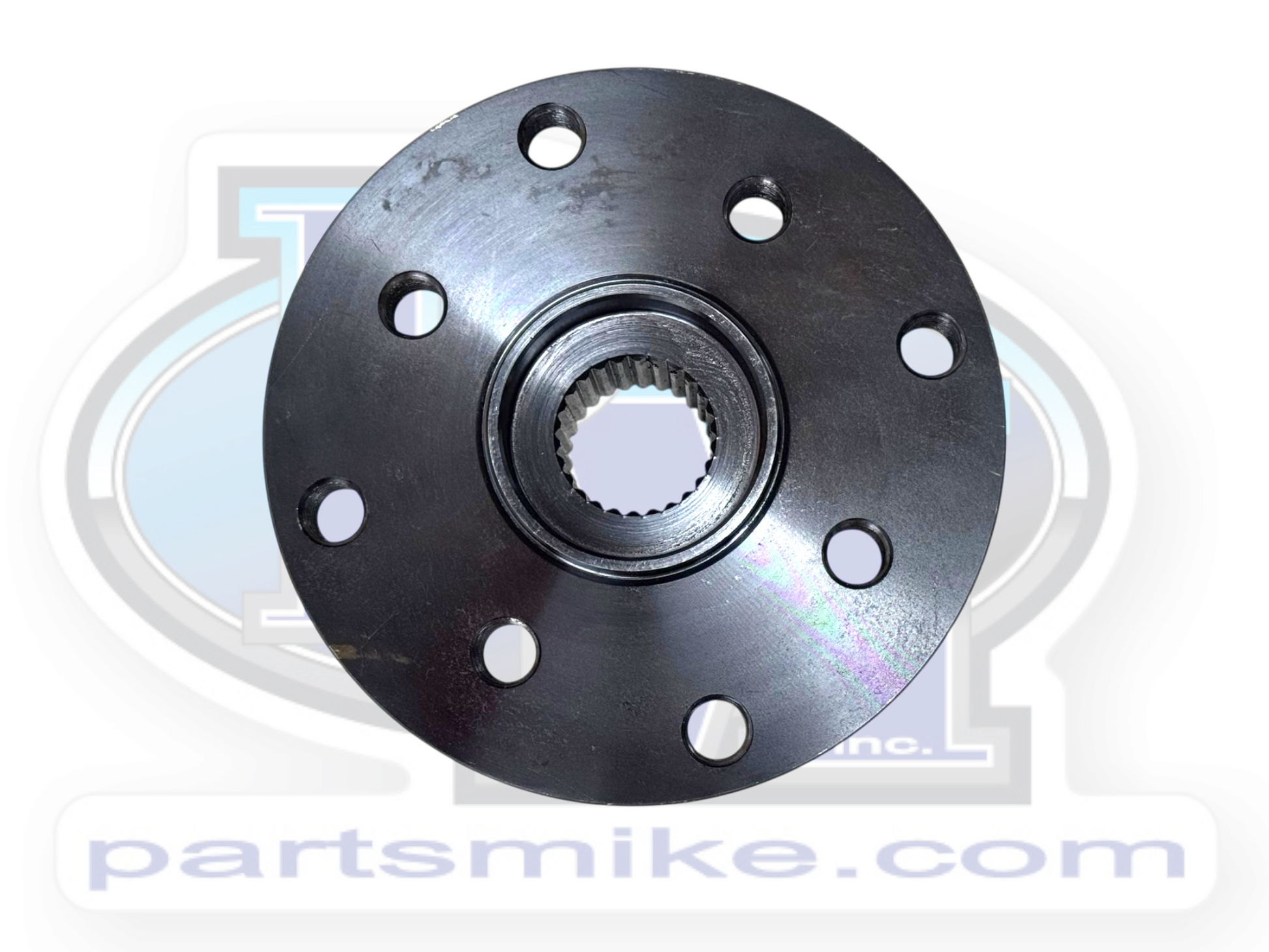

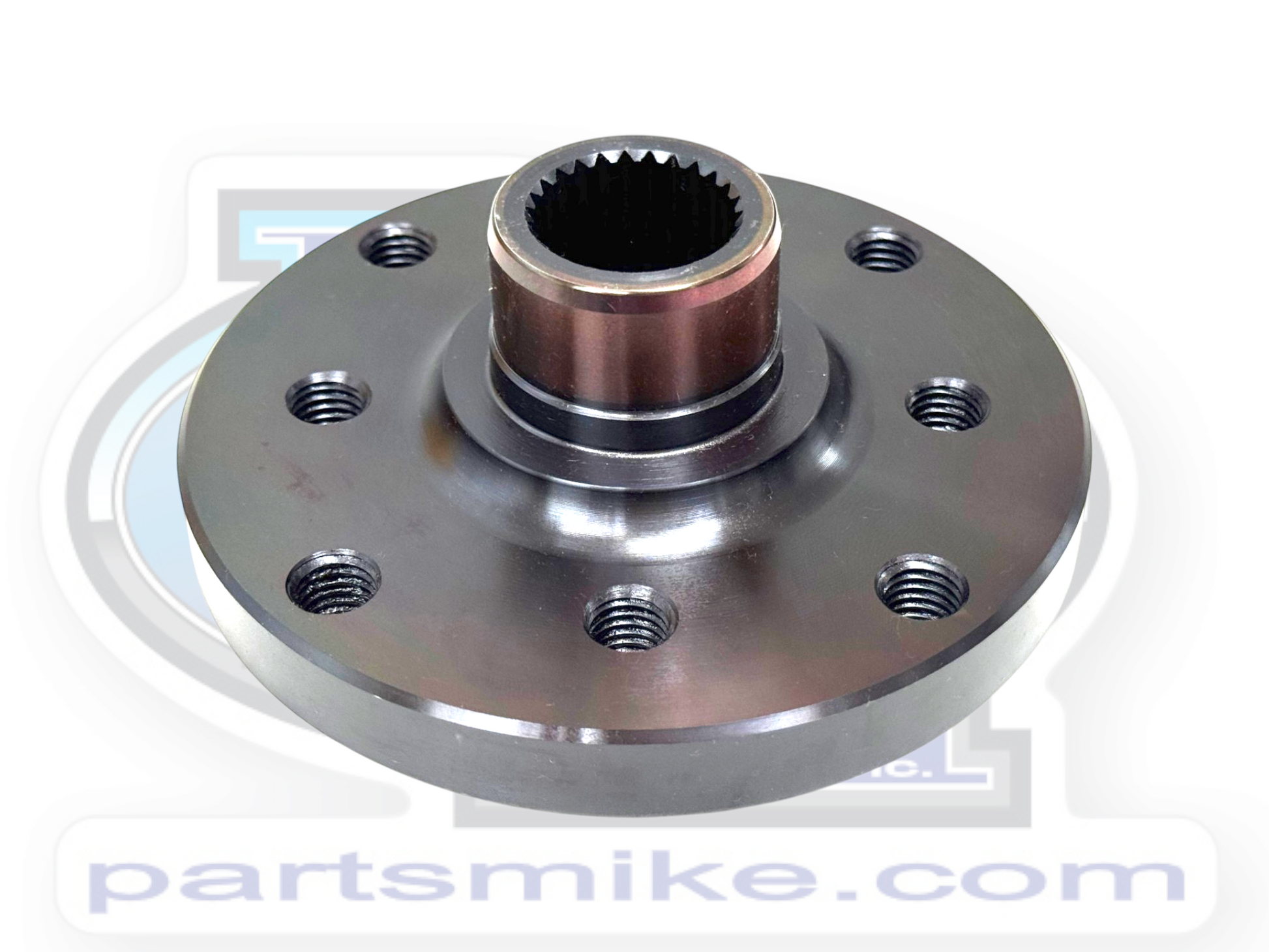

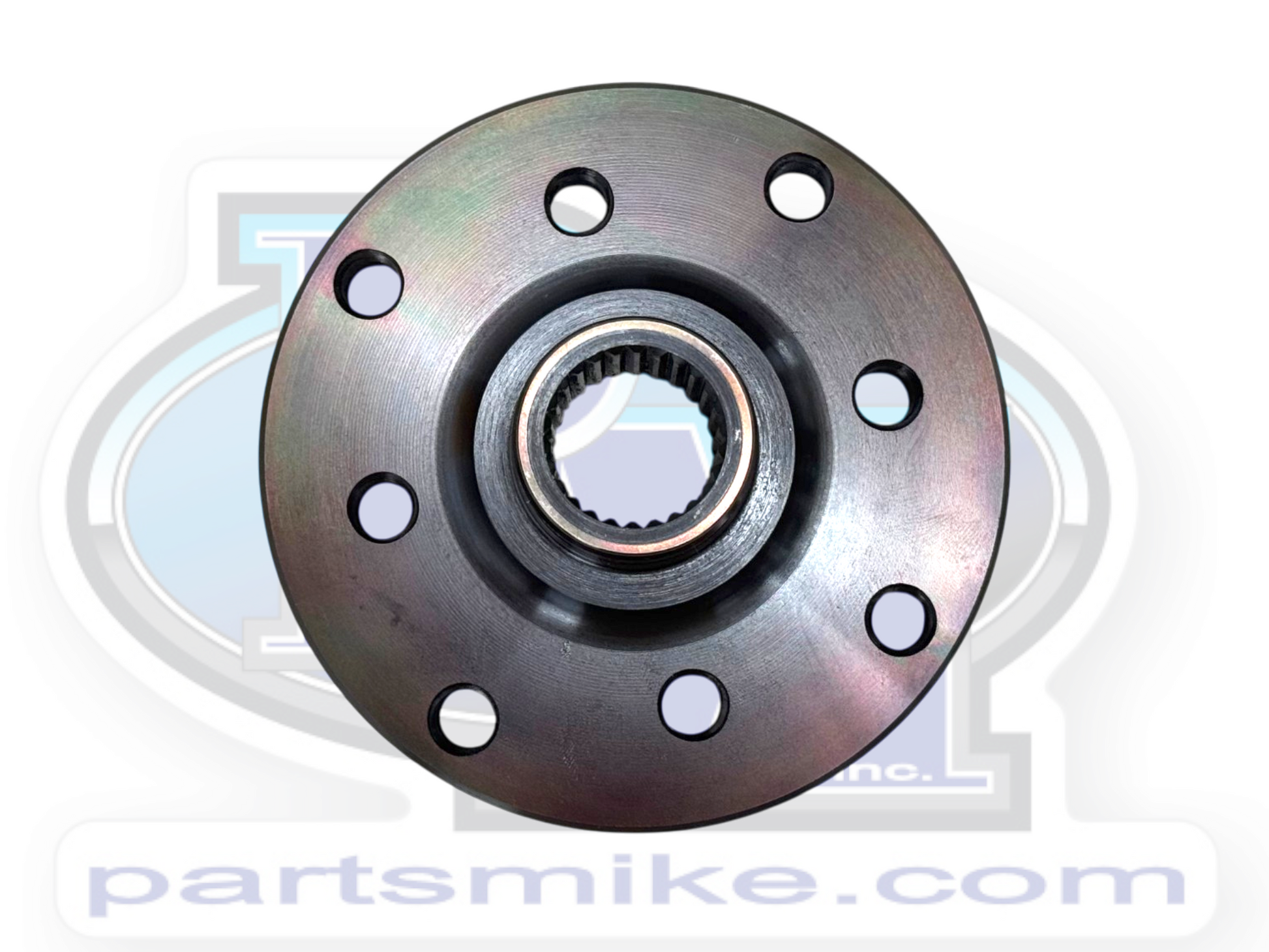

Companion Flange 1310, 1350, (DM5000)

Companion Flange

1310, 1350

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.553"

C: Through Hole: 1.489"

D: End of Flange Face to end of Seal Surface: 1.865"

Flange Face Outside Diameter: 5.103"

Flange Face Thickness: .578"

Spline Major Diameter: 1.150"

Counter Bore: 0

Splines: 26

Uses four DL3113-M12-1.75x30mm bolts.

Qty. 1
