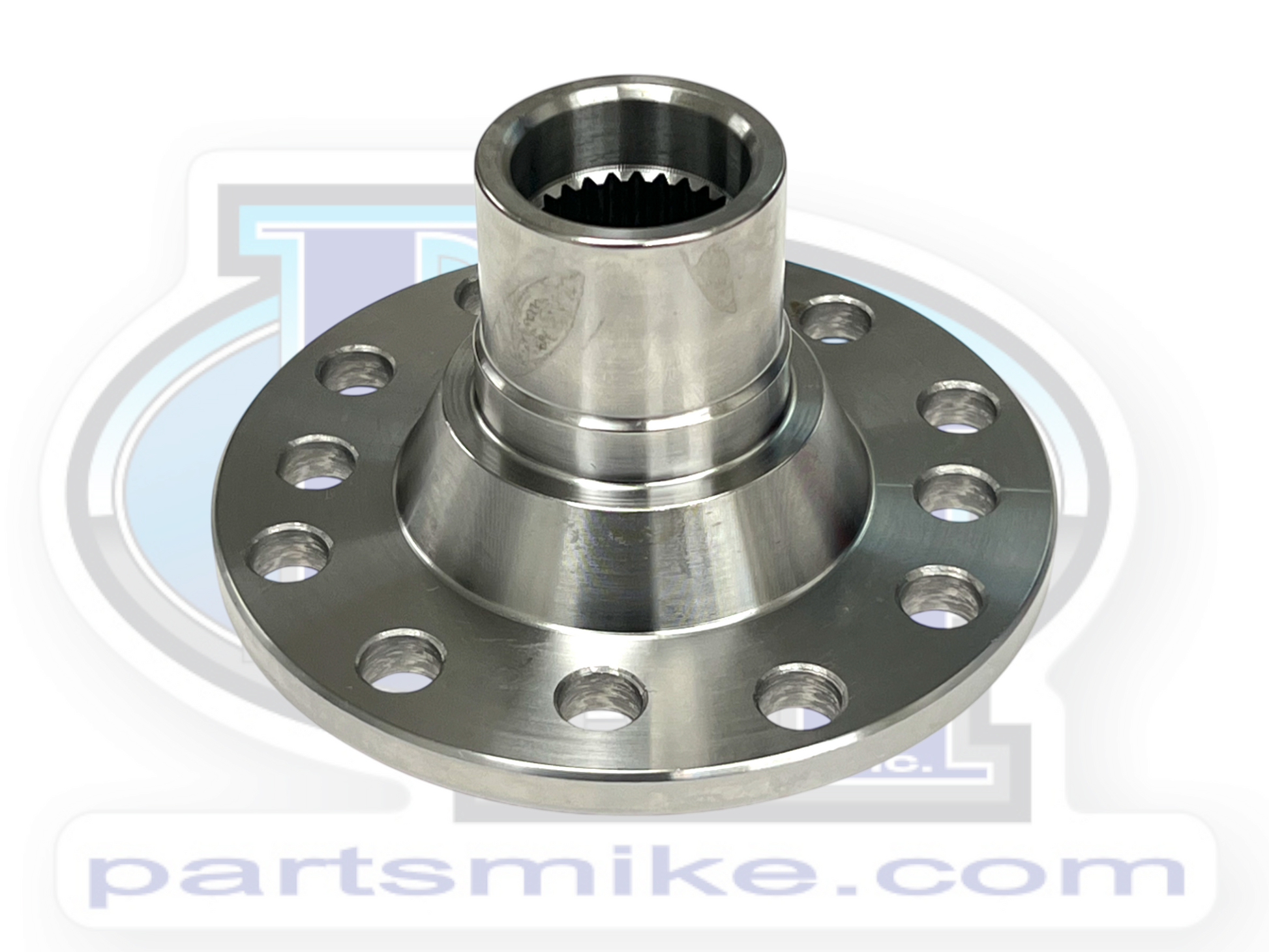

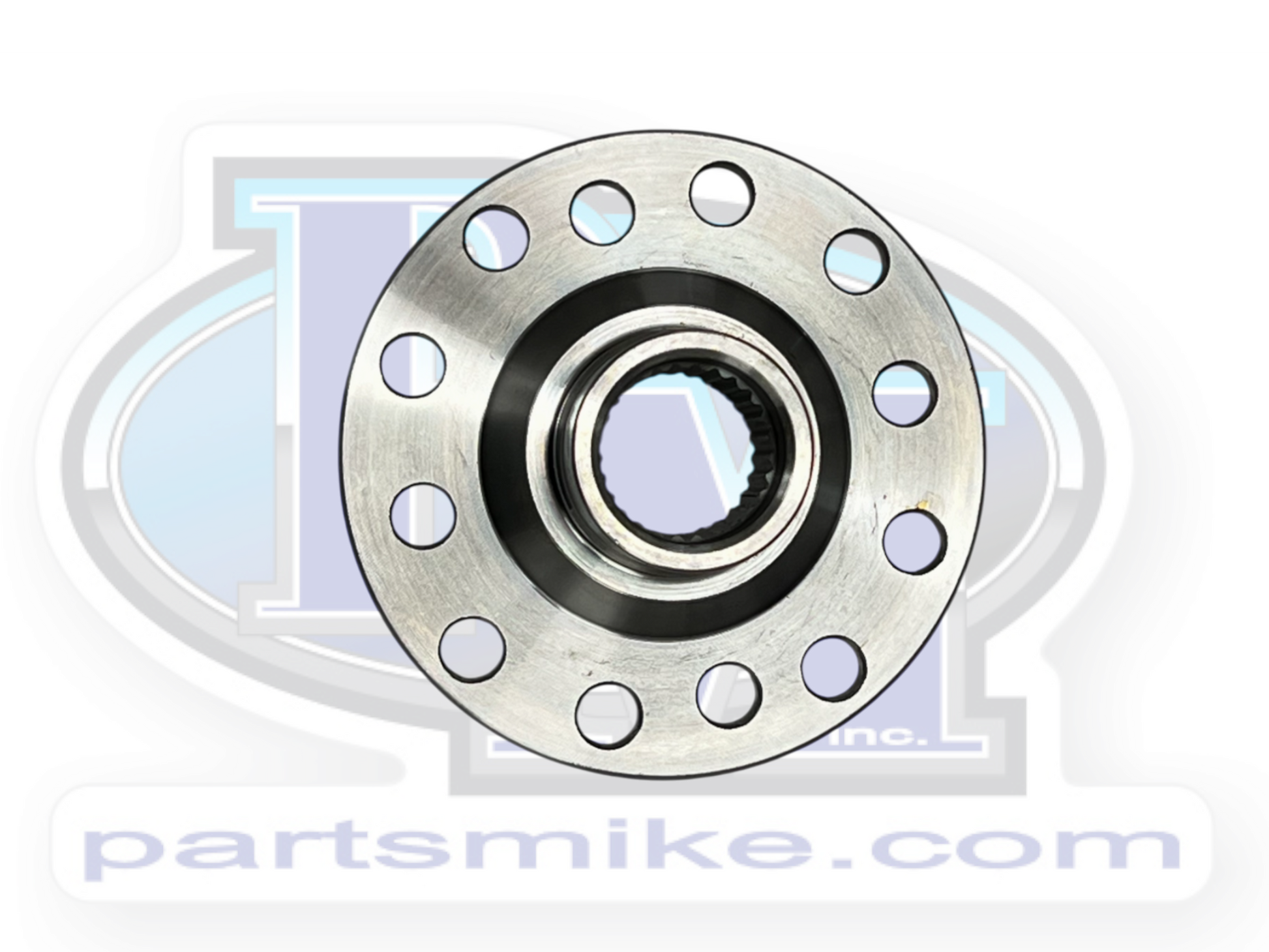

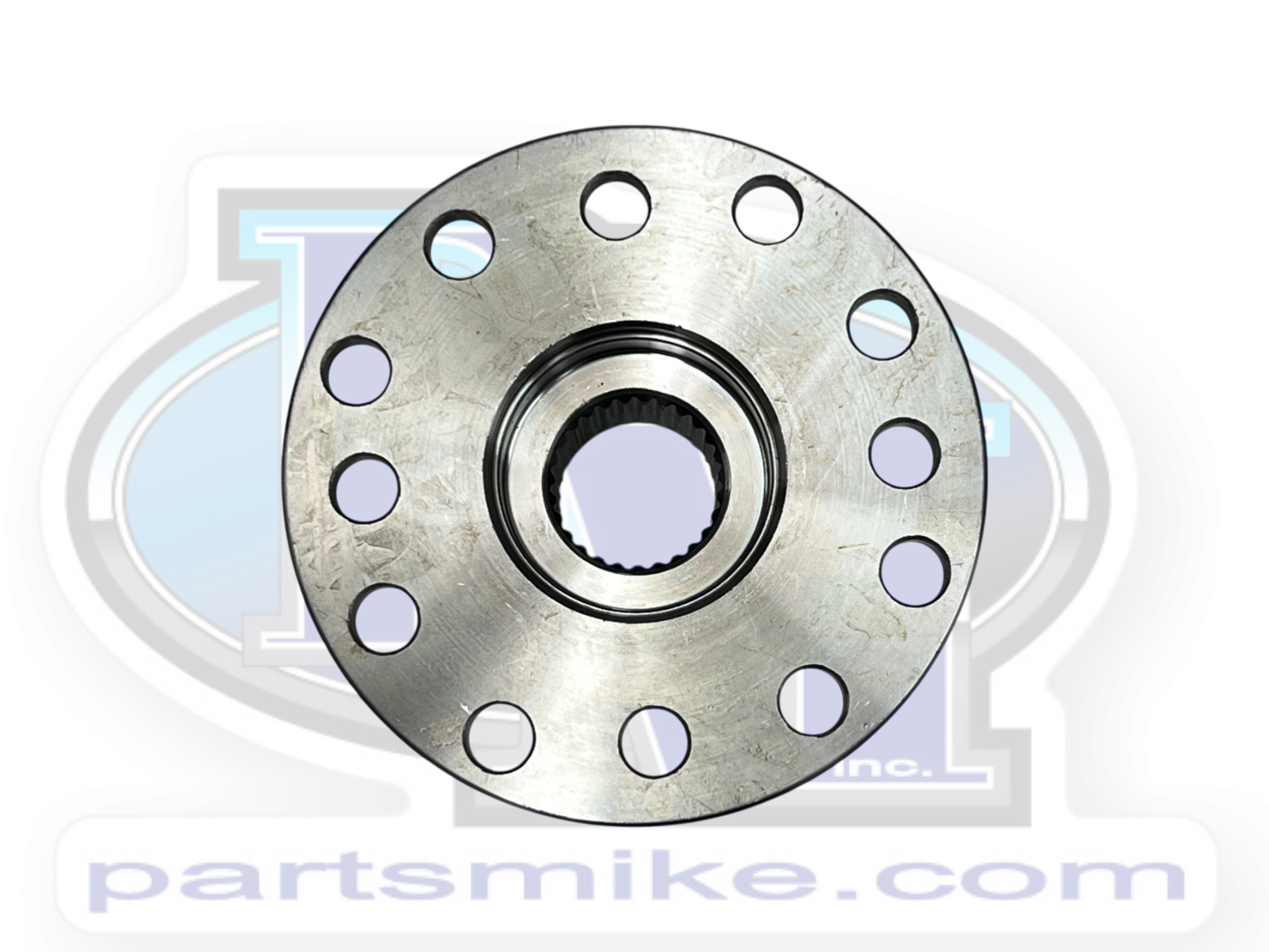

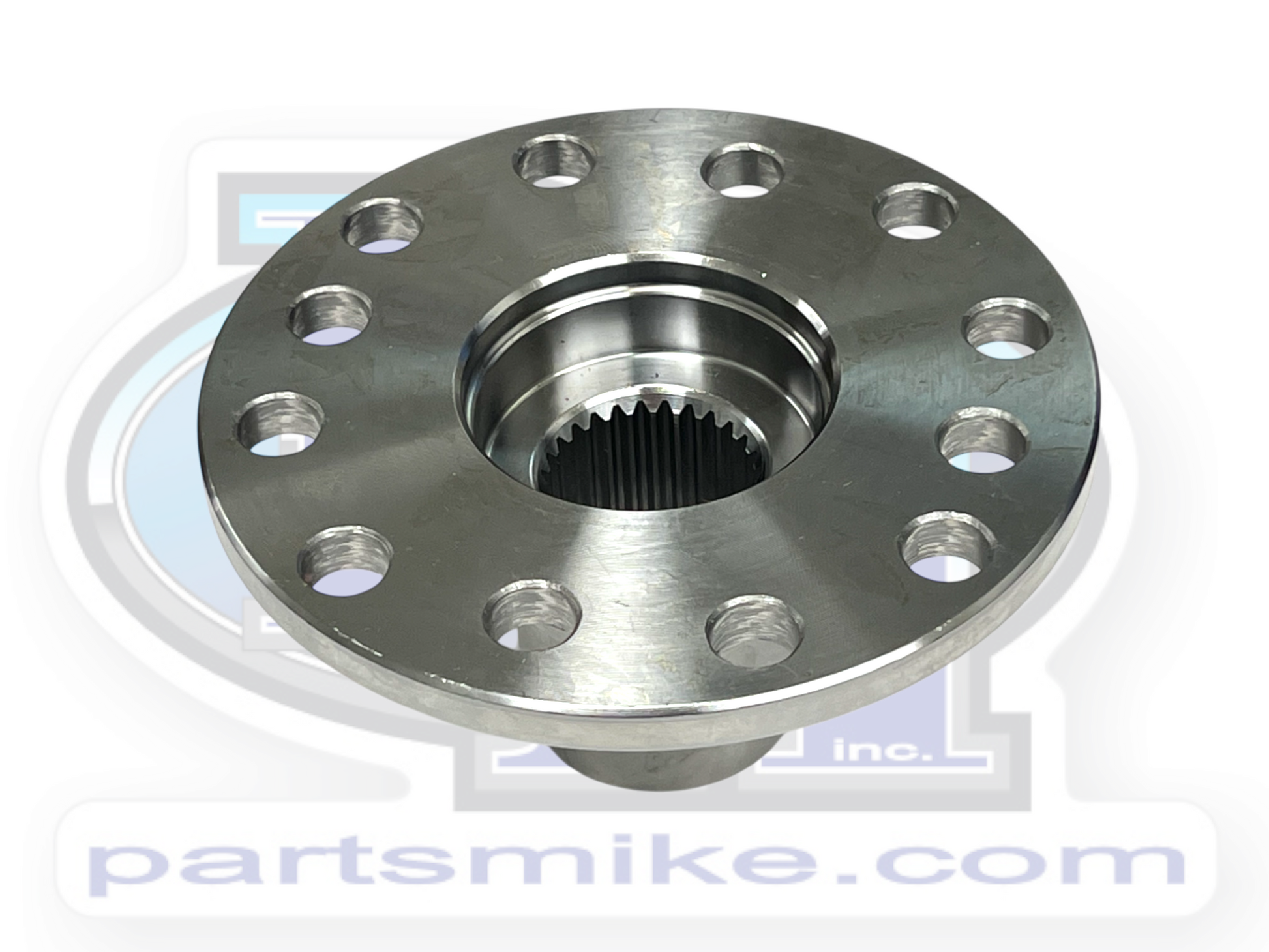

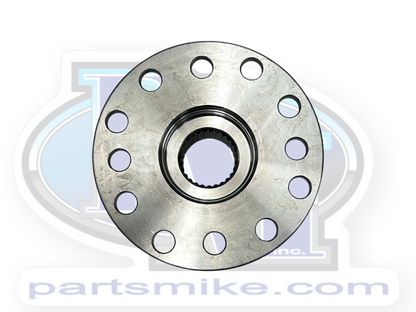

Toyota, Companion Flange, Triple Drilled, 27 Spline, No Dust Cover, (TG100129-1-KIT)

Companion Flange, Triple Drilled, 27 Spline, No Dust Cover, TG100129-1-KIT

Dimensions

A: Pilot Diameter: 1.808" / 45.92mm

B: Seal Surface: 1.497" / 38.02mm

C: Through Hole: 1.651" / 41.93mm

D: End of Flange Face to end of Seal Surface: 2.255" / 57.27mm

Flange Face Outside Diameter: 4.375" / 111.12mm

Flange Face Thickness: .290" / 7.36mm

Spline Major Diameter: 1.109" / 28.16mm

Counter Bore: .421"

Total Bolt Holes: 12

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through hole)

Pattern 2:

60mm x 68.3mm Center to Center (4 Holes - 10mm through hole)

Pattern 3:

61.5mm x 70mm Center to Center (4 Holes - 10mm through hole)

Splines: 27

• Has all the common 1984-1995 patterns in one, universal output flange
• Includes 4cyl CV and Non CV patterns as well as V6 CV pattern
• Fits gear driven transfer cases and 8" differentials


Applications:

• 1979-1985 Toyota Pickup (4cyl Engines Only)
• 1985 Toyota 4Runner (4cyl Engines Only)
• All 8" Drop Out 3rd Members
• Other vehicles with an RF1A Gear-Driven T-Case

NOTE: This will not work with 1979-1985 factory drivelines.

Qty. 1
