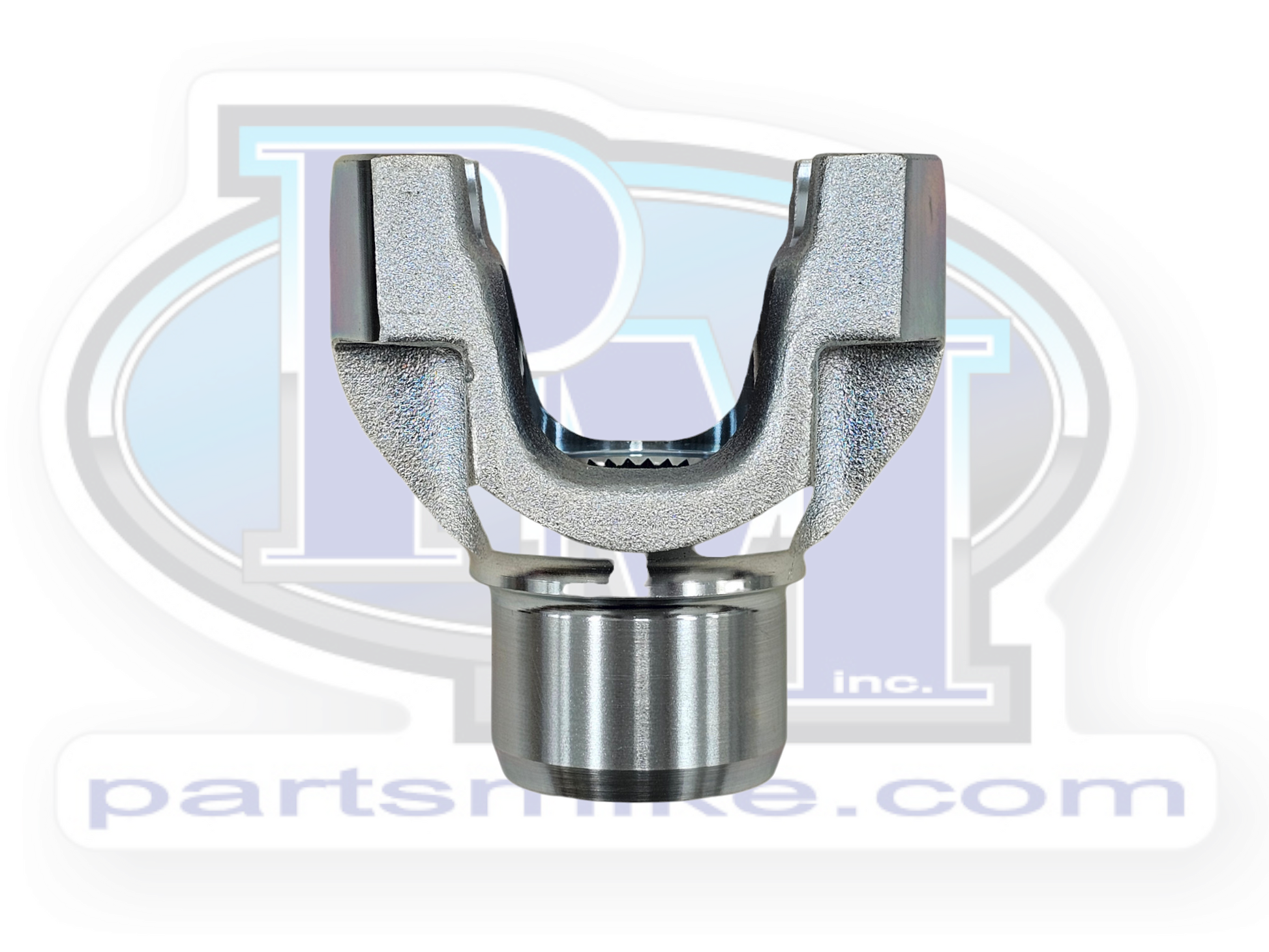

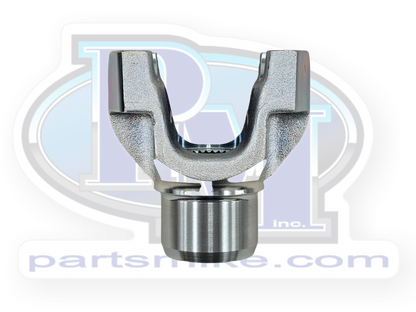

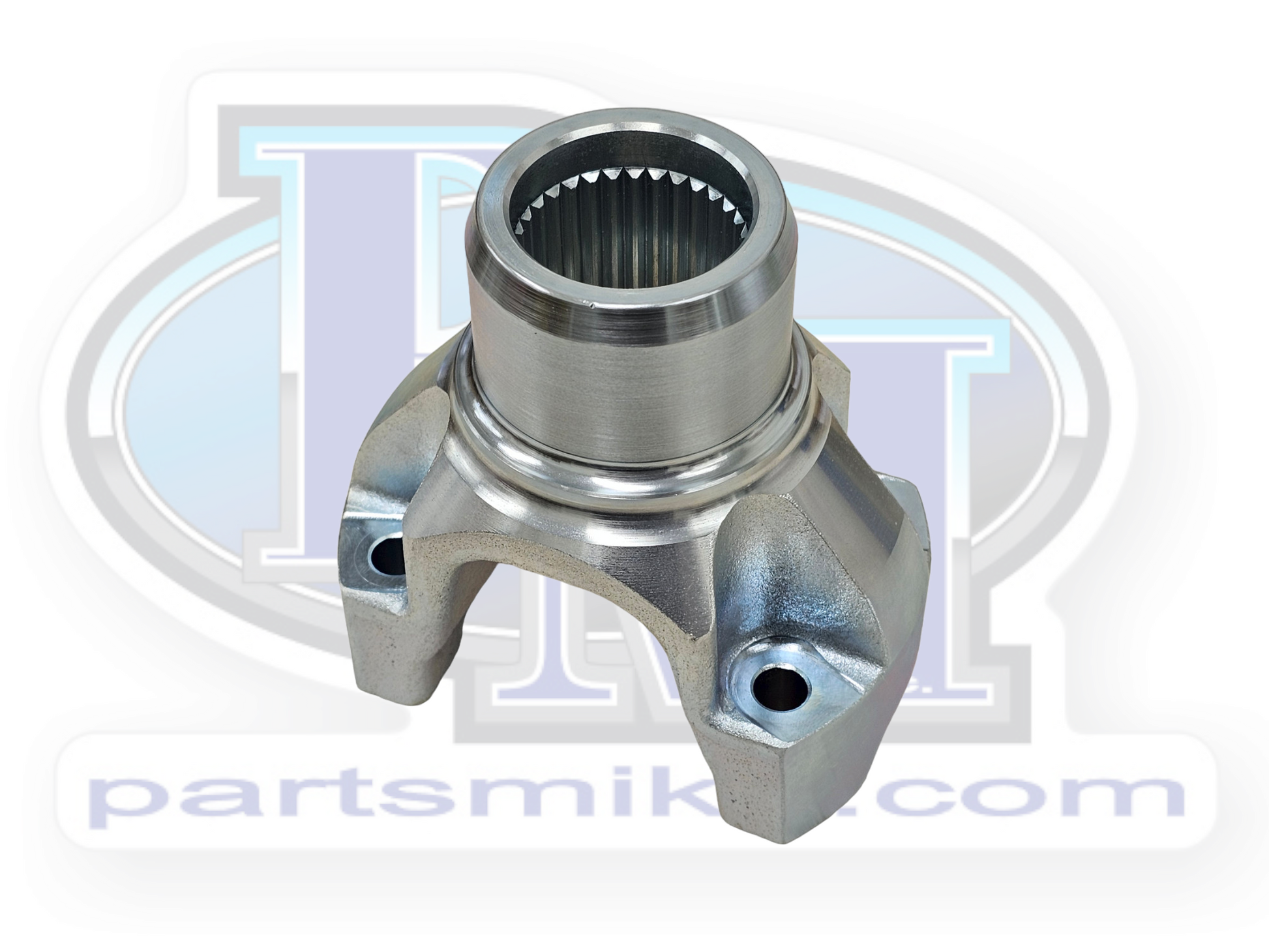

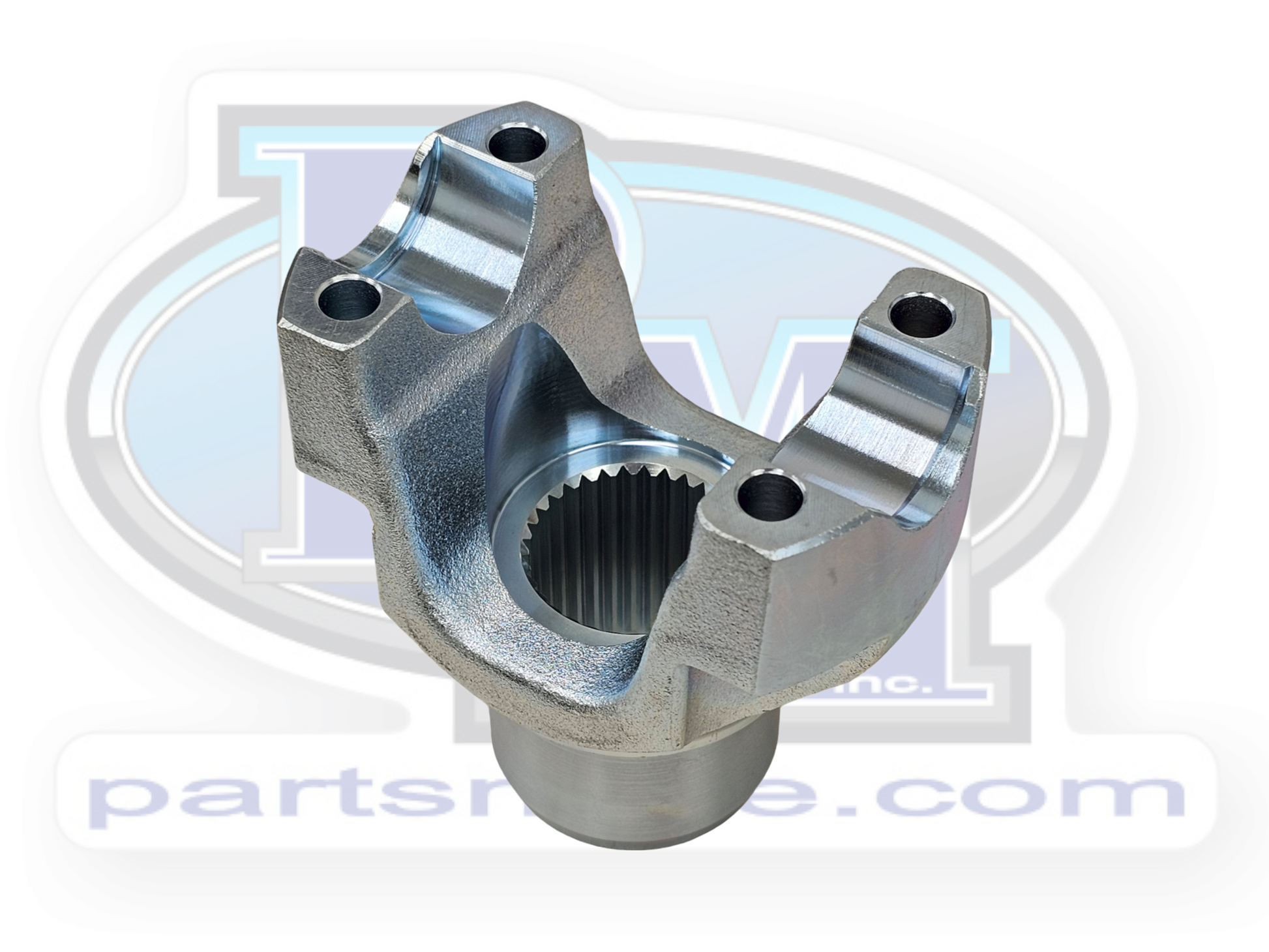

Jeep JK, JL, JT (Front or Rear) Transfer Case 1350 CV Driveshaft End Yoke. Will also fit the (Front or Rear) of a TJ with a Rubicon Transfer Case, 32 Spline (PM3112-CV01)

Jeep JK, JL, JT (Front or Rear) Transfer Case 1350 CV Driveshaft End Yoke. Will also fit the TJ with a Rubicon Transfer Case, 32 Spline  (PM3112-CV01)

Buy the kit with the CV bolts! Click Here.  It will save a half hour of your LIFE every time you remove OR install the driveline.  The small 12 point head gives you enough space between the yoke and the bolt to fit a 1/4" ratchet or ratcheting wrench.  If you use bolts from the hardware store, they'll have a 1/2" wrench head on them, and you'll be removing 24 threads per inch a quarter turn at at time!  Don't waste you life, buy the kit.

Dimensions (Reference Image)

A: Seal Surface: 49.32mm / 1.94"

B: Spline Length: 50.7mm / 1.99"

C: Overall Length: 102mm / 4.01"

D: U-Joint Width: 92.07mm / 3.62"

Splines: 32

Specifications:

• U-joint size:  1350, CV


Why the yoke is great:

• FORGED will beat the same part made from billet, or cast...period.  The forging process forms the metal grain along the contours, and results is a stronger part.  Forging also compacts the grain structure which nearly eliminates failures from voids or inclusions.

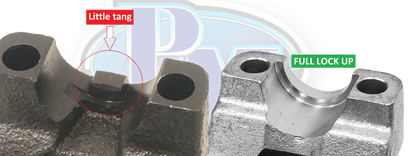

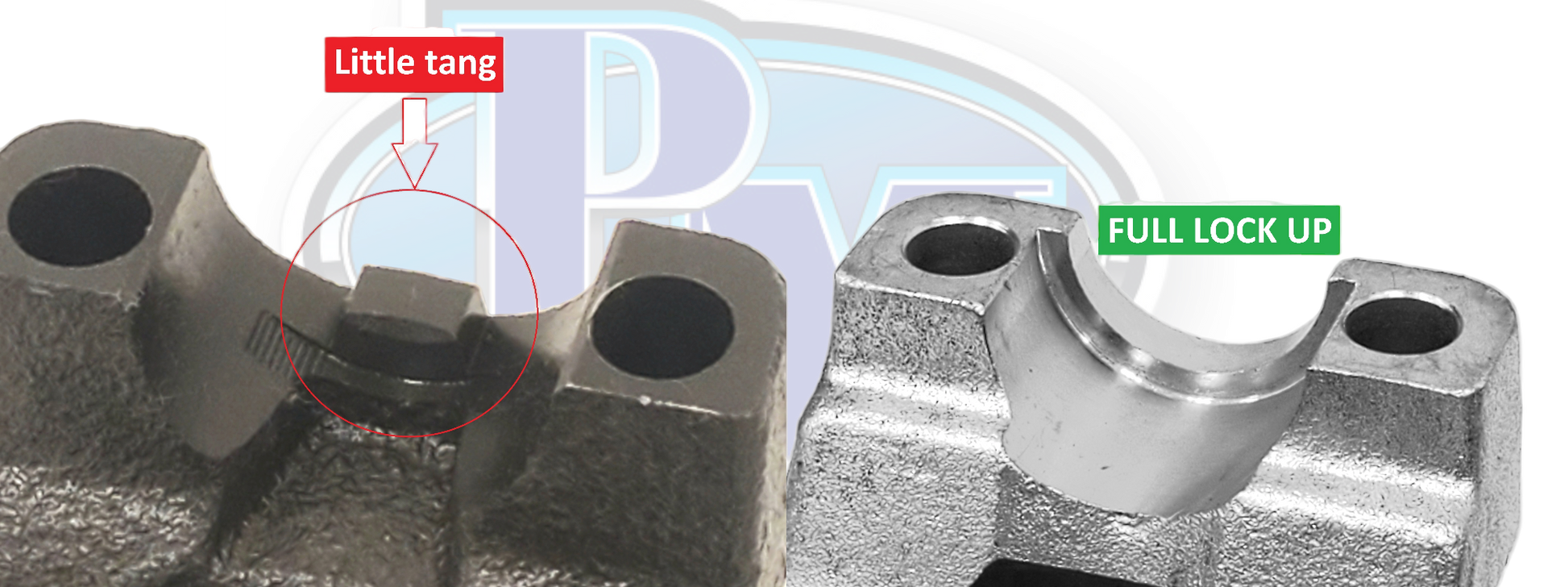

• FULL LOCK UP is what we call our u-joint cap retention method (see pictures for FULL LOCK UP vs little tang).  Almost all yokes have a little tang to retain the u-joint cap.  Catch that tang on a stubborn rock, and it breaks off.  Then the cap shoots out, and BAM.  FULL LOCK UP eliminates this problem by fully retaining the u-joint cap.

Cross Reference: N3-4-JL-TCF

Qty. 1
