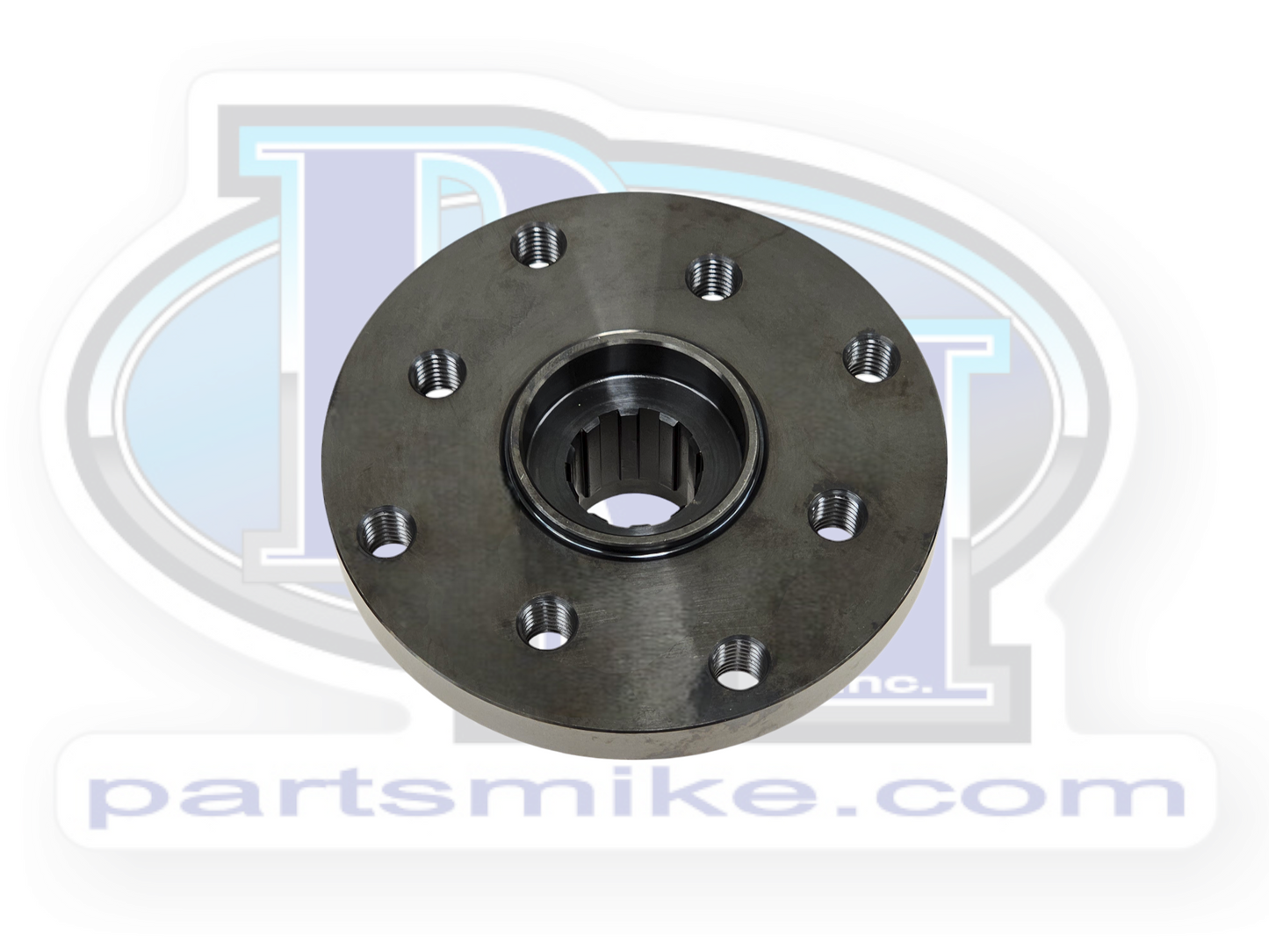

Old Dana 44/ Dana 20 / Dana 300 - 1310, 1350, 1410, Driveshaft Companion Flange, 10 Spline, (DM4900)

This flange fits Jeep Dana 20, Dana 300, and super old Dana 44 axles with 10 spline pinions.  1310/1350/1410 series flange can be used with CV or non-CV drive line flange yokes. The flange is made from AISI 5140 forged steel, and warrantied for LIFE when you get the hardware!

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.553"

C: Through Hole: 1.500"

D: End of Flange Face to end of Seal Surface: 1.864"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .581"

Spline Major Diameter: 1.125"

Counter Bore: .300"

Splines: 10

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

3.50” Center to Center (4 Holes - 12mm x 1.75 tpi.)

Pattern 2:

4.25" Center to Center (4 Holes - 12mm x 1.75")

Hardware options:

1. Flange only - Pretty straight forward
2. DM4900GK
   • Hardware -  Four M12-1.75 12 point bolts (uses 12mm 12 point socket or wrench)

Qty. 1
