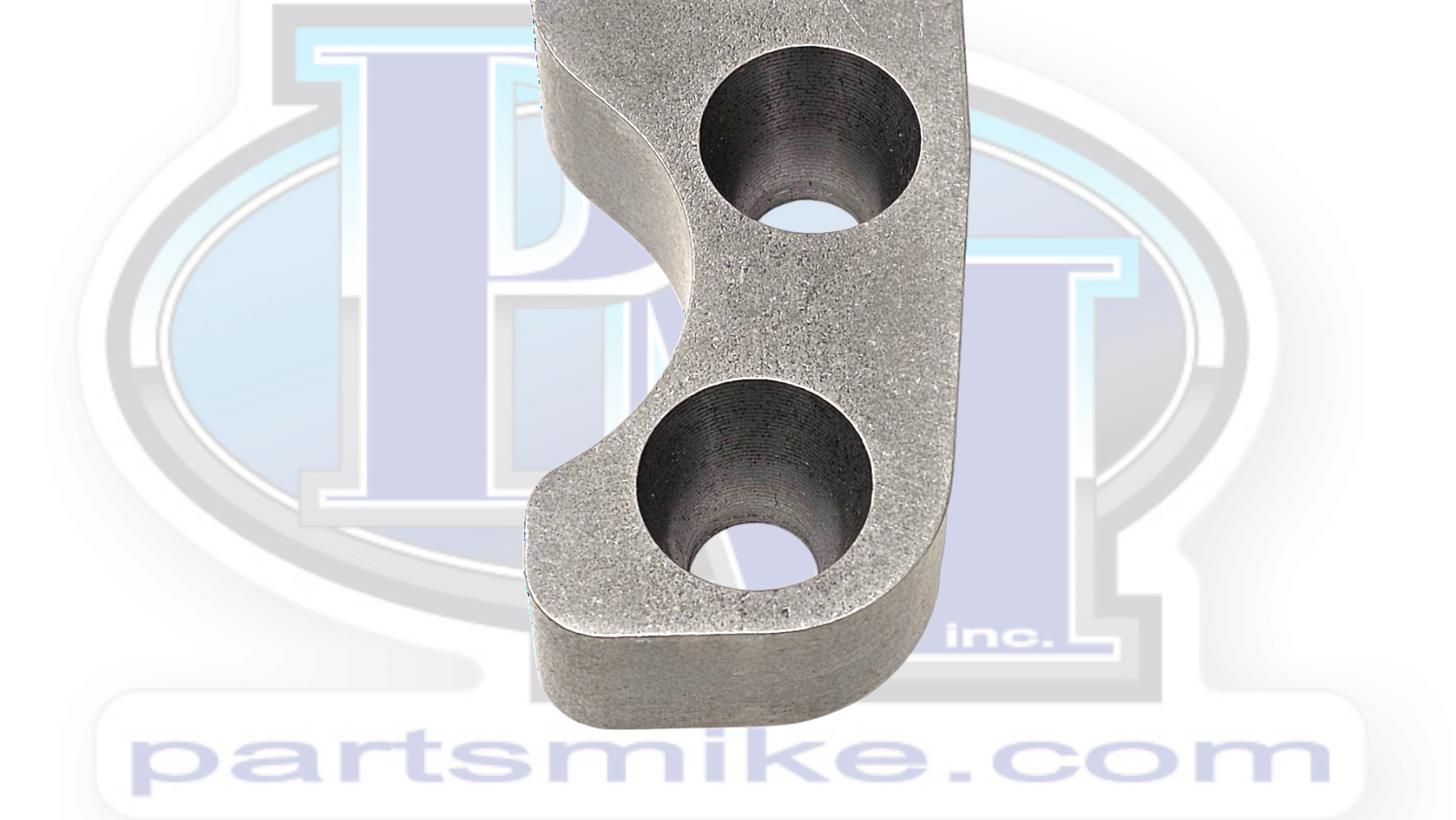

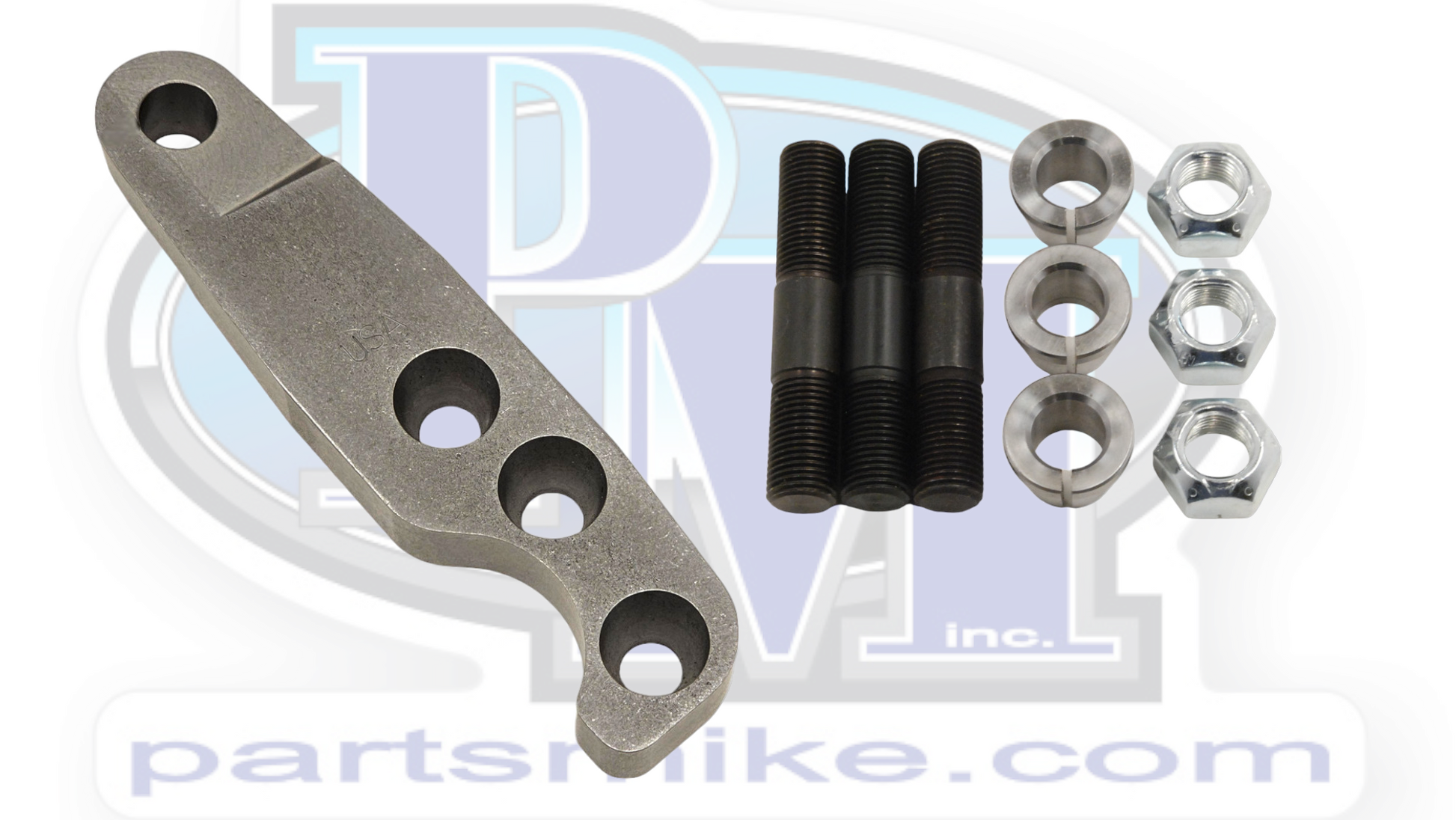

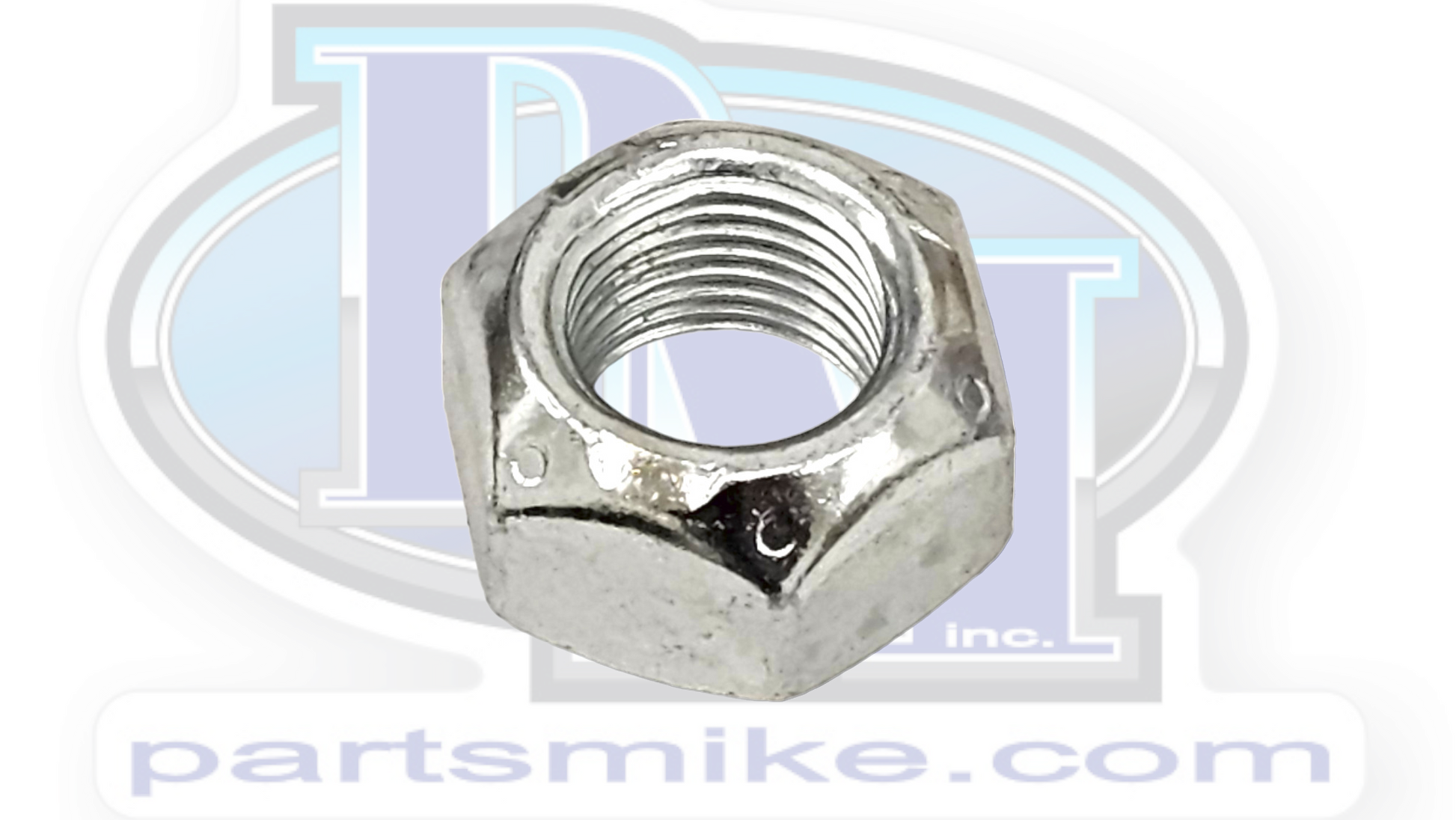

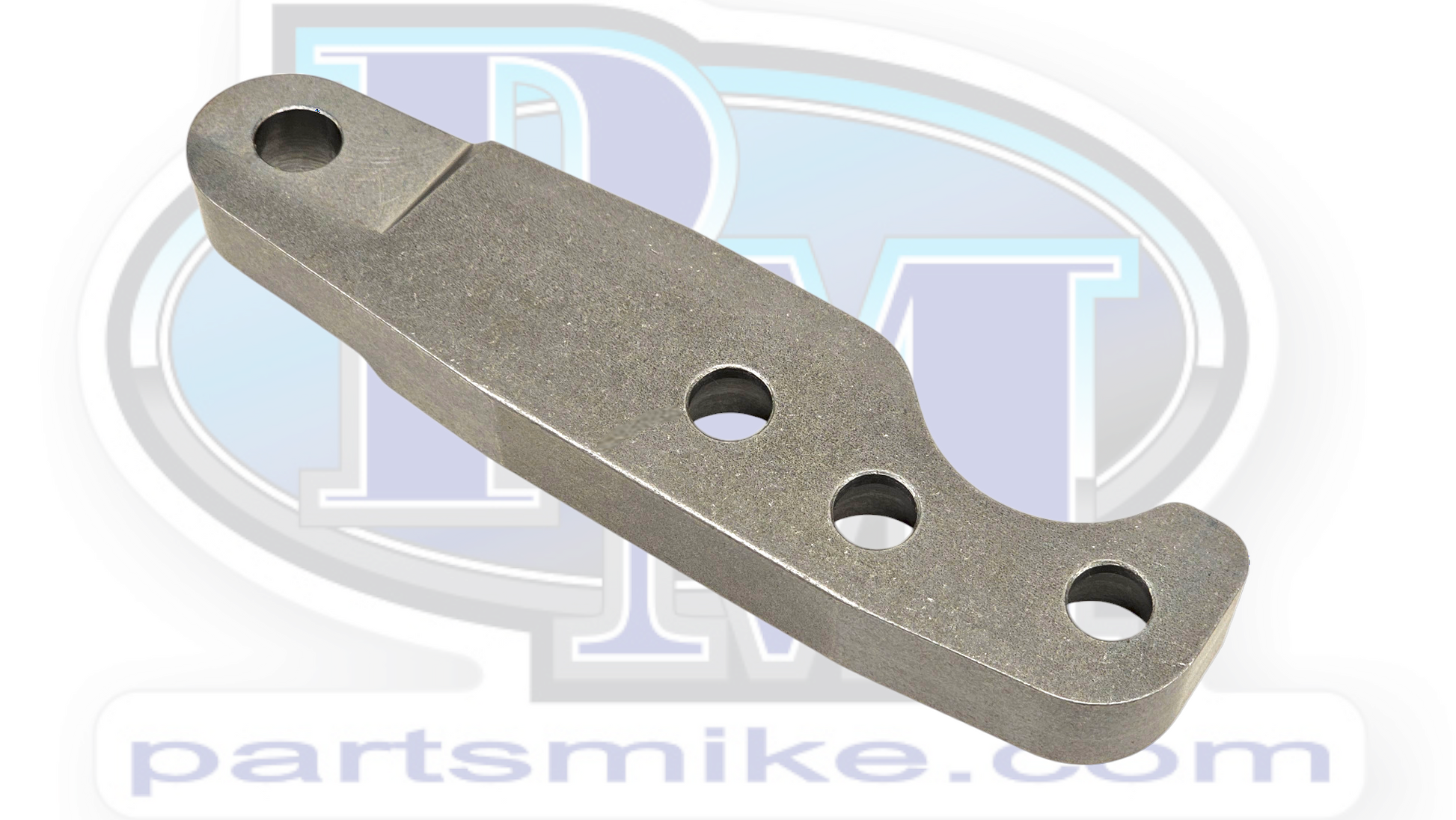

D44 steering arm for cross over (passenger's side), 1" tall with hardware. This steering arm is 1" thick, and will lift the tie rod 1" from the top of the flat top knuckle. If your leaf springs are under the axle, this is a great solution. It comes with studs, split conical washers, and top lock nuts. If you're using a 1" spacer (or planning to), you'll need longer studs. Give us a call to get you the best combination of parts to make your steering work.
We also offer several options of heavy duty knuckles that have been improved over the OE design (type "knuckle" in the search bar on the top right of the page). If you need to have a knuckle machined, we can do that too!
Specifications

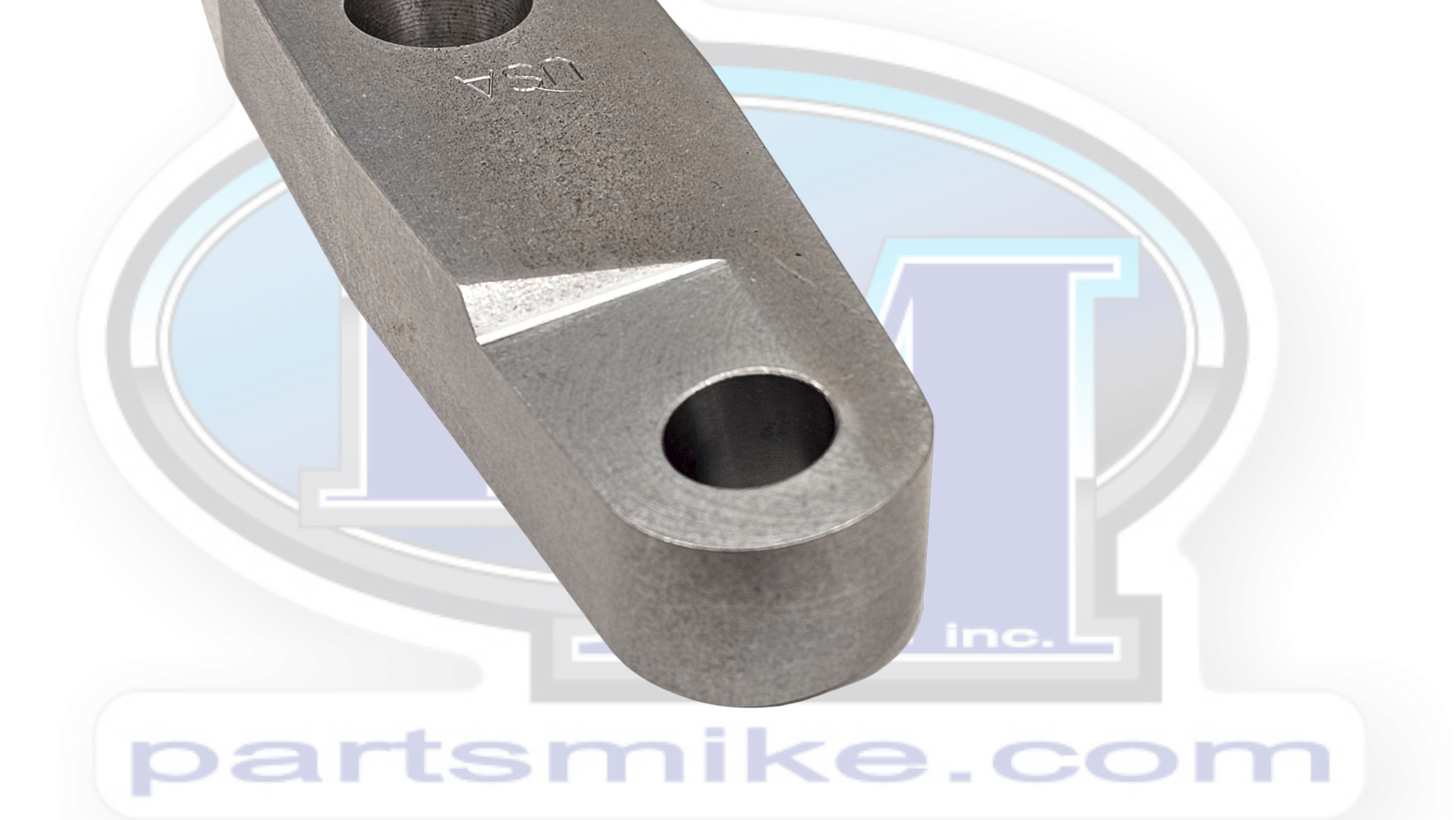

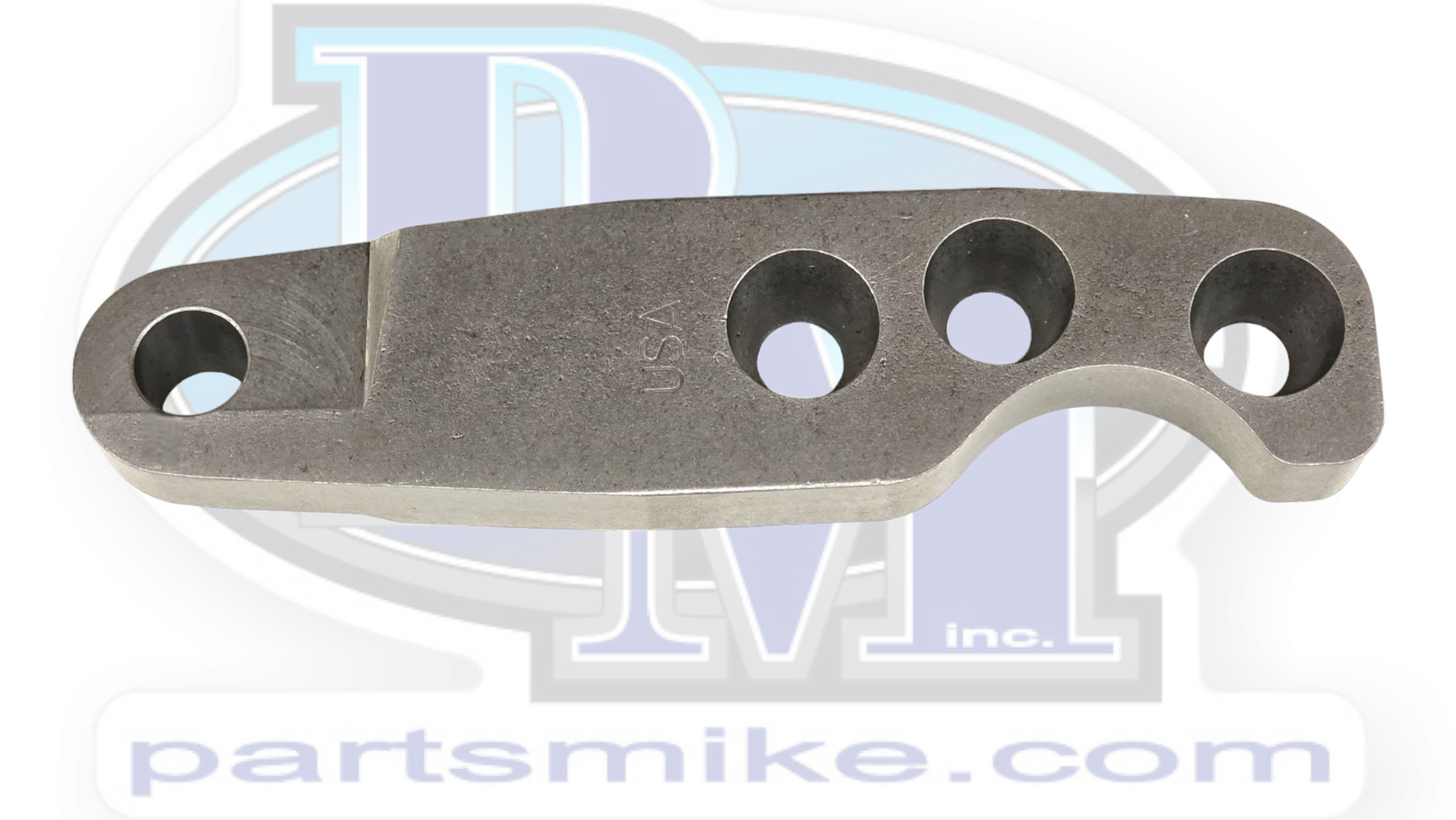

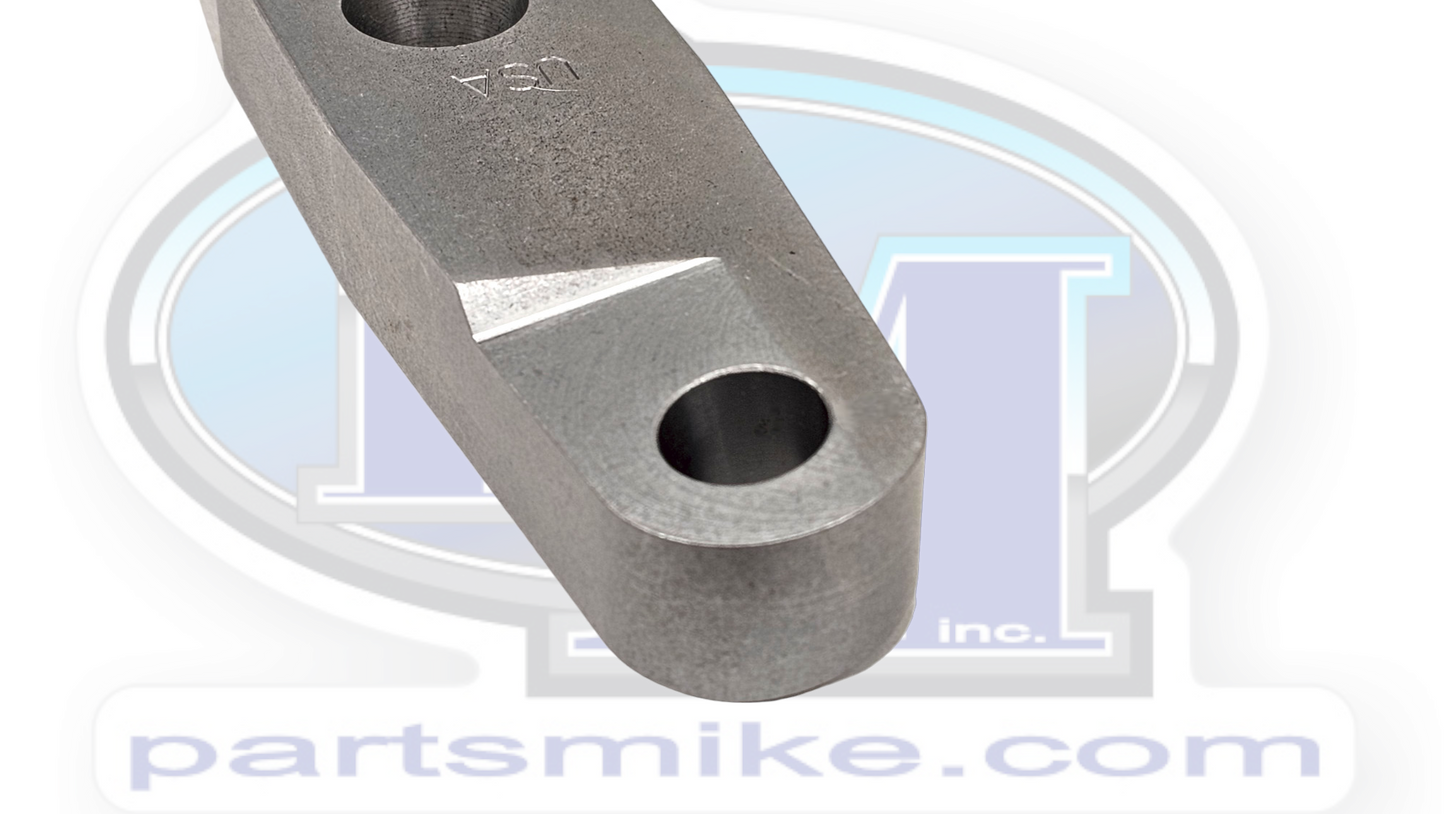

Steering arm
Overall length (tip to tip): 8-1/2"
Pivot point to drag link hole: 6"
Rise from top of the knuckle: 1"
Width (widest point): 2"

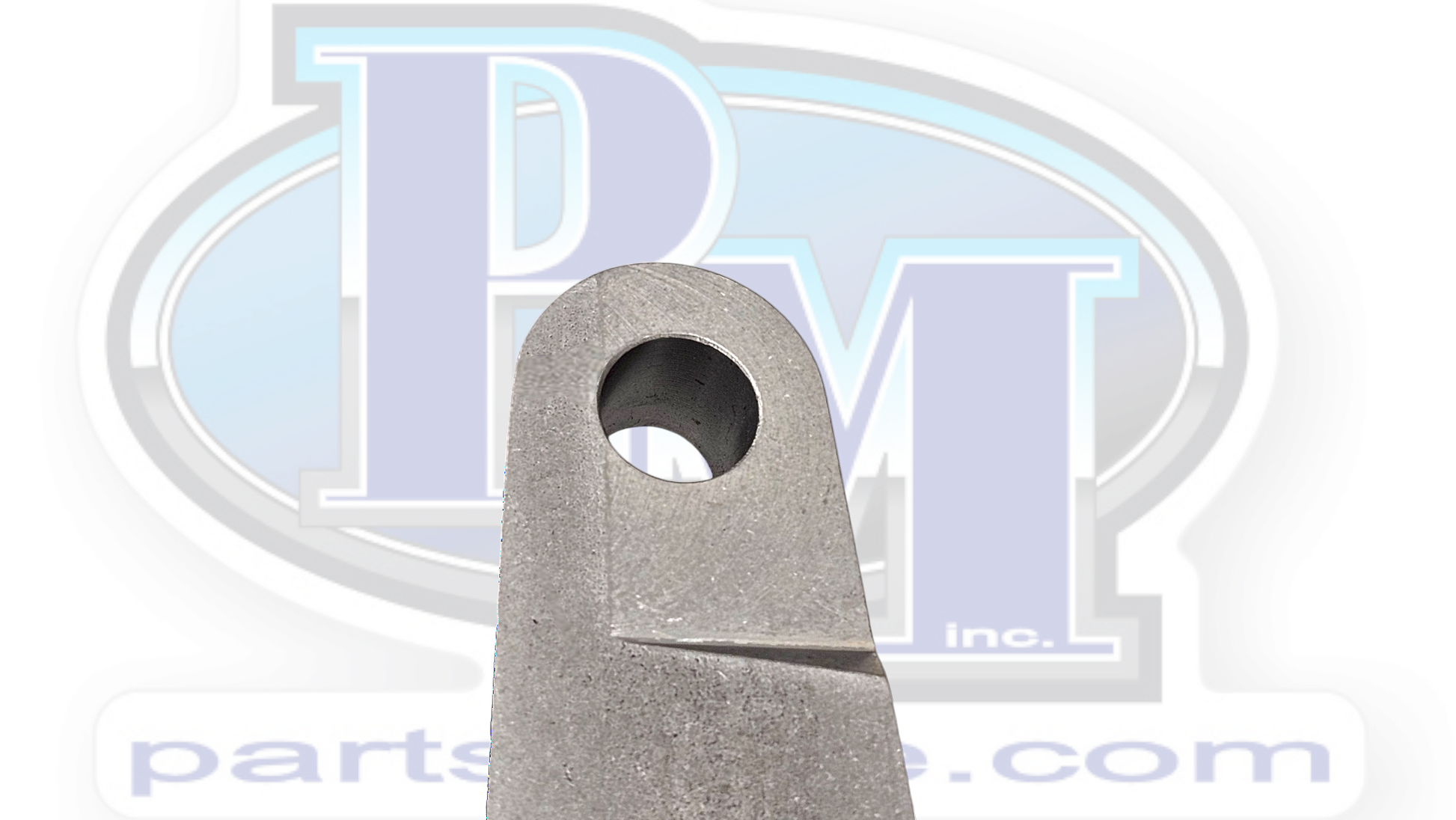

Drag link hole taper: GM tie rod (ES2233/EX2234)

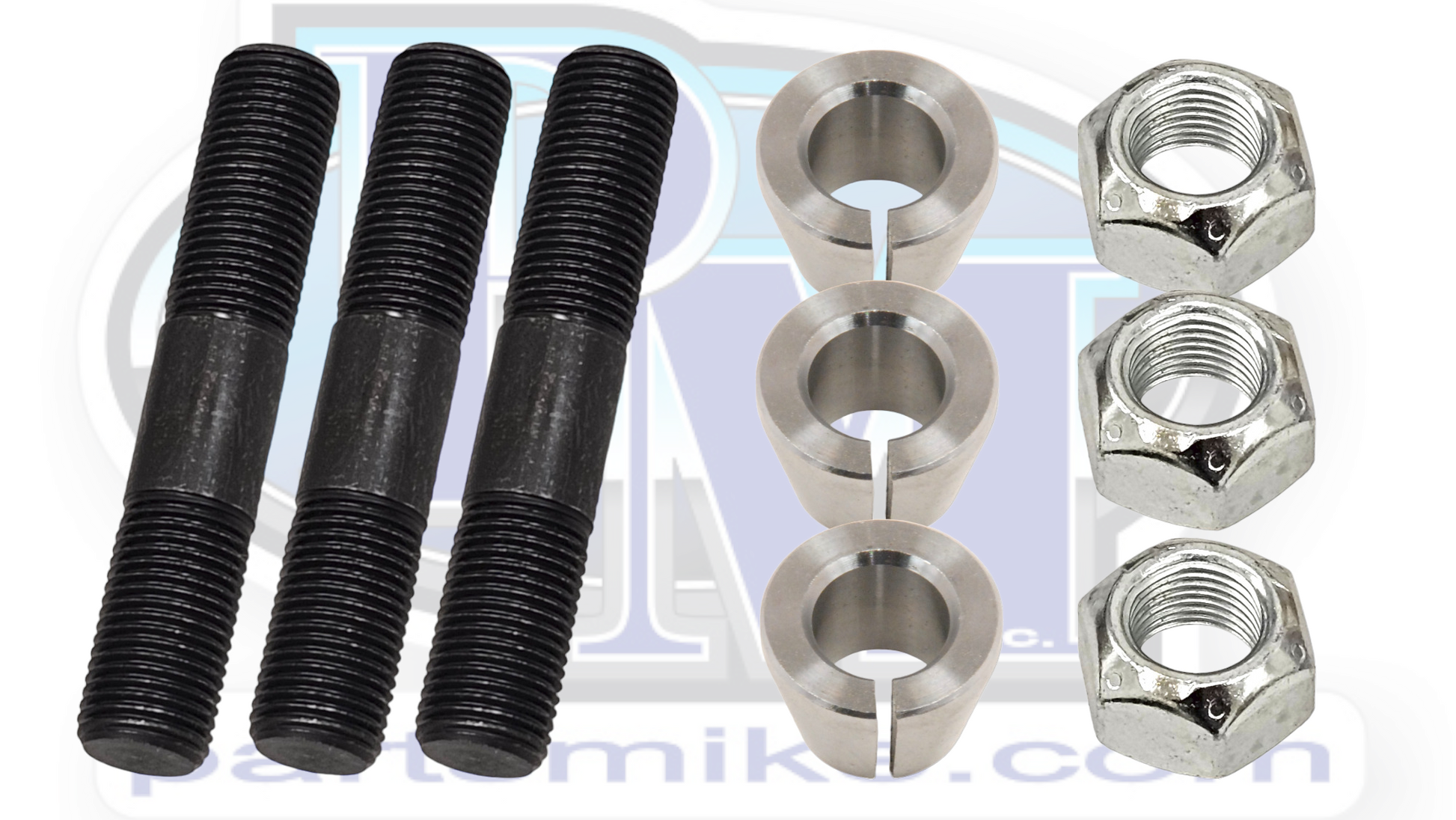

Stud
Overall dimensions: 3" length, 9/16"-18 threads
Thread lengths (approximate): short end = 0.90", long end 1.17"
