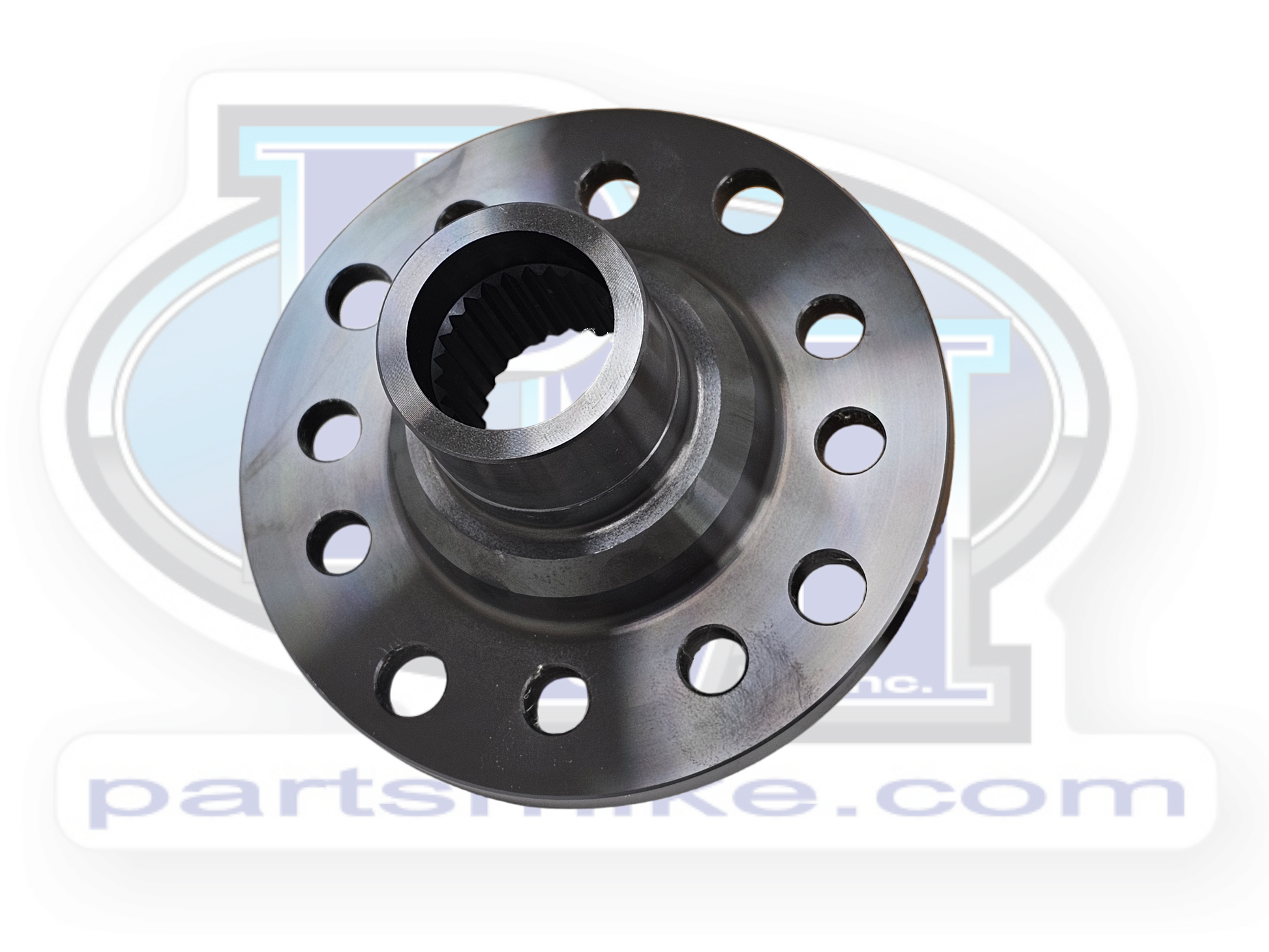

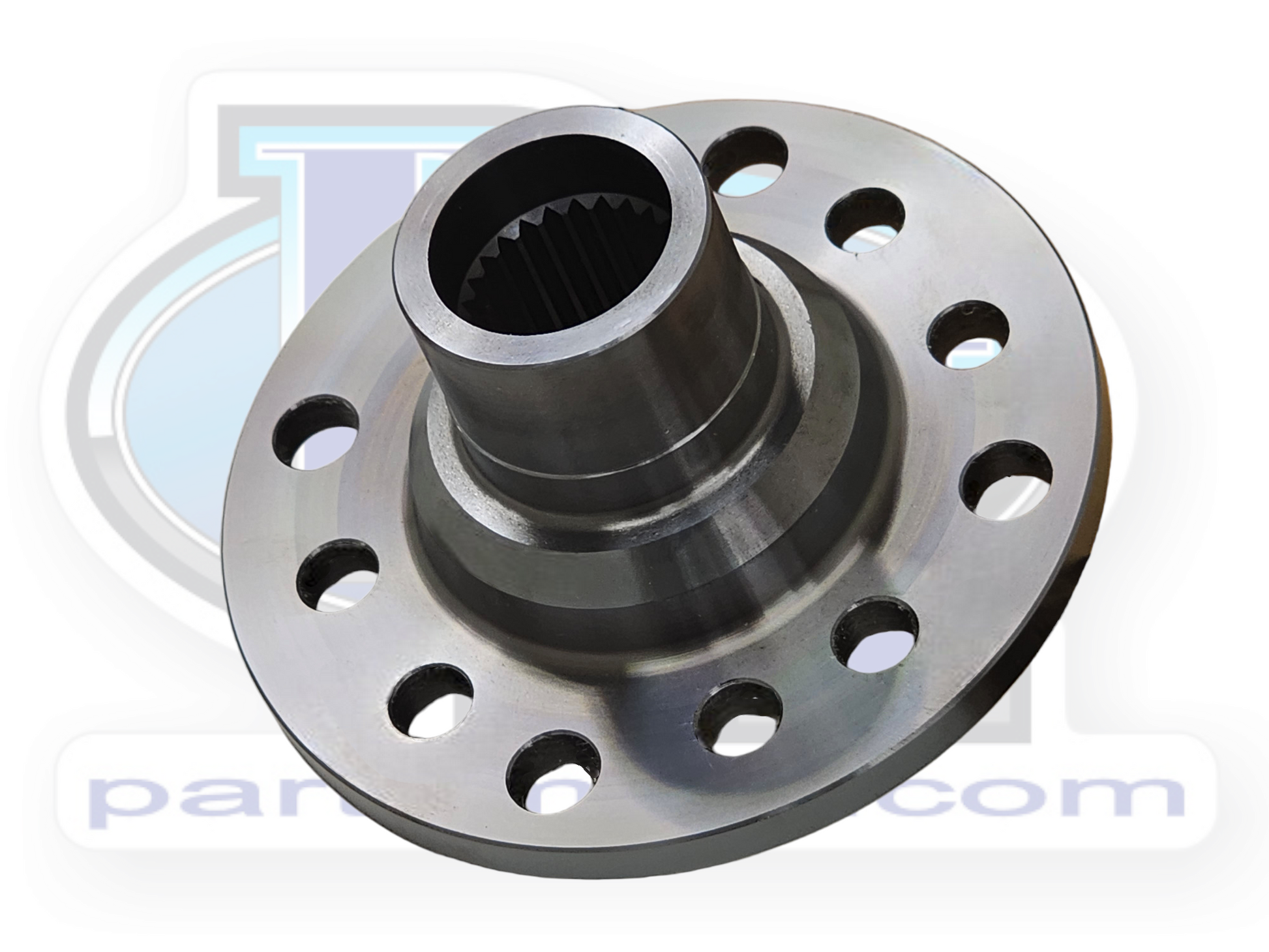

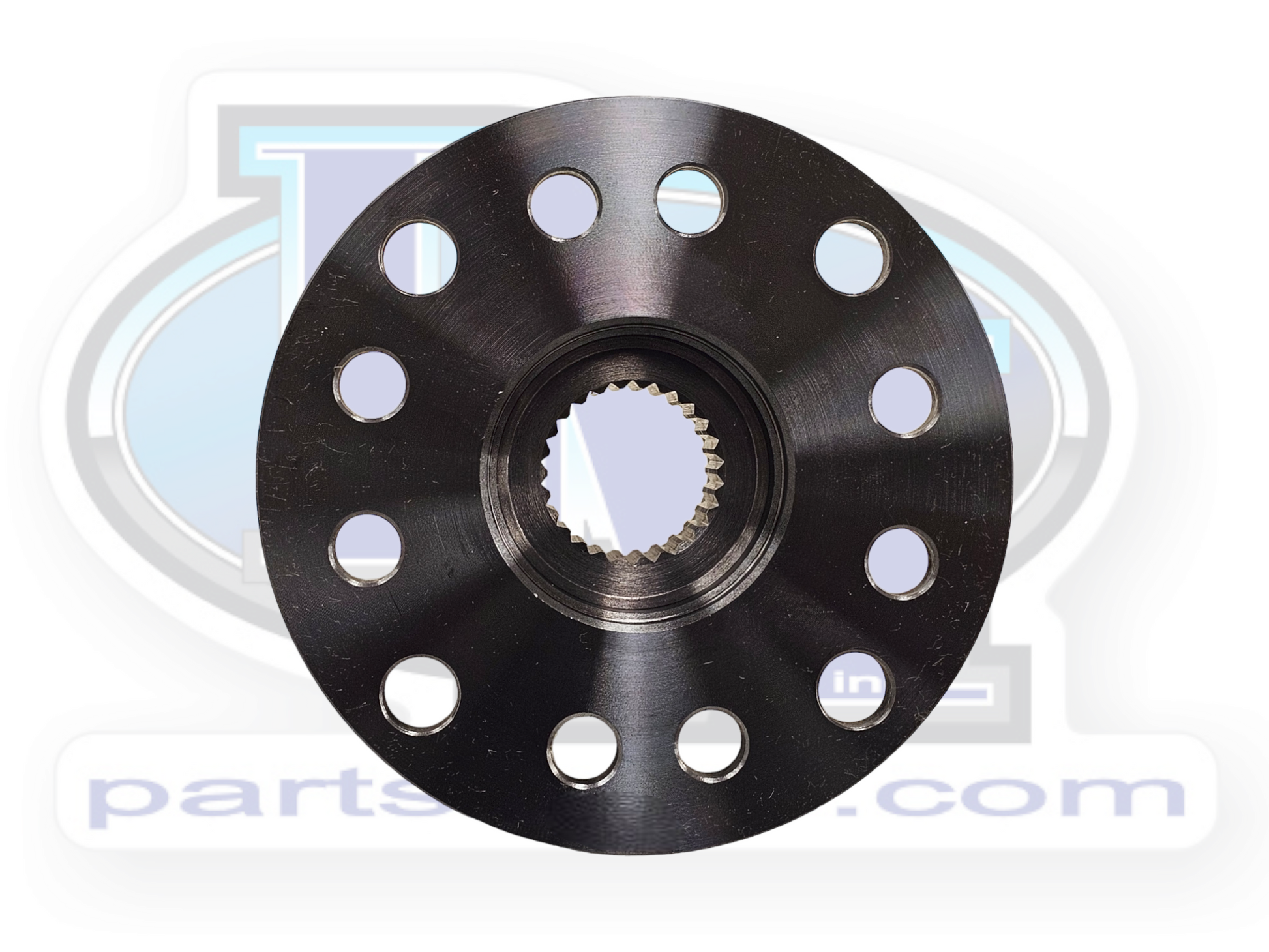

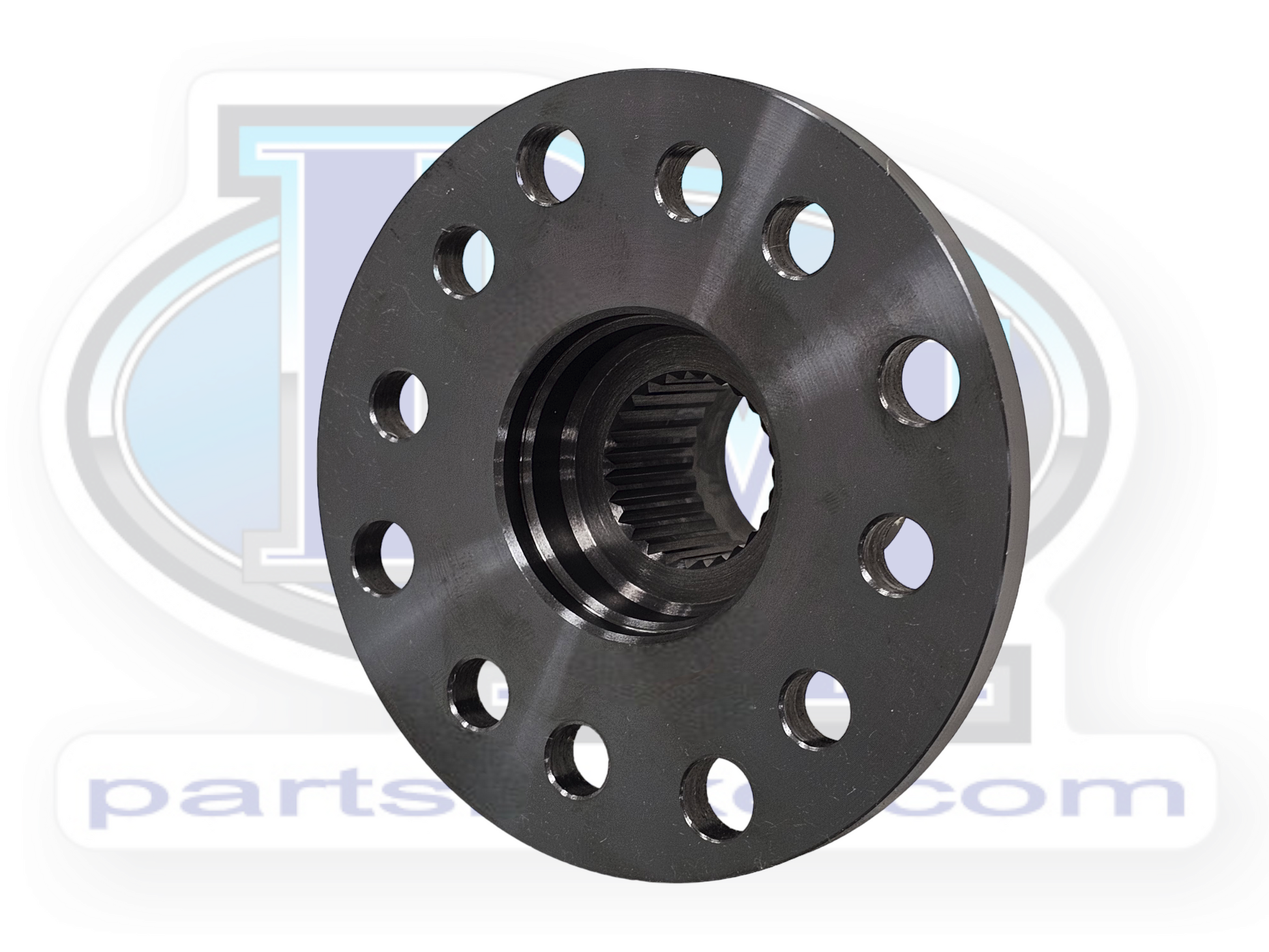

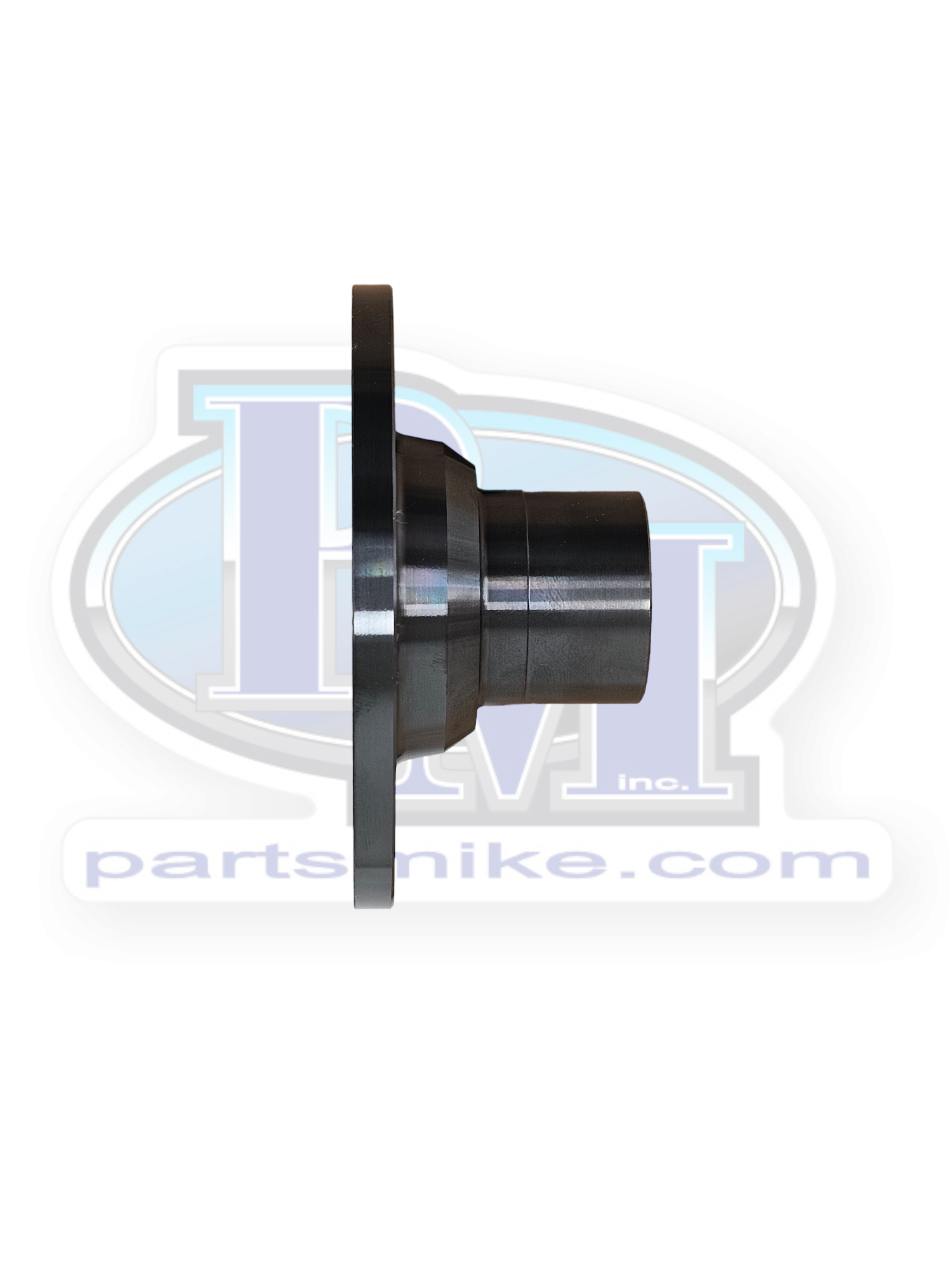

Dana 44 To Toyota Driveshaft Companion Flange, Pinion Flange, 26 Spline, (B-3051A)

B-3051A - Doing a SAS in a Toyota? This is the flange you need to use your existing drive line! Works great in buggy applications because the flange style yoke reduces the likelihood of breaking a yoke that's spinning on a rock. This flange is made from 5140 forged steel and will convert your high angle Toyota driveshaft to a 26 spline Dana 30/35/44/50 differential. It can also be used on transfer cases with 26 spline outputs (e.g. Jeep Dana 20 and Dana 300).

The OE driveline yoke at the axle is important for high lifts.  Replacement units do NOT have the long "ears" like the OE Toyota units do.  Call us, and we can do your driveline also!

Dimensions

A: Pilot Diameter: 1.810" / 45.97mm

B: Seal Surface: 1.559" / 39.59mm

C: Through Hole: 1.500" / 38.10mm

D: End of Flange Face to end of Seal Surface: 2.102" / 53.39mm

Flange Face Outside Diameter: 4.375" / 111.12"

Flange Face Thickness: .287" / 7.28"

Spline Major Diameter: 1.148" / 29.15"

Counter Bore: .425"

Splines: 26

Total Bolt Holes: 12

Bolt Hole Pattern

Pattern 1:

56mm x 64mm Center to Center (4 Holes - 10mm through hole)

Pattern 2:

60mm x 60mm Center to Center (4 Holes - 10mm through hole)

Pattern 3:

66mm x 66mm Center to Center (4 Hole - 11mm through hole)

Qty. 1
