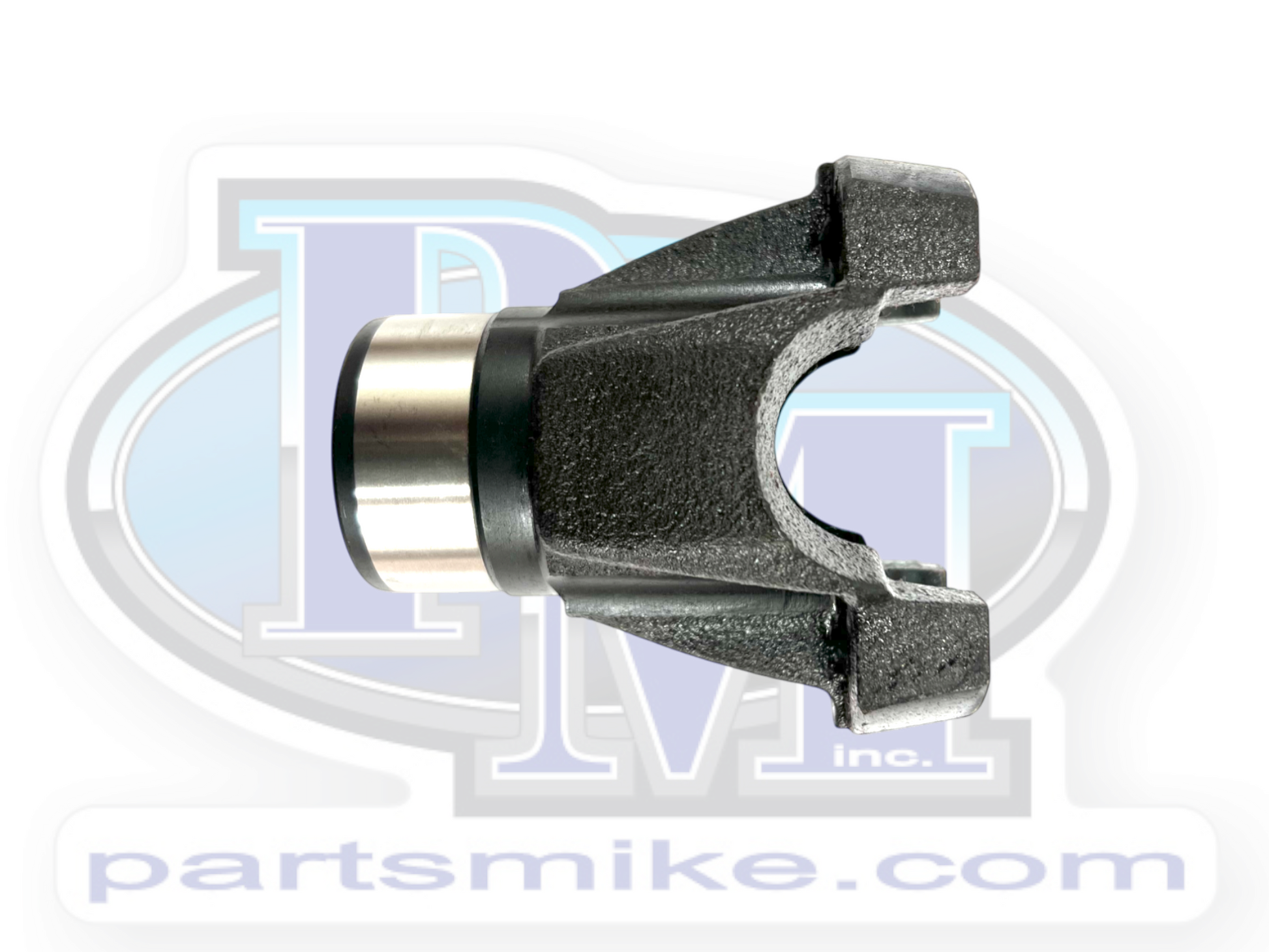

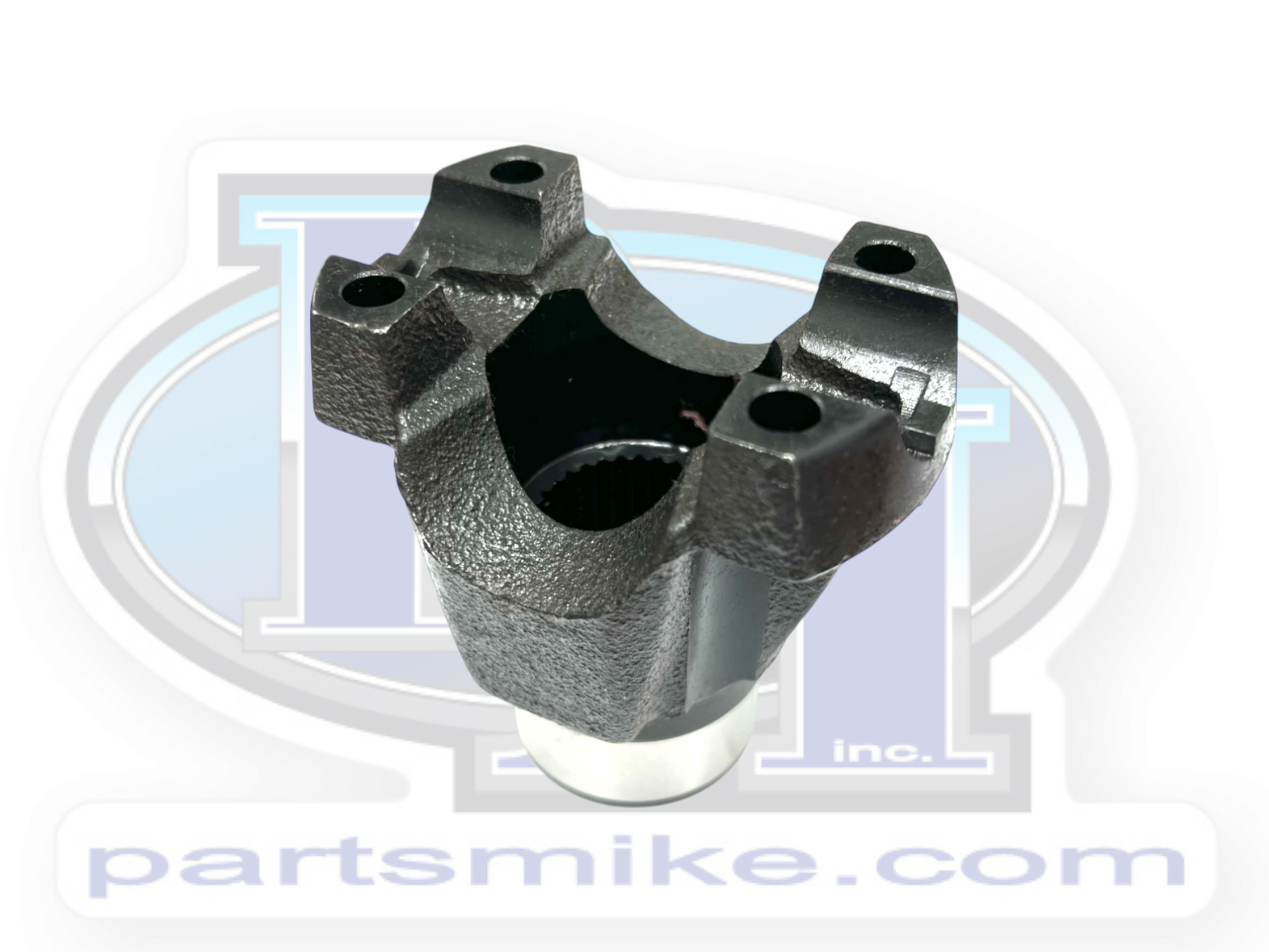

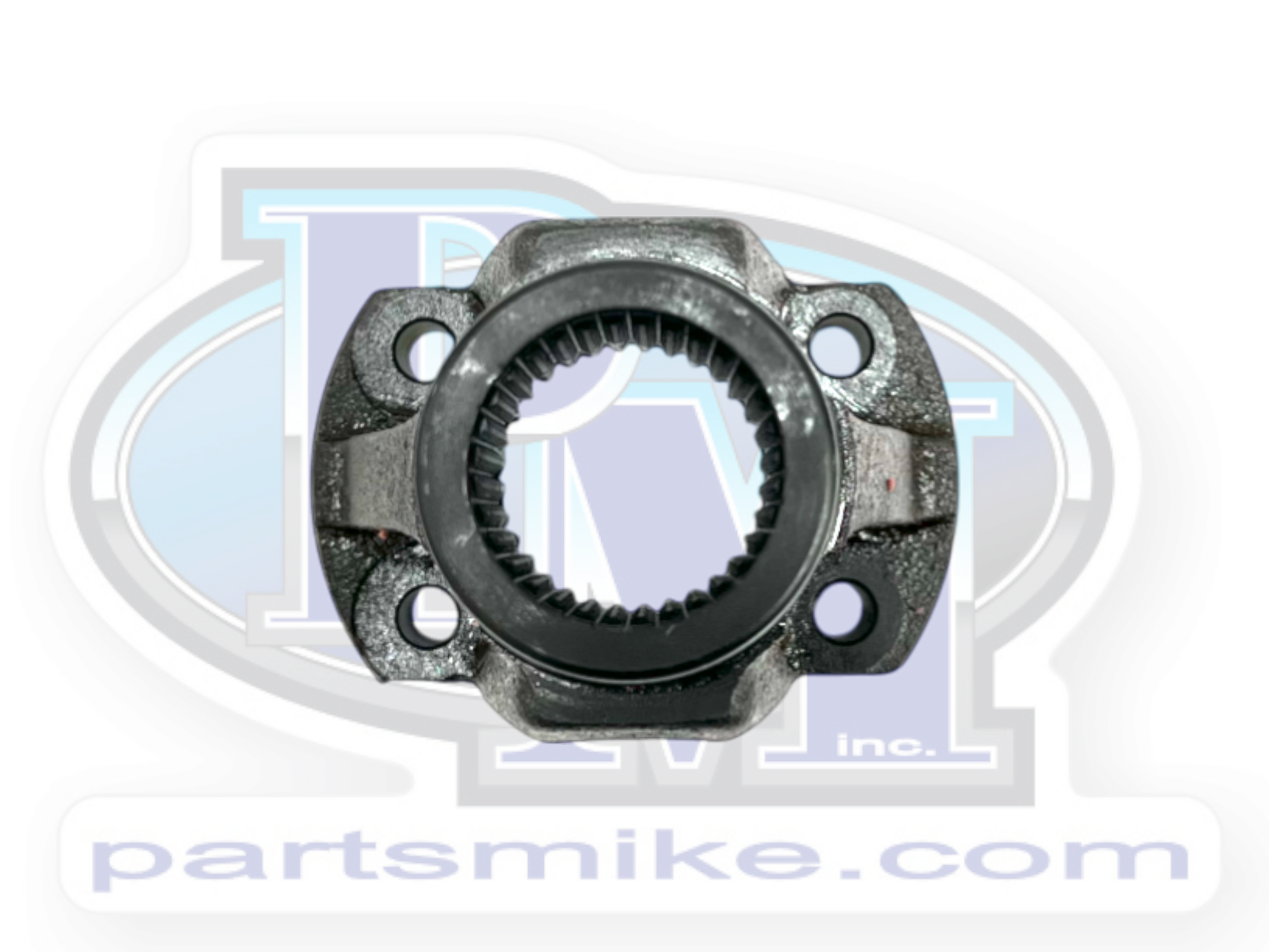

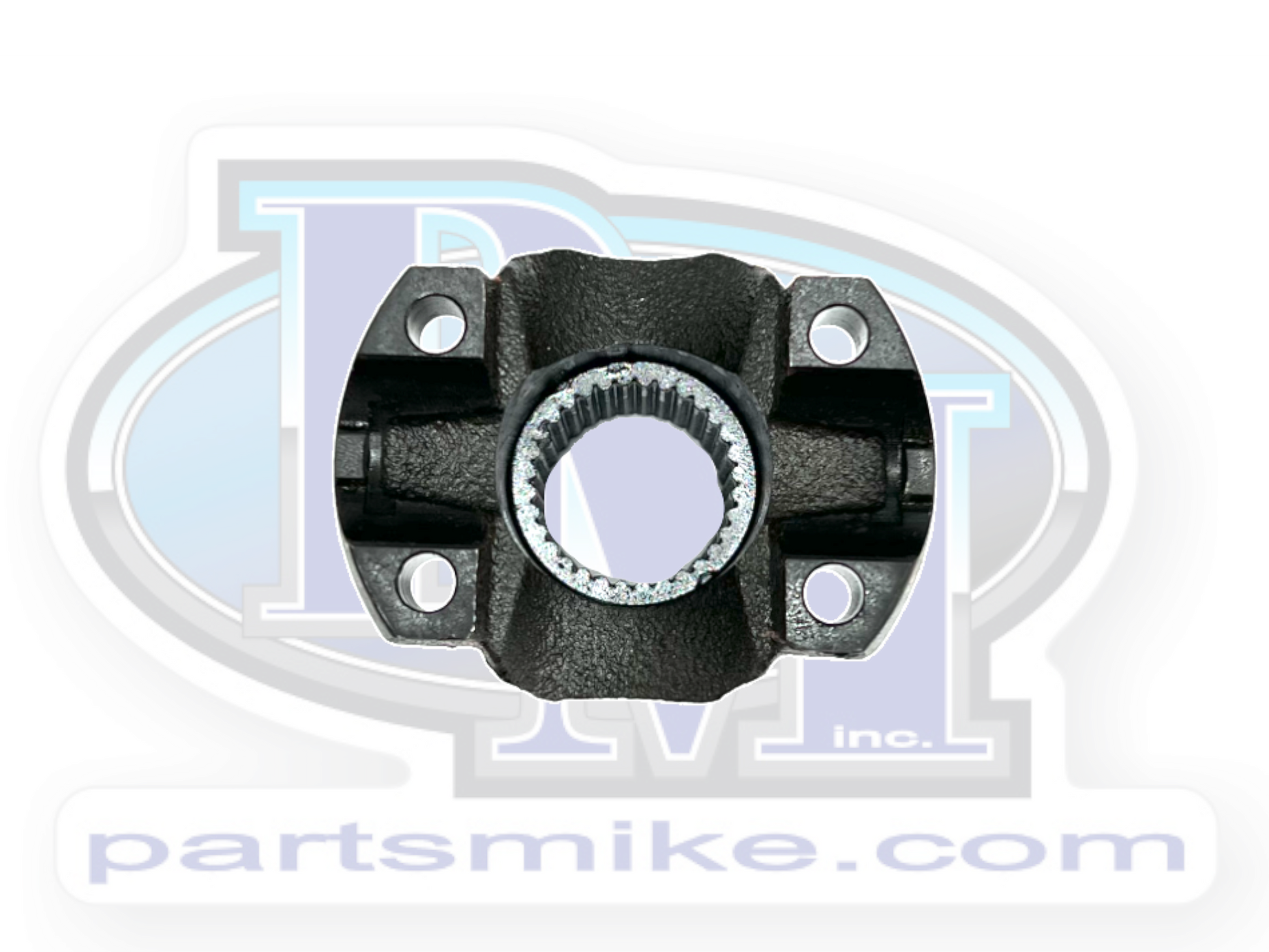

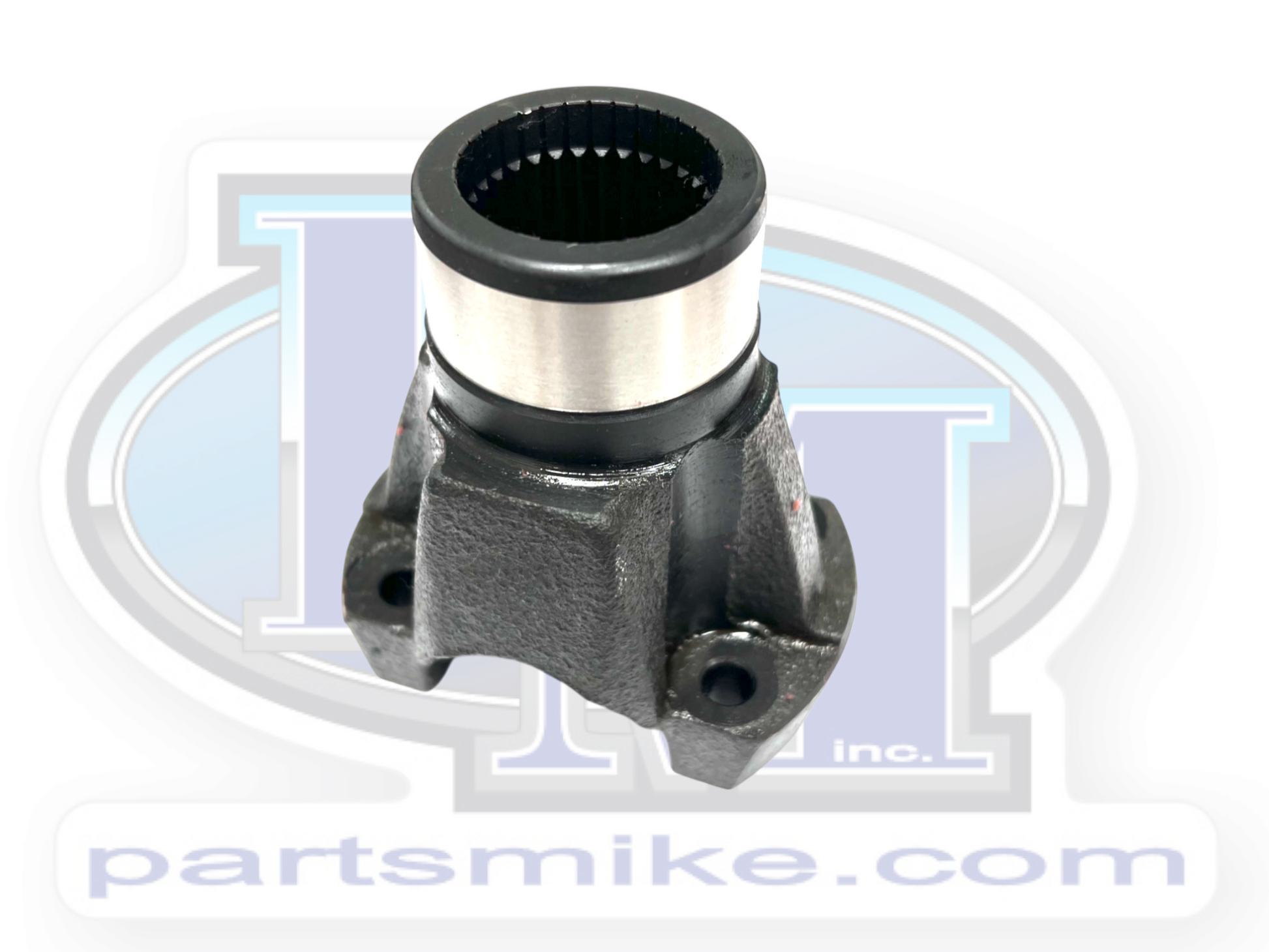

1310 CV End Yoke, 32 Spline, Atlas or NP205, (PM2-4-5341)

End Yoke, 32 Spline, 1310 CV, PM2-4-5341

Dimensions (Reference Image)

A: Seal Surface: 1.875"

B: Through Hole: 2.005"

C: Overall Length: 3.840"

D: U-Joint Width: 3.216"

Major Spline Diameter: 1.392"

Counter Bore: .304"

Splines: 32

Atlas or NP205

Does not come with bolts, (5/16" x 24tpi x 1-1/4").

If you need bolts, please order part number DL3113-12PTG

Cross Reference: N2-4-5341

Qty: 1
