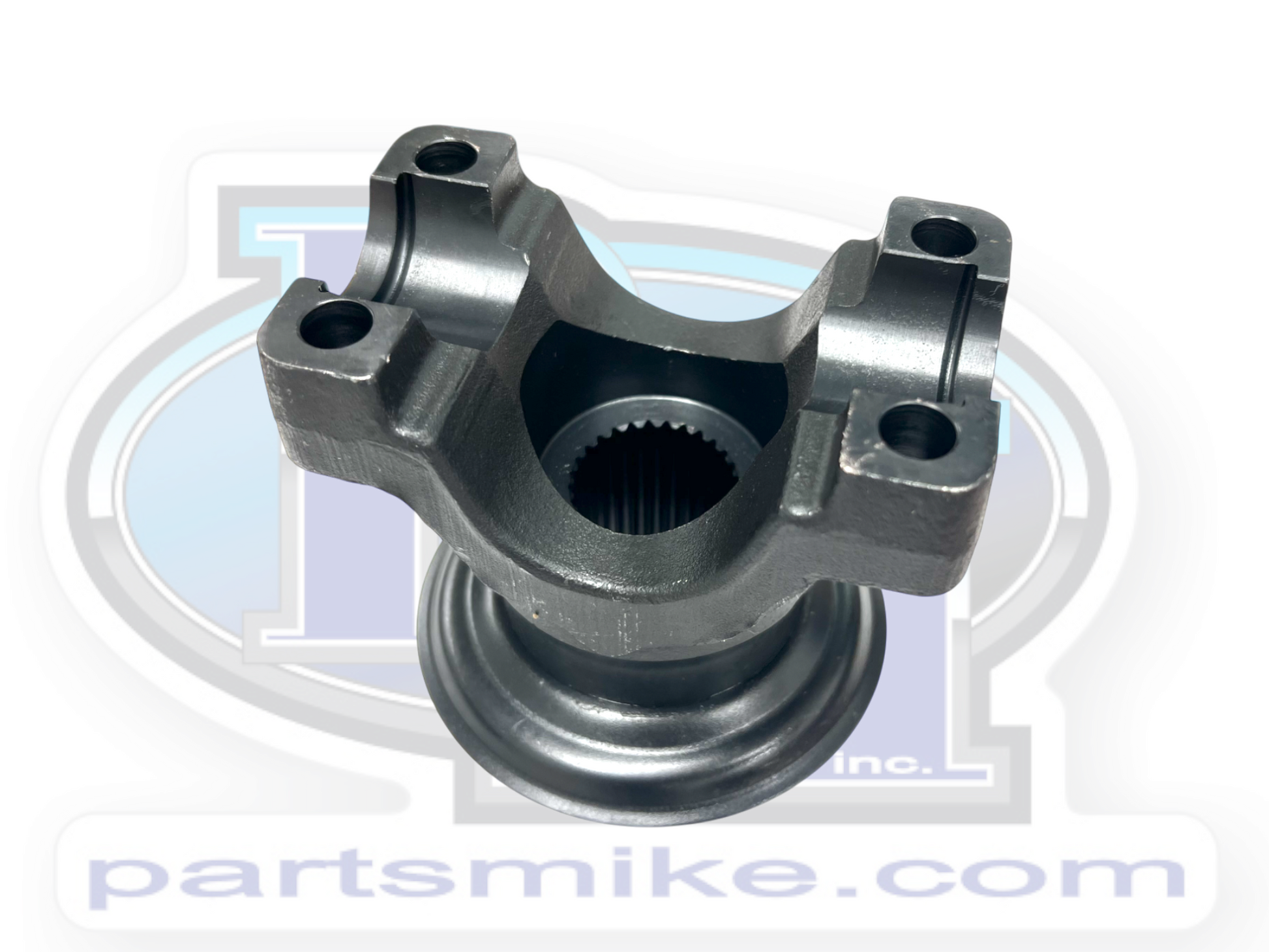

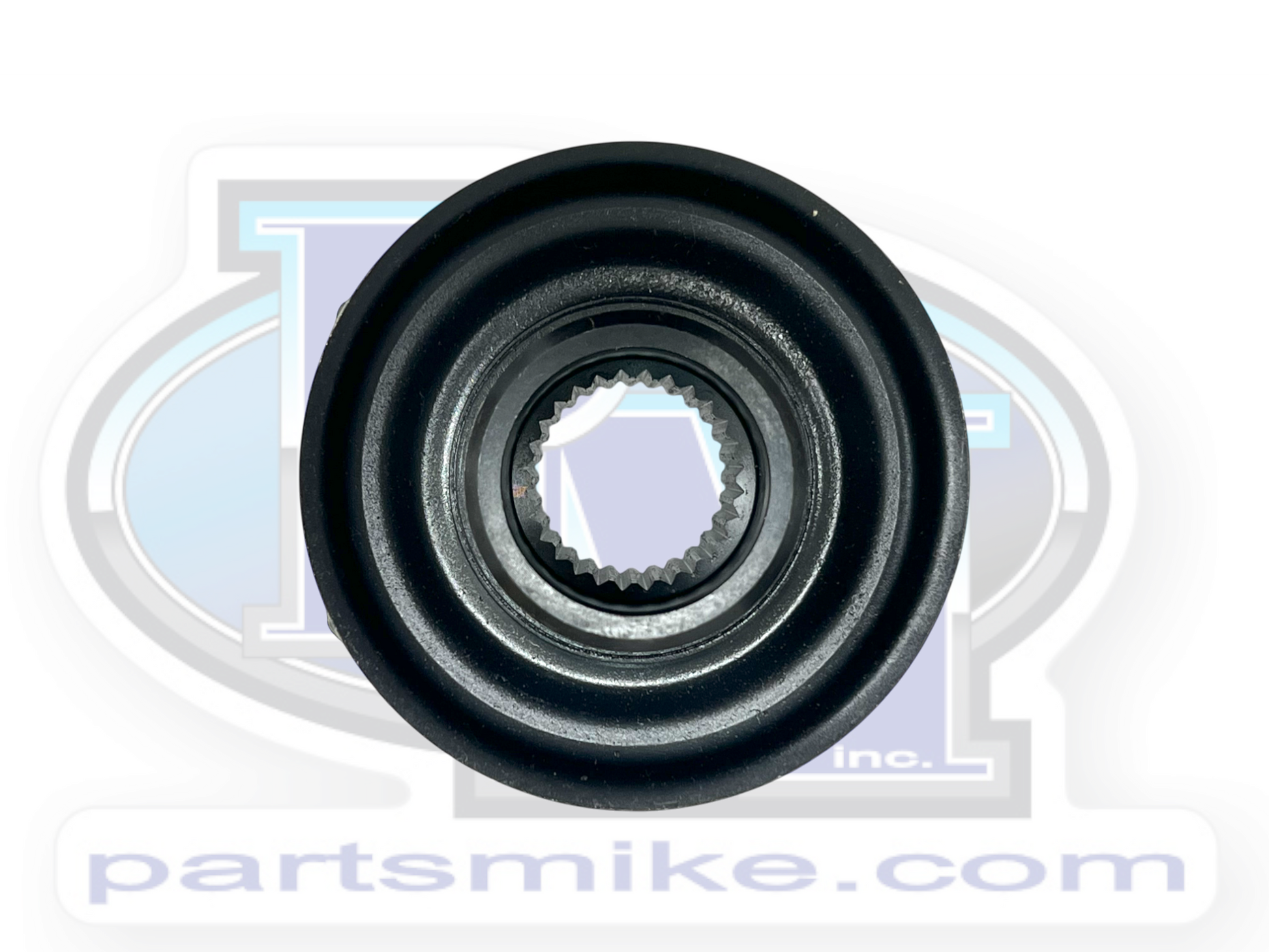

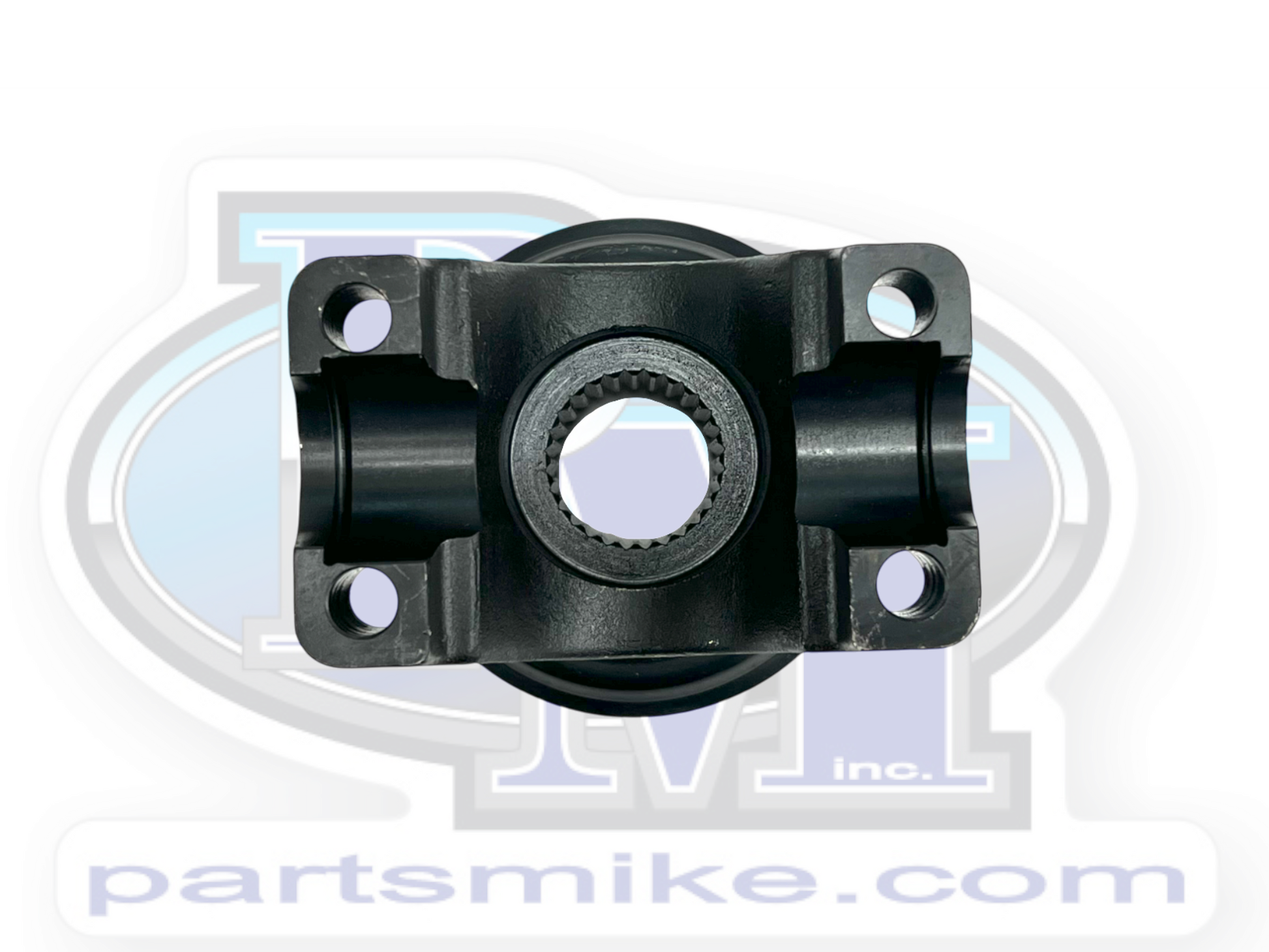

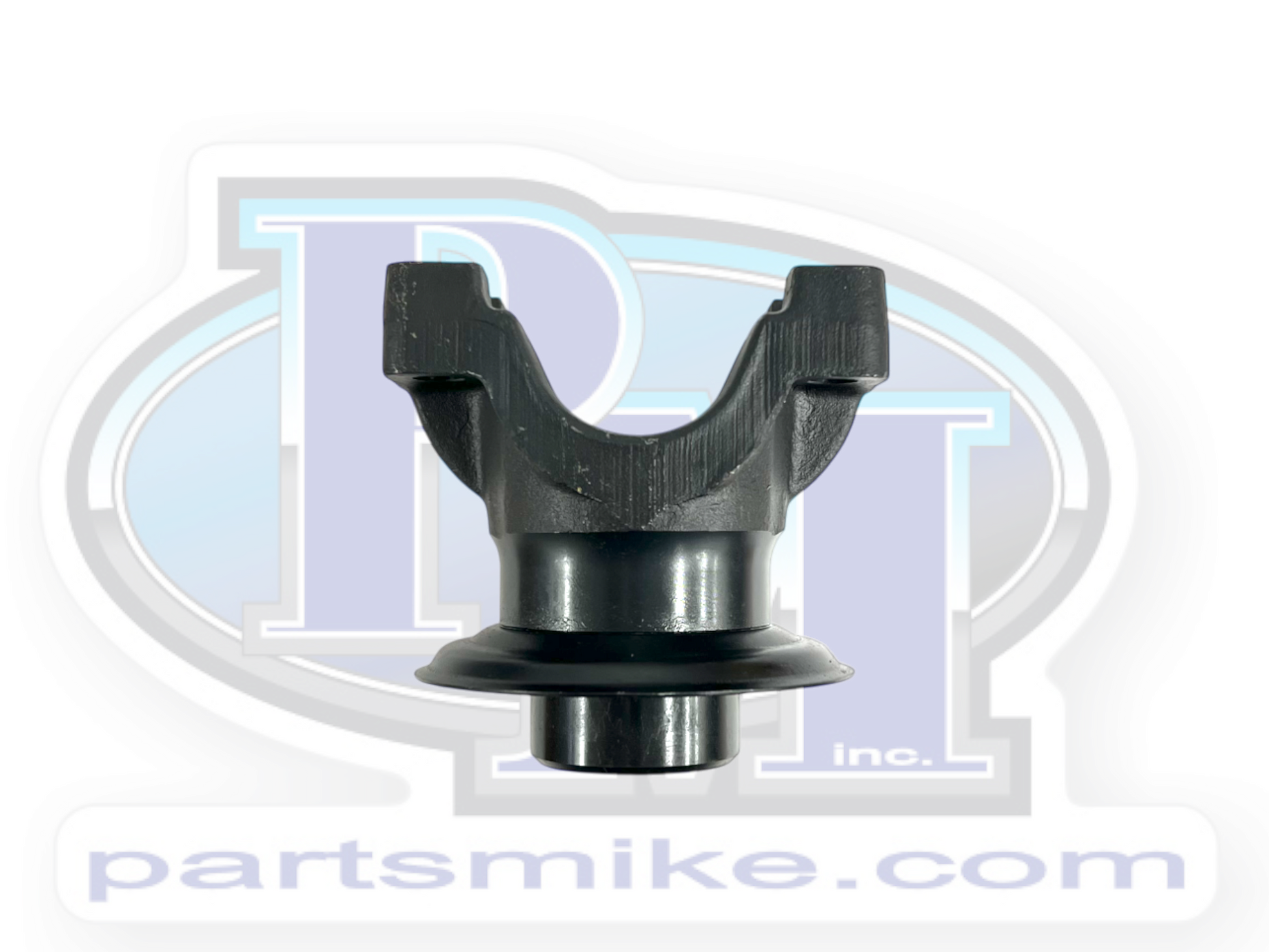

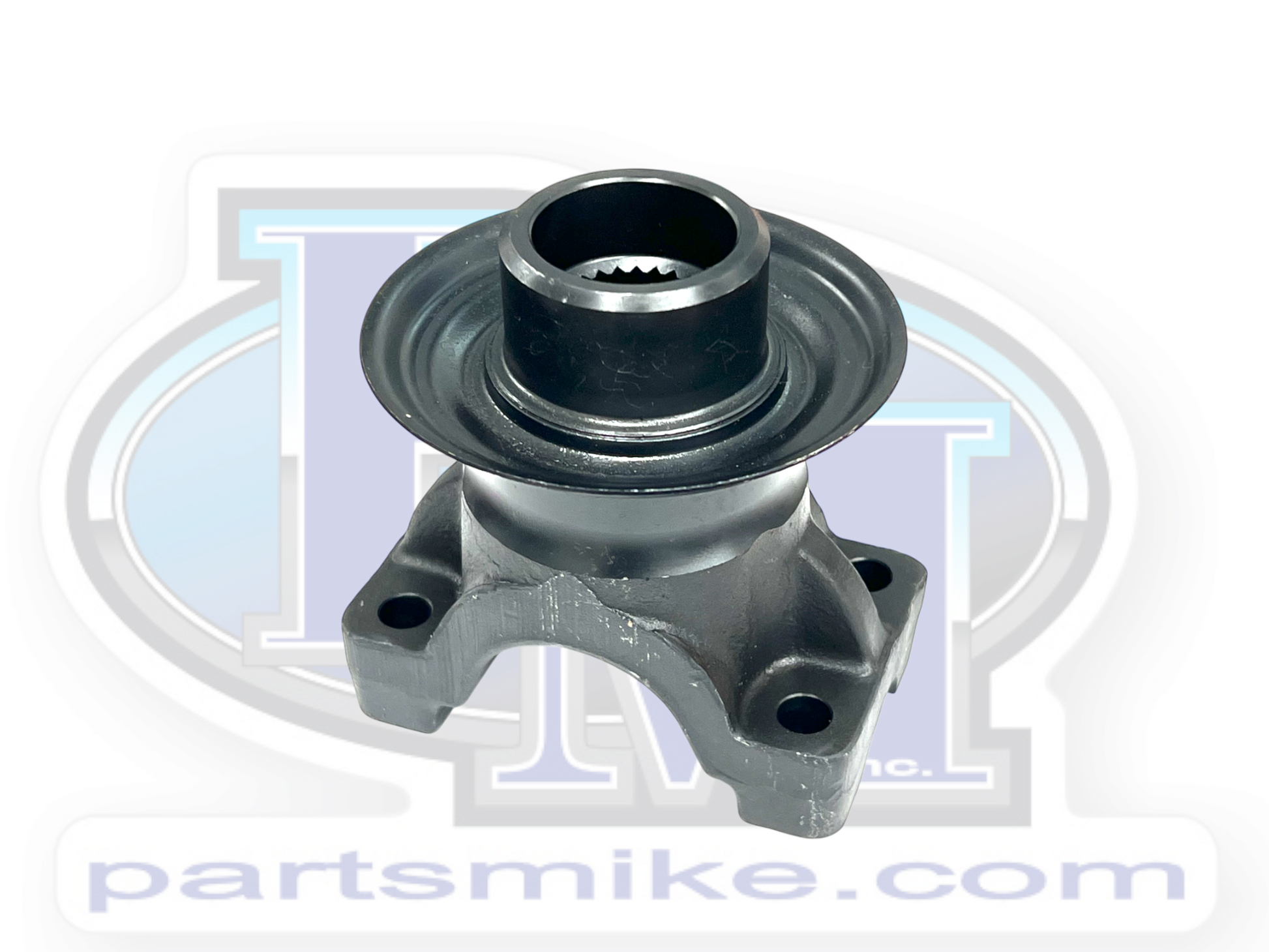

End Yoke, Ford 9", Forged, 1350 U-Bolt Style, (PM3112-5009)

End Yoke, Ford 9", Forged, 1350 U-Bolt Style, PM3112-5009

Dimensions (Reference Image)

A: Seal Surface: 1.810"

B: Through Hole: 2.250"

C: Overall Length: 4.102"

D: U-Joint Width: 3.623"

Major Spline Diameter: 1.216"

Counter Bore: .590"

Splines: 28

Qty. 1
