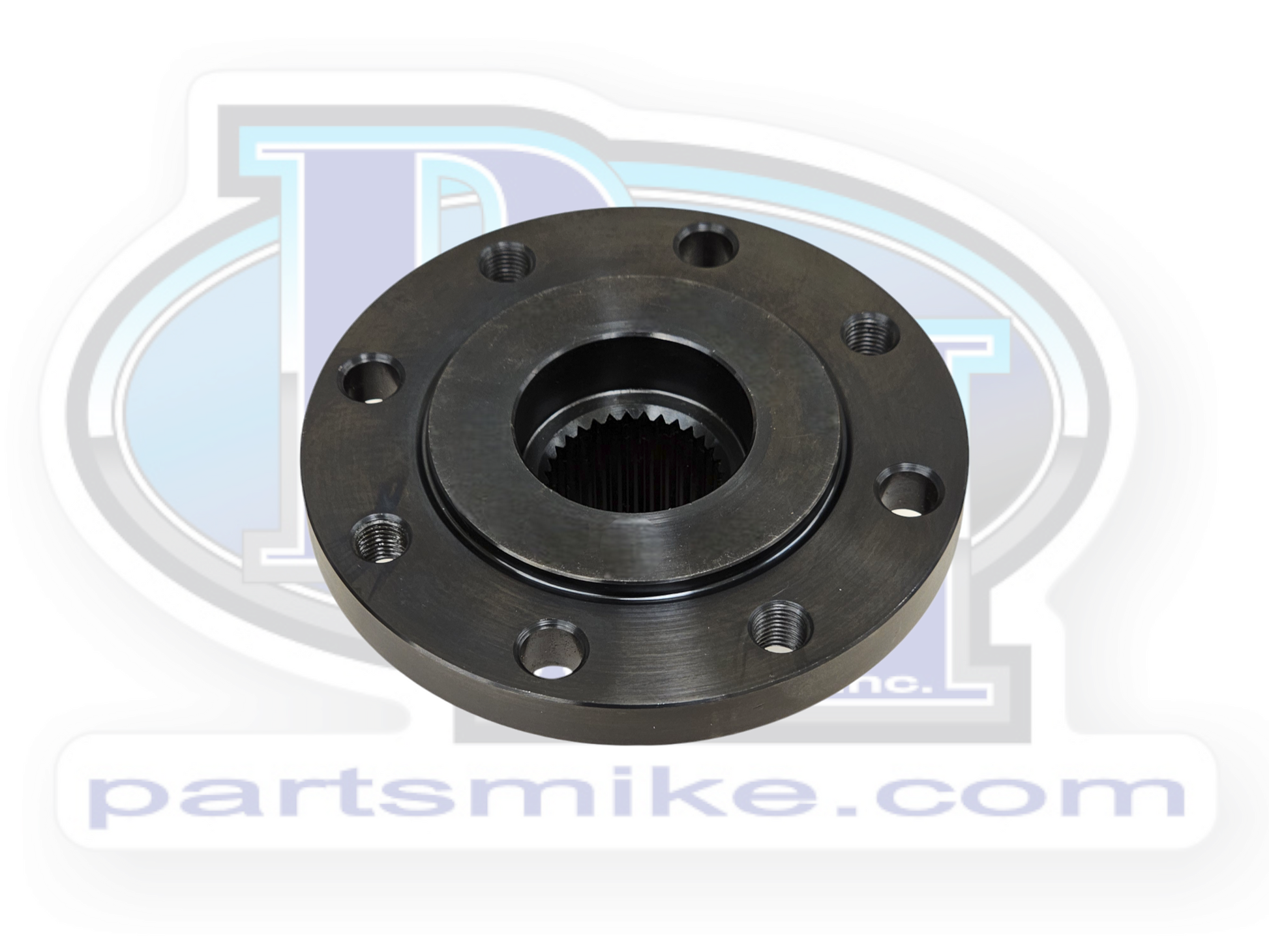

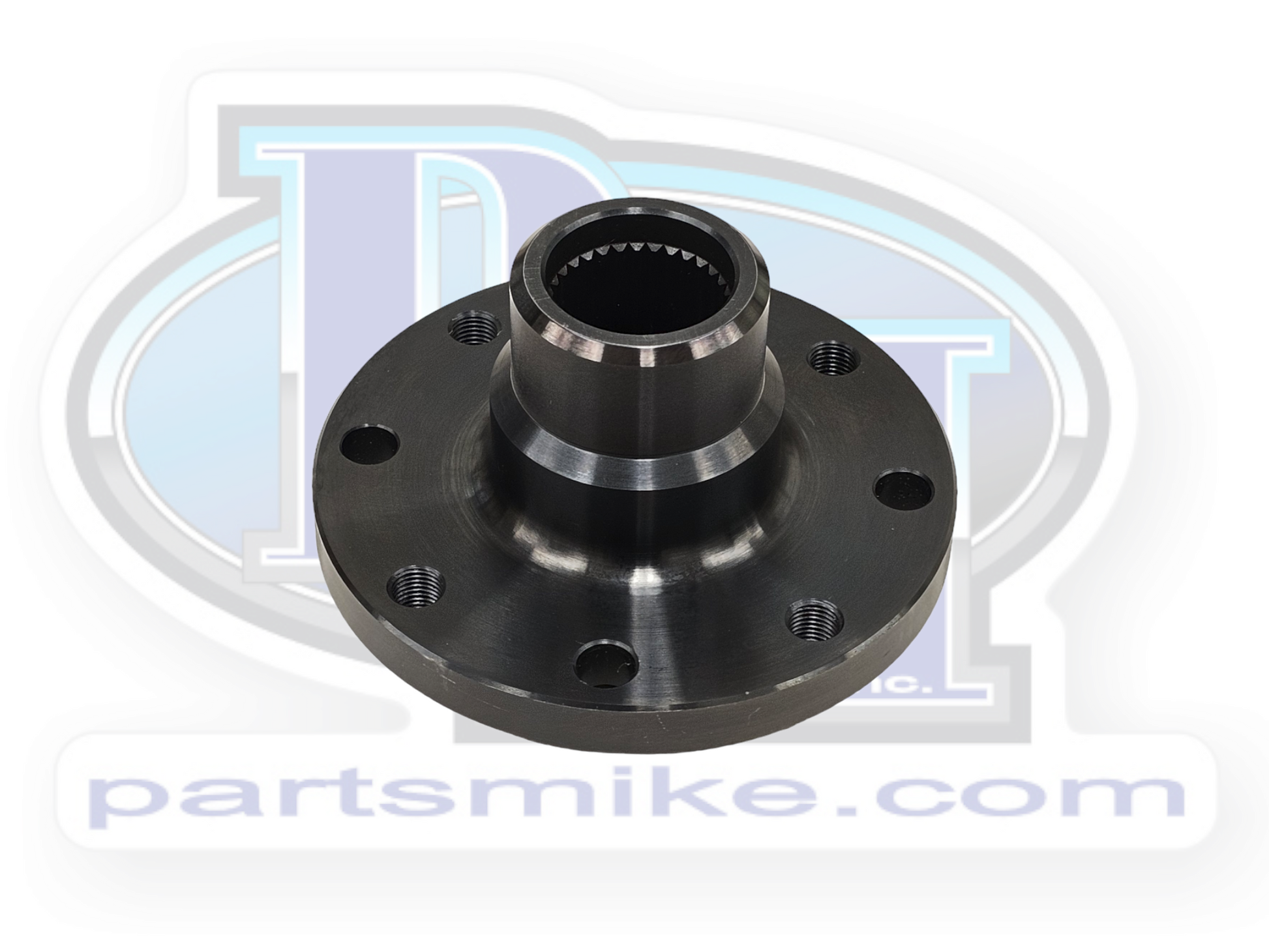

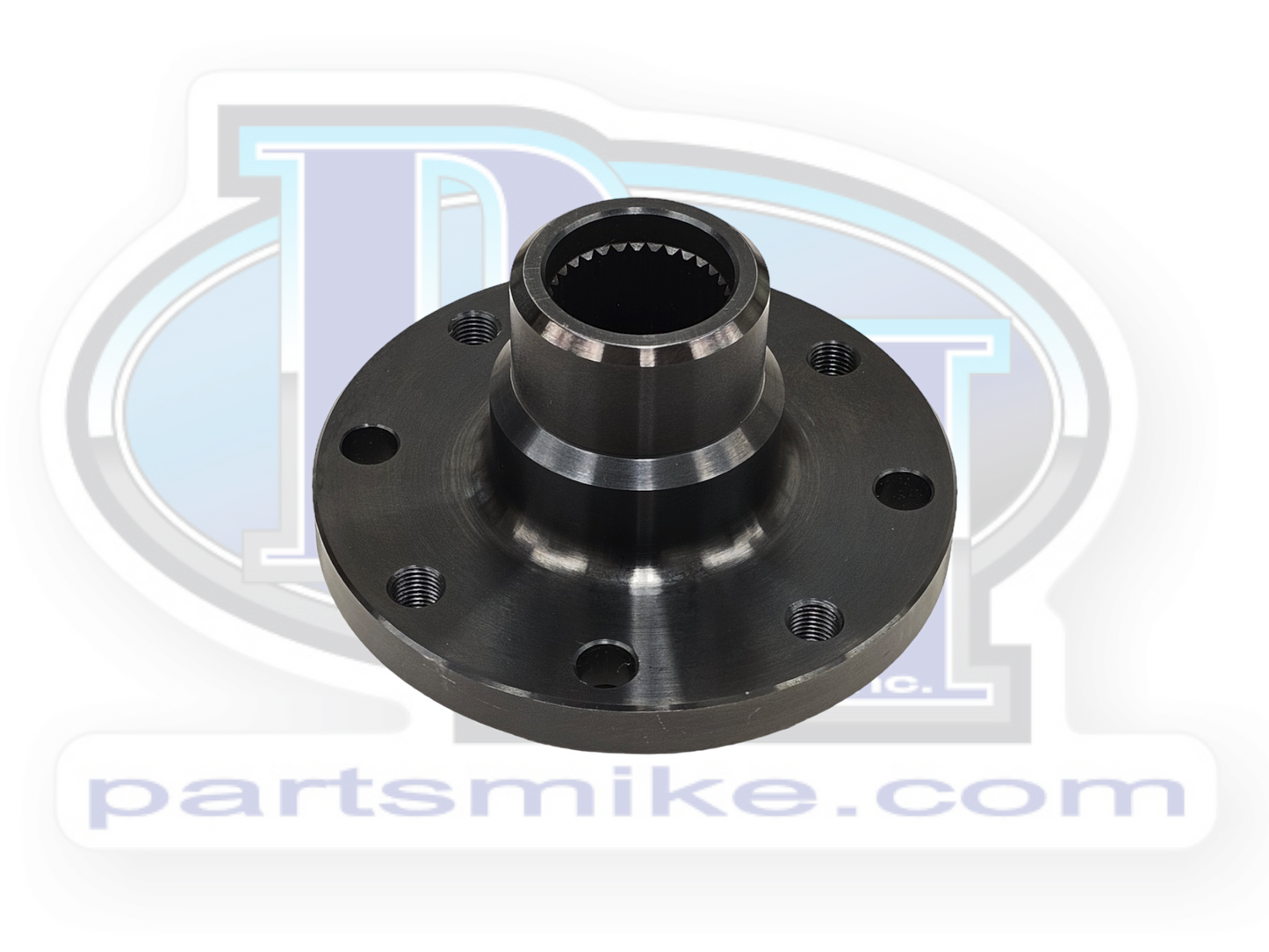

Jeep TJ, JK, JL, JT, 32 Spline, Rear Transfer Case Driveshaft Companion Flange, 1410, (DM4700)

1310/1350/1410 series flange can be used with CV or non-CV drive line flange yokes

Dimensions

A: Pilot Diameter: 3.125"

B: Seal Surface: 1.940"

C: Through Hole: 2.000"

D: End of Flange Face to end of Seal Surface: 2.531"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .520"

Spline Major Diameter: 1.400"

Counter Bore: .354"

Splines: 32

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

4.25" Center to Center (4 Holes - 7/16" x 20 tpi.)

Pattern 2:

4.25" Center to Center (4 Holes - 7/16" through holes)

Cross Reference: N3-1-JK05

Qty. 1
