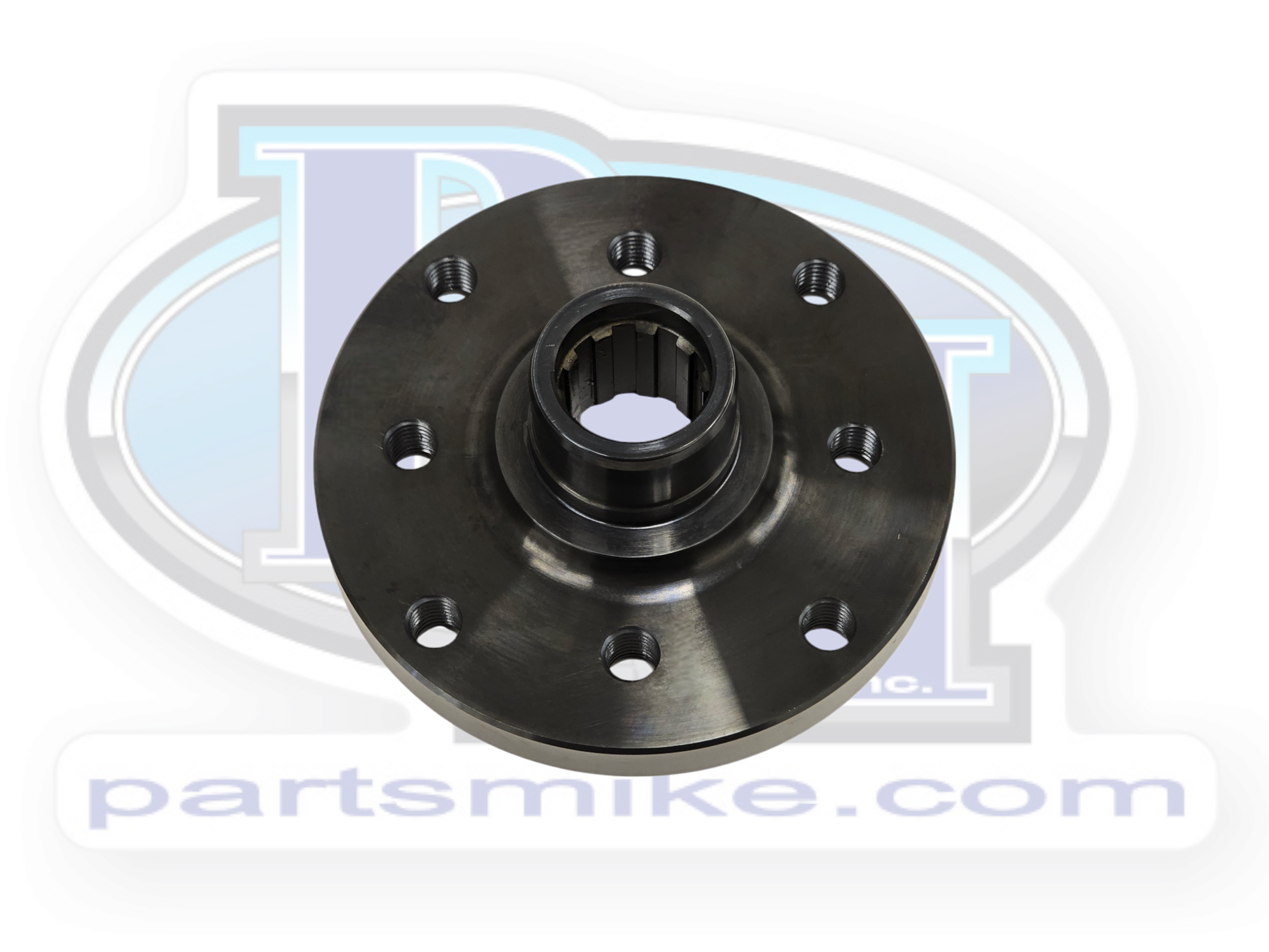

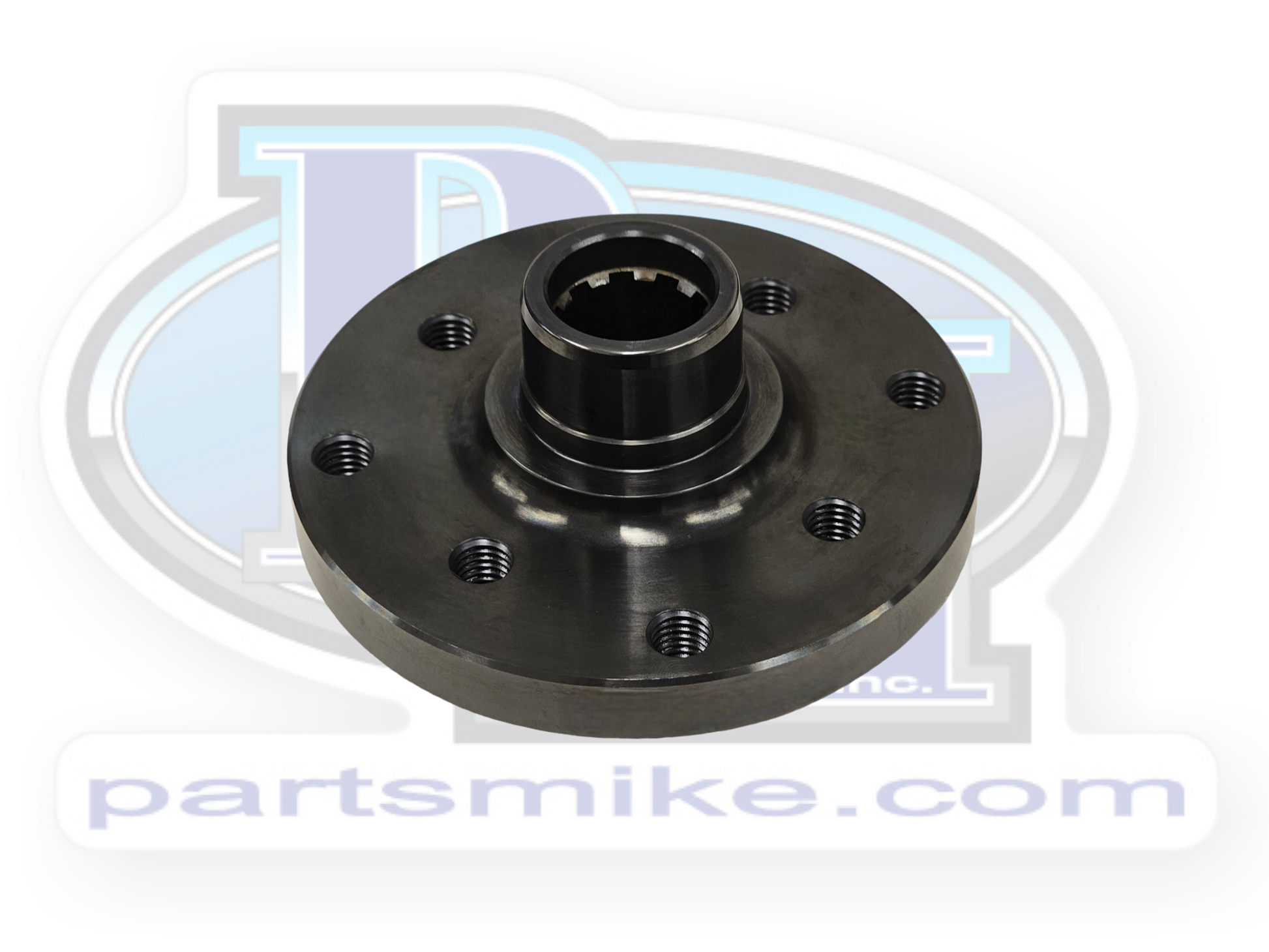

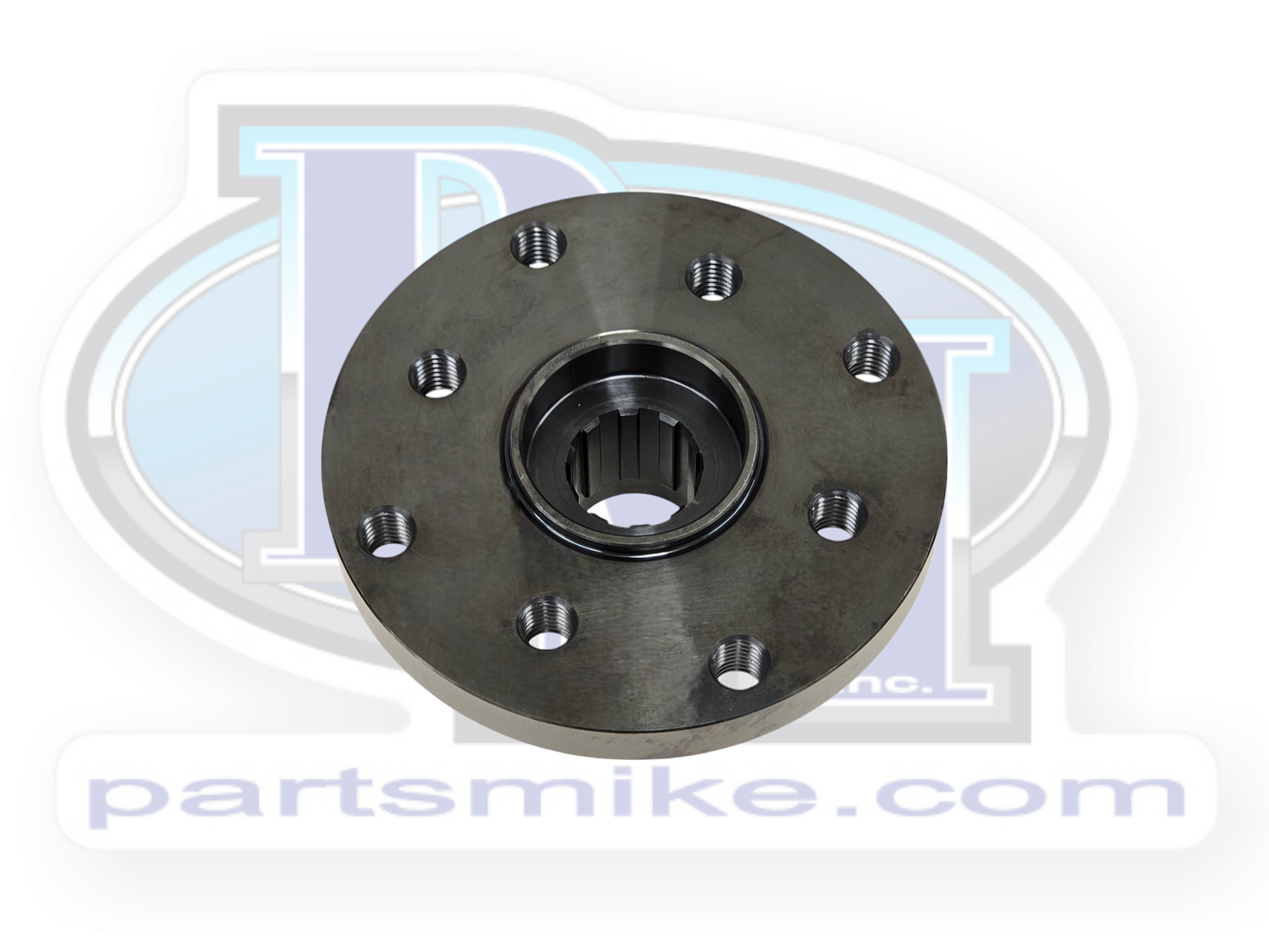

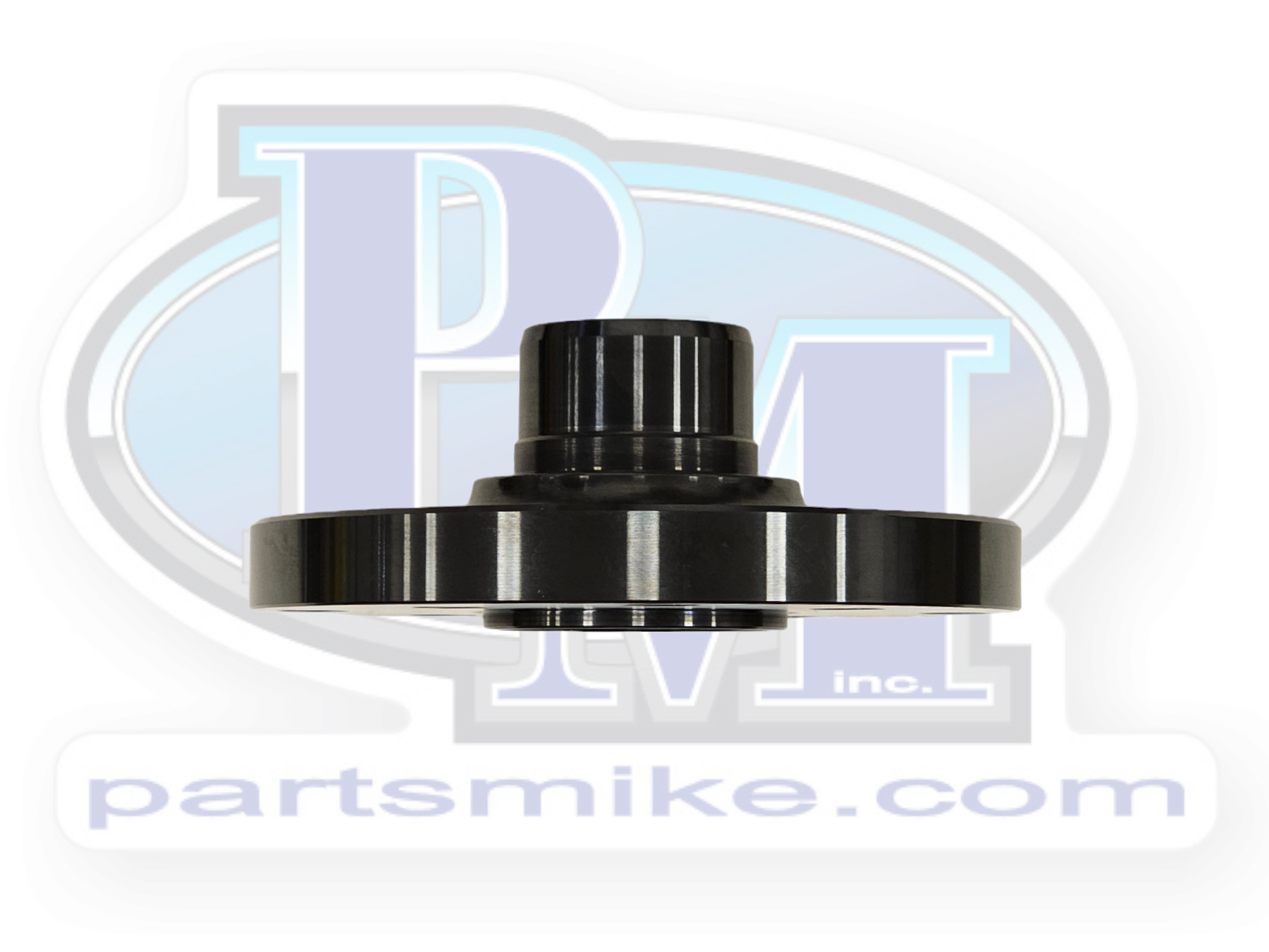

Old Dana 44/ Dana 20 / Dana 300 - 1310, 1350, 1410, Driveshaft Companion Flange Kit, 10 Spline, (DM4900GK)

You've selected the flange with the hardware.

This flange fits Jeep Dana 20, Dana 300, and super old Dana 44 axles with 10 spline pinions.  1310/1350/1410 series flange can be used with CV or non-CV drive line flange yokes. The flange is made from AISI 5140 forged steel, and warrantied for LIFE when you get the hardware!

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.553"

C: Through Hole: 1.500"

D: End of Flange Face to end of Seal Surface: 1.864"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .581"

Spline Major Diameter: 1.125"

Counter Bore: .300"

Splines: 10

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

3.50” Center to Center (4 Holes - 12mm x 1.75 tpi.)

Pattern 2:

4.25" Center to Center (4 Holes - 12mm x 1.75")

Hardware options:

1. Flange only - Pretty straight forward
2. DM4900GK
   • Hardware -  Four M12-1.75 12 point bolts (uses 12mm 12 point socket or wrench)

Qty. 1
