Transfer Case Companion Flange, 32 Spline, New Ford Bronco, 1310, 1350, 1410, (PM3111-FBTCGK)

Transfer Case Companion Flange 32 Spline for New Ford Bronco's.

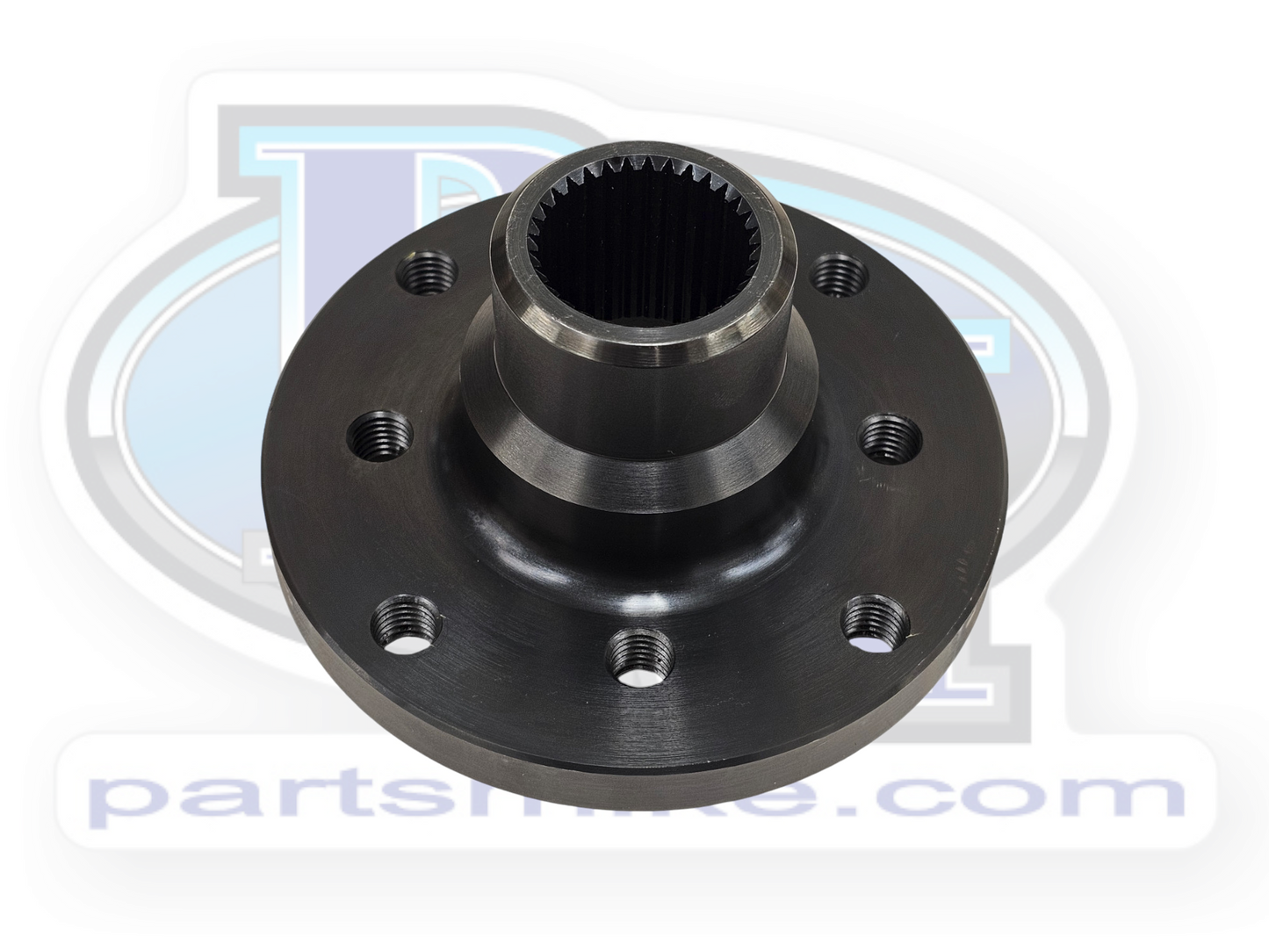

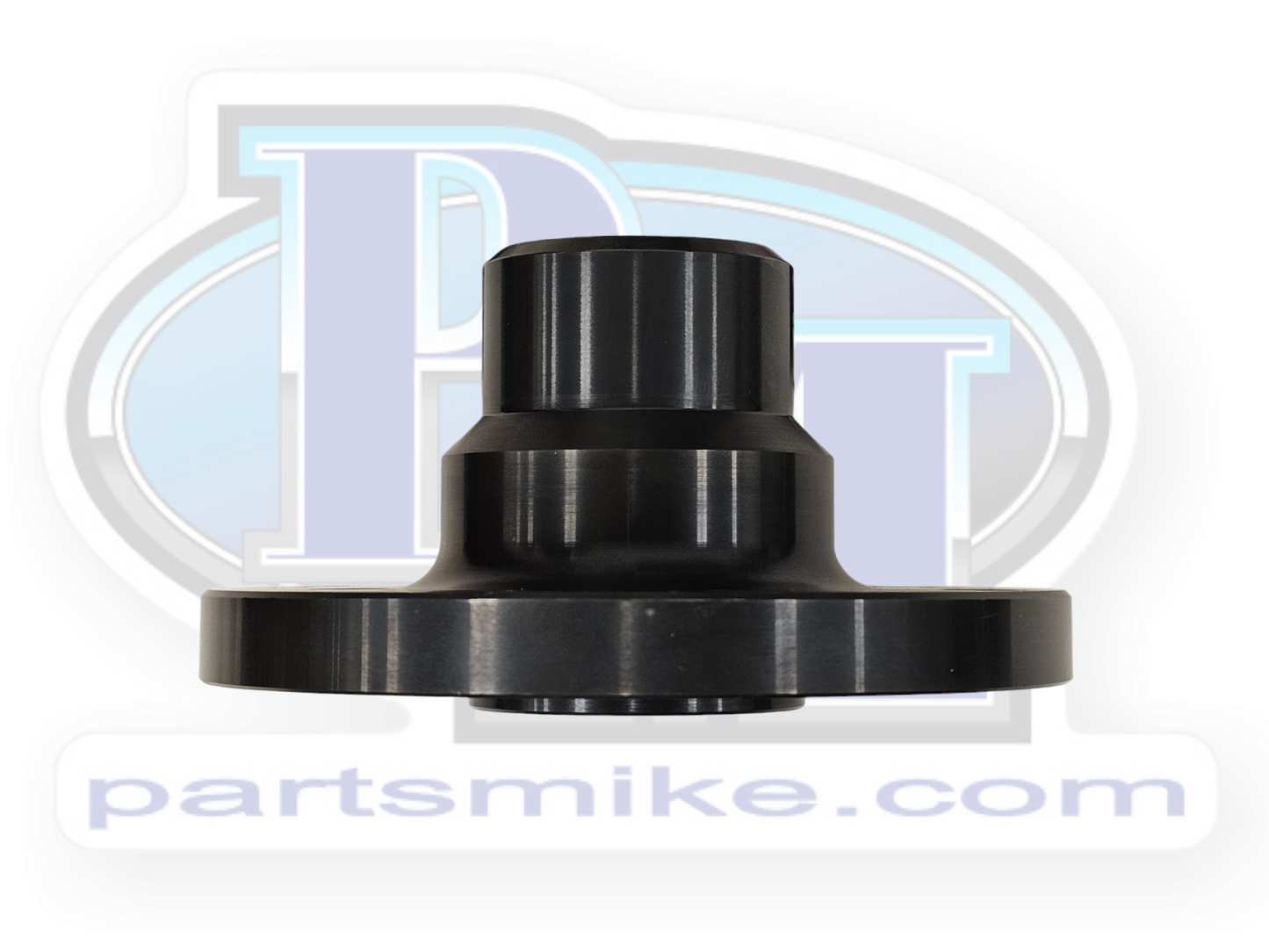

This transfer case flange fits a NEW style Bronco transfer case.  1310/1350/1410 series flange can be used with CV or non-CV drive line flange yokes. The flange is made from AISI 5140 forged steel, and warrantied for LIFE when you get the hardware!

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.884"

C: Through Hole: 1.573"

D: End of Flange Face to end of Seal Surface: 2.538"

Flange Face Outside Diameter: 5.101"

Flange Face Thickness: .524"

Spline Major Diameter: 1.403"

Counter Bore: 0

Splines: 32

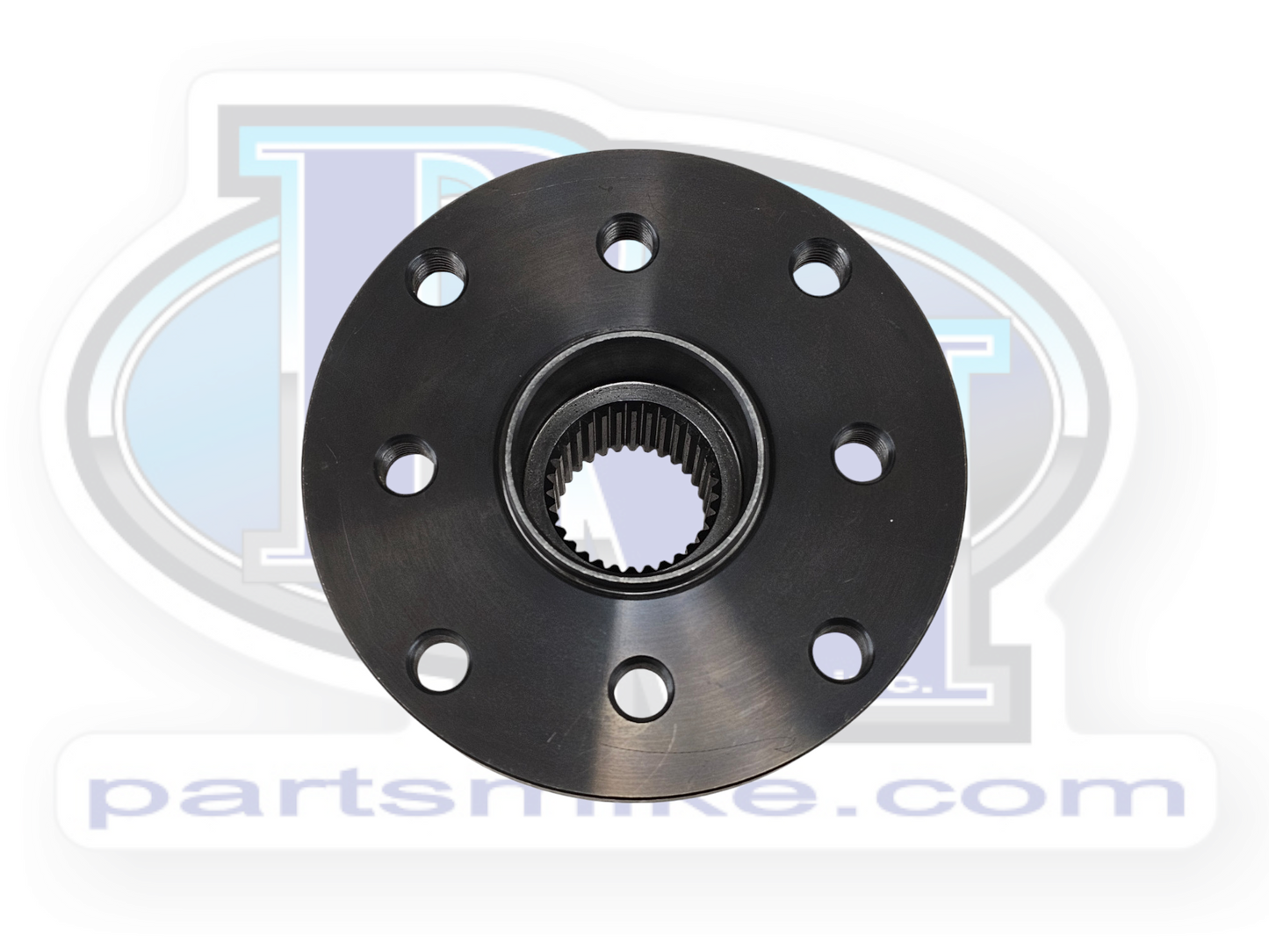

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

3.25” Center to Center (4 Holes - 12mm x 1.75 tpi.)

Pattern 2:

4.25” Center to Center (4 Holes - 12mm x 1.75 tpi.)

Hardware options:

1. Flange only - Pretty straight forward

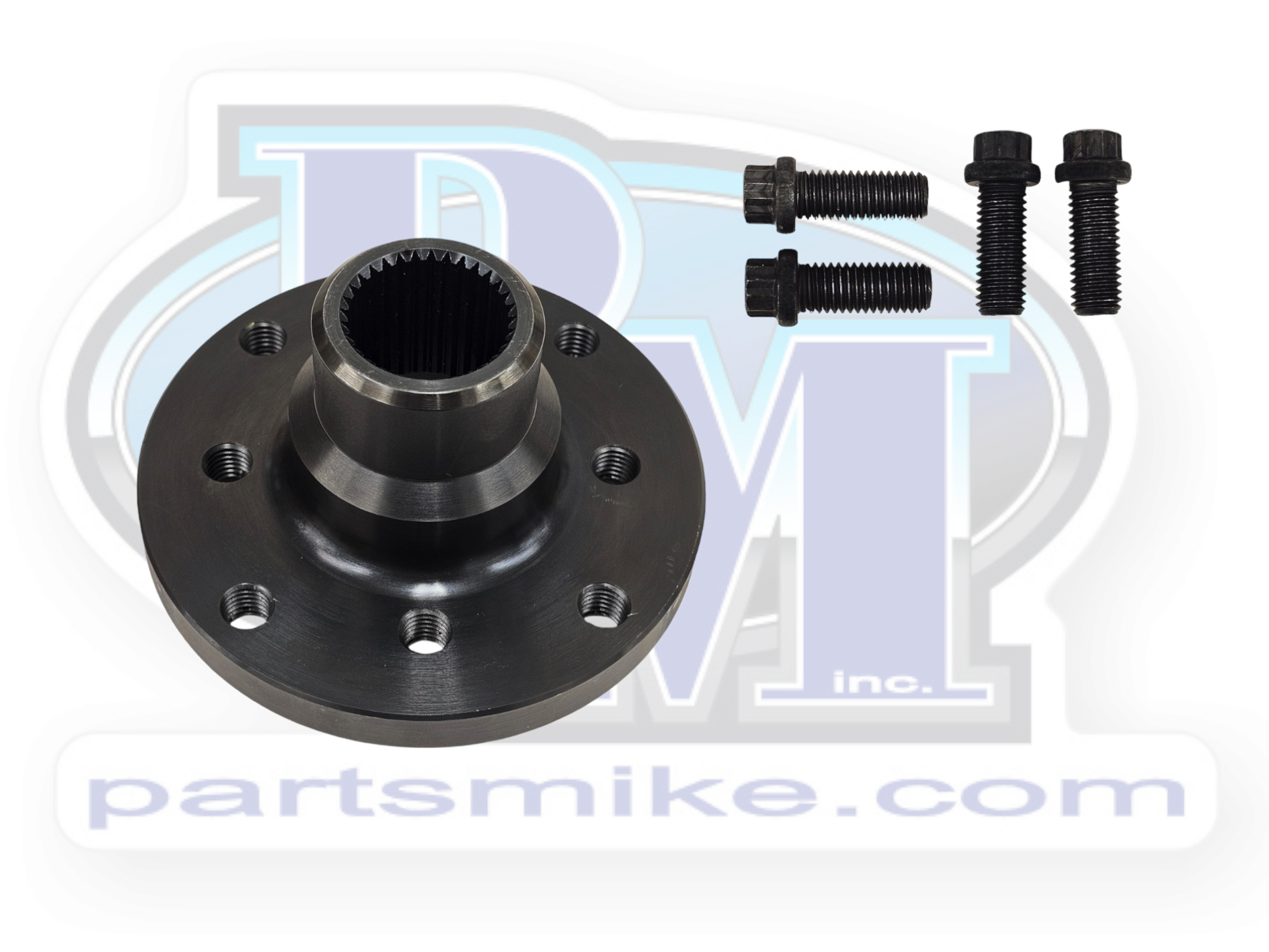

2. PM3111-FBTCGK

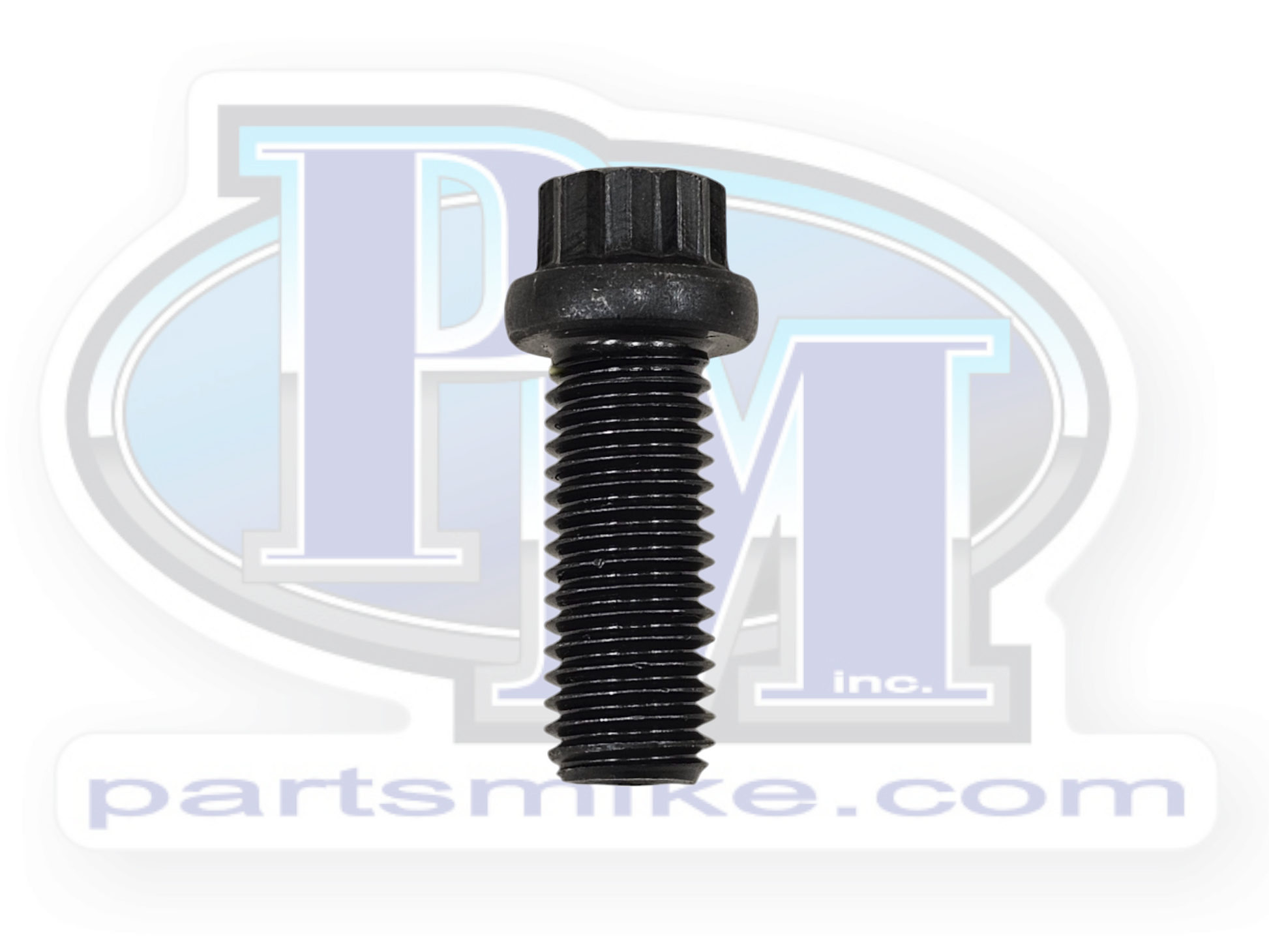

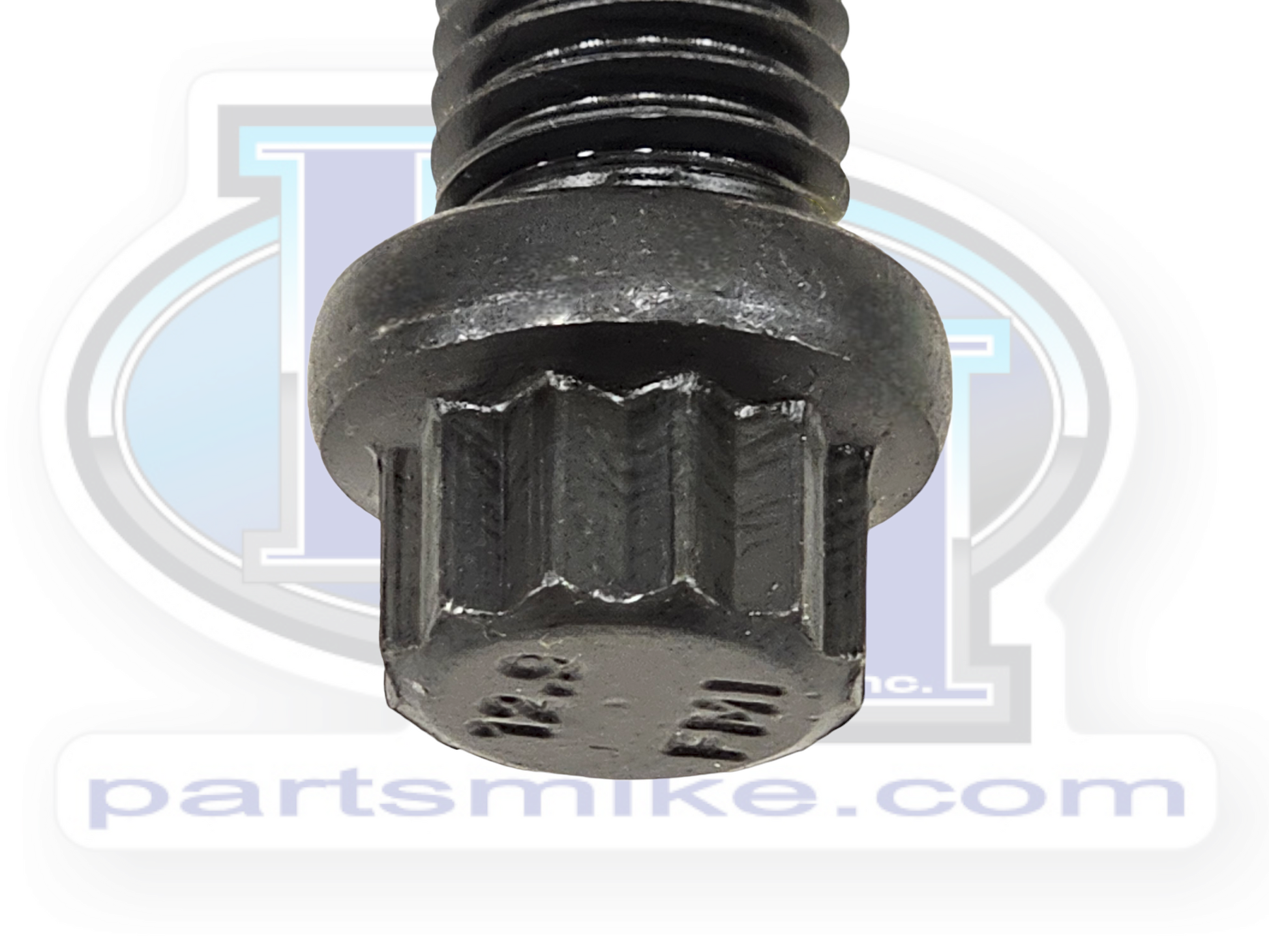

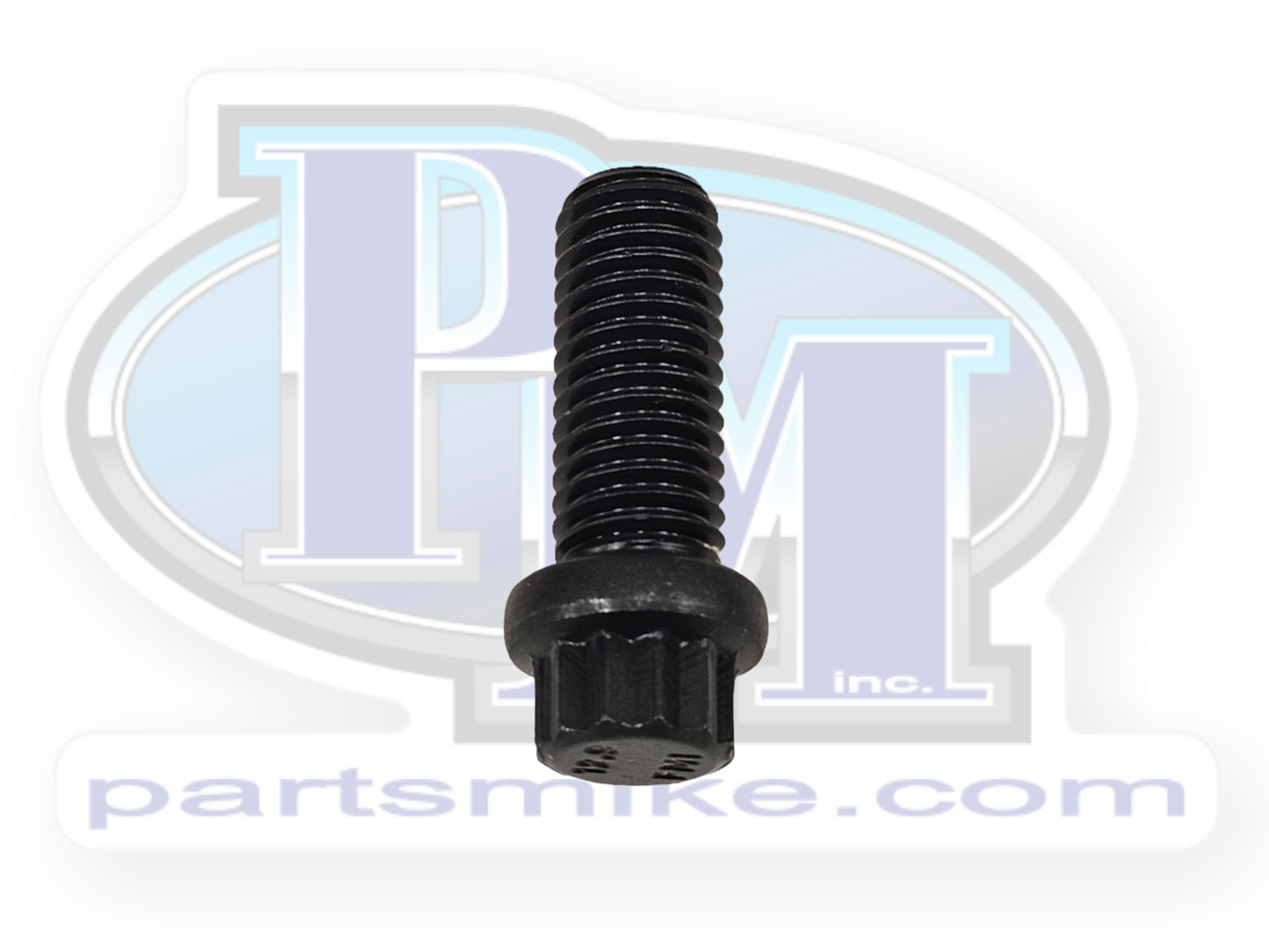

   • Hardware -  Four M12-1.75 12 point bolts (uses 12mm 12 point socket or wrench)

Qty. 1
