Toyota Tacoma 1999.5 - 2015, Transfer Case, 30 Splines, Driveshaft Companion Flange with Hardware, 1350, 1410, (PM3111-TTC30GK)

You've selected the flange with the hardware.

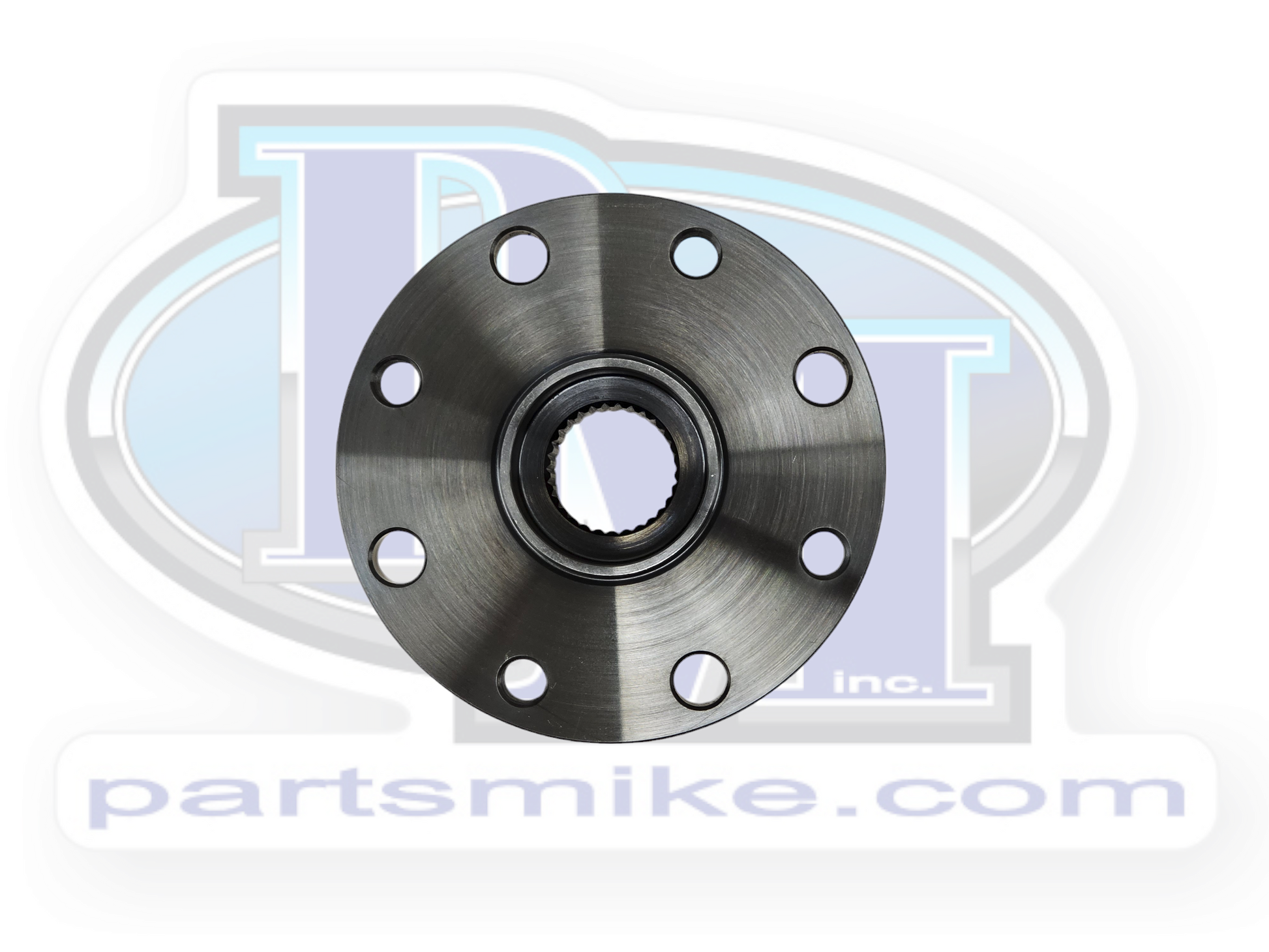

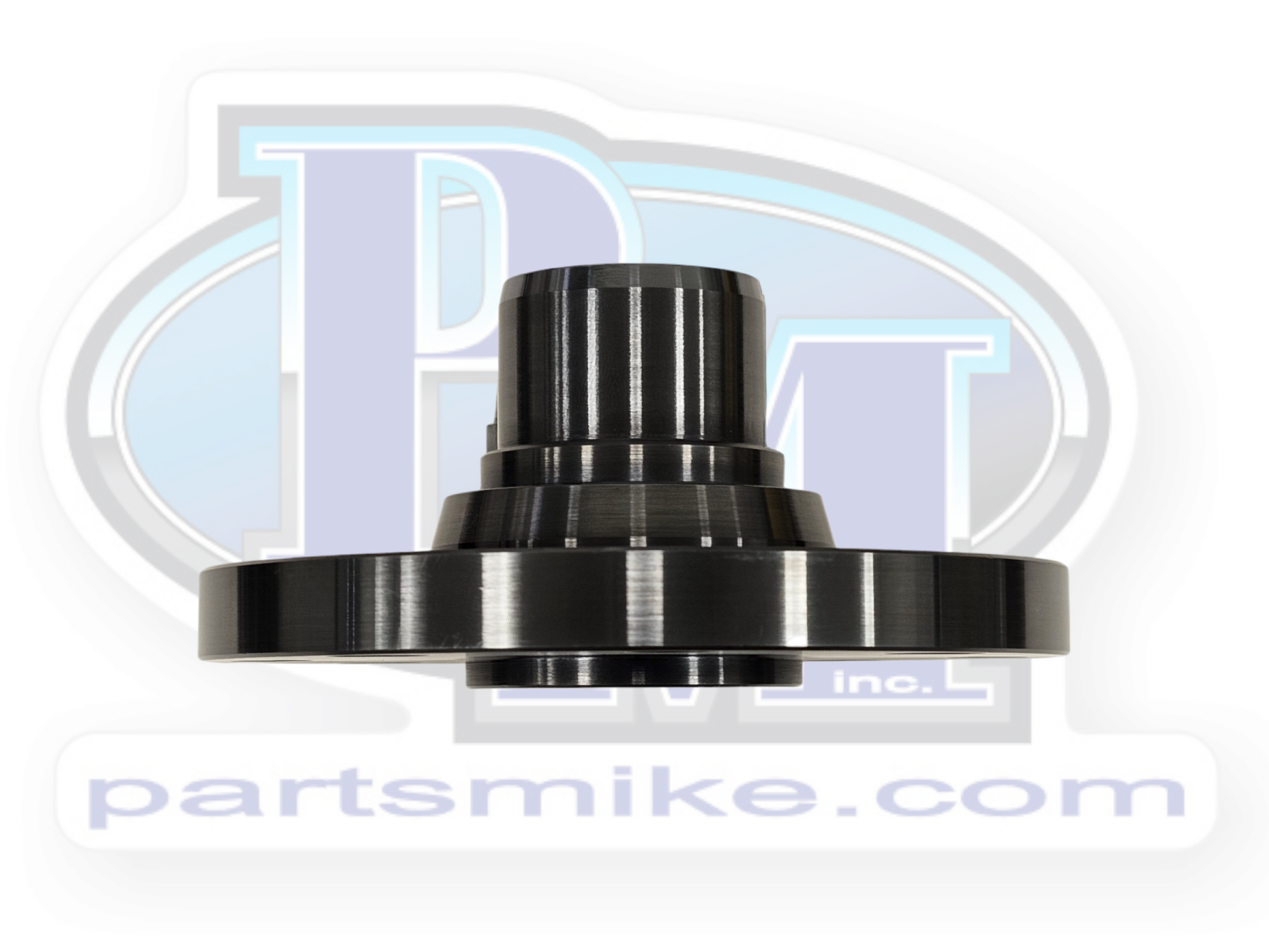

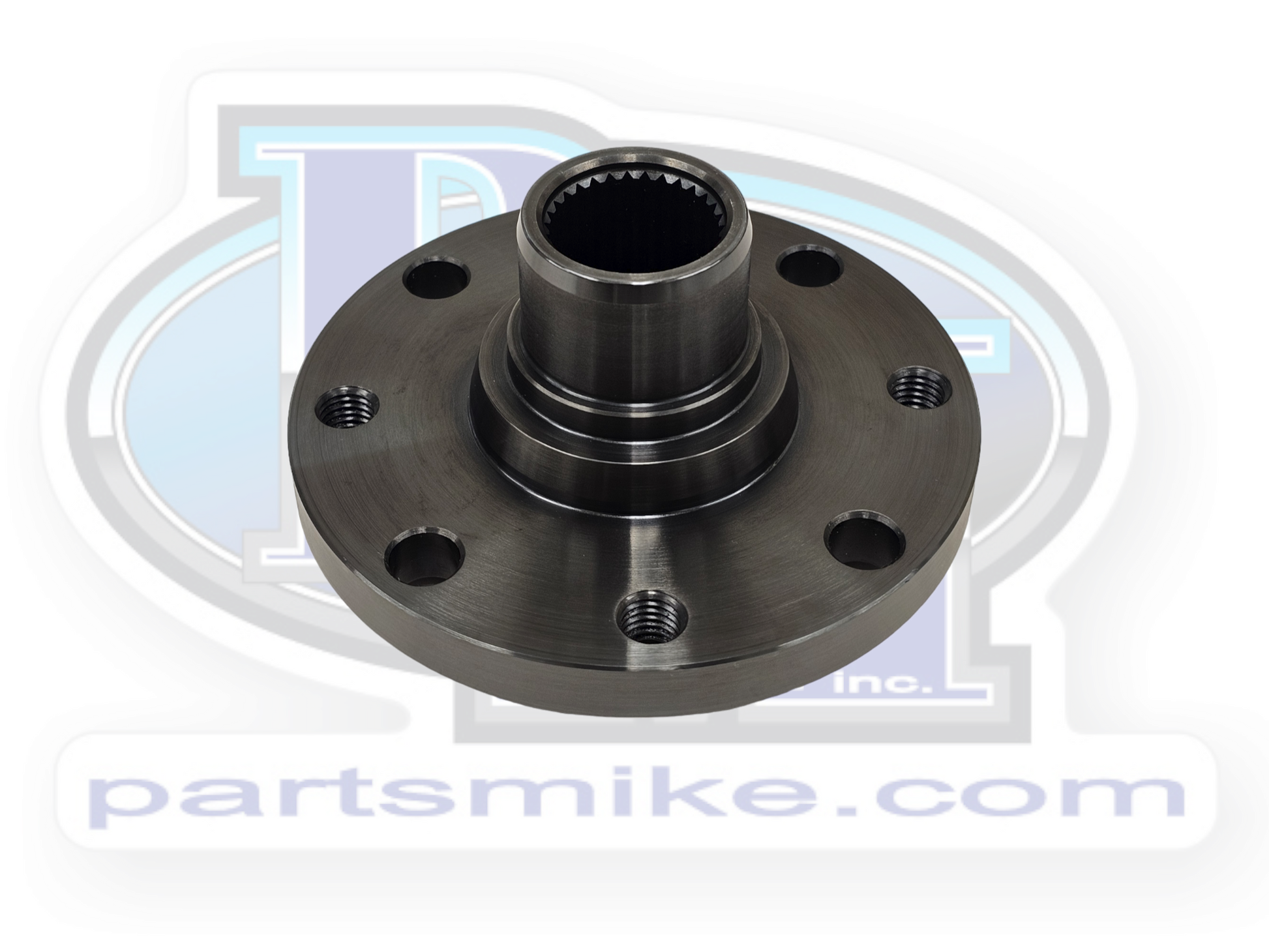

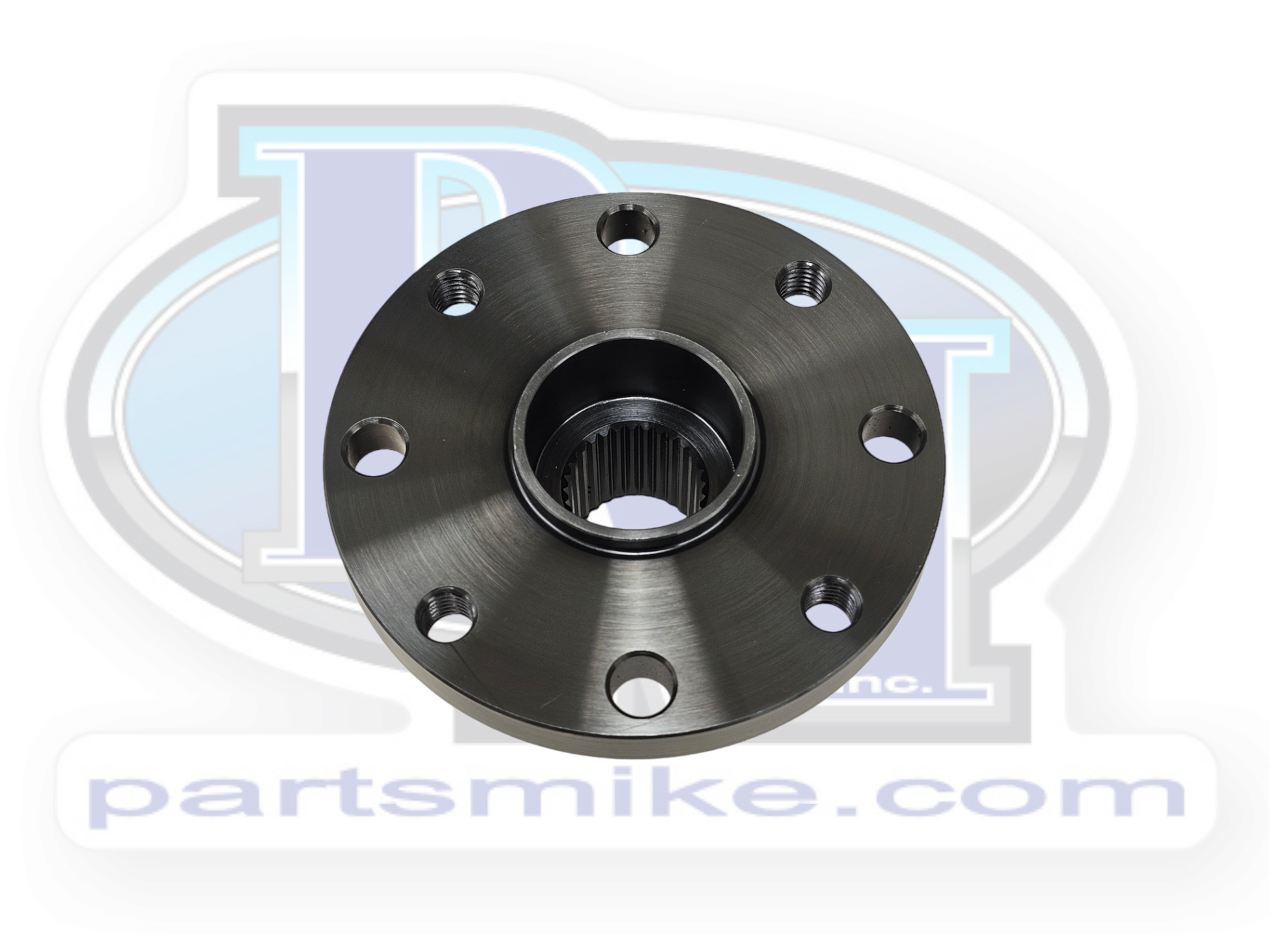

This transfer case flange fits 1999.5 through 2015 Toyota Tacoma transfer cases.  1350/1410 series flange can be used with CV or non-CV drive line flange yokes. The flange is made from AISI 5140 forged steel, and warrantied for LIFE when you get the hardware!

Dimensions

A: Pilot Diameter: 2.00"

B: Seal Surface: 1.616"

C: Spline Length: 1.456"

D: End of Flange Face to end of Seal Surface: 2.251"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .5300

Spline Major Diameter: 1.234"

Splines: 30

Total Bolt Holes: 8

Bolt Hole Pattern (Measured Diagonally)

Pattern 1:

4.25" Center to Center (4 Holes - 12mm x 1.75")

Pattern 2:

4.25" Center to Center (4 Holes - 12mm through holes)

Hardware options:

1. Flange only - Pretty straight forward

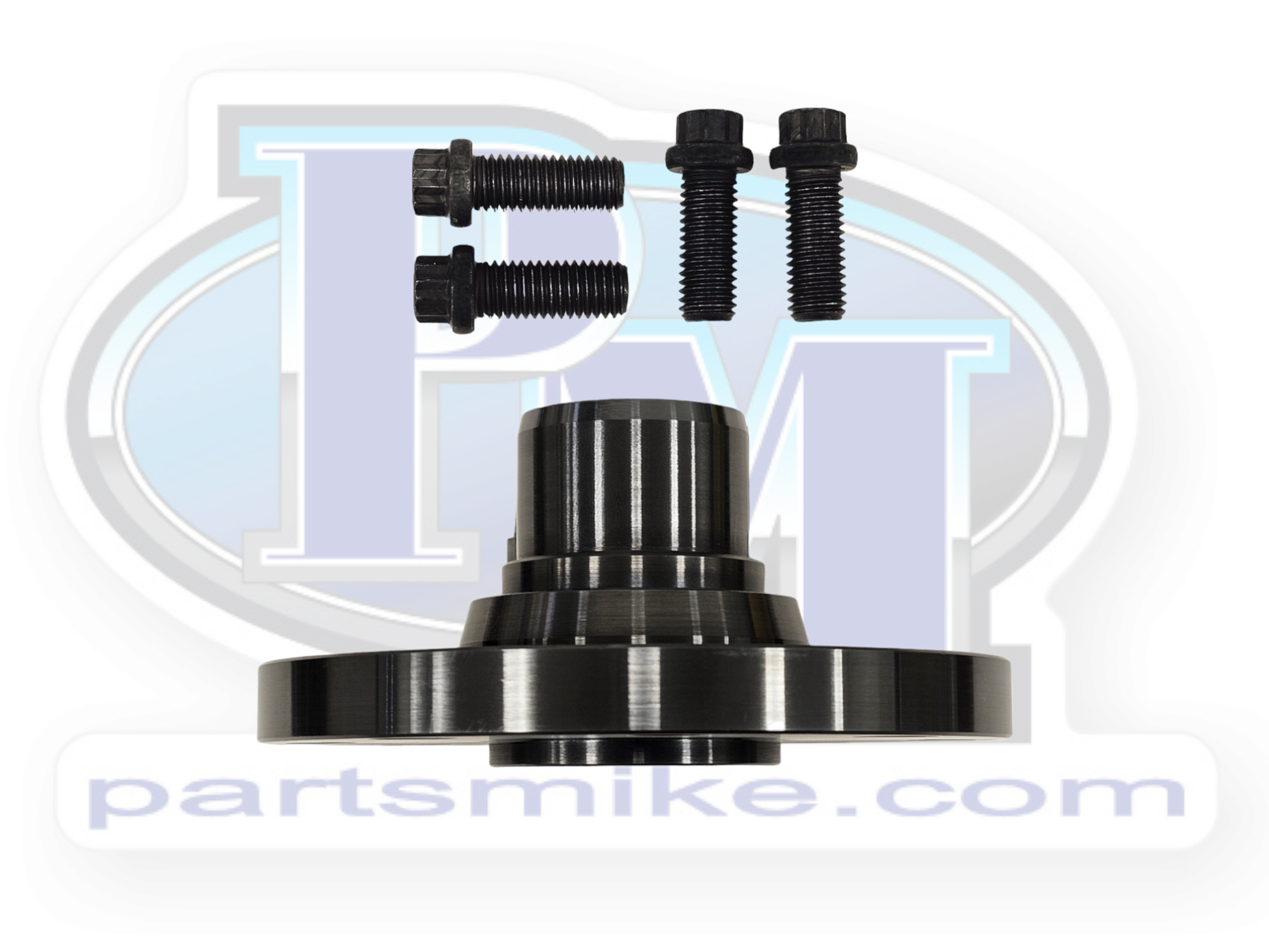

2. PM3111-TTC30GK

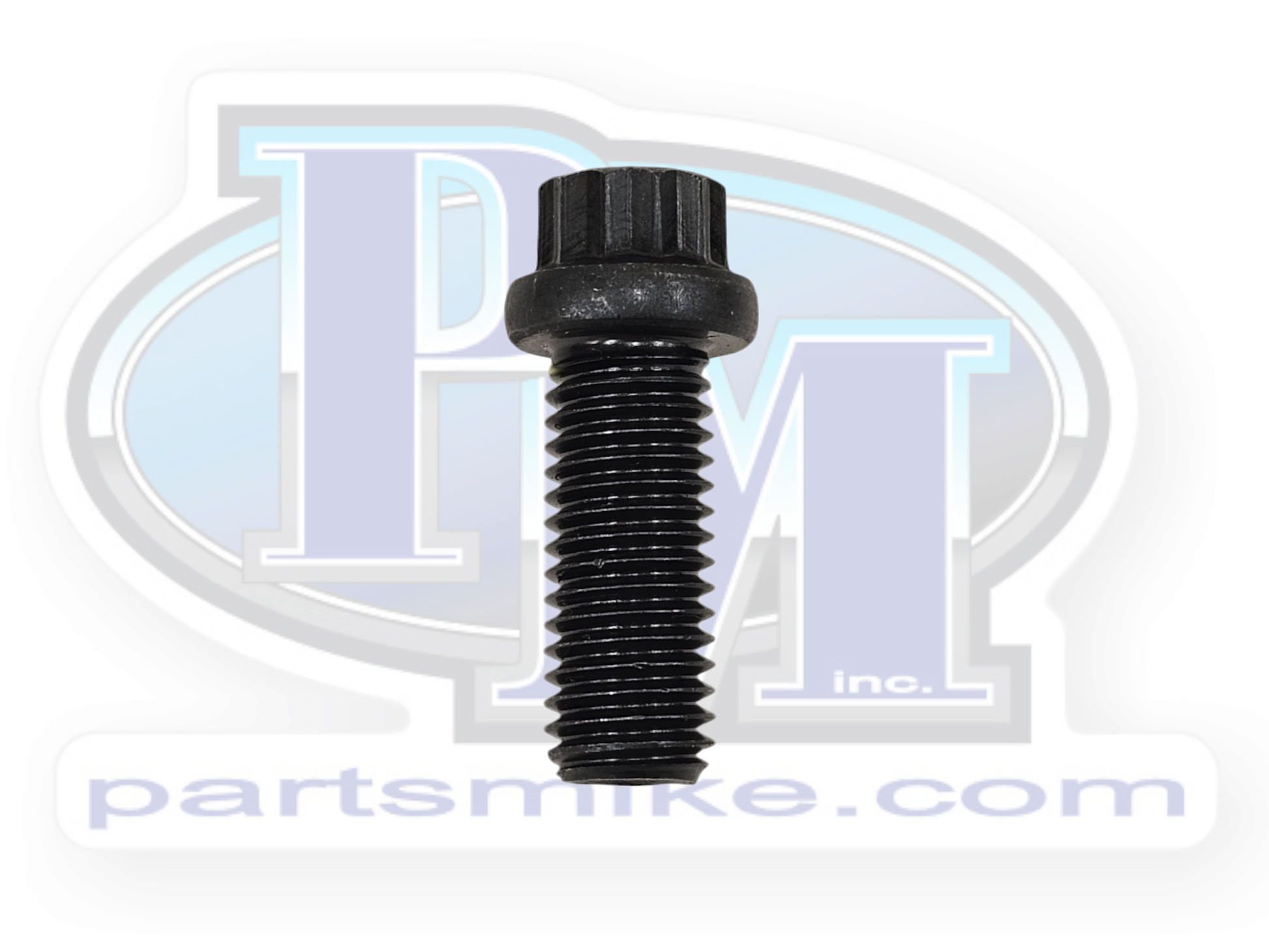

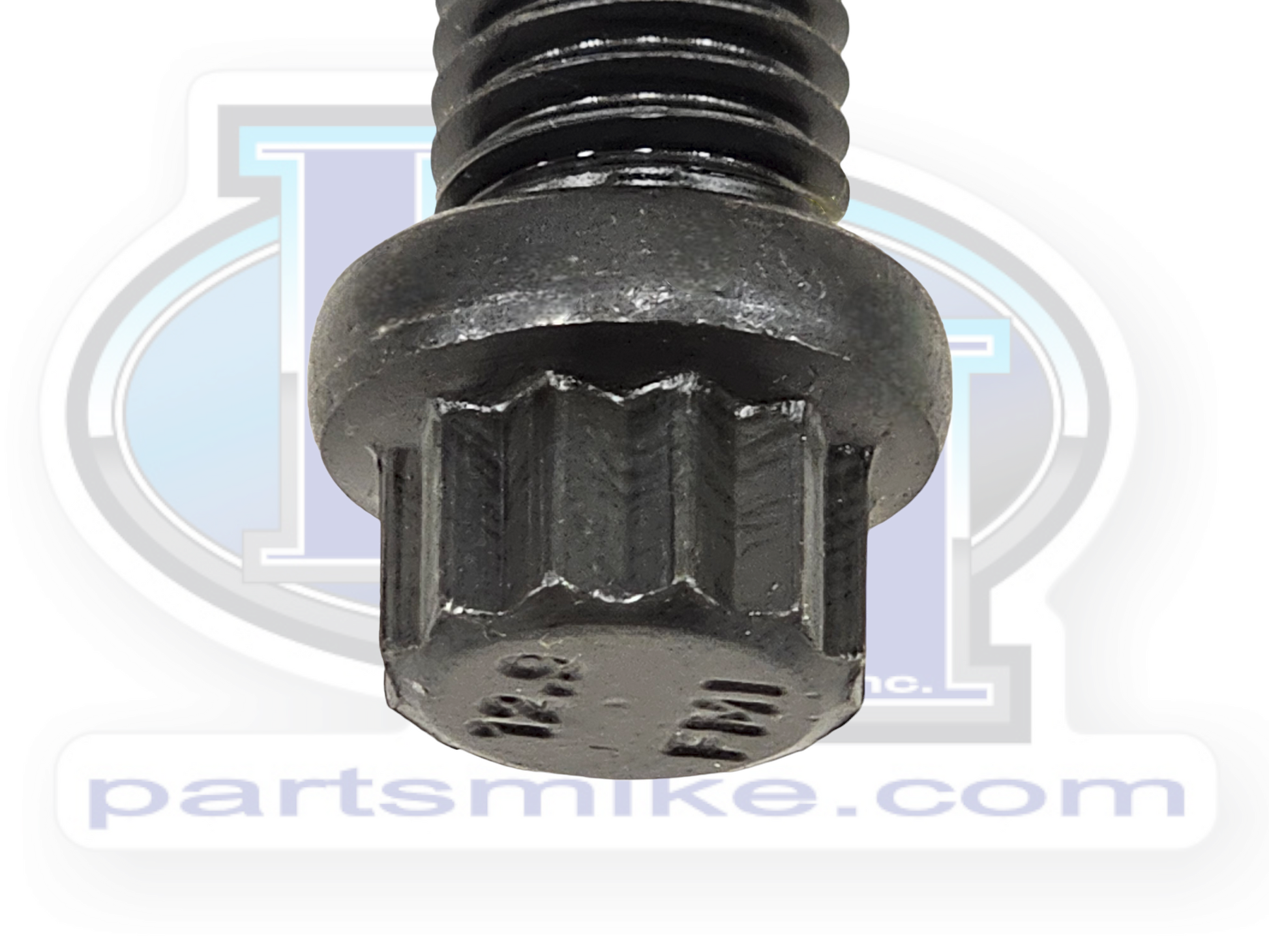

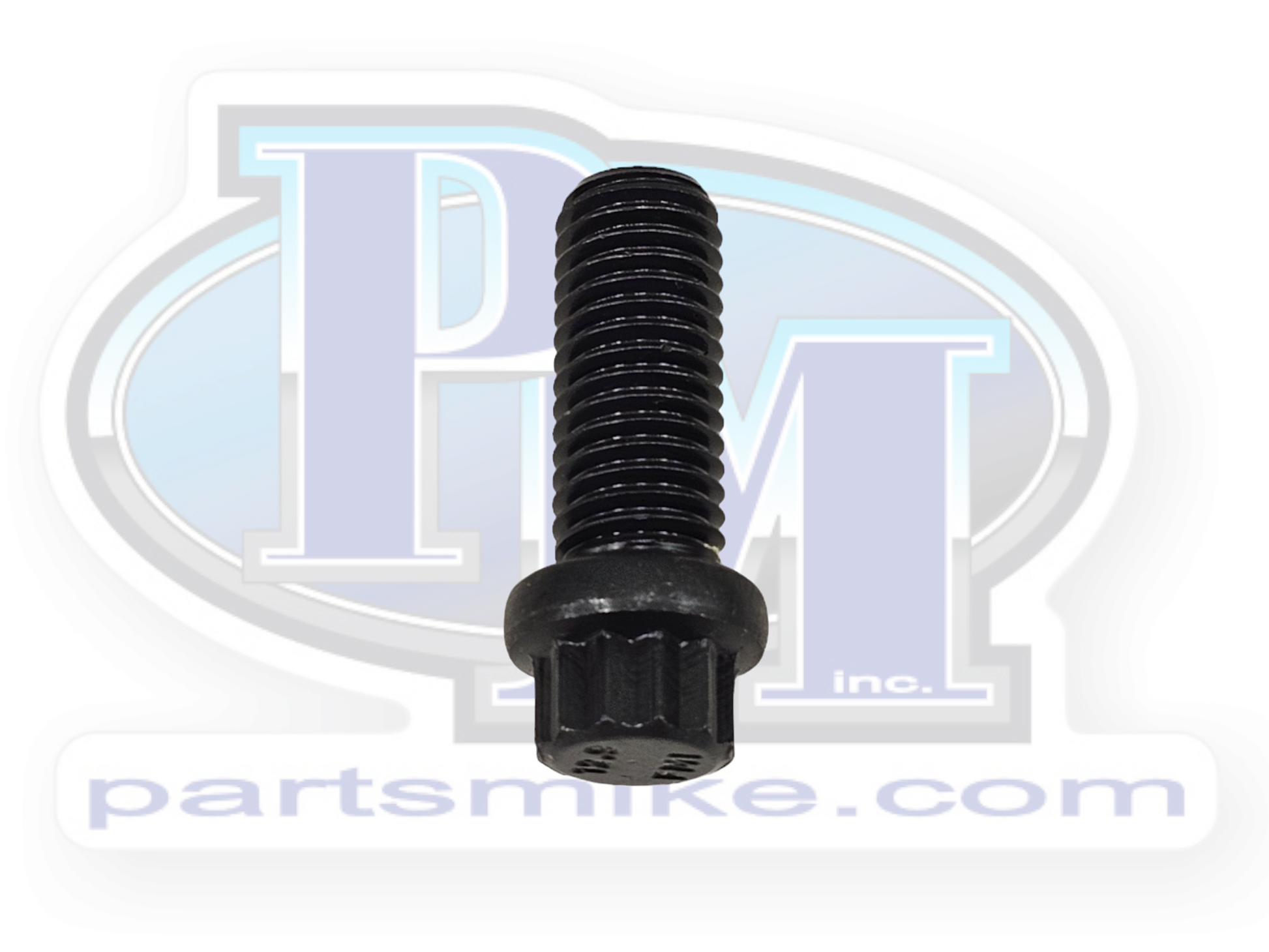

   • Hardware -  Four M12-1.75 12 point bolts (uses 12mm 12 point socket or wrench)

Qty. 1
