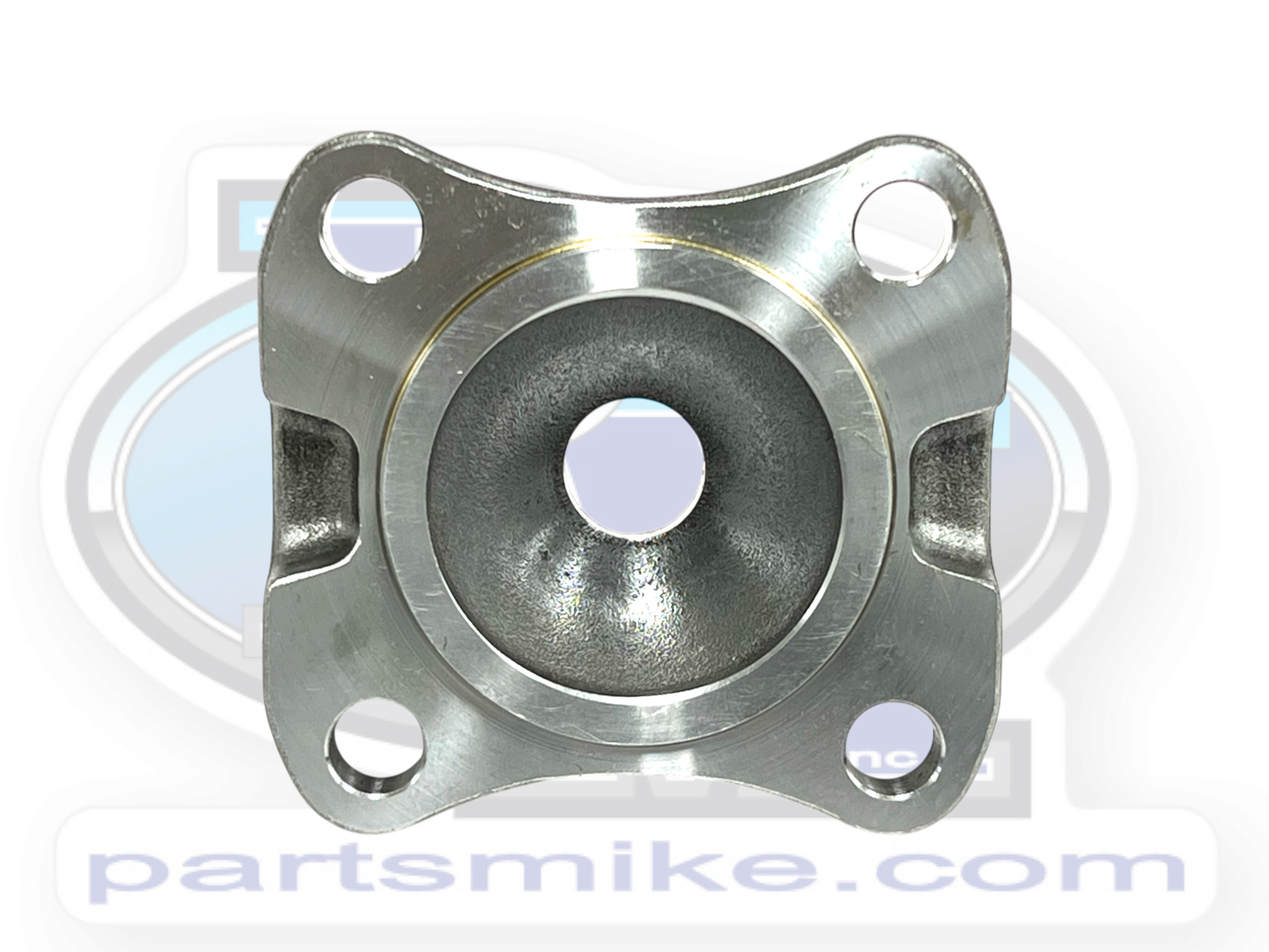

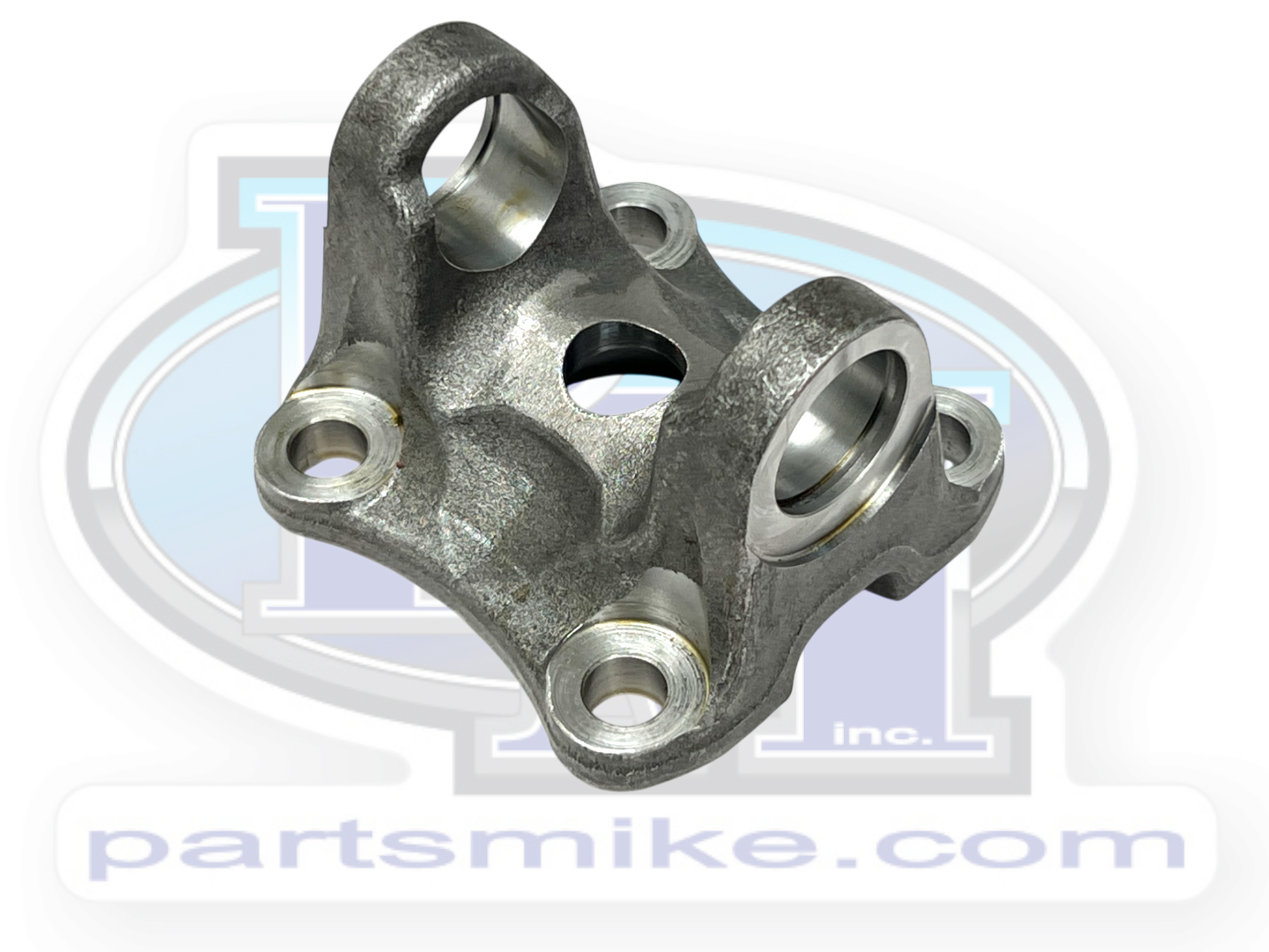

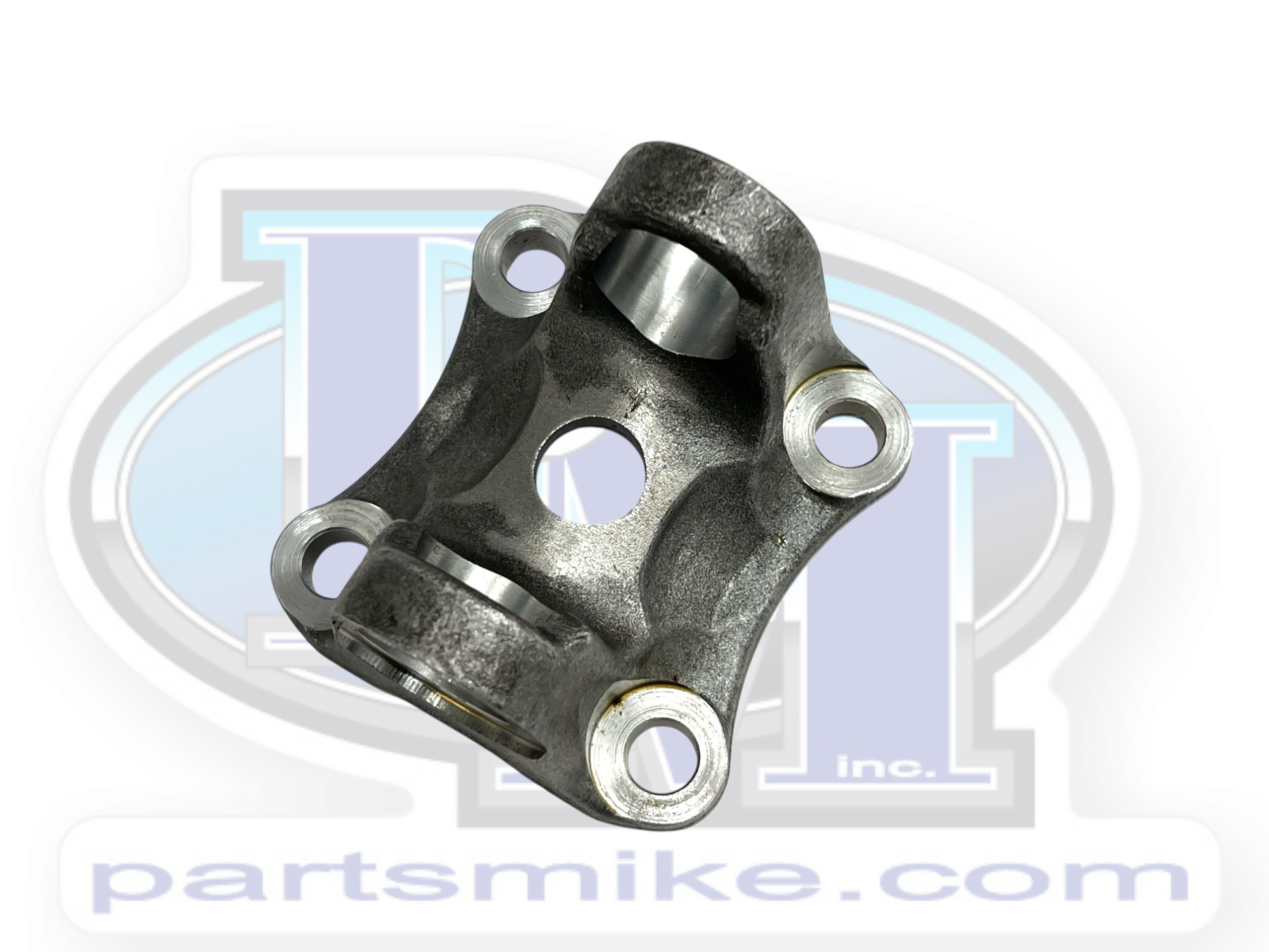

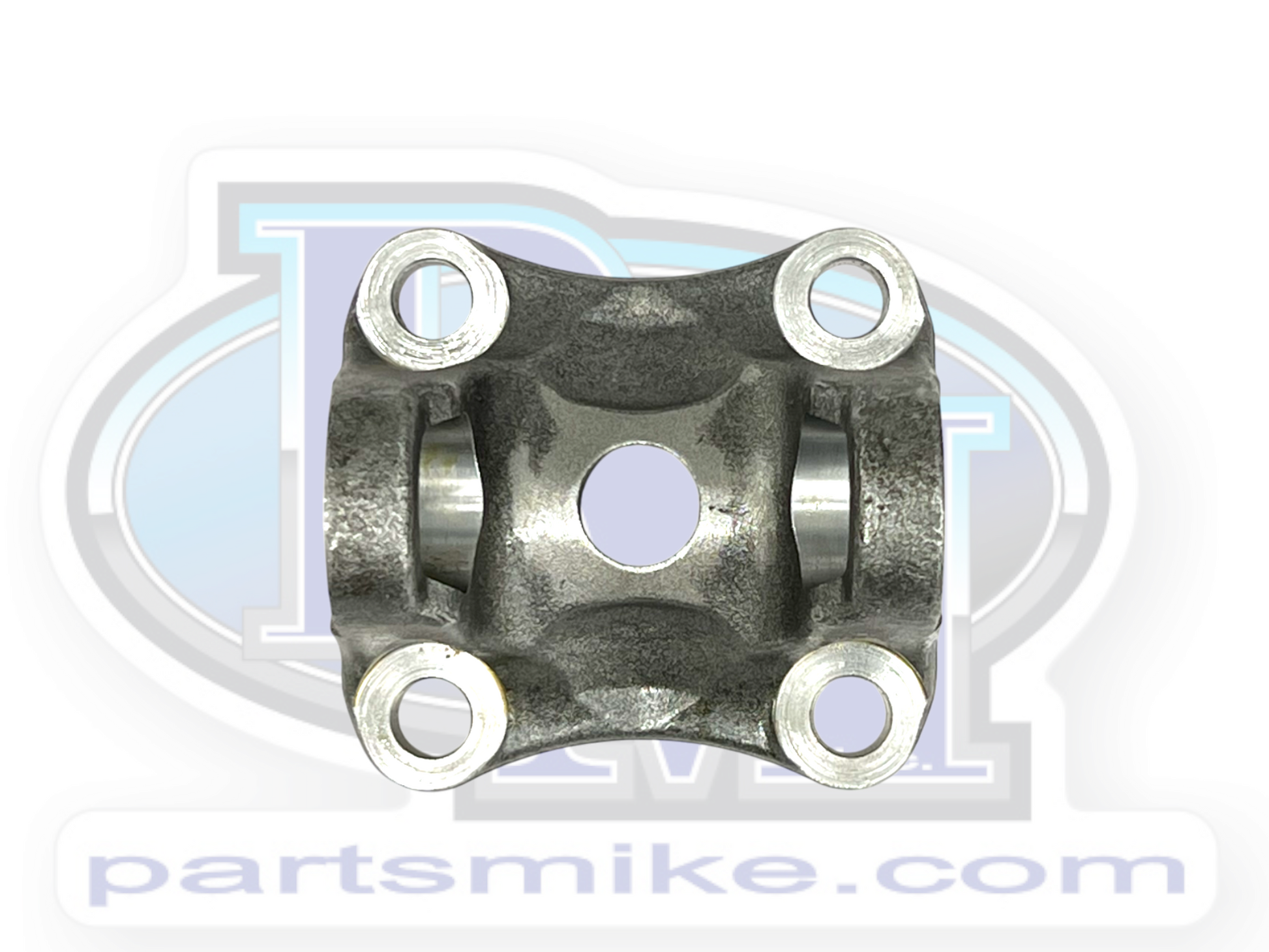

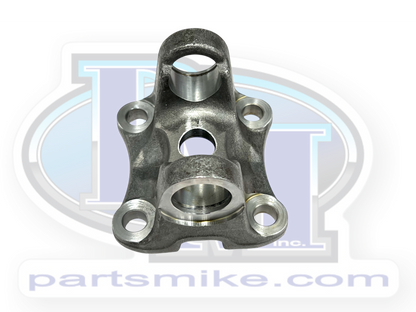

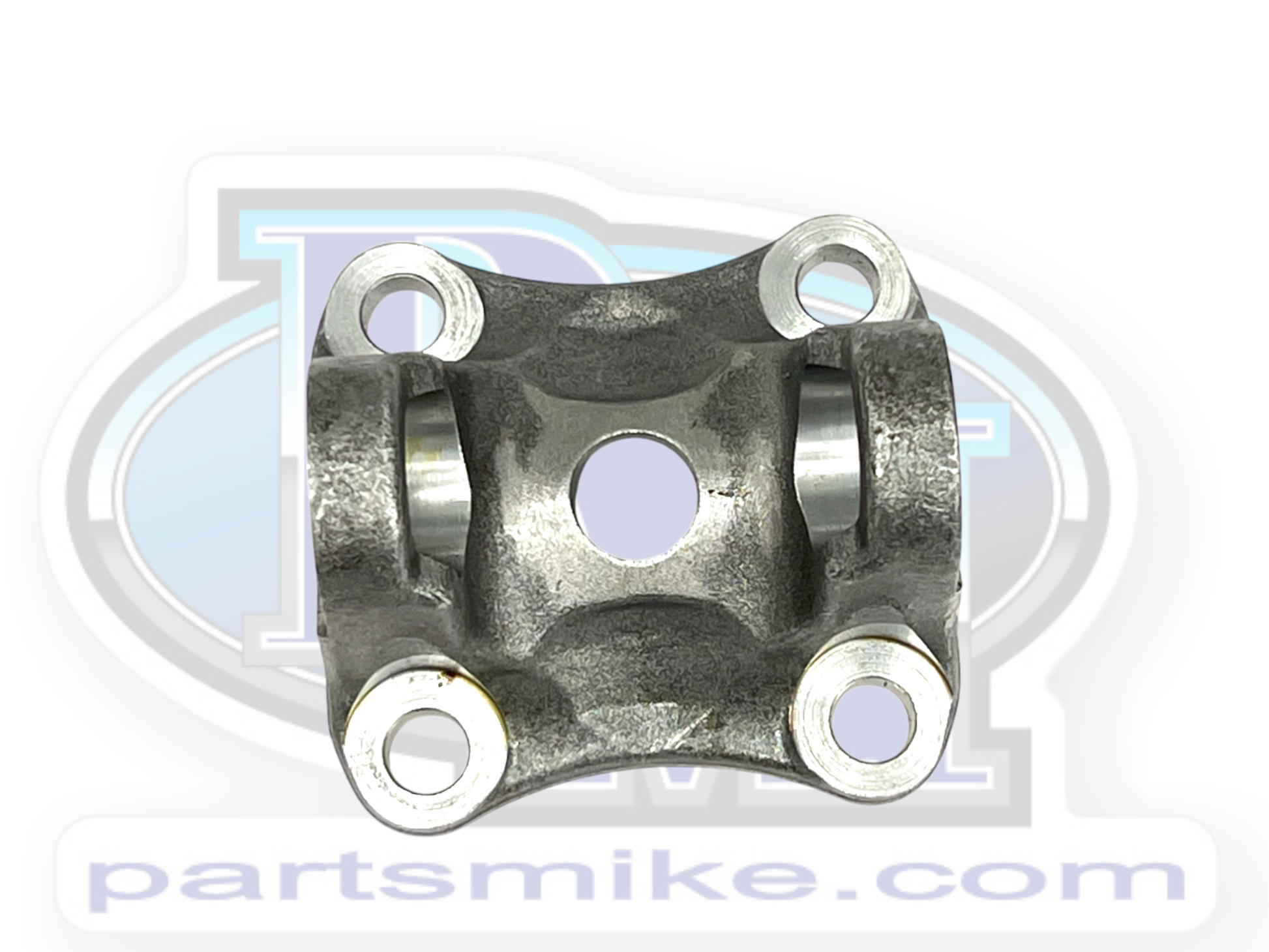

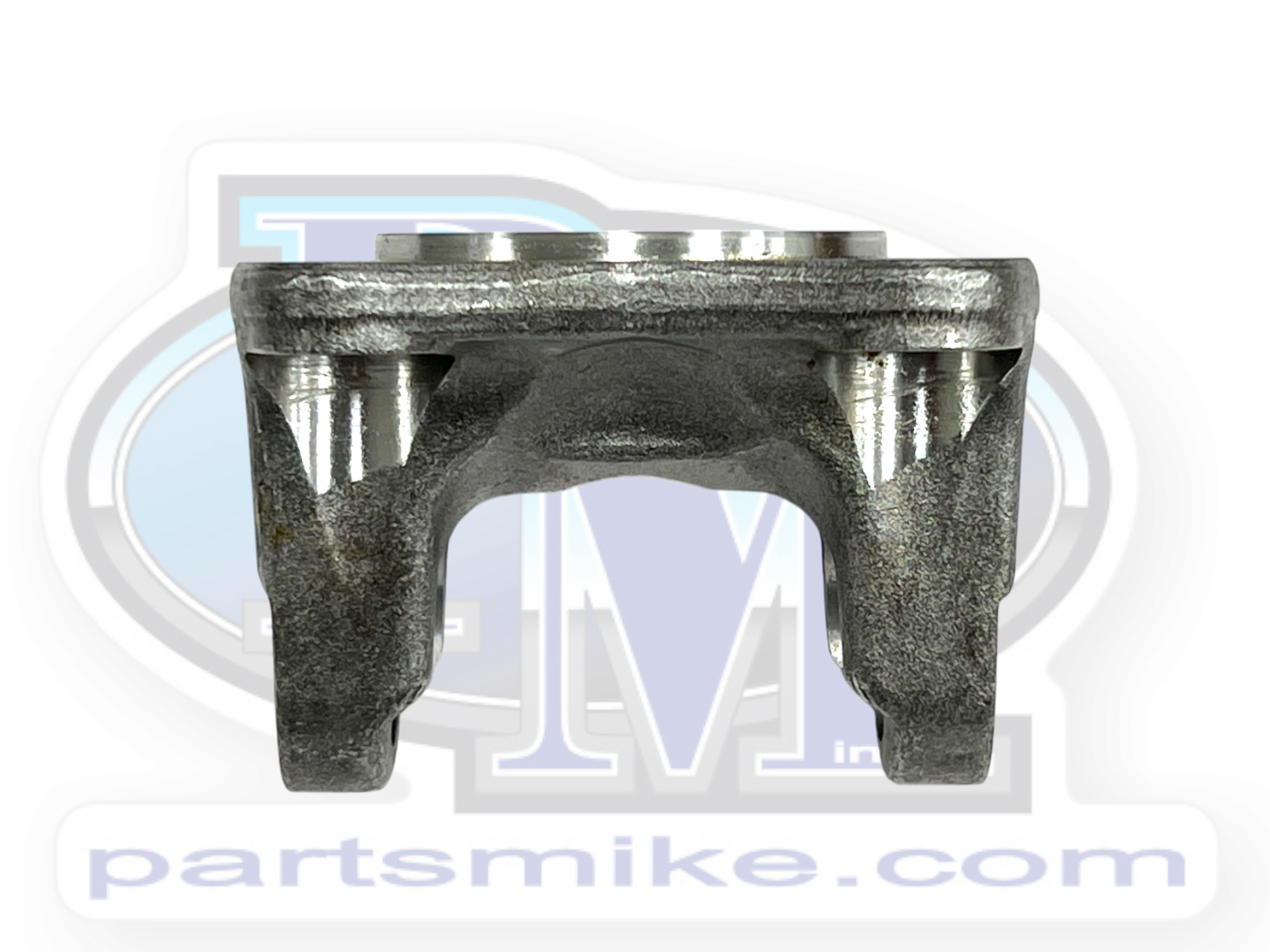

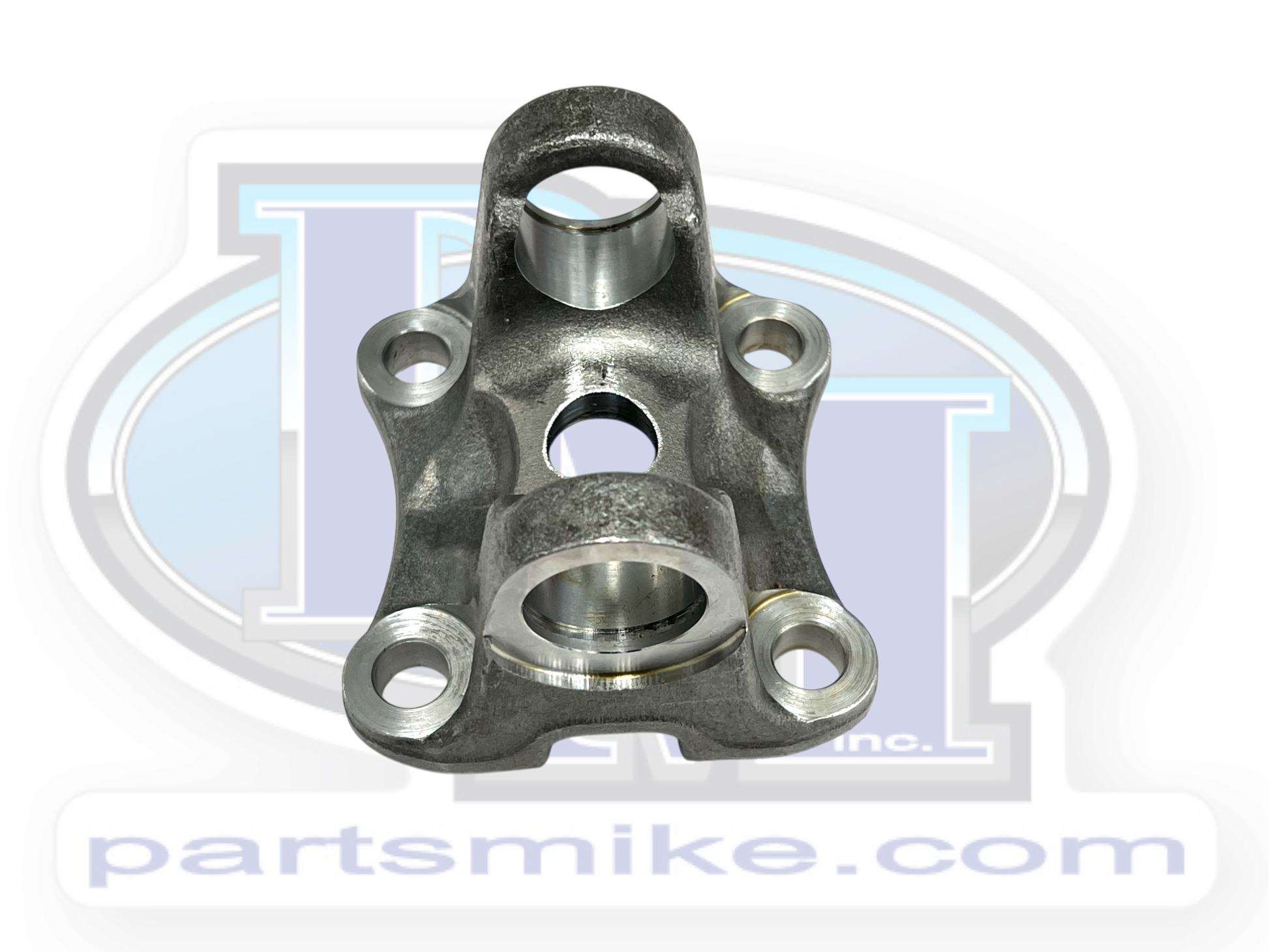

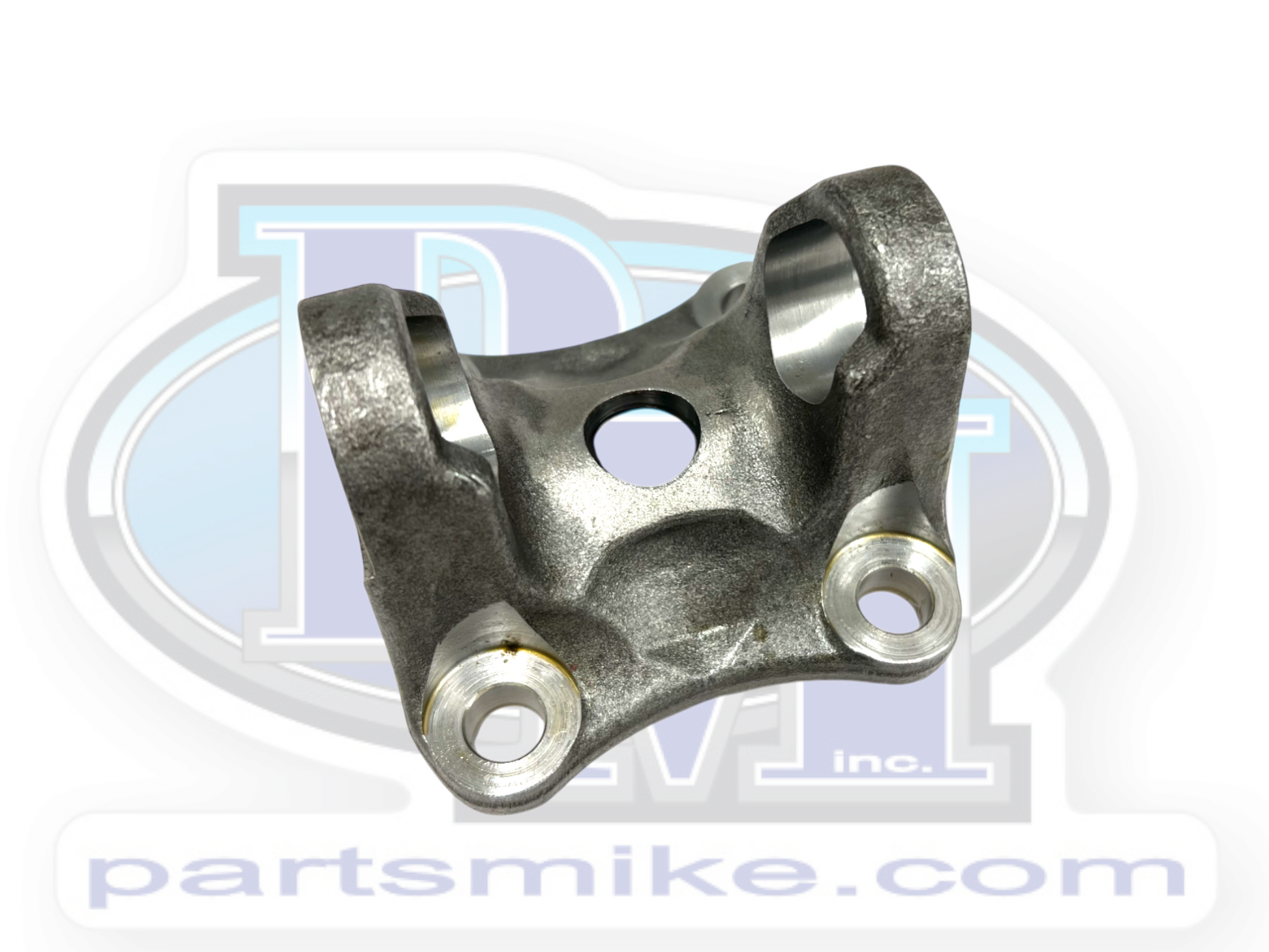

1310 Flange Yoke, JK/JL Front, (2-2-1949)

1310 Flange Yoke, JK/JL Front, 2-2-1949

Couples stock front axle yoke to 1310.

Dimensions

Bolt Pattern: Square

Bolt Hole Center to Center: 67.26mm /  2.64"

Bolt Hole Diameter: 12.40mm / .488"

Face to Center of U-Joint Cap: 48.5mm / 1.90"

Number of Bolt Holes: 4

Pilot Diameter: 65mm / 2.55"

U-Joint Series: 1310

Cross Reference: N2-2-1949-1

Qty. 1
