GM, 5.625", Drag Link, Reamed
GM, 5.625", Drag Link, Reamed
Parts Mike, Inc.
SKU:PM536FPA-2027@5.625
Regular price
$105.00 USD
Regular price
Sale price
$105.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
You've selected the flat pitman arm drilled to a GM drag link taper 5-5/8" from center of spline hole to center of tapered hole.

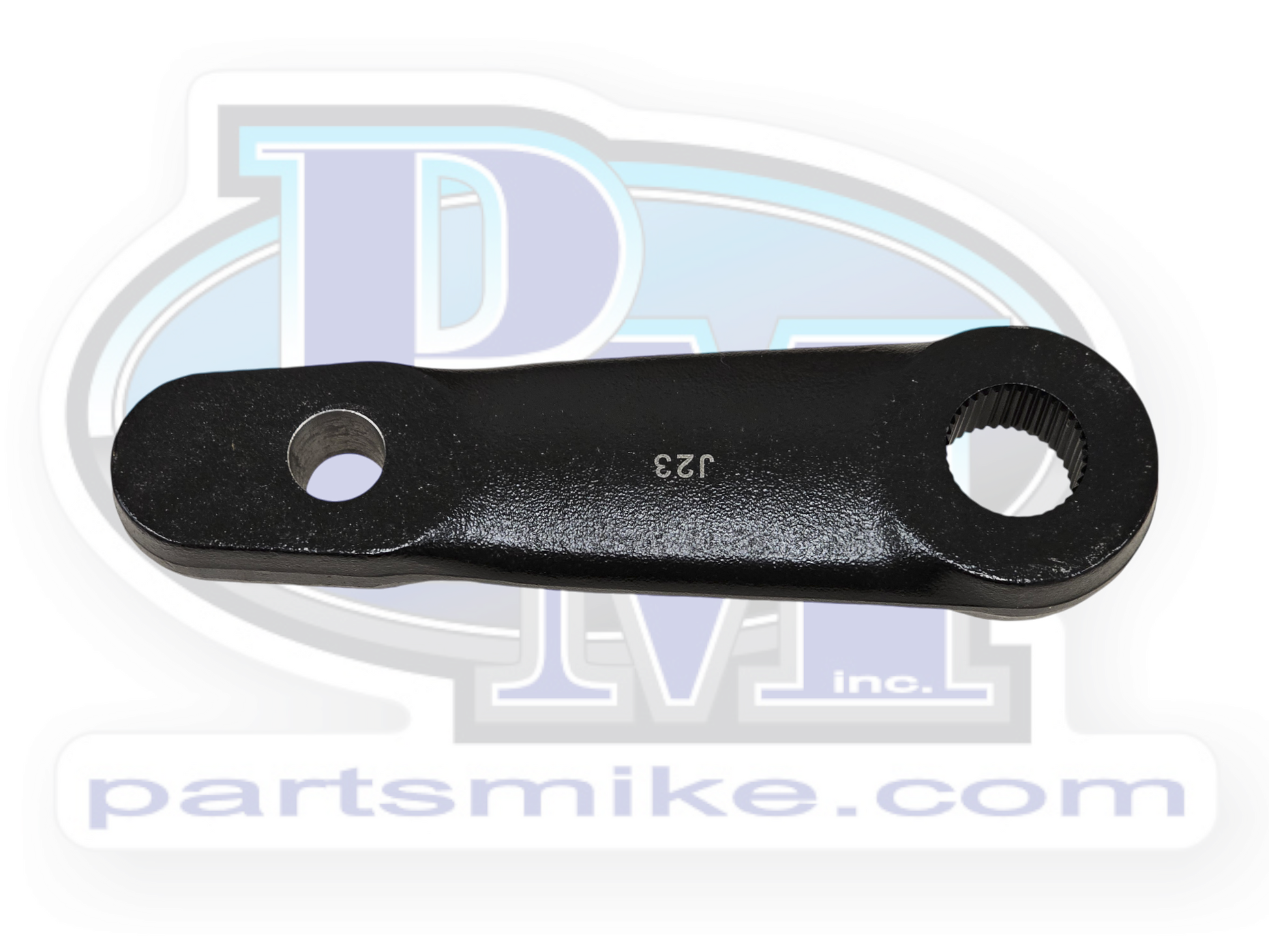

This is a flat pitman arm (no drop). It comes tapered from the bottom up for a GM drag link end (example part numbers: ES2026R or ES2027L) at 5-5/8". Typically used with a 6" steering arm (center of ball joint to drag link hole) for lock to lock steering.
WARNING: If you're cutting off the excess material, you must leave 1/2" material around the around the big side of the tapered hole.

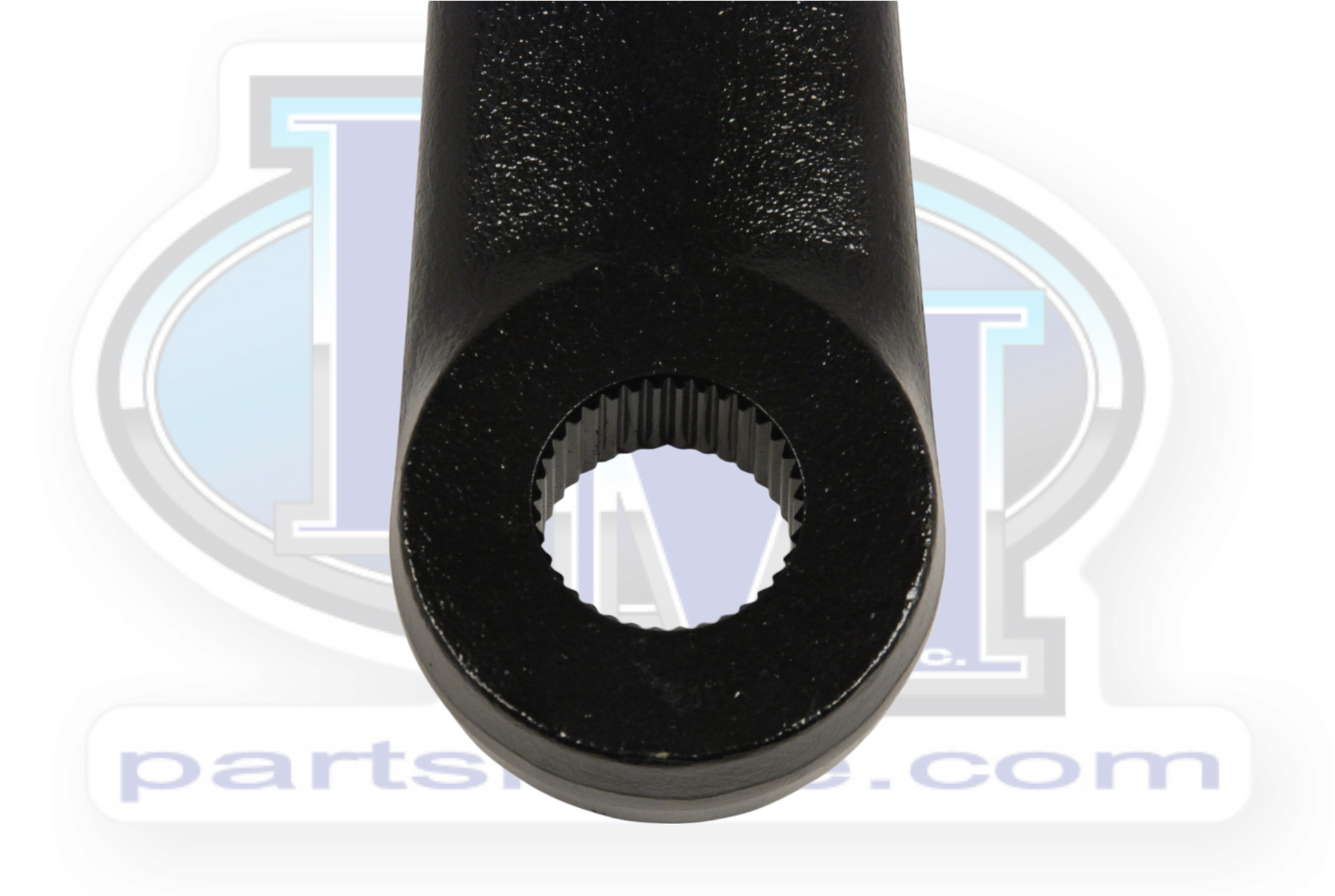

Made to fit a Saginaw 32 spline power box spline (no master/key way splines) which allows you to adjust steering wheel center as needed (no need to file the flats because it doesn't have any).
Specifications
-

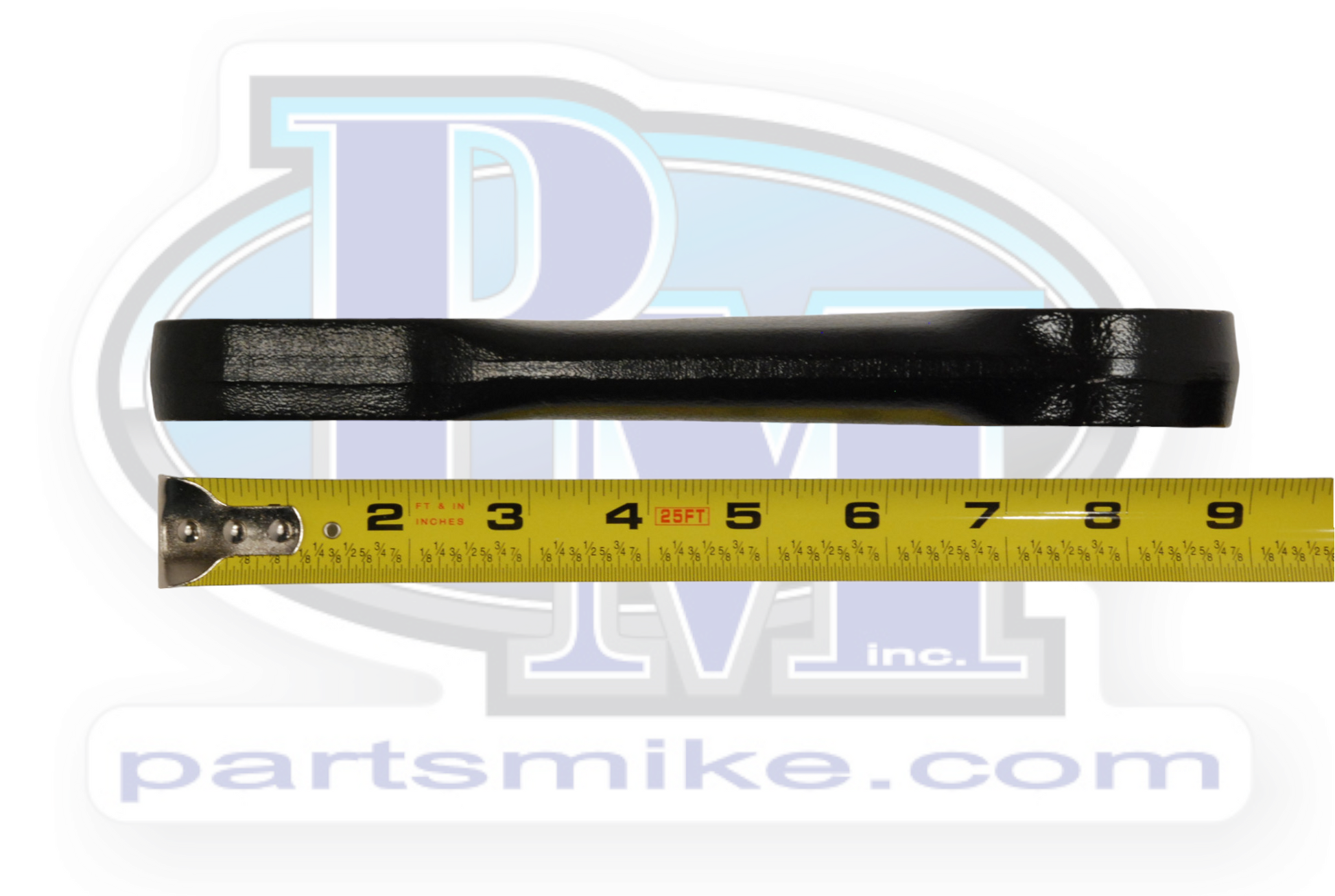

Overall length (tip to tip): 8-3/4"
-
Drop: none
-
Center to center length (sector shaft to drag link hole): 5-5/8" C-C for GM drag link taper
-
Sector shaft hole: 32 spline Saginaw power steering
-

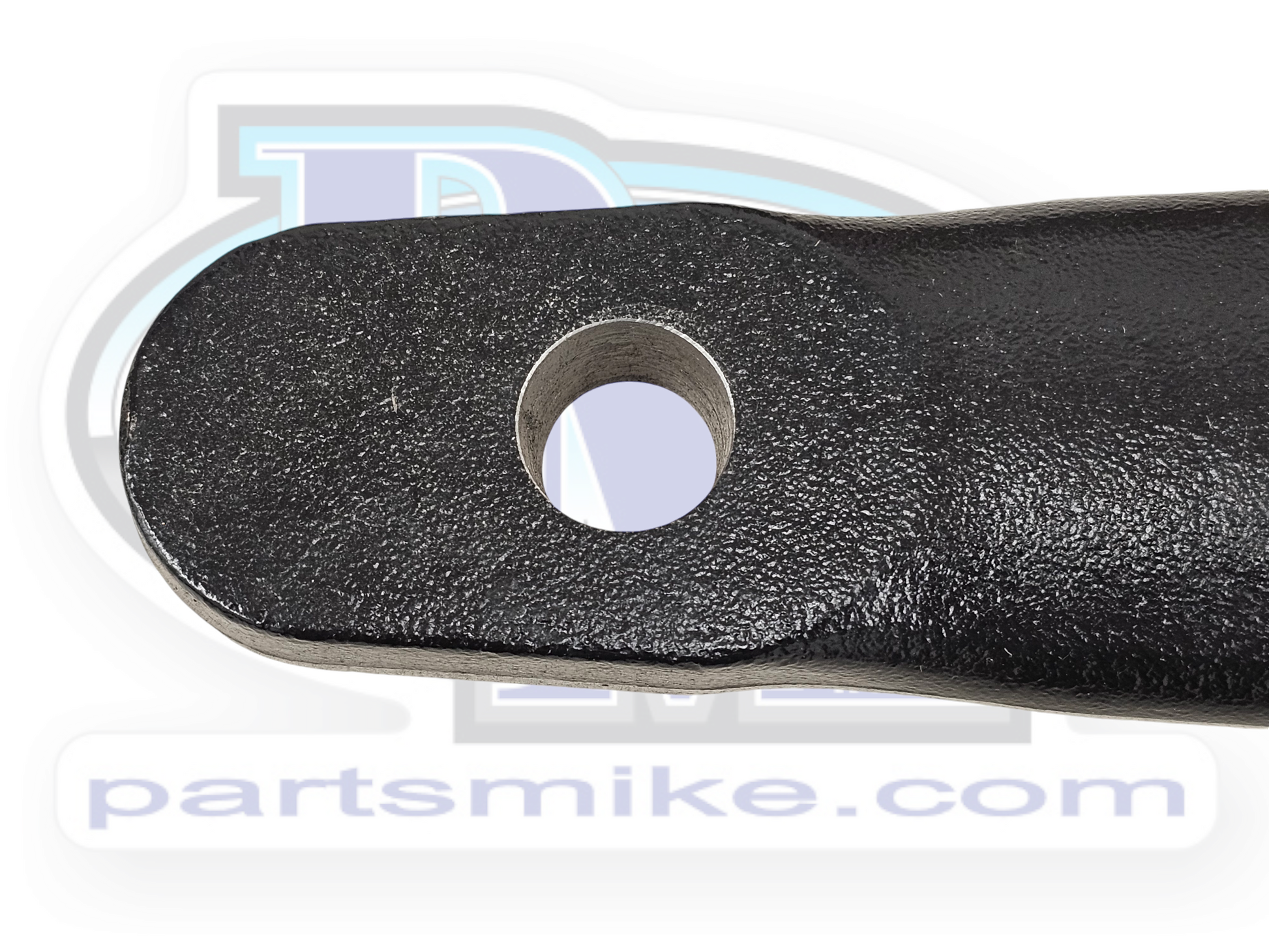

Drag link hole: GM drag link taper (fits: ES2026R or ES2027L)
