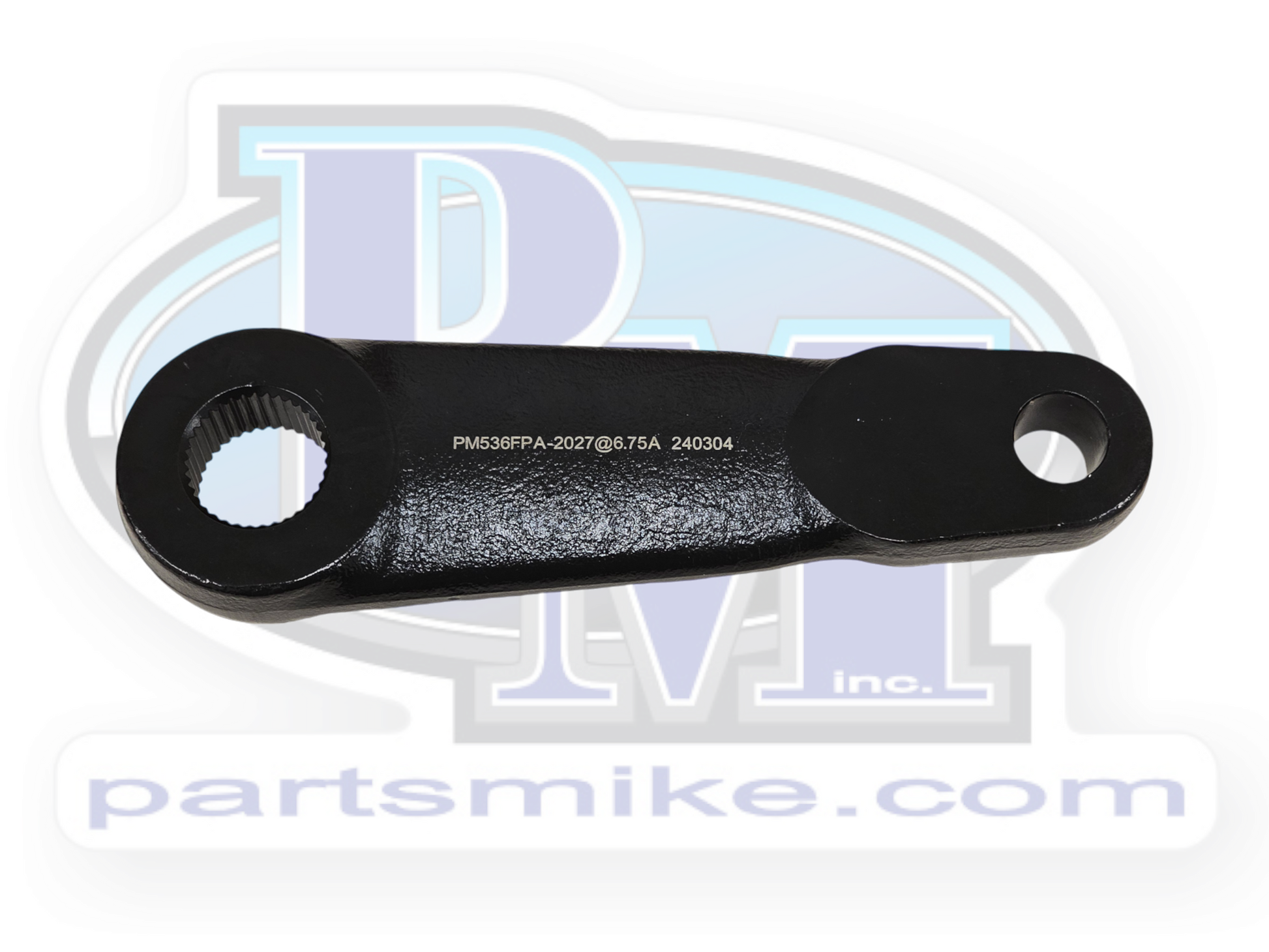

Pitman Arm, Flat, No Master Splines, Reamed GM Drag Link Taper @ 6.75"

You've selected the flat pitman arm reamed to a GM drag link at 6-3/4" from center of spline hole to center of tapered hole.

This is a flat pitman arm (no drop).  It comes tapered from the bottom up for a GM drag link end (example part numbers:  ES2026R or ES2027L) at 6-3/4".  Typically used with a 7.5" dual steering arm (center of ball joint to drag link hole) for lock to lock steering.

Made to fit a Saginaw 32 spline power box spline (no master/key way splines) which allows you to adjust steering wheel center as needed (no need to file the flats because it doesn't have any).

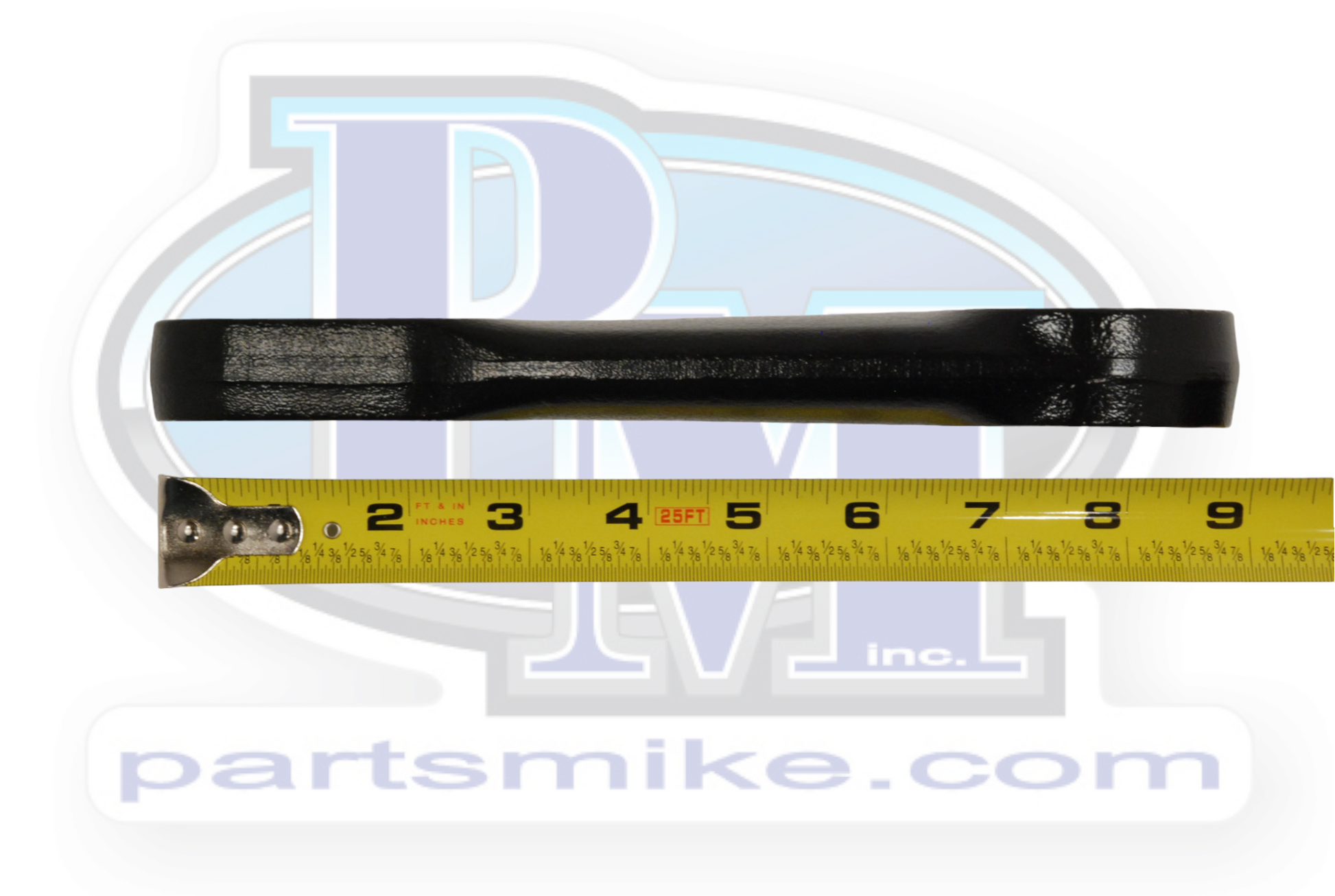

• Overall length (tip to tip):  8-3/4"
• Drop:  none
• Center to center length (sector shaft to drag link hole):  6-3/4" C-C for GM drag link taper

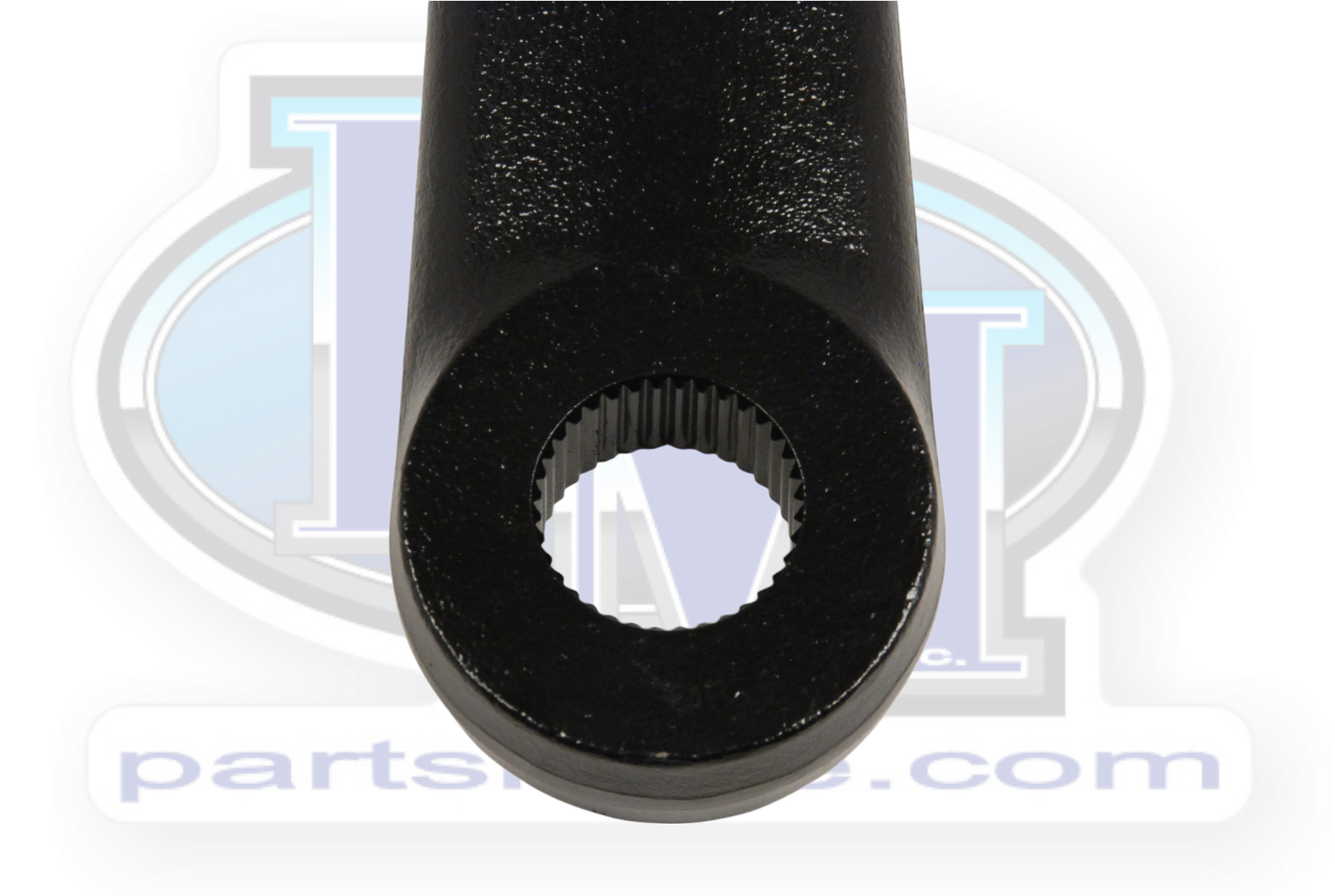

• Sector shaft hole:  32 spline Saginaw power steering

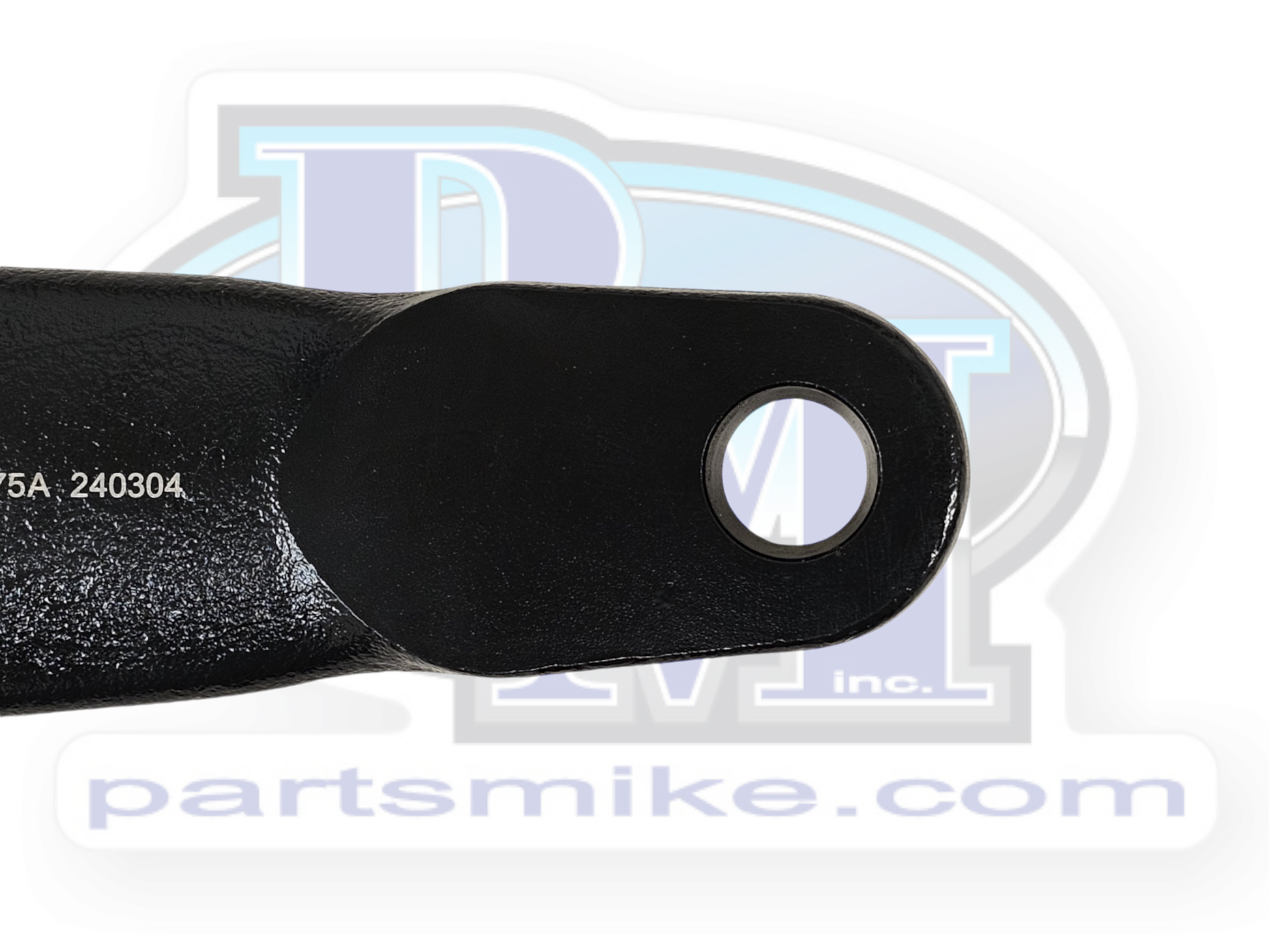

• Drag link hole:  GM drag link taperr (fits:  ES2026R or ES2027L)
