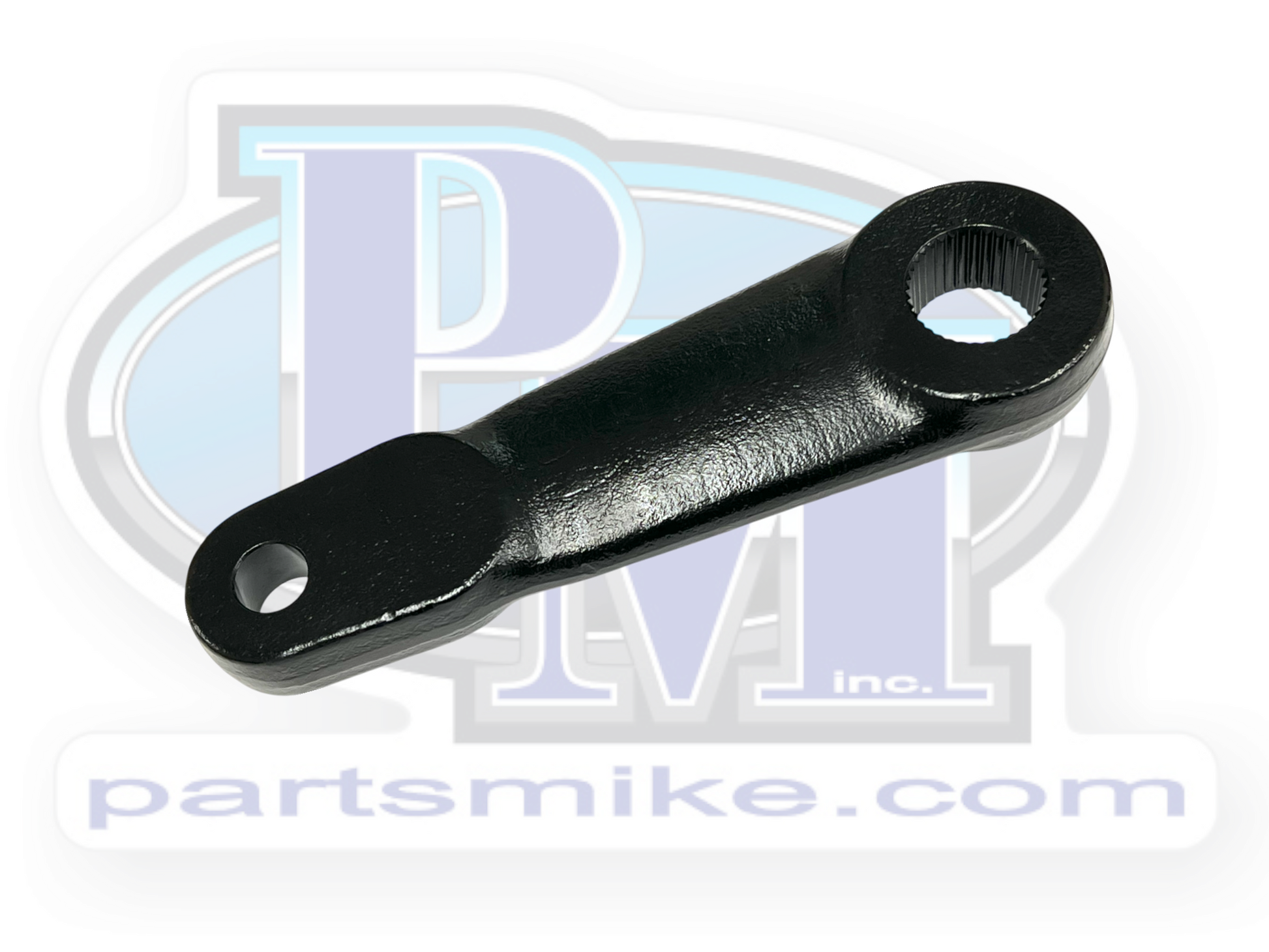

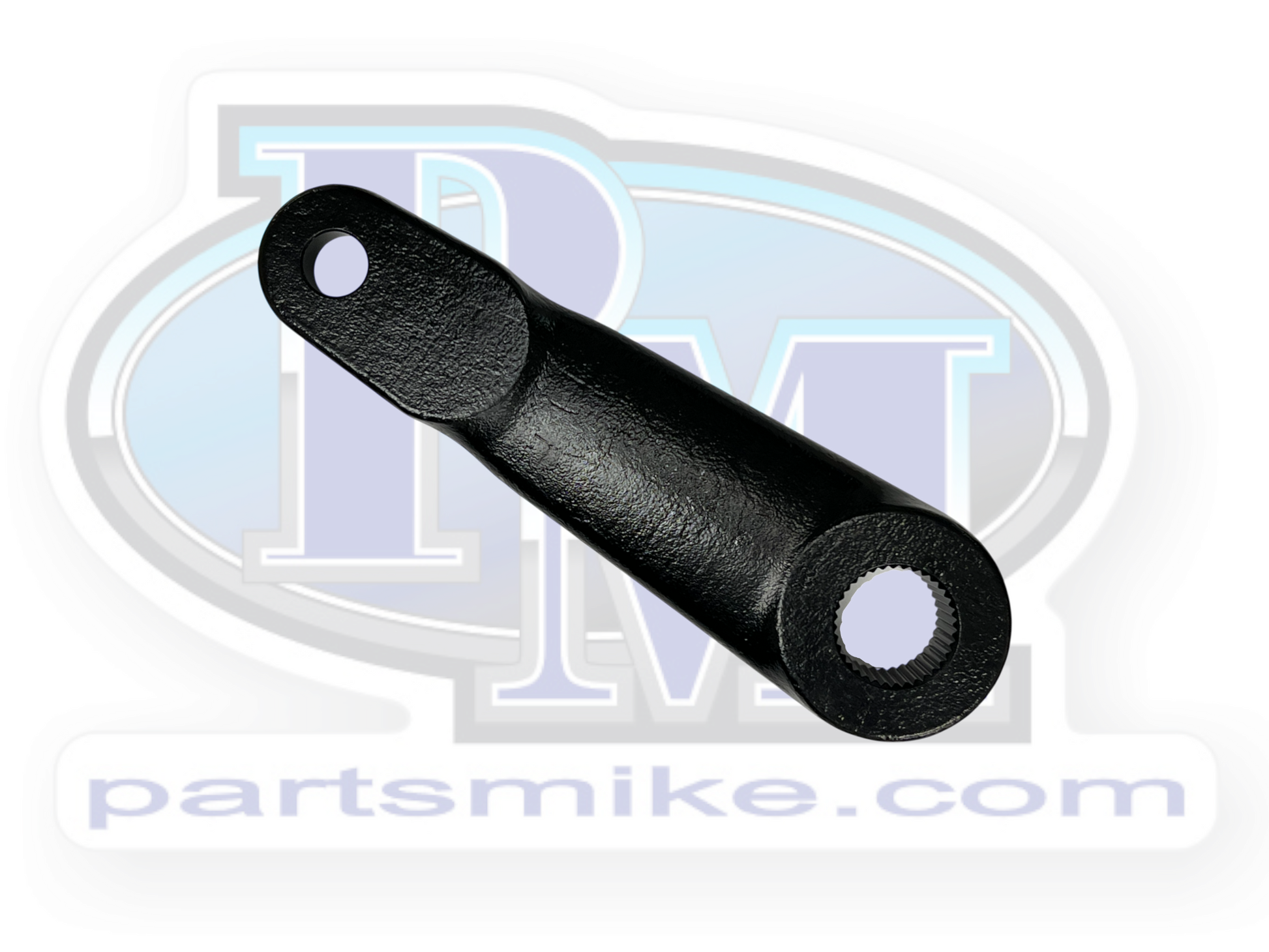

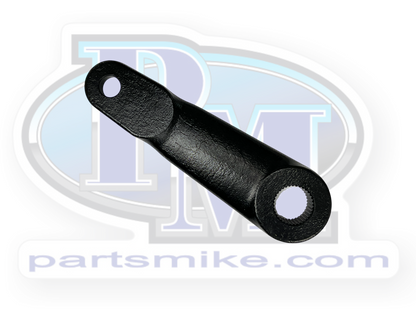

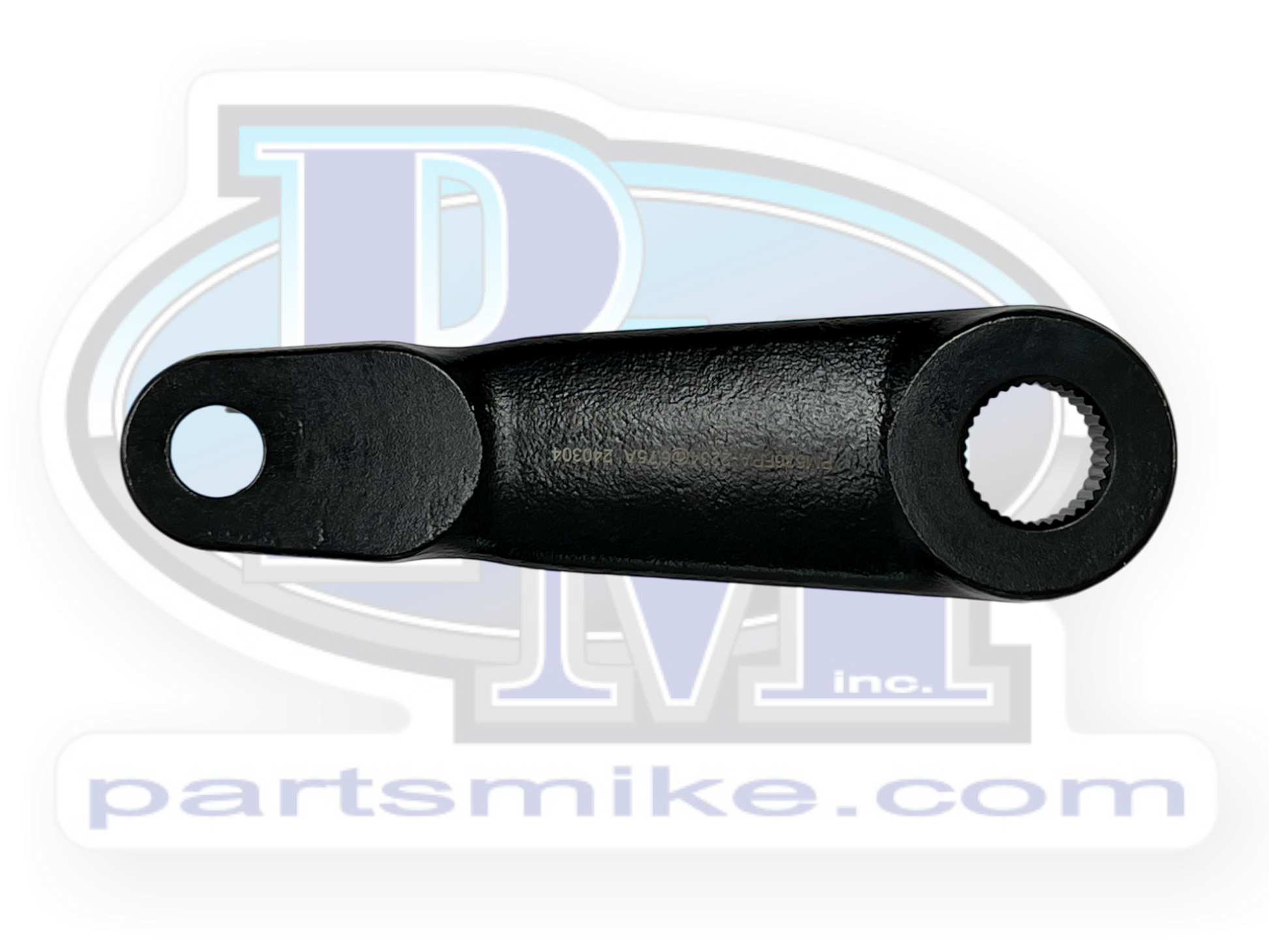

Pitman Arm, Flat, No Master Splines, Reamed GM Tie Rod Taper @ 6.75"

Pitman Arm, Flat, No Master Splines, Reamed GM Tie Rod Taper @ 6.75"

Parts Mike, Inc.

SKU:PM536FPA-2234@6.75A

Regular price $104.95 USD
Regular price $105.00 USD Sale price $104.95 USD
Sale Sold out
Shipping calculated at checkout.

You've selected the flat pitman arm reamed to a GM tie rod taper 6-3/4" from center of spline hole to center of tapered hole.

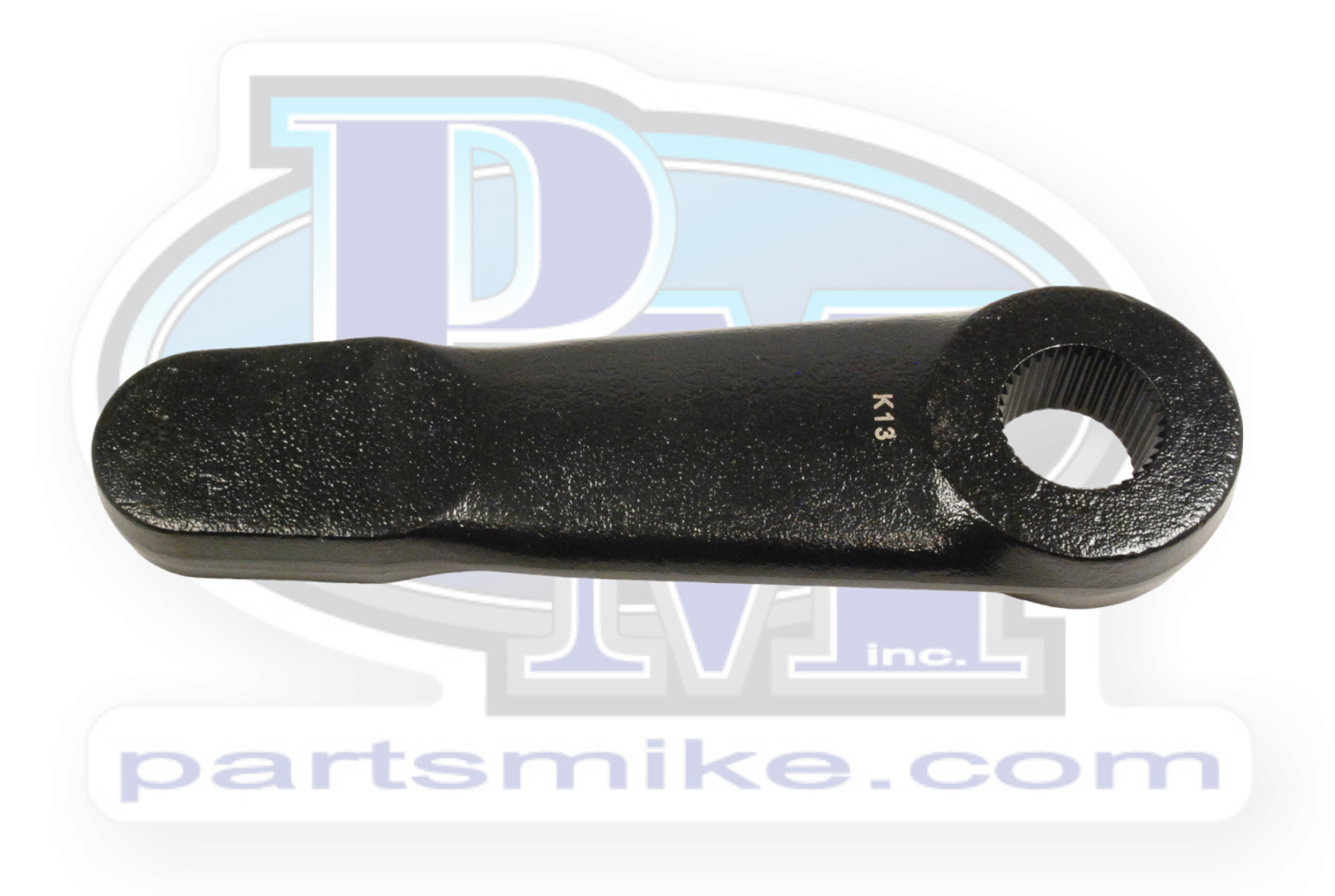

This is a flat pitman arm (no drop).  It comes tapered for a GM tie rod end (example part numbers:  ES2234R, ES2233L, ES2010L&R) at 5-5/8".  Typically used with a 6" steering arm (center of ball joint to drag link hole) for lock to lock steering.

WARNINGThere is a top and bottom of a pitman arm!!!  If you're reaming, be sure you're tapering the correct side of the pitman arm.  Requires 1/2" material to be left around the hole when you're done (around the big side if you're reaming).

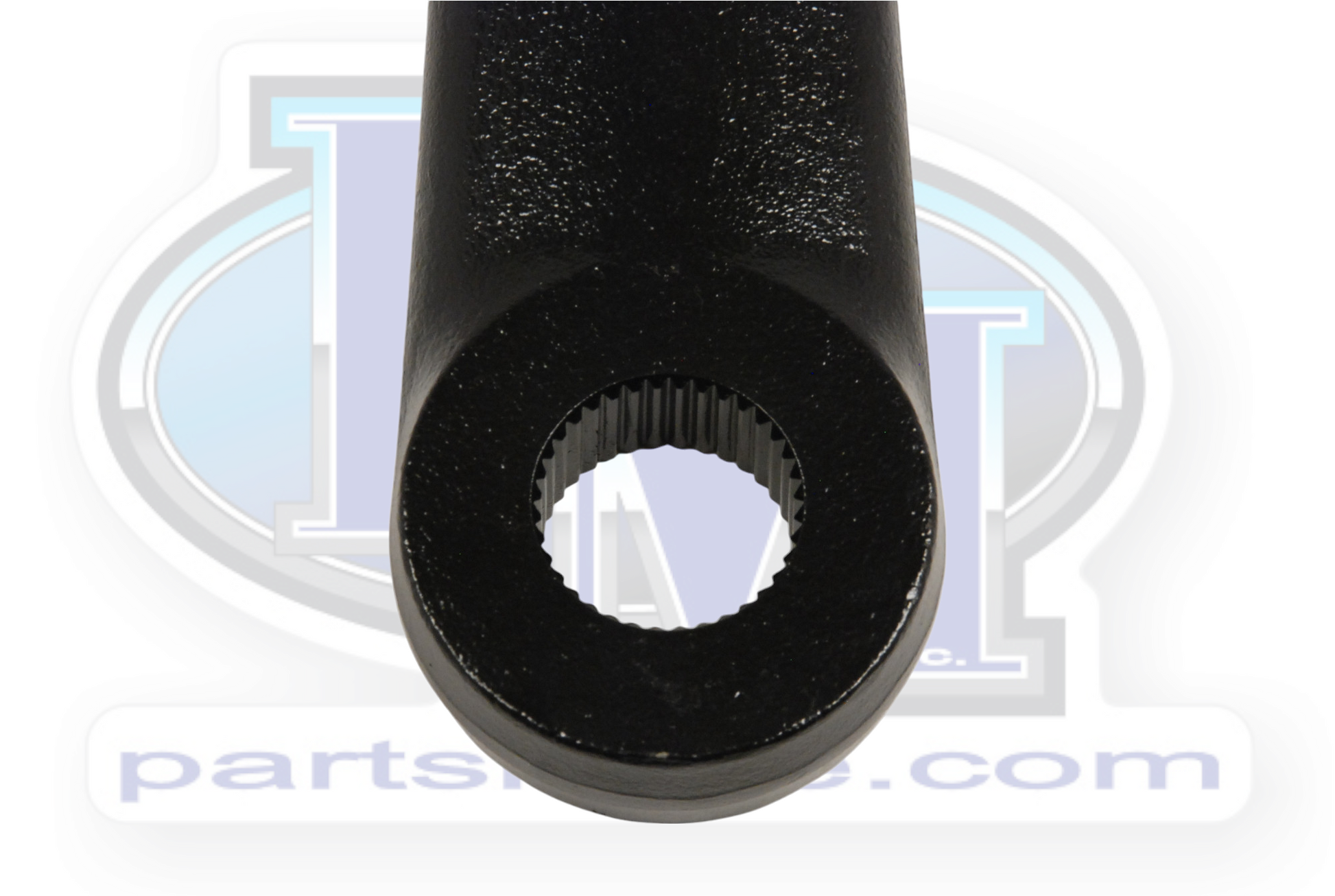

Made to fit a Saginaw 32 spline power box spline (no master/key way splines) which allows you to adjust steering wheel center as needed (no need to file the flats because it doesn't have any).

We do have the capability to drill and taper the hole to your specific length.  We can drill or, ream to Jeep, GM tie rod, or GM drag link tapers.  It takes 10 days and $50; call to place the order.  Check the drop down menu to make sure you're selection is already available at a discount!

Specifications

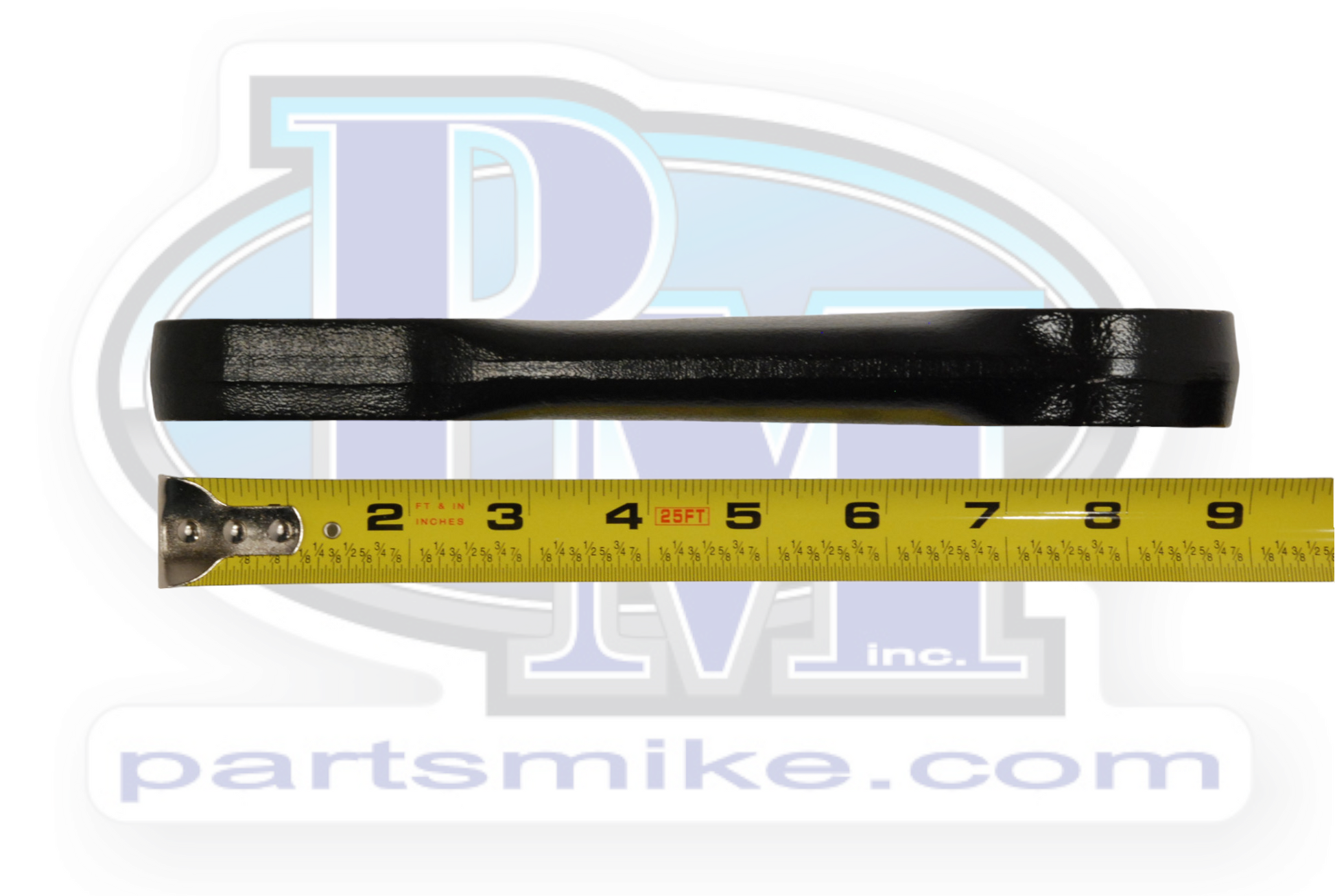

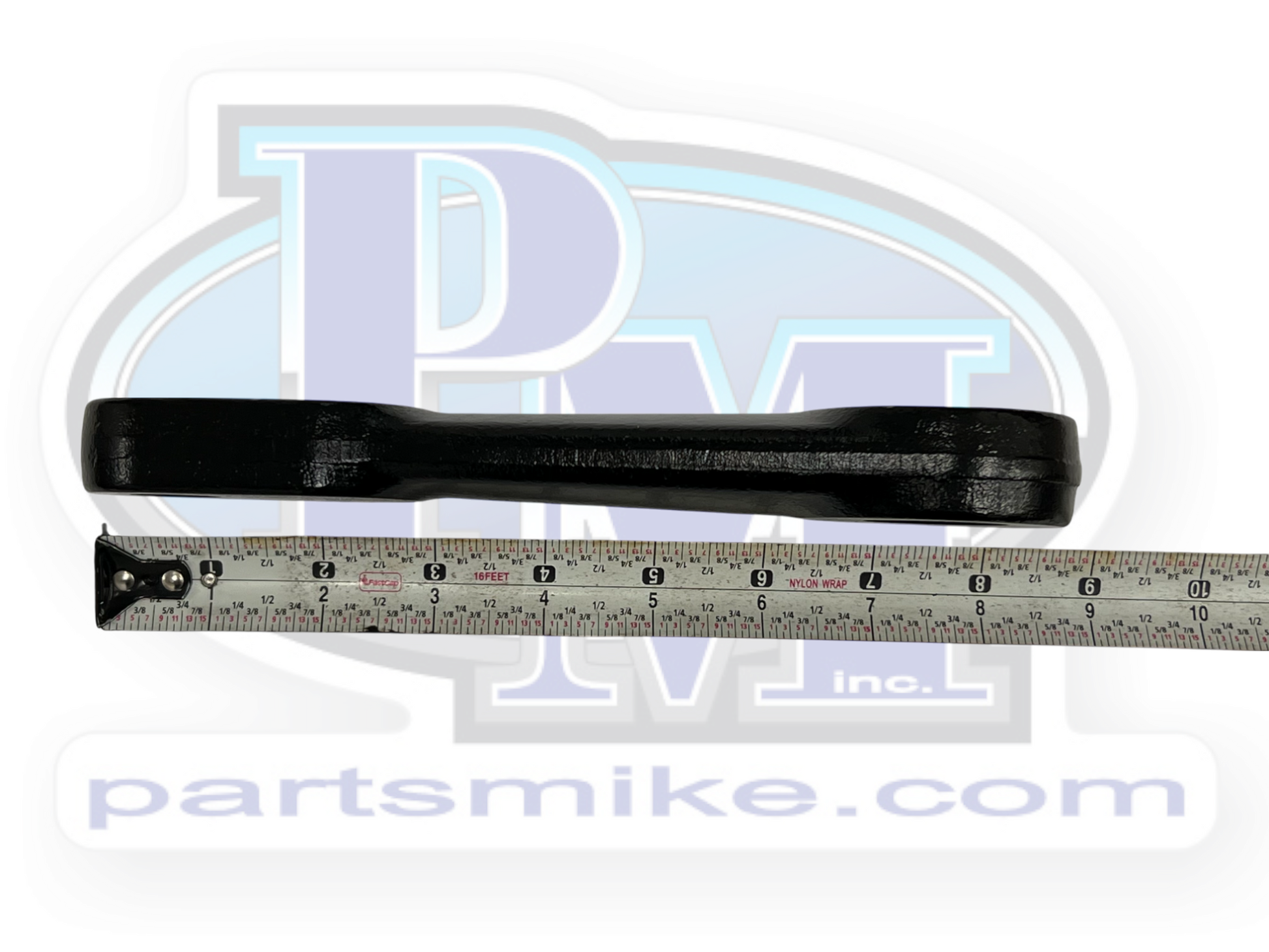

  • Overall length (tip to tip):  8-3/4"
  • Drop:  none
  • Center to center length (sector shaft to drag link hole):  6-3/4" C-C for GM tie rod taper
  • Sector shaft hole:  32 spline Saginaw power steering
  • Drag link hole:  GM tie rod taper (fits:  ES2234R, ES2233L, ES2010L&R)
