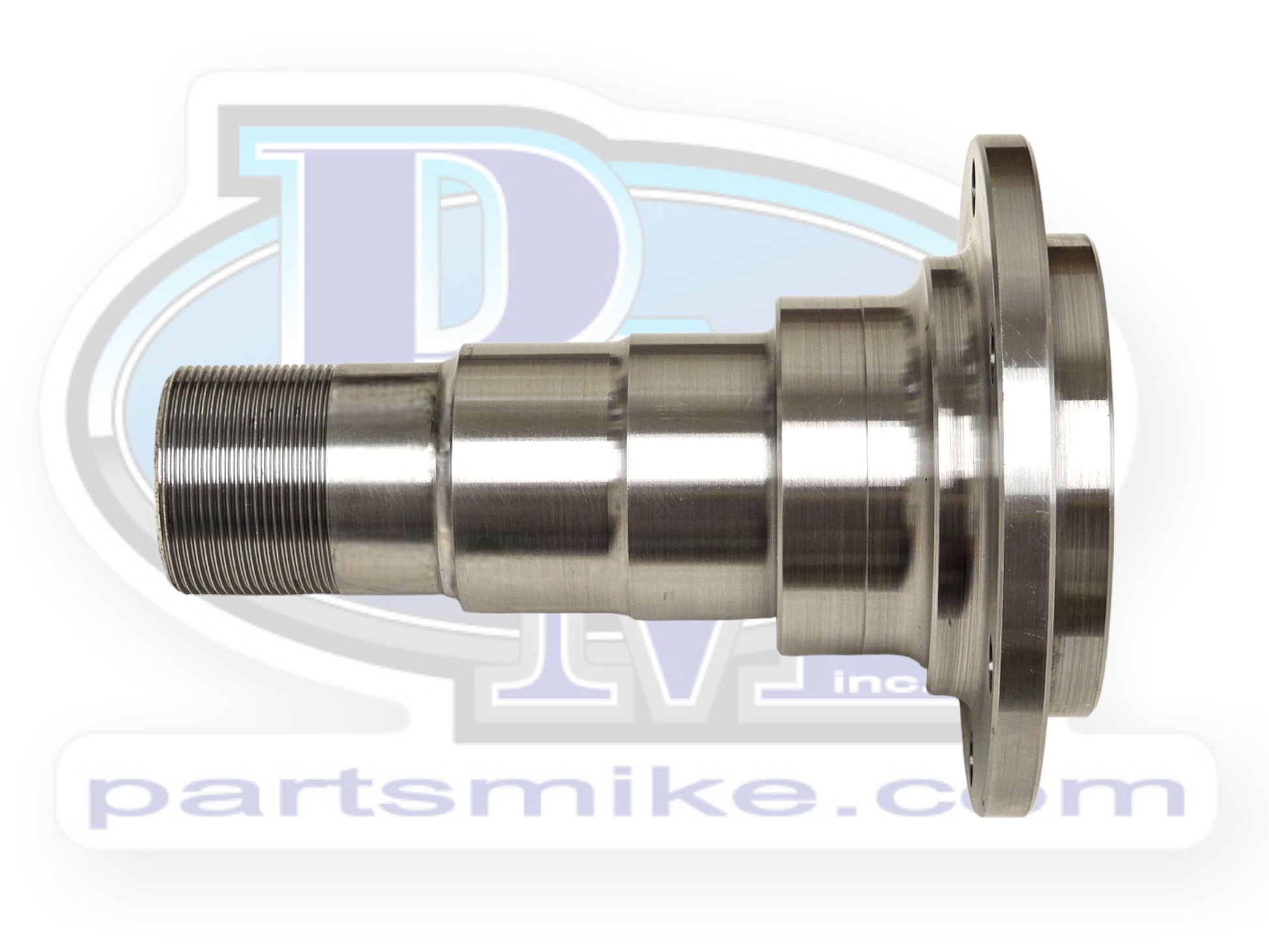

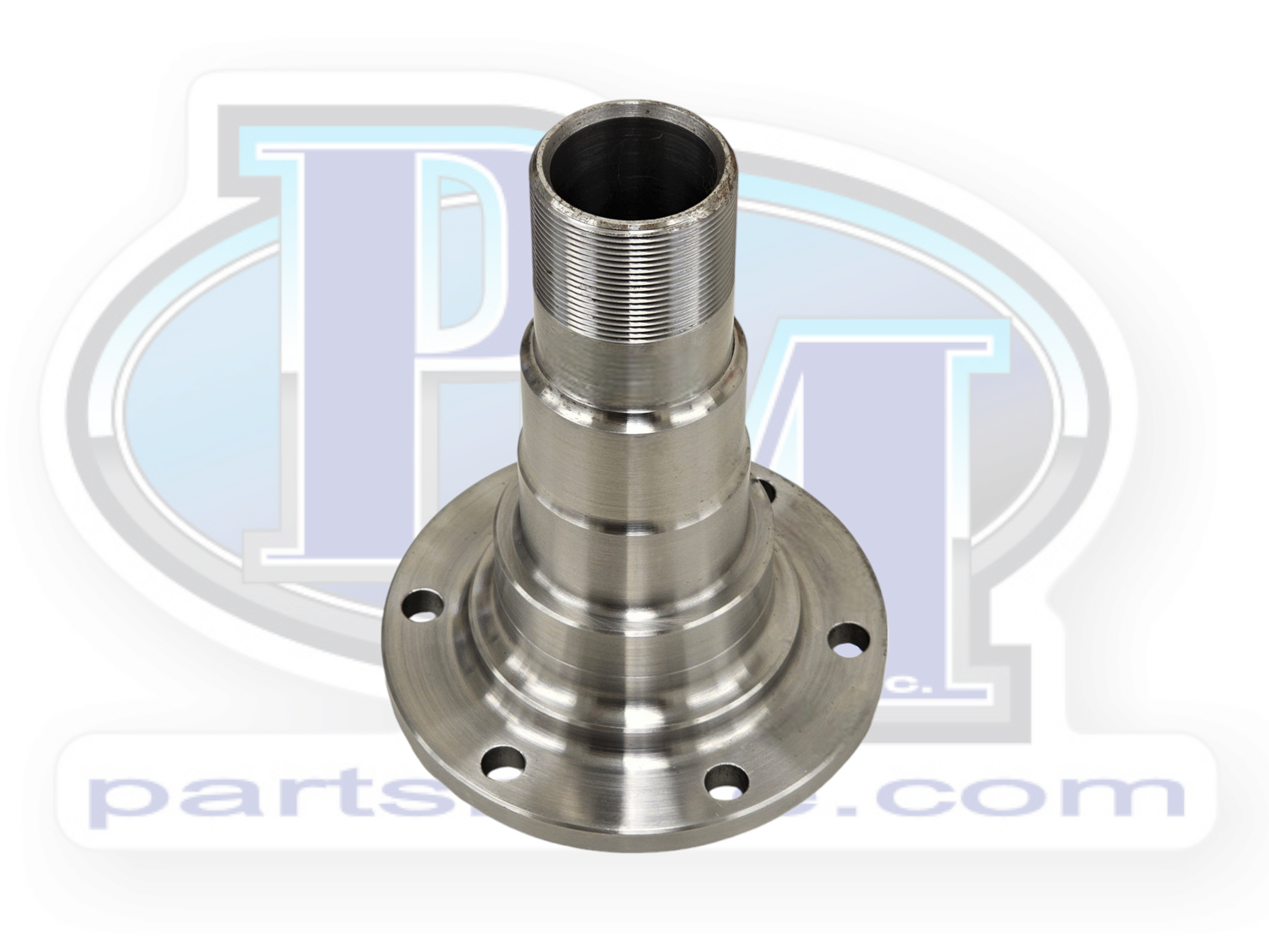

GM big bearing spindle without spindle bearing. (Bearing is not included).
If you need a spindle bearing, you can order either the Standard or Heavy Duty Spindle Bearing Kit. Please see the hyperlinked kits below.
Standard Spindle Bearing Kit: part number DAN706527X
Heavy Duty Spindle Bearing Kit: part number DAN706527X-HD
If you need wheel bearings checkout wheel bearing part number WBK-44LG.
It's a six bolt spindle that came on 1976-1/2 through 1991 GM six and eight lug front axles. We also offer all the parts associated with this spindle (knuckle, bearings, hubs, spindle nuts, etc).
Specifications:
OD @ inner wheel bearing: 2.000" (this is the difference between the big bearing and the small bearing spindle) OD @ outer wheel bearing: 1.622" OD for the seal: 2.50" Number of bolt holes: Six Overall length: 6.50"
