GM Dana 60, Leaf Spring Plate, Front
GM Dana 60, Leaf Spring Plate, Front
Parts Mike, Inc.
SKU:DM5052
Couldn't load pickup availability

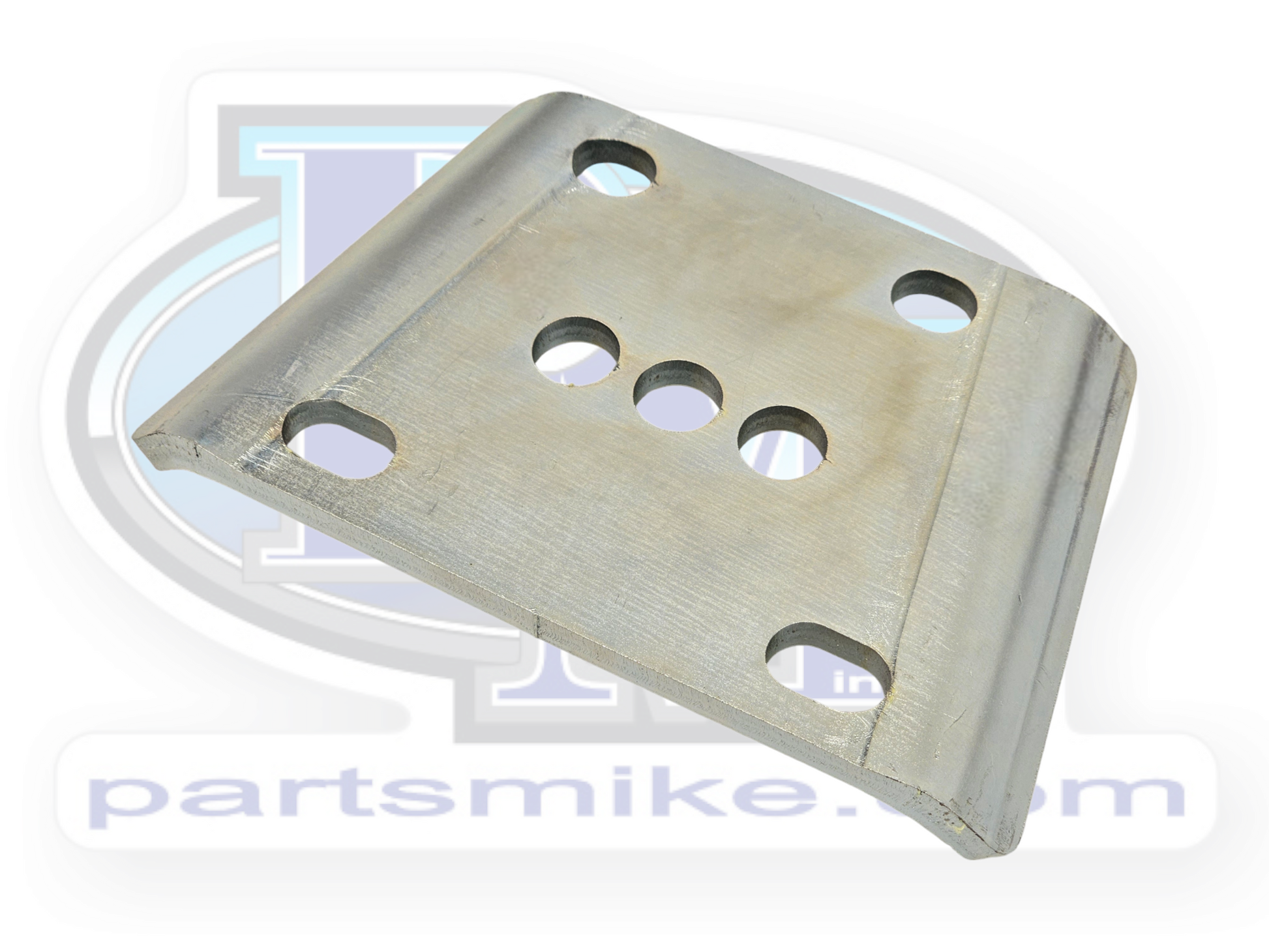

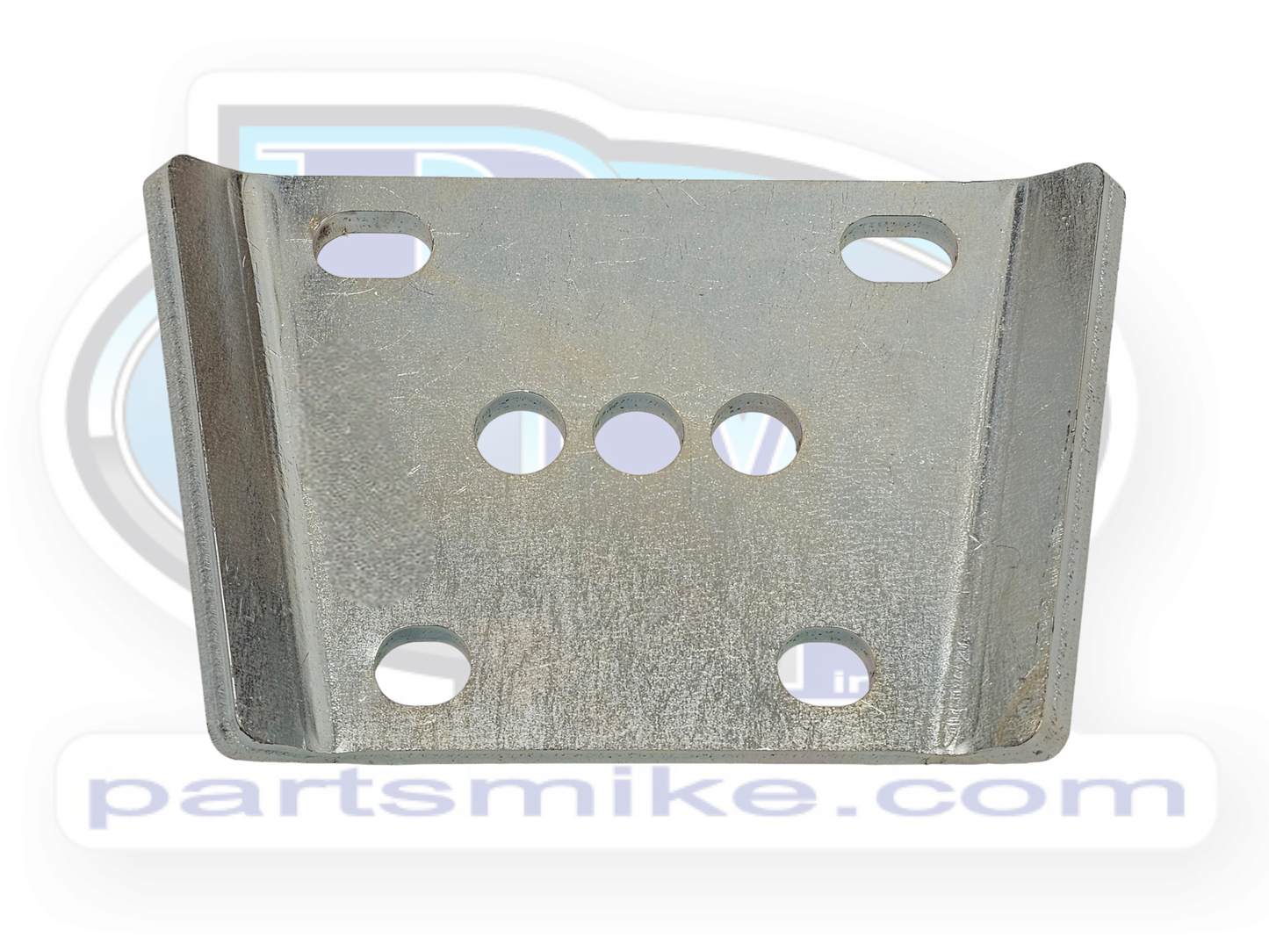

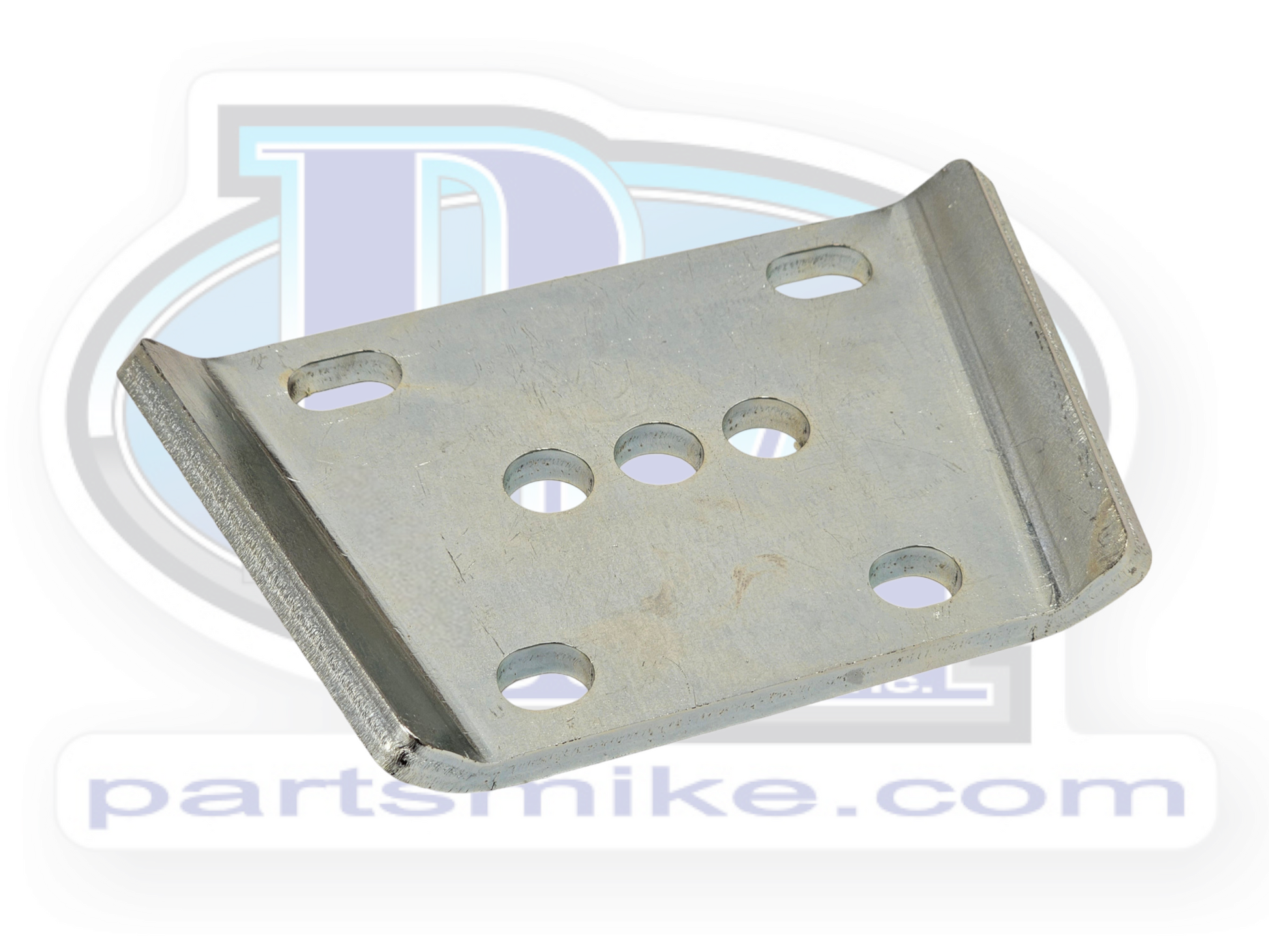

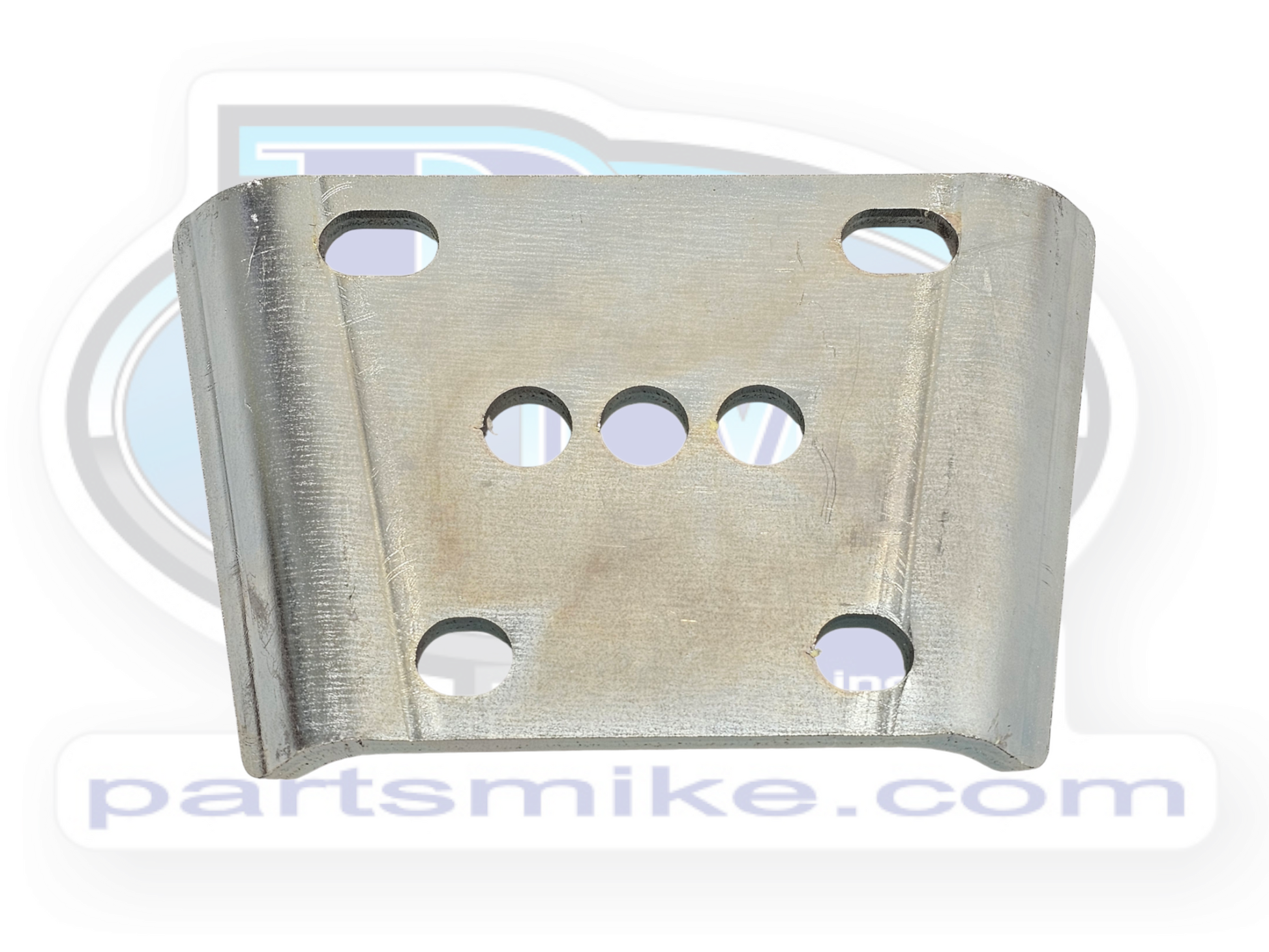

This spring plate is designed to fit GM/Chevy Dana 60 front axles. It accepts a 4" U-bolt and has two narrower holes for the studs that protrude from the housing. Note the GM version uses 5/8" studs, and has a wider spread than the Dodge version. See specs below and pictures if you not sure!
The plate is made from 3/8" plate steel and laser cut for a perfect fit. The ends are bent to increase torsional rigidity, and keep the plate from twisting. We offer this by itself, with a plate for the other side, or as a kit with both plates and the U-bolts/studs. Select your choice from the drop down menu.
Dimensions:
Overall length: 8-1/4"
Overall width: 5-1/4"
Maximum U-bolt/stud diameter: 5/8"
Stud side center to center: 3-1/4" (slightly slotted)
U-bolt side: 4" U-bolt (inside of leg to inside of leg)
