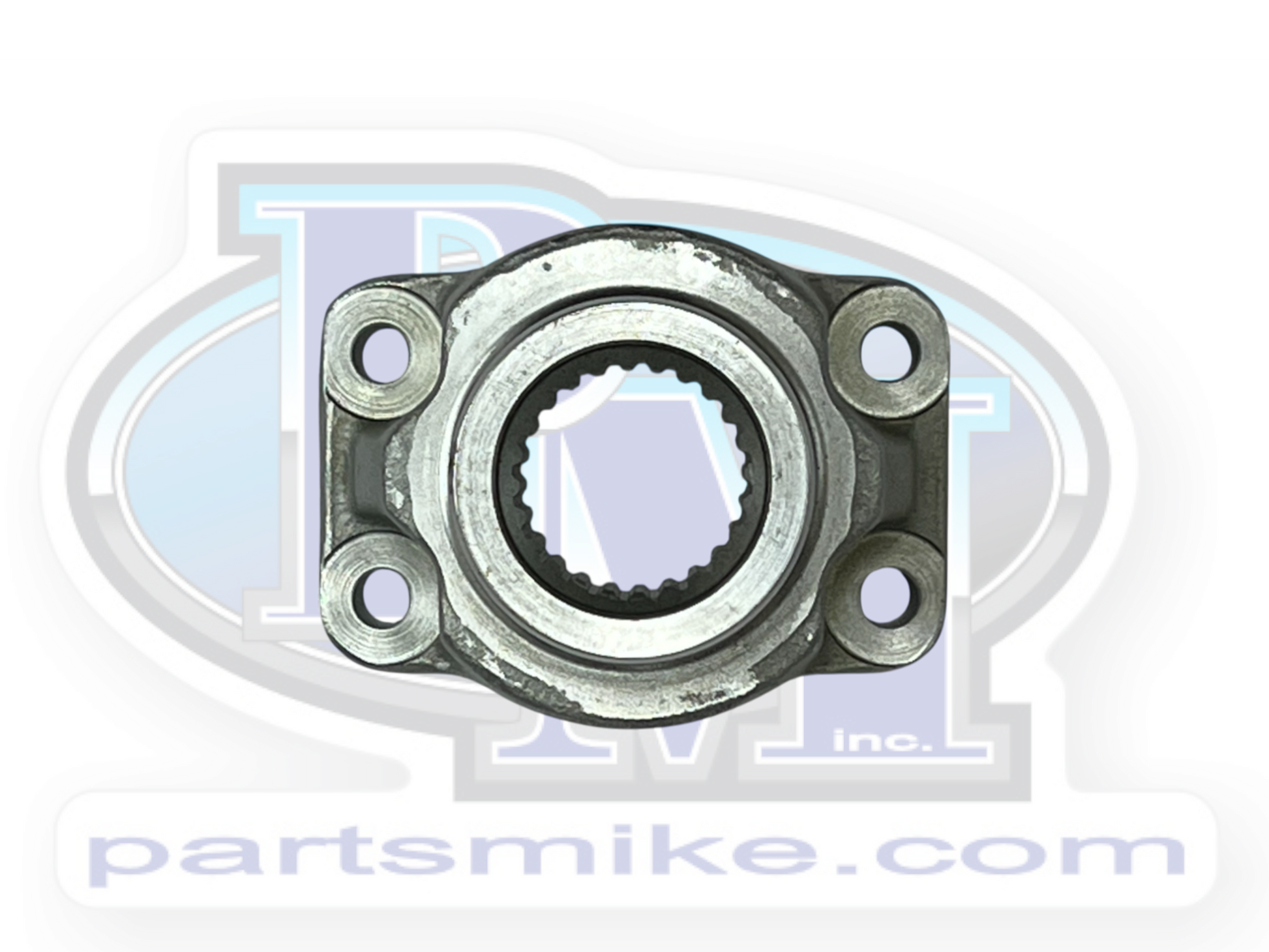

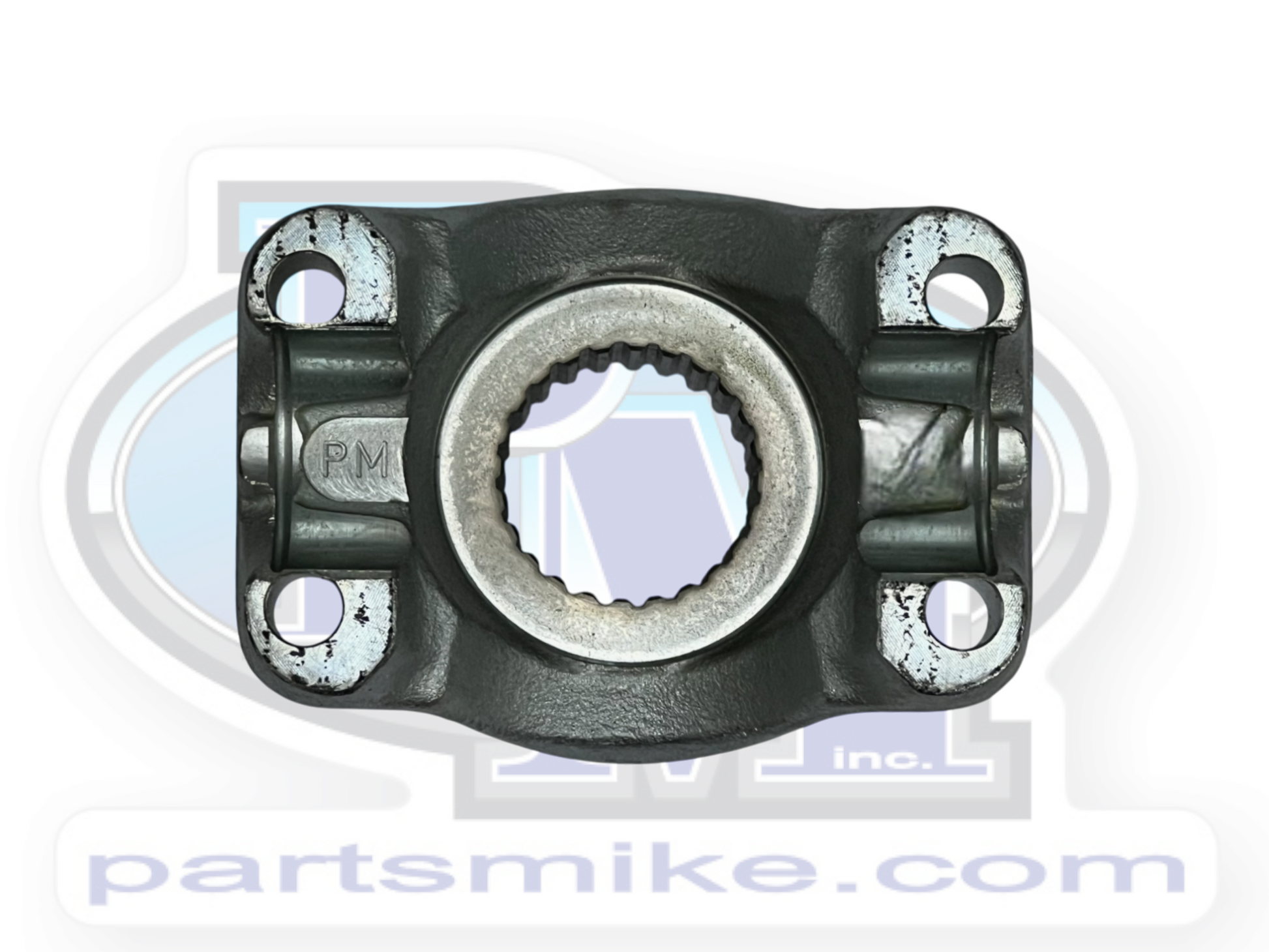

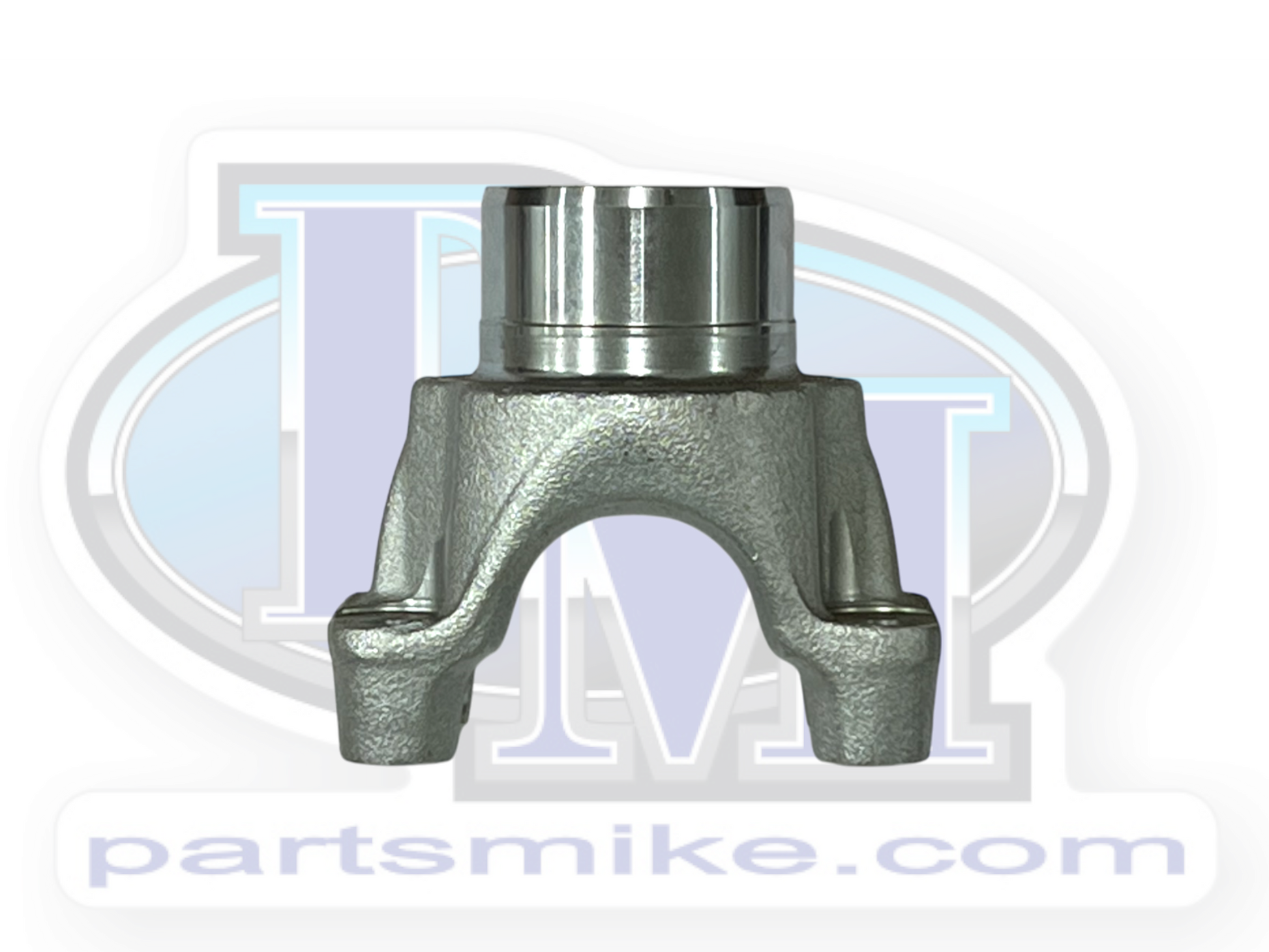

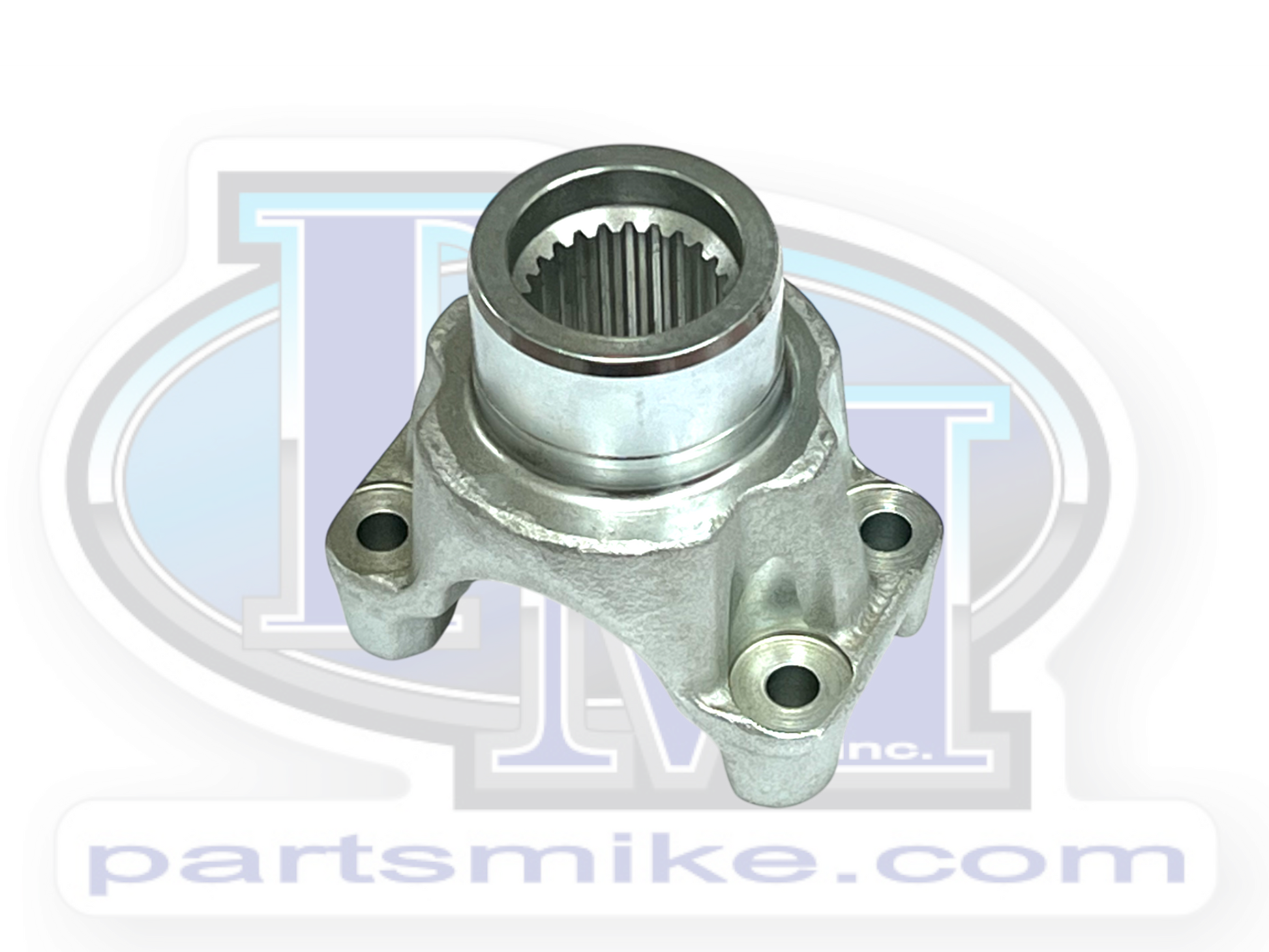

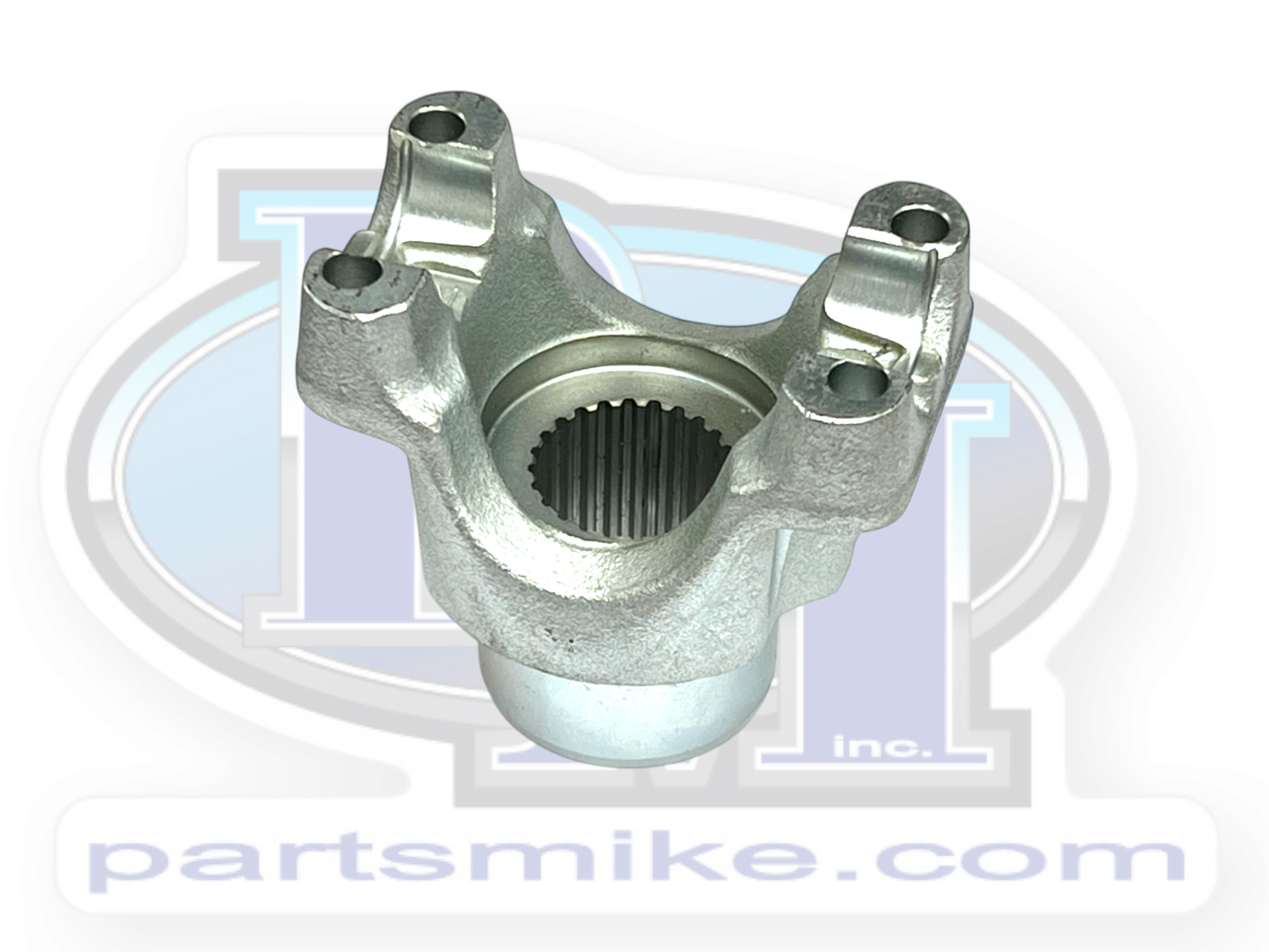

Jeep JL & JT, M200 Rear Pinion End Yoke, 1310 U-Bolt Style, (PM3112-1001)

Jeep JL & JT, M200 Rear Pinion End Yoke, 1310 U-Bolt Style, PM3112-1001

Will Not Fit The M220 Axle

Dimensions (Reference Image)

A: Seal Surface: 1.877"

B: Spline Length: 1.664"

C: Through Hole: 3.338"

D: U-Joint Width: 3.216"

Major Spline Diameter: 1.250"

Counter Bore: .437"

Splines: 24

Does not come with U-Bolts.

For U-Bolts, please order part number DAN2-94-28X

Qty.1
