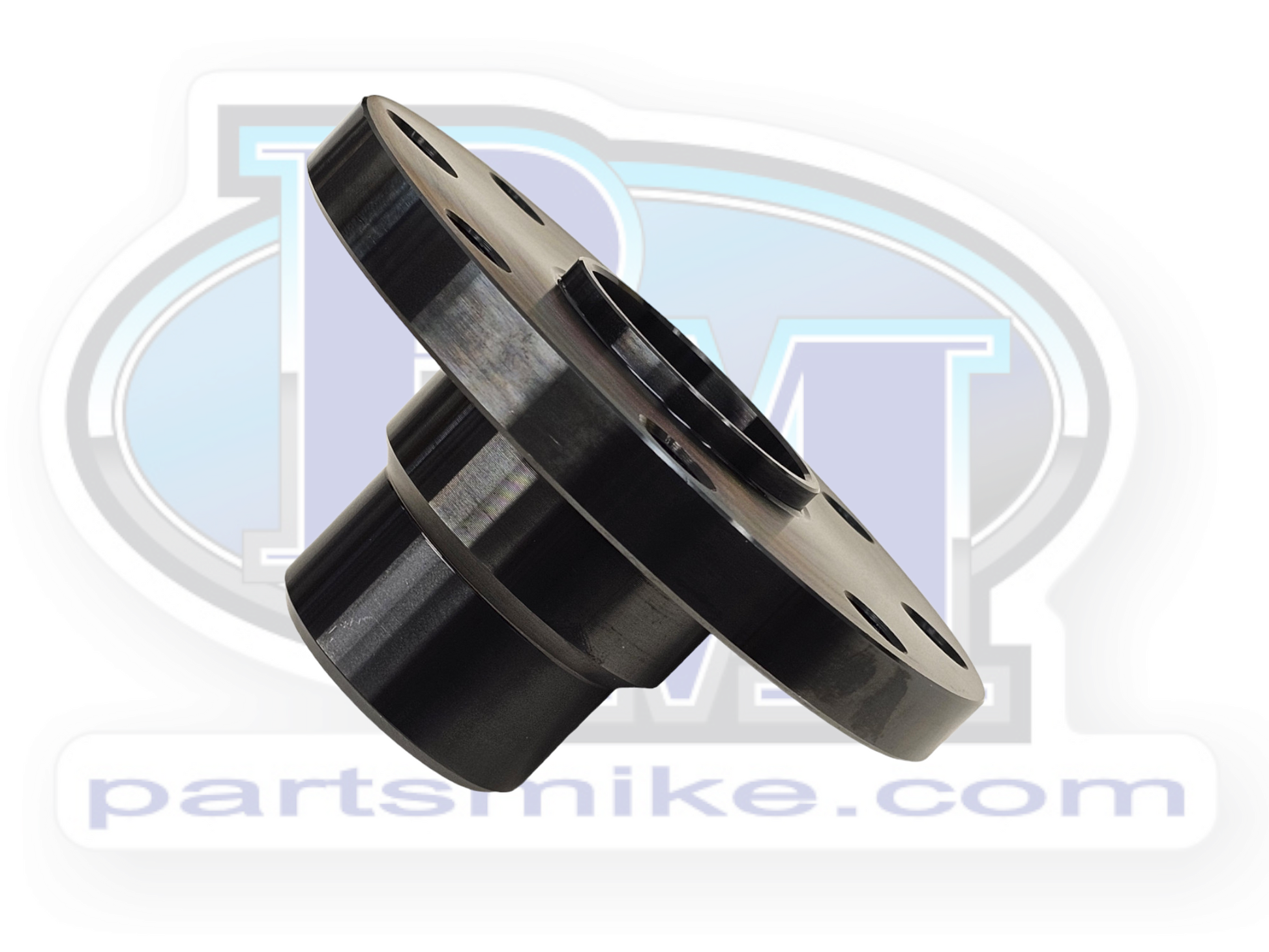

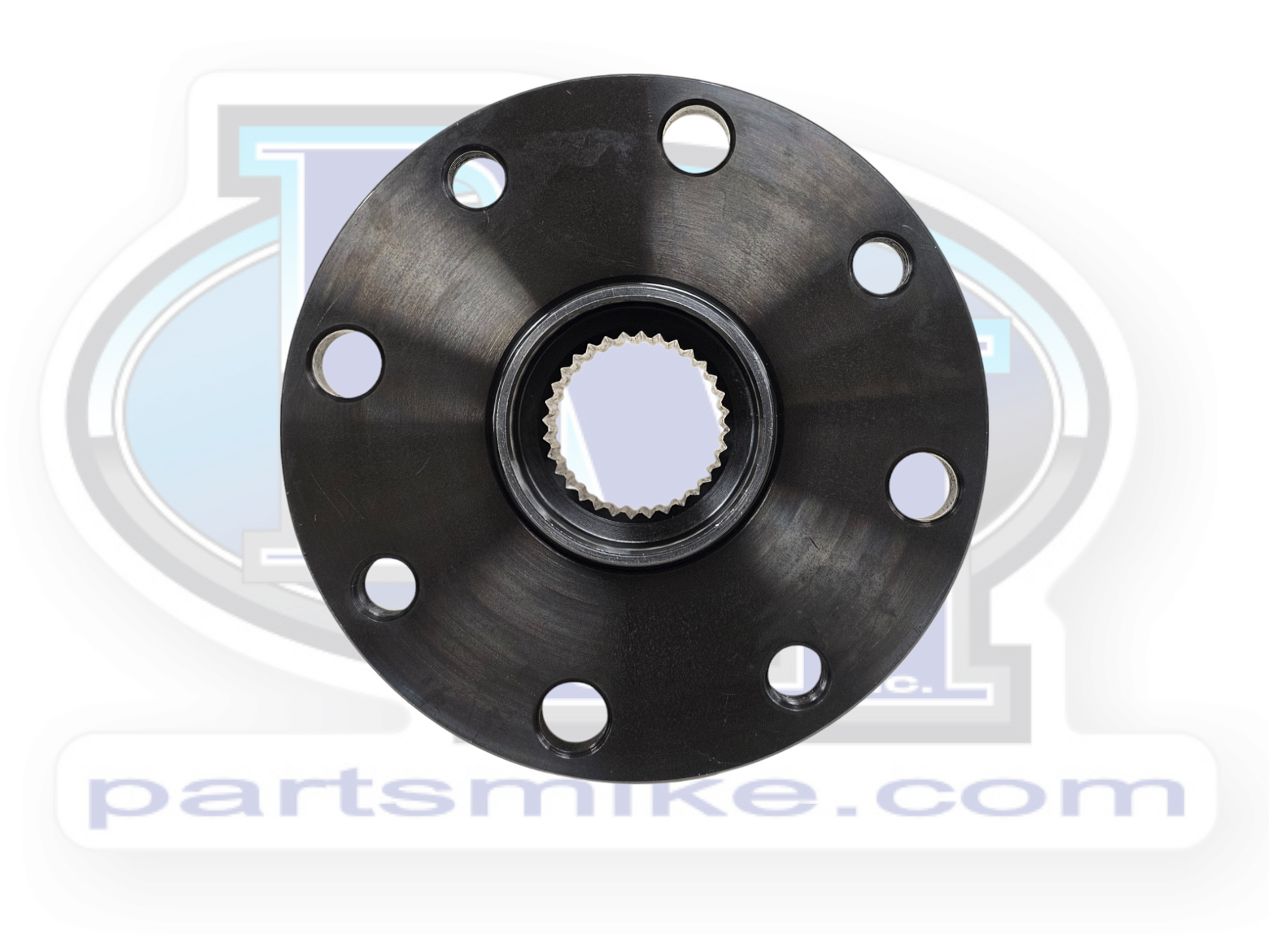

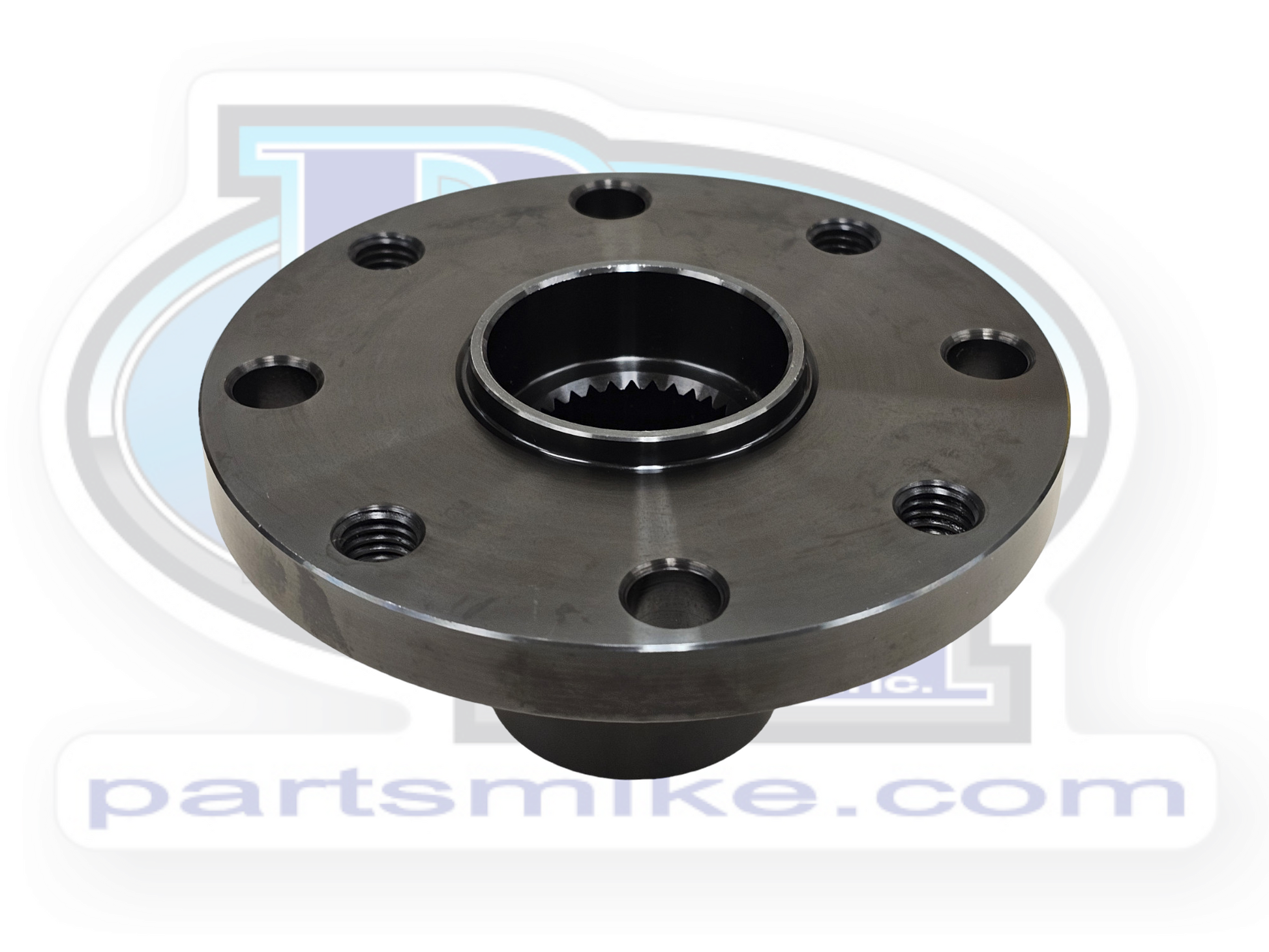

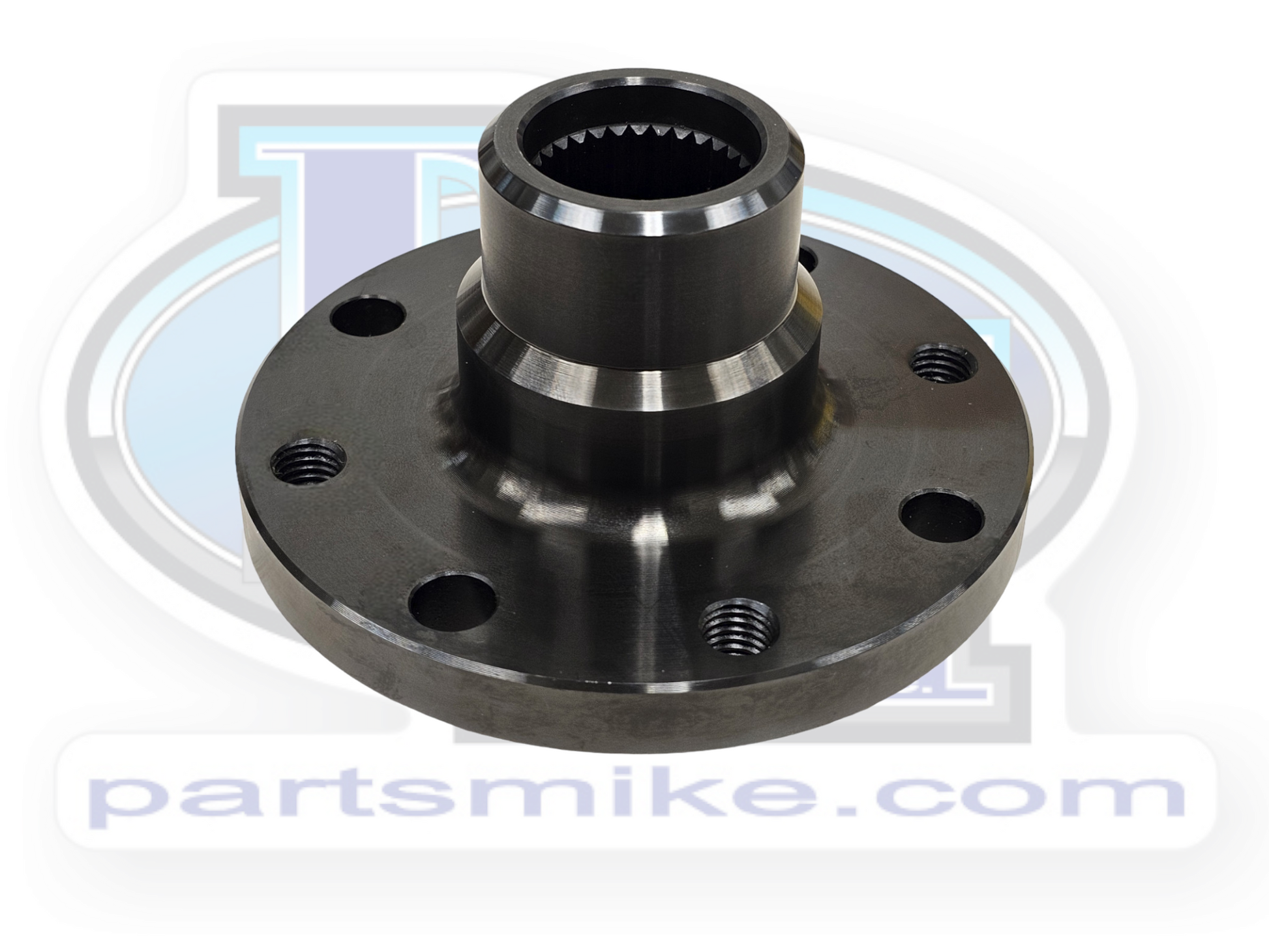

Jeep TJ, JK, JL, JT, 32 Spline, Rear Driveshaft Companion Flange with Hardware, 1310, 1350, (DM4500GK)

You've selected the kit with the hardware.

Typically used on JK, JL, and JT rear drive line flange yokes at the t-case.. These can also be used on TJ Rubicon transfer cases, or other t-cases with 32 splines (seal change will be required, see specs below).  Flanges are super beneficial at the axle end of the driveline because if you get hung on a rock, round rolls, but a normal rectangular yoke, not so much.  The flange is made from AISI 5140 FORGED steel, and warrantied for LIFE when you get the hardware!

There's options to save you from hunting around our website (or our competitors ;).  Details about the hardware options are below the dimensions, scroll down!

Buy the kit!  Comes with the bolts.

Dimensions

A: Pilot Diameter: 2.000"

B: Seal Surface: 1.940"

C: Spline Length: 2.020"

D: End of Flange Face to end of Seal Surface: 2.700"

Flange Face Outside Diameter: 5.100"

Flange Face Thickness: .520"

Spline Major Diameter: 1.400"

Splines: 32

Hardware options:

1. Flange only - Pretty straight forward

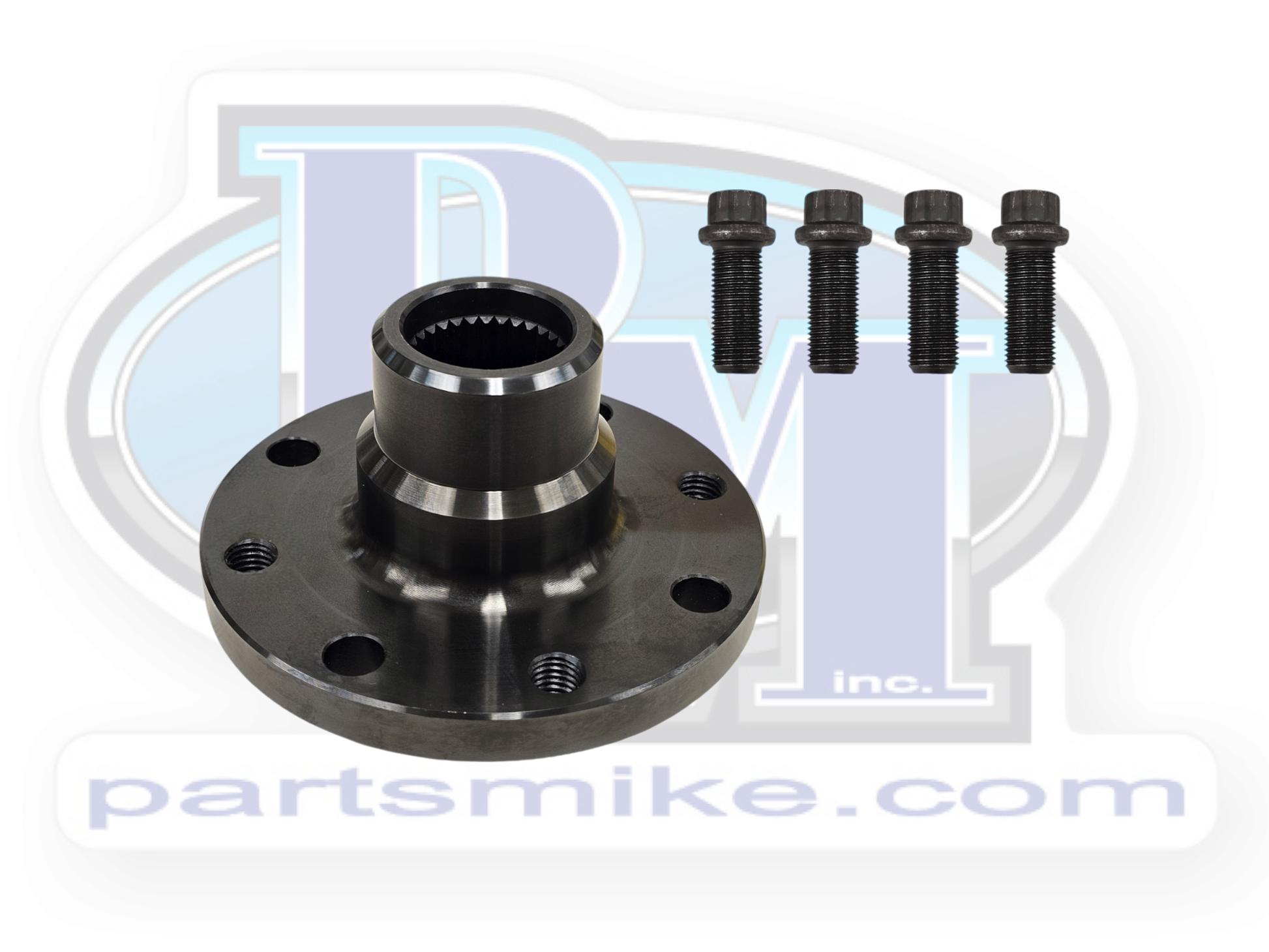

2. DM4500GK - Flange with bolts
   • Bolts -  Four M12-1.75x30mm 12 point bolts (uses 12mm 12 point socket)

Cross Reference: N3-1-JK05

Qty. 1
