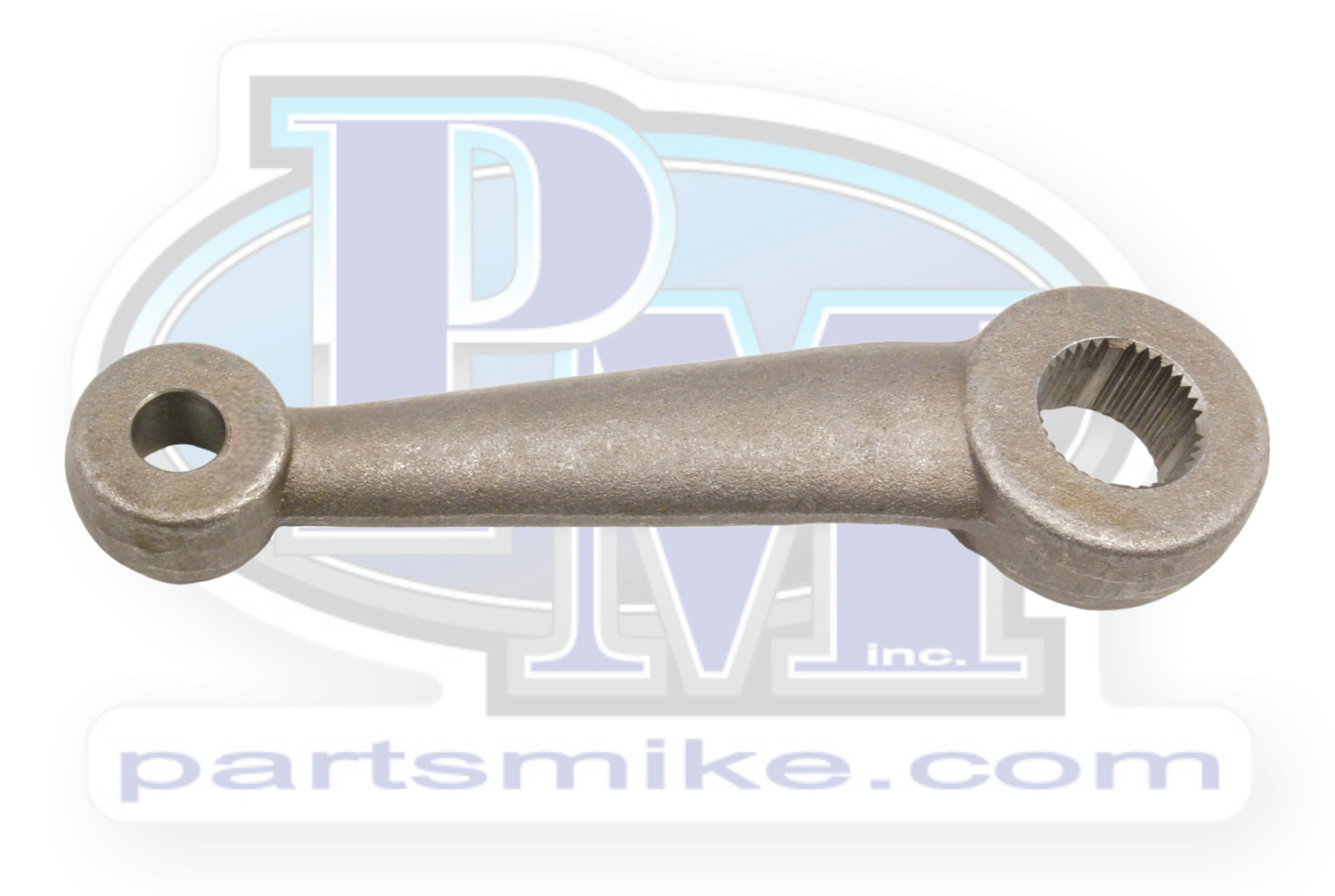

Jeep Wagoneer SJ, Power Steering, 7/8" Drop, Pitman Arm, (5352278)

This pitman arm is a stock replacement part for 74-91 Jeep SJ and J series vehicles (Cherokee and Grand Wagoneer).  Originally used in the early Cherokees and Waggoneers this arm has been swapped onto many different applications.  It has about one inch drop, and in stock form is tapered to fit Chevy tie rod ends (EX2234 left and right).

This pitman arm works great, but if you need extreme, choose the PM536FPA.  The Wagoneer pitman arm tapers down, and in extreme cases has been known to twist/bend/break.  The PM536FPA is flat, but will not fail!


Specifications

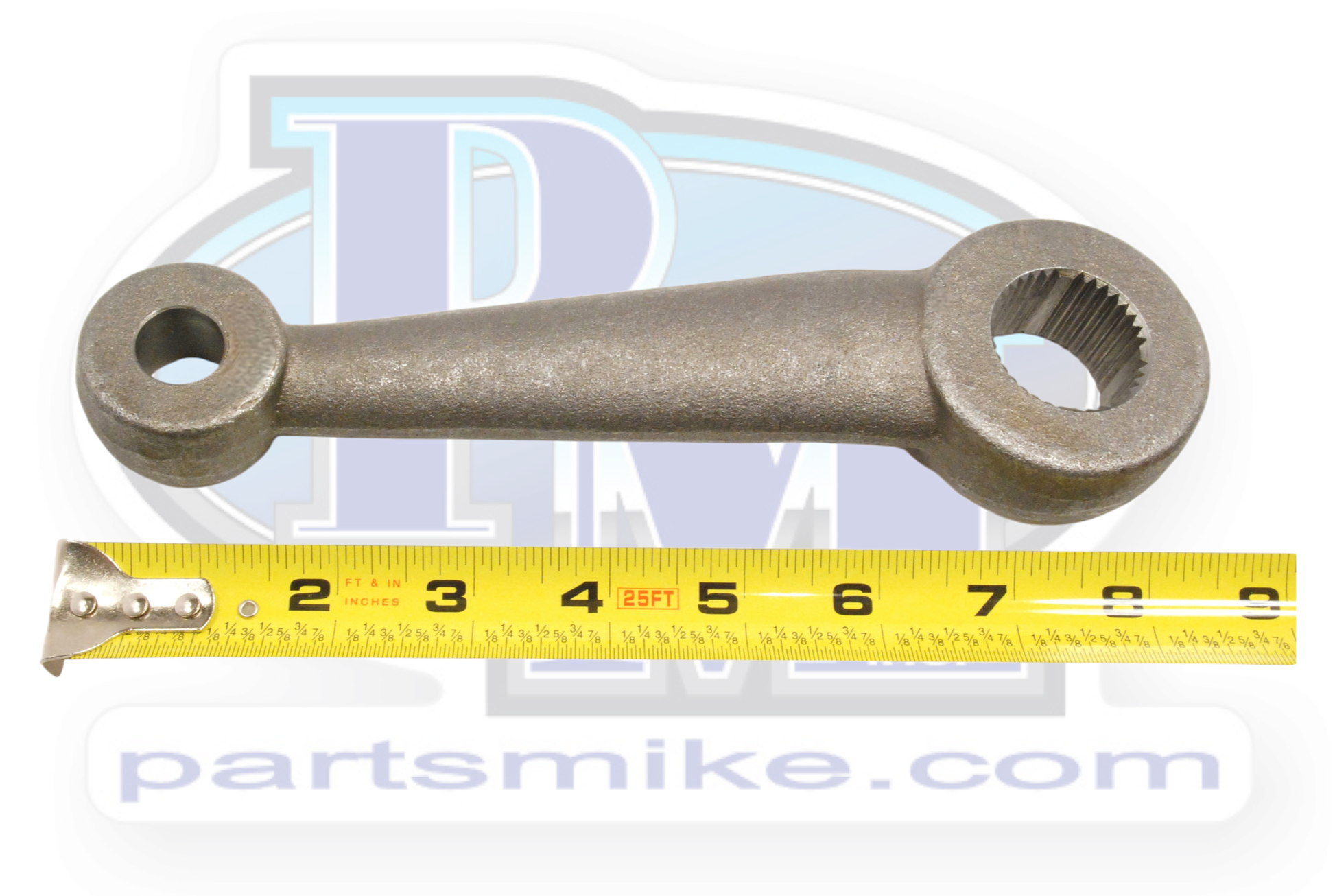

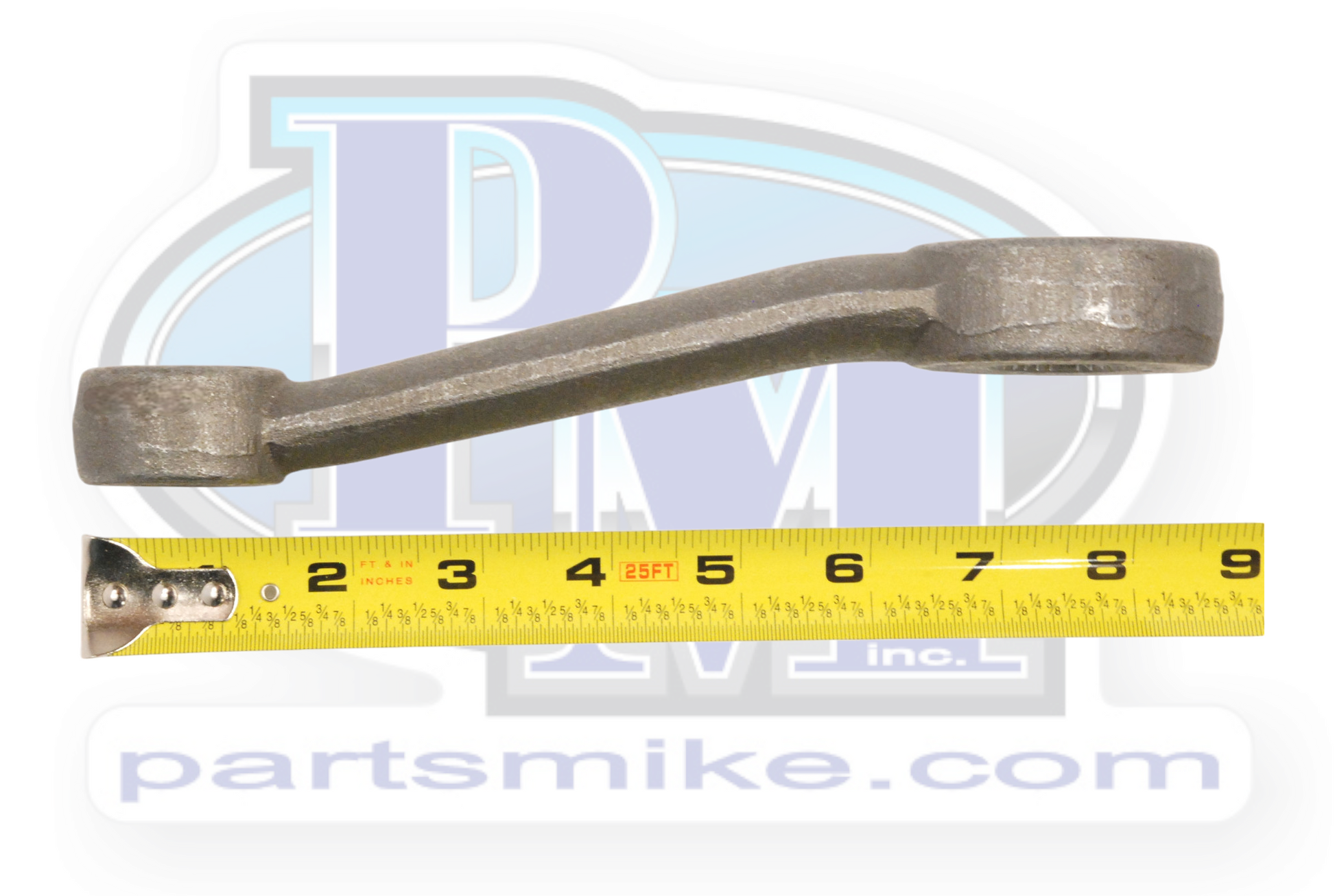

• Overall length (tip to tip):  8-3/4"

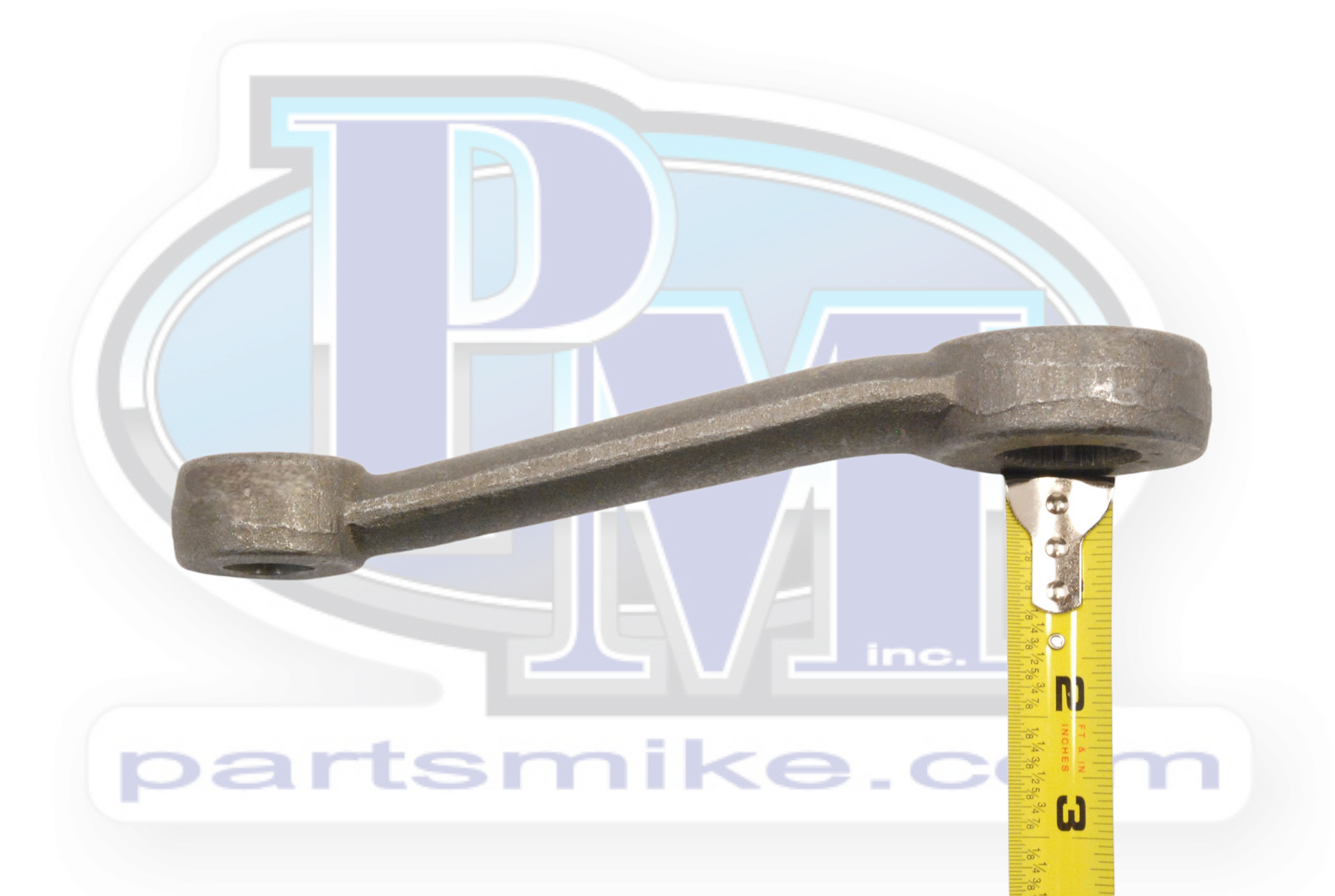

• Drop:  7/8"
• Center to center length (sector shaft to drag link hole):  6-3/4"

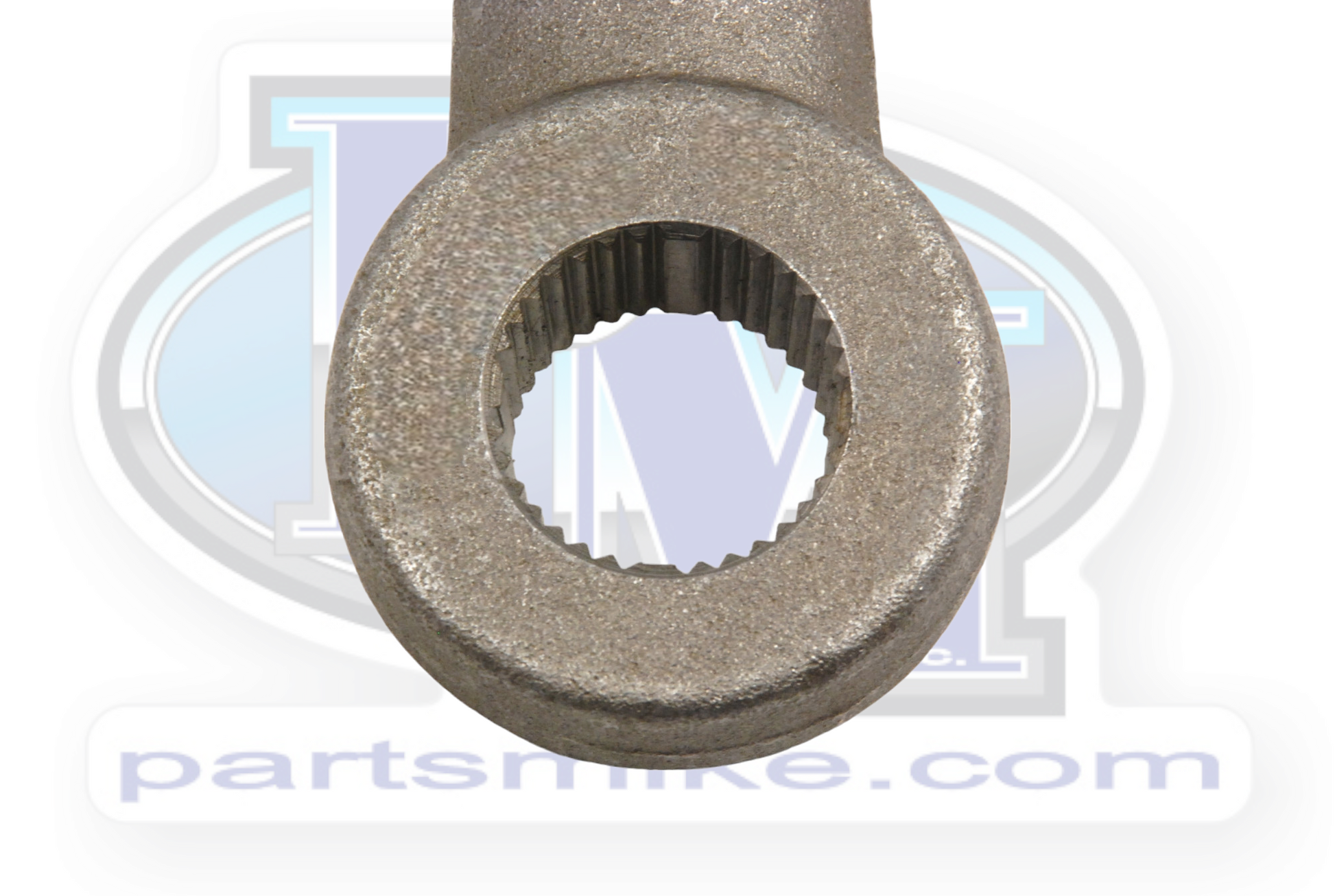

• Sector shaft hole:  32 spline Saginaw power steering
• Sector Shaft Splines, 4 Male Master Splines, (Small 1.10", Large 1.12")
• Drag link hole:  OE and GM tie rod (ES2233L, EX2234R/L, ES2010L/R)
• Drag Link End Tapered Hole, (Small End .656")

WARNING:  If you're steering box master splines don't match this pitman arm, you're going to have problems with throw.
