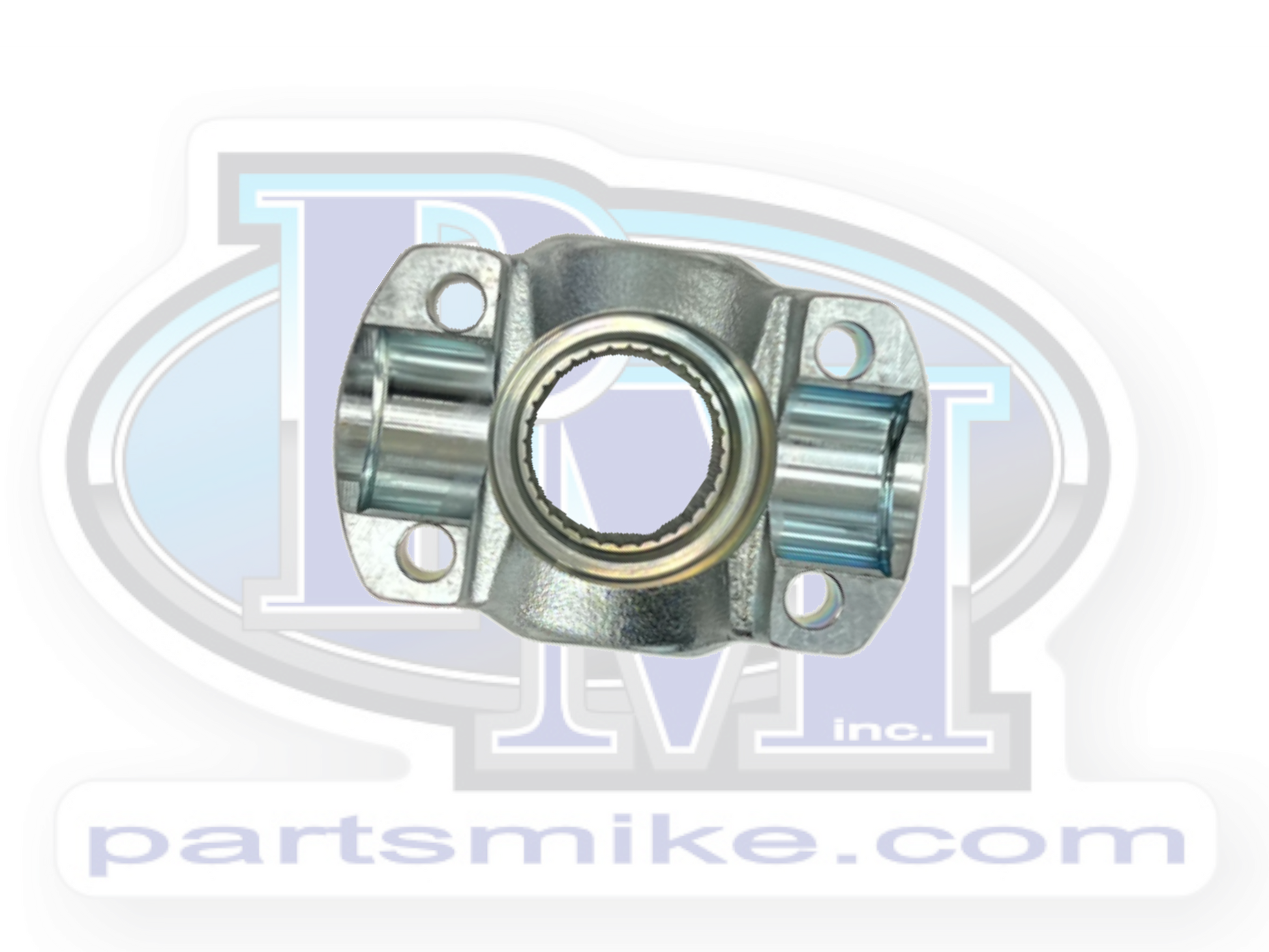

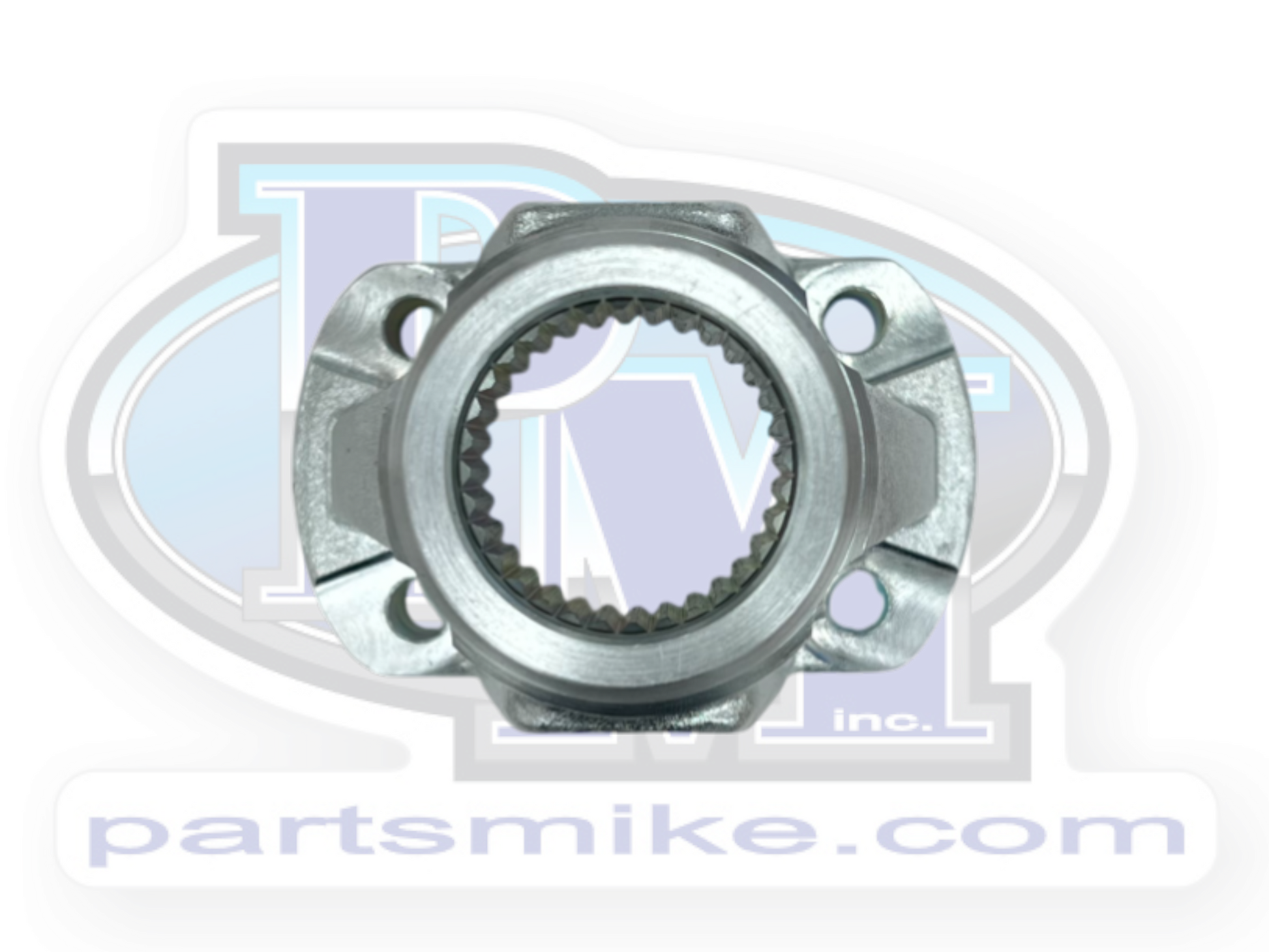

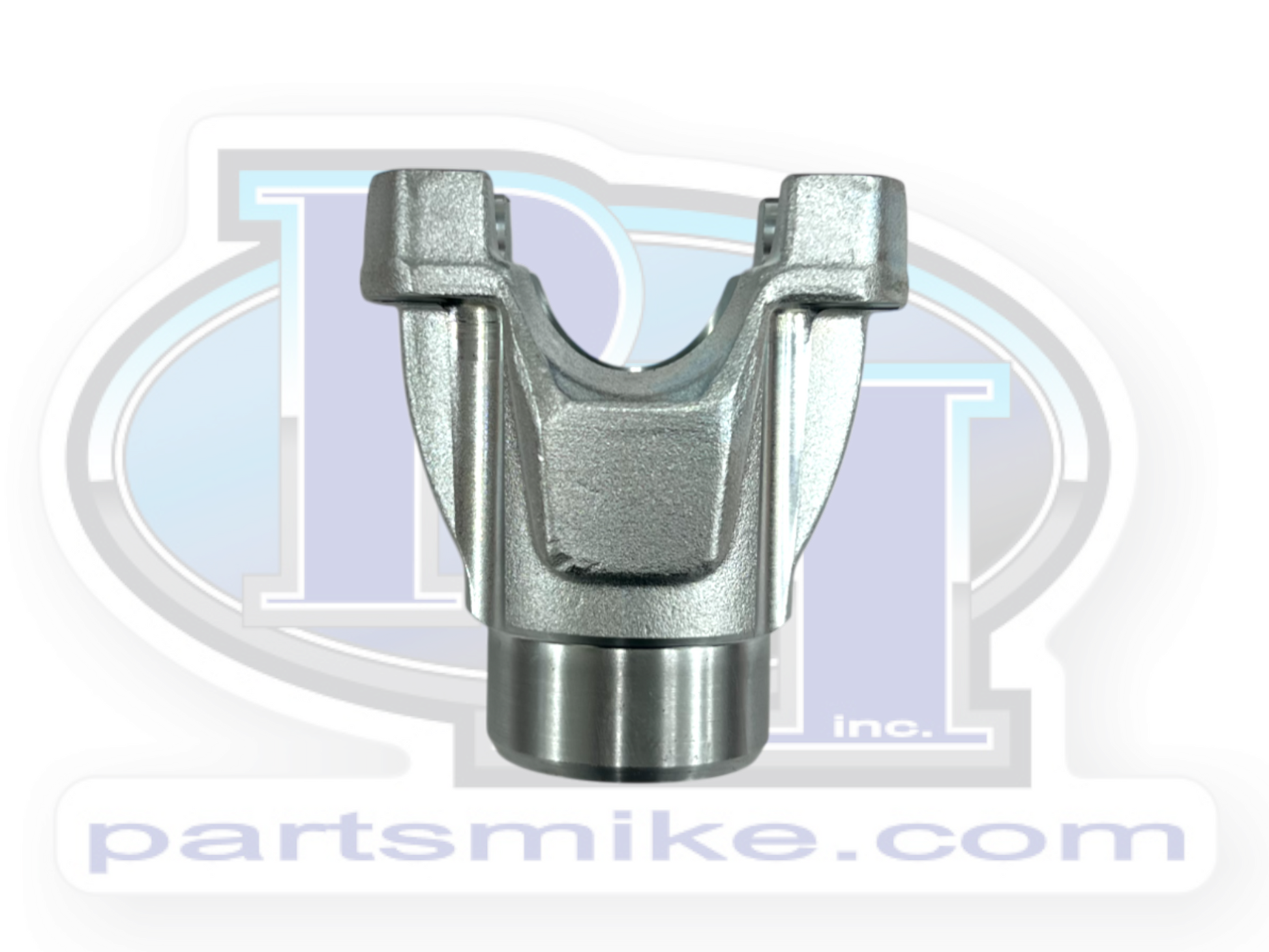

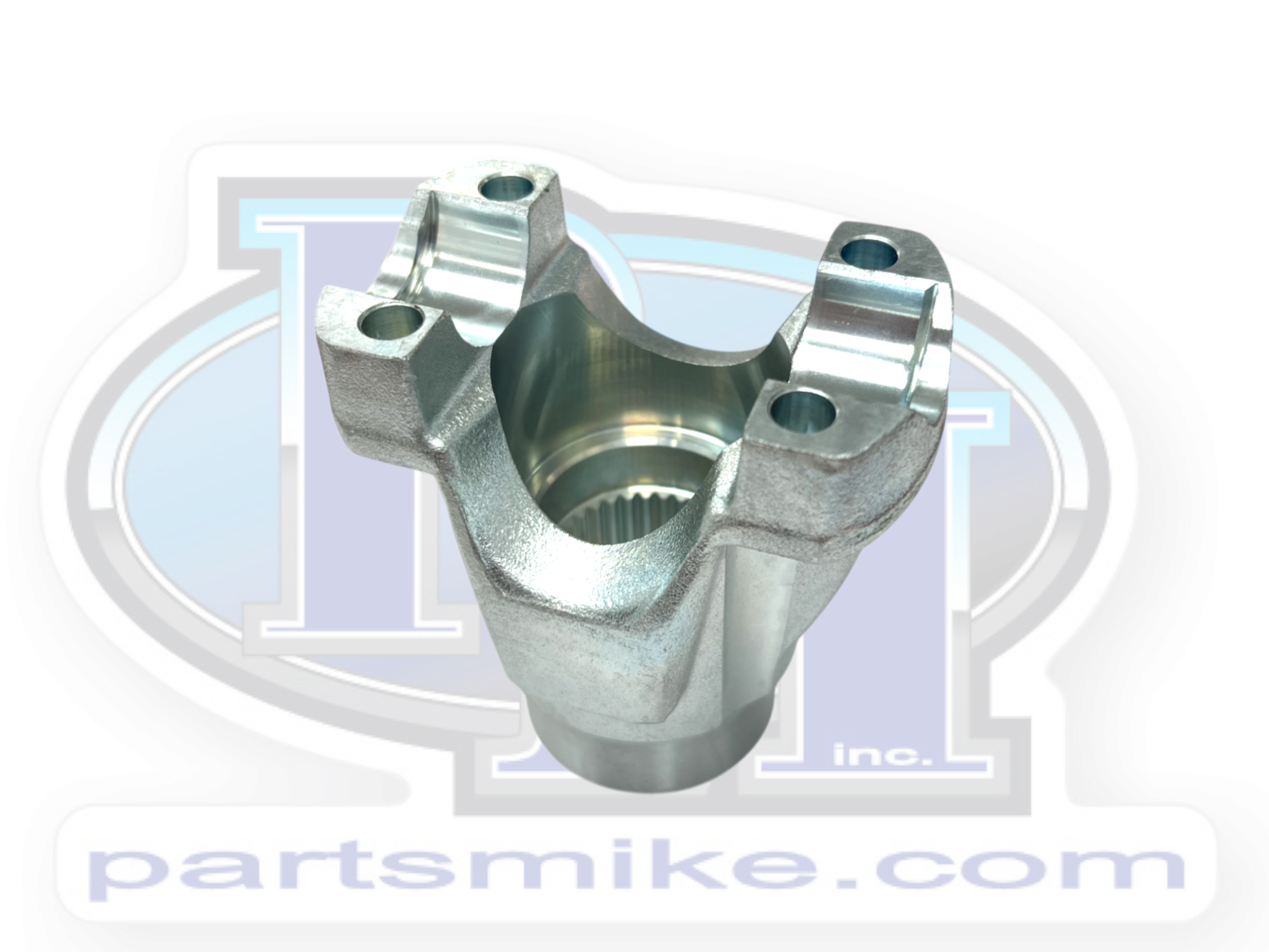

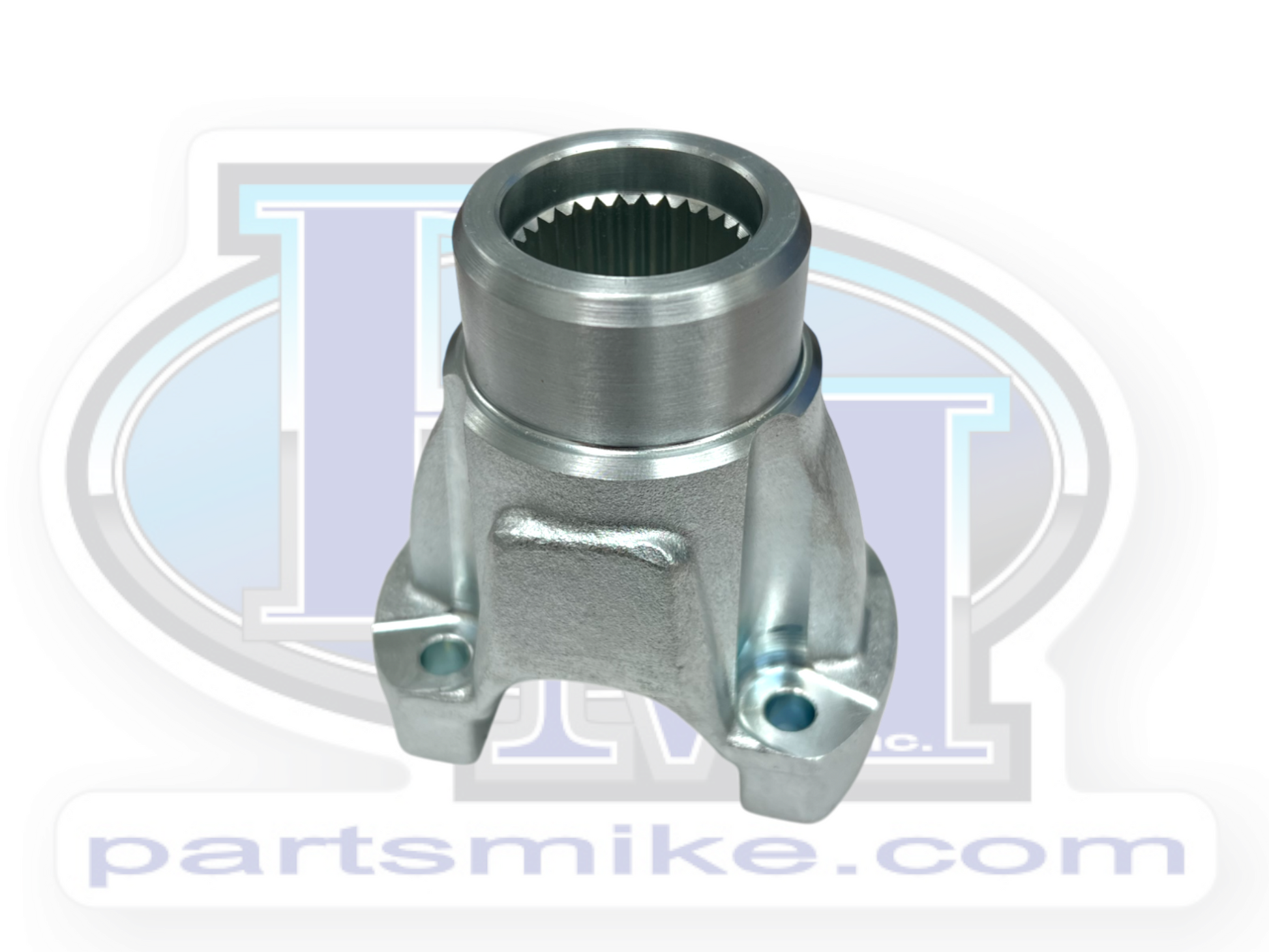

JK, JL, JT, and TJ Rubicon T-Case, Rear, 1310 CVO End Yoke, (PM3112-CV03)

JK, JL, JT, TJ Rubicon, Rear T-Case 1310 CVO, PM3112-CV03

Transfer Case End Yoke, Front or Rear Constant Velocity 2003-2006 Jeep Wrangler TJ/LJ (Rear Only), 2007-2018 Jeep Wrangler JK, 2018-2020 Jeep Wrangler JL

Most commonly used in rear on JK, JL, and JT t-cases, and also will fit a TJ Rubicon t-case.  This unit has a recess same as the factory yoke for the O-ring seal behind the nut.

Dimensions (Reference Image)

A: Seal Surface: 1.940"

B: Spline Length: 1.530"

C: Overall Length: 3.830"

D: U-Joint Width: 3.210"

Major Spline Diameter: 1.400"

Through Hole: 1.996"

Splines: 32

Does not include bolts. 5/16" x 24tpi. x 1-1/4"

For bolts order part number DL3113-12PTG

Cross Reference: N2-4-JK03

Qty.1
