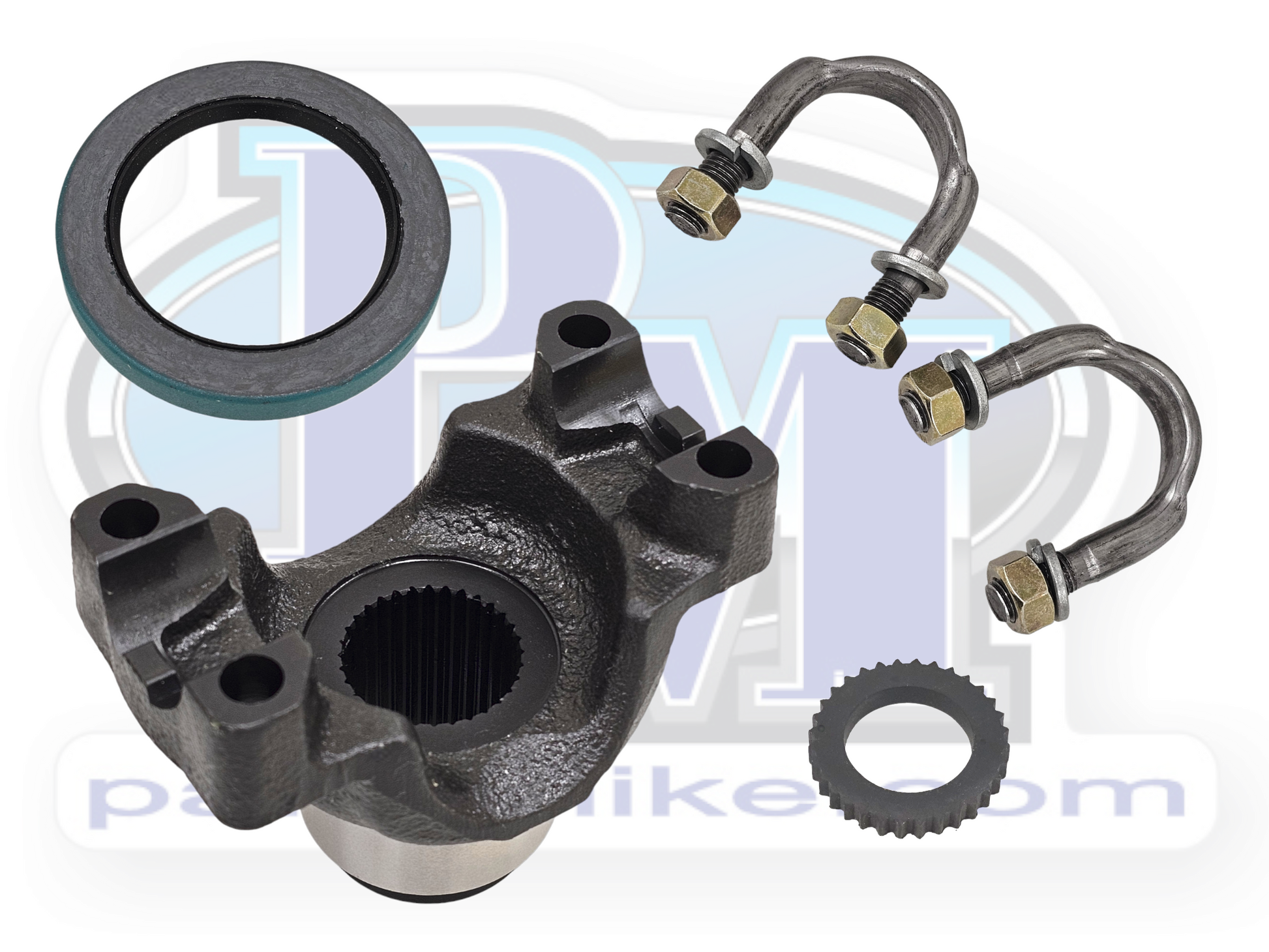

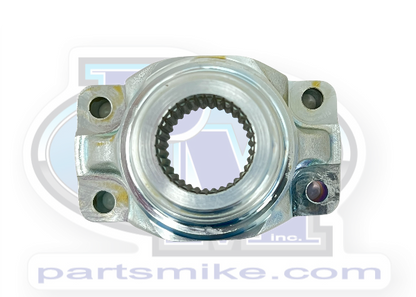

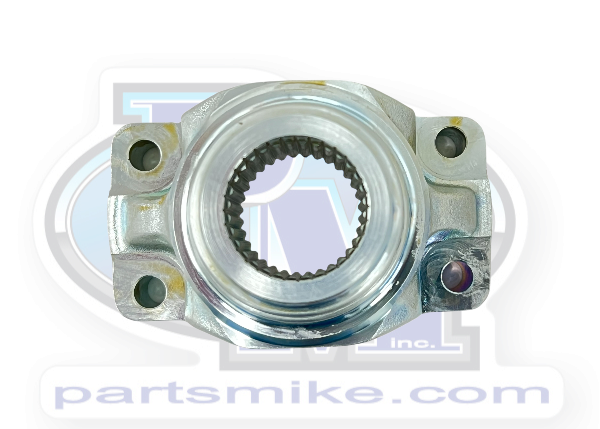

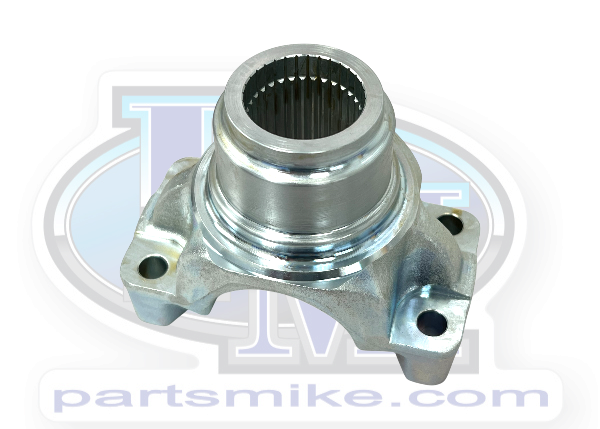

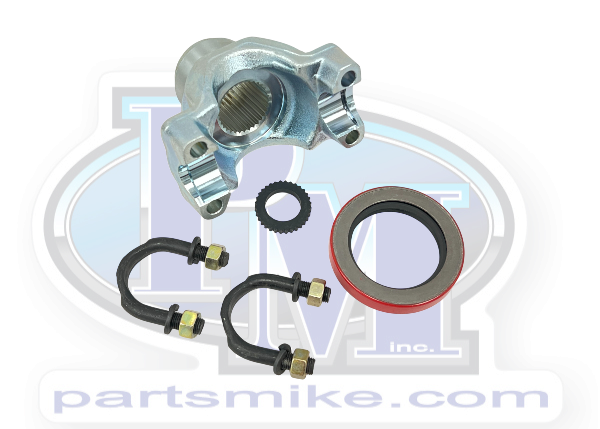

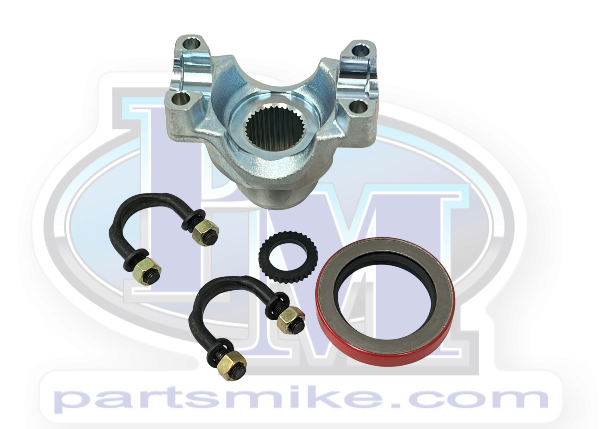

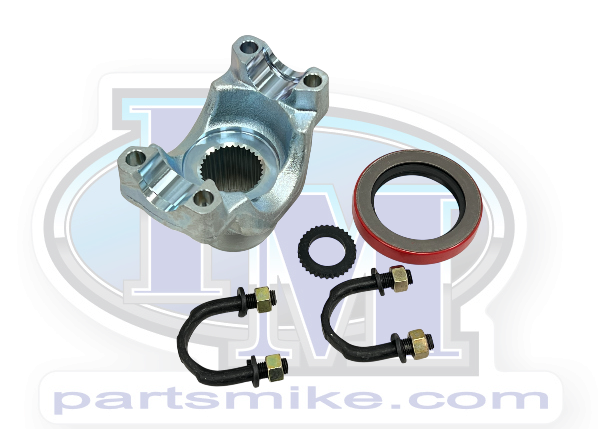

NP205, Driveshaft Yoke Kit, 32 Spline, 1410, U-Bolt Style, Non CV, with Seals and U-Bolts, (PM3112-1404-GK-NP205)

NP205, Driveshaft Yoke Kit, 32 Spline, 1410, U-Bolt Style, Non CV, with Seals and U-Bolts, (PM3112-1404-GK-NP205)

Parts Mike, Inc.

SKU:PM3112-1404-GK-NP205

Regular price $173.82 USD
Regular price Sale price $173.82 USD
Sale Sold out
Shipping calculated at checkout.

You've selected the NP205 kit with seals and U-bolts

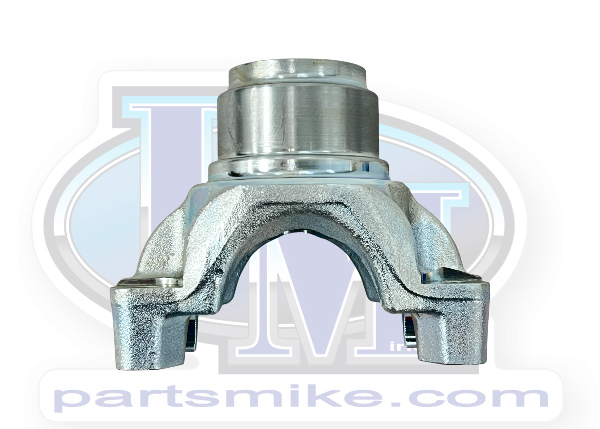

1410, 32 spline, U-bolt yoke.  This yoke is typically retrofitted onto NP 205 transfer cases.  It uses U-bolts to fasten the u-joints instead of straps.

WARNING:  Count the splines on your transfer case, AND but be SURE to verify the seal OD on the NP205!  The seal size is listed below in the Specifications.

Specifications:

Yoke

  • U-joint size:  1410, U-bolt style
  • Seal surface OD:  2.125"

U-bolts

  • U-joint size:  1410
  • ID (inside leg to inside leg):  1.33"
  • Diameter and pitch:  3/8"-24

Spline seal

  • Number of splines:  32
  • ID:  0.90"

Nut

  • Size:  7/8"-20
  • Wrench size:  1-1/8"

Seal

  • OD:  3.062"
  • ID:  2.125"
  • Thickness:  0.500"



The Parts Mike yoke is FORGED, U-bolt style, features FULL LOCK UP, and has an OE spline fitment.  Our design achieves the highest possible angle while maintaining strength.  See the write up below for more details.

  • FORGED parts will beat the same part made from billet, or cast...period.  The forging process forms the metal grain along the contours, and the result is a stronger part.  Forging also compacts the grain structure which nearly eliminates failures from voids or inclusions.
  • U-bolt style is superior to straps in nearly every way.  The U-bolt is nearly impossible to shear, but the head of a 5/16" bolt in a strap can pop like a pimple.  There's nothing to peel back on a U-bolt, but the strap can get caught.  Plus the U-bolt is simple to identify, a 1410 u-joint takes a 1410 U-bolt.  Straps have all sorts of different length, width, and thread pitch differences for the same size u-joint depending on application.

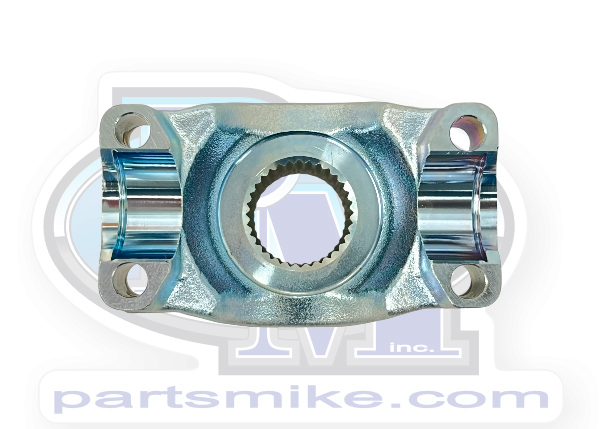

  • FULL LOCK UP is what we call our u-joint cap retention method (see pictures for FULL LOCK UP vs little tang).  Almost all yokes have a little tang to retain the u-joint cap.  Catch that tang on a stubborn rock, and it breaks off.  Then the cap shoots out, and BAM.  FULL LOCK UP eliminates this problem by fully retaining the u-joint cap.
  • OE spline fitment is what every yoke should have.  Most yokes slide on, and aside from a gross error, work just fine....BUT an OE spline fitment requires encouragement from a 3 pound dead blow.  It would take hundreds of thousands of miles to wear out splines, but we make them so they'll NEVER wear out.
