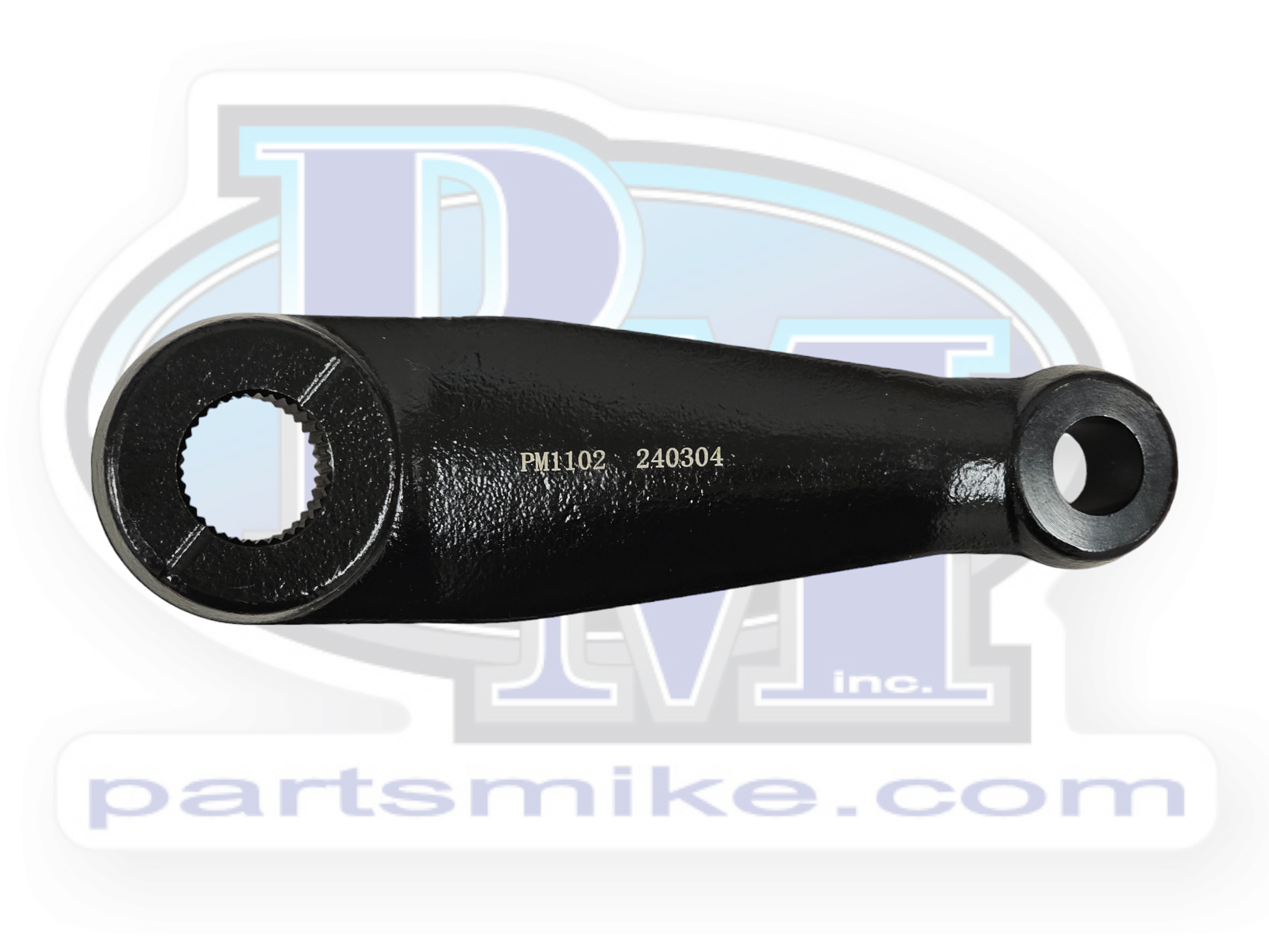

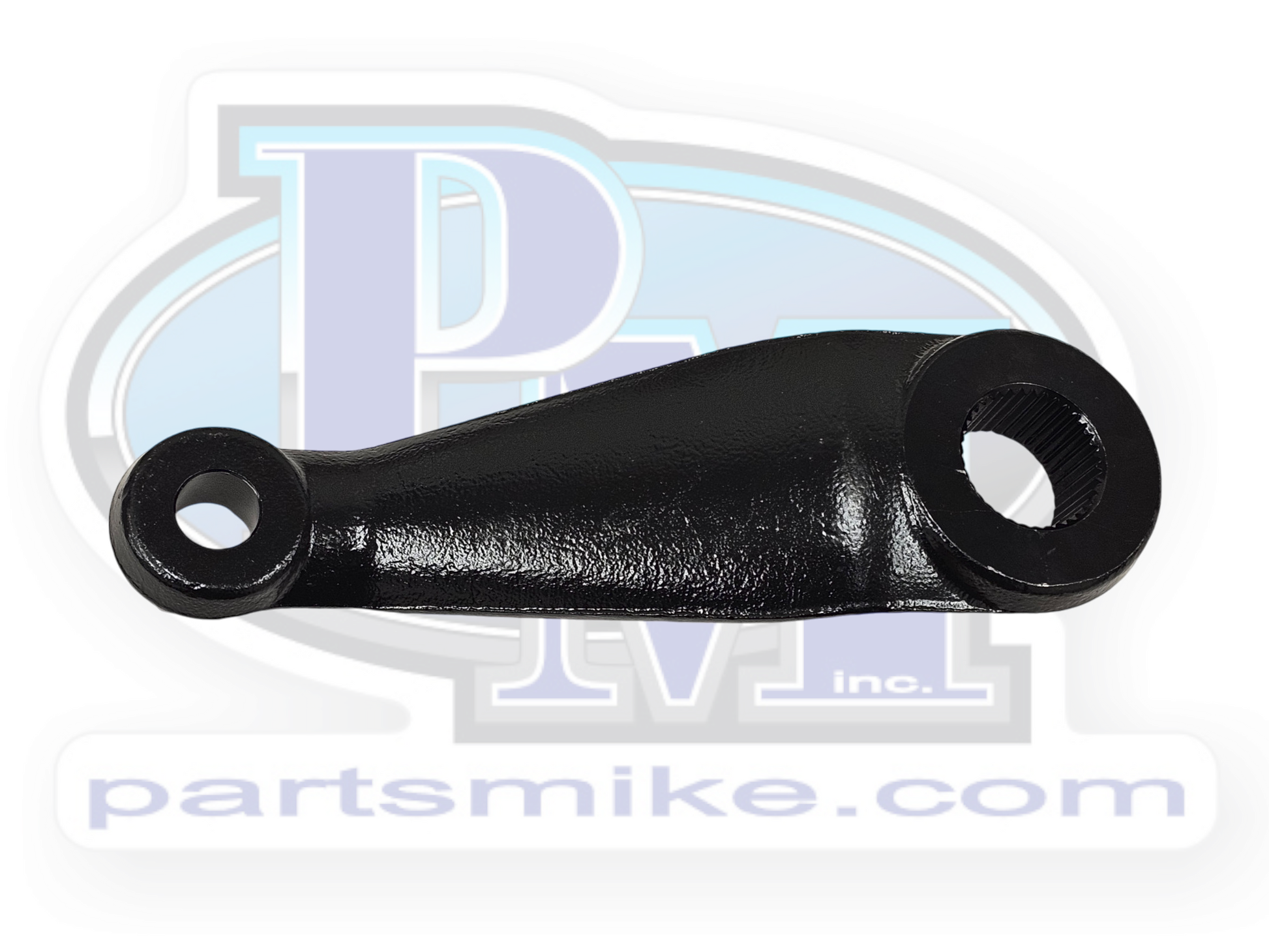

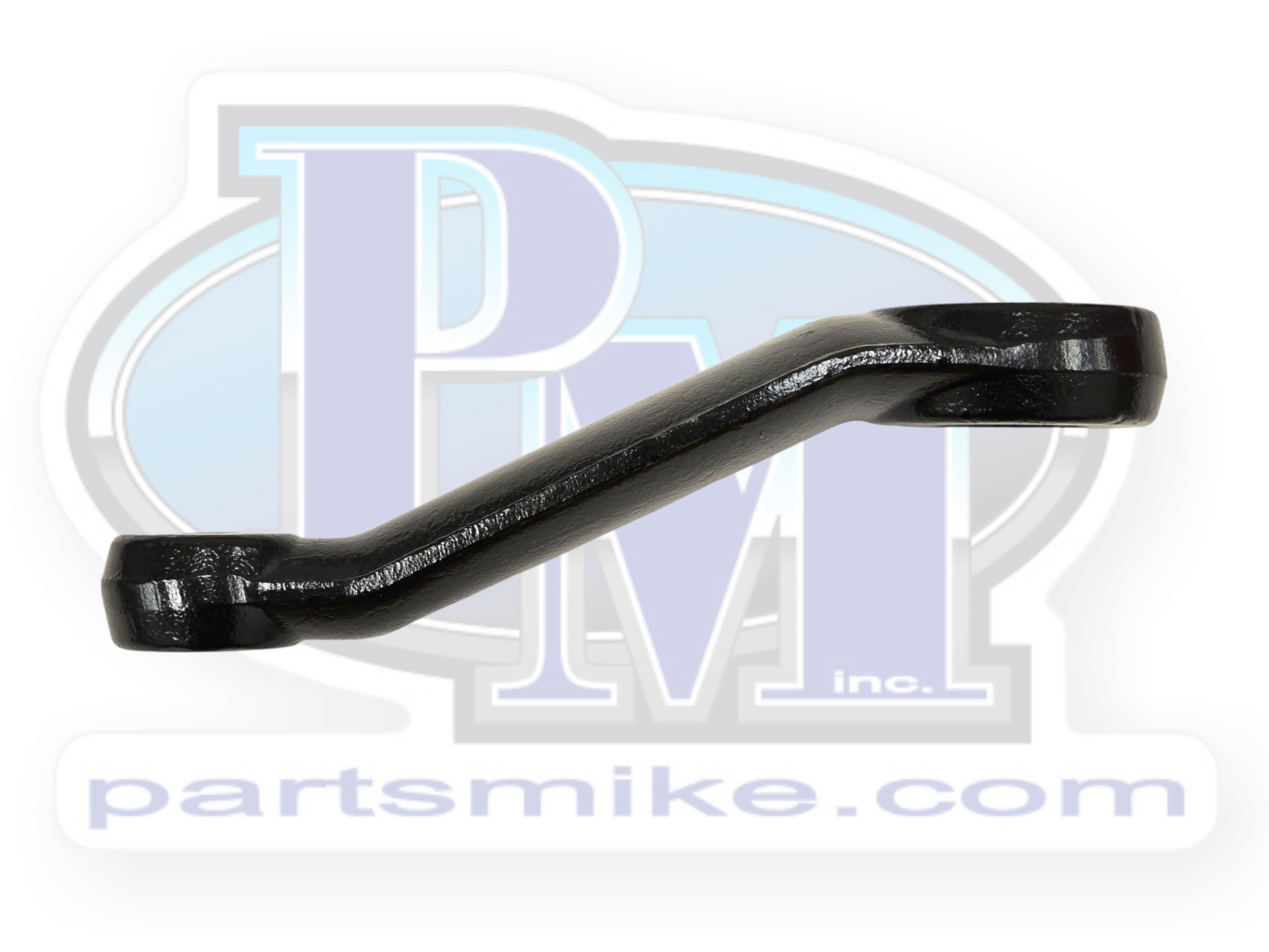

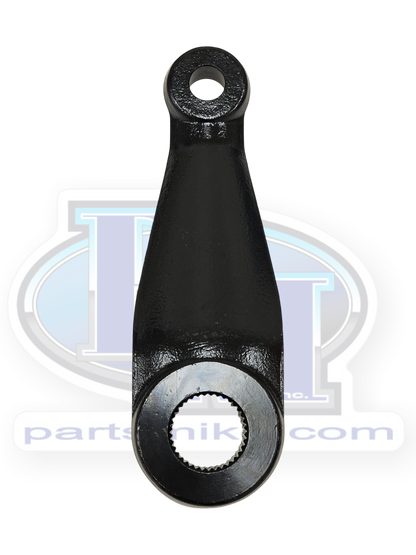

This is one of the most common pitman arms used on low slung rigs. We've made it without the master splines so clocking onto the steering box won't be a problem. Very popular with Chevy full size cross over set ups, full size Jeep set ups, and almost any set up that requires a long drop heavy duty pitman arm. It comes tapered for a GM tie rod end, but we also offer them tapered to fit drag link ends. If you'd prefer to buy the tool and taper it yourself, check out the PM-TR220.
Specifications
Overall length (tip to tip): 8-1/2"
Drop: 2"
Center to center length (sector shaft to drag link hole): 6-1/2"

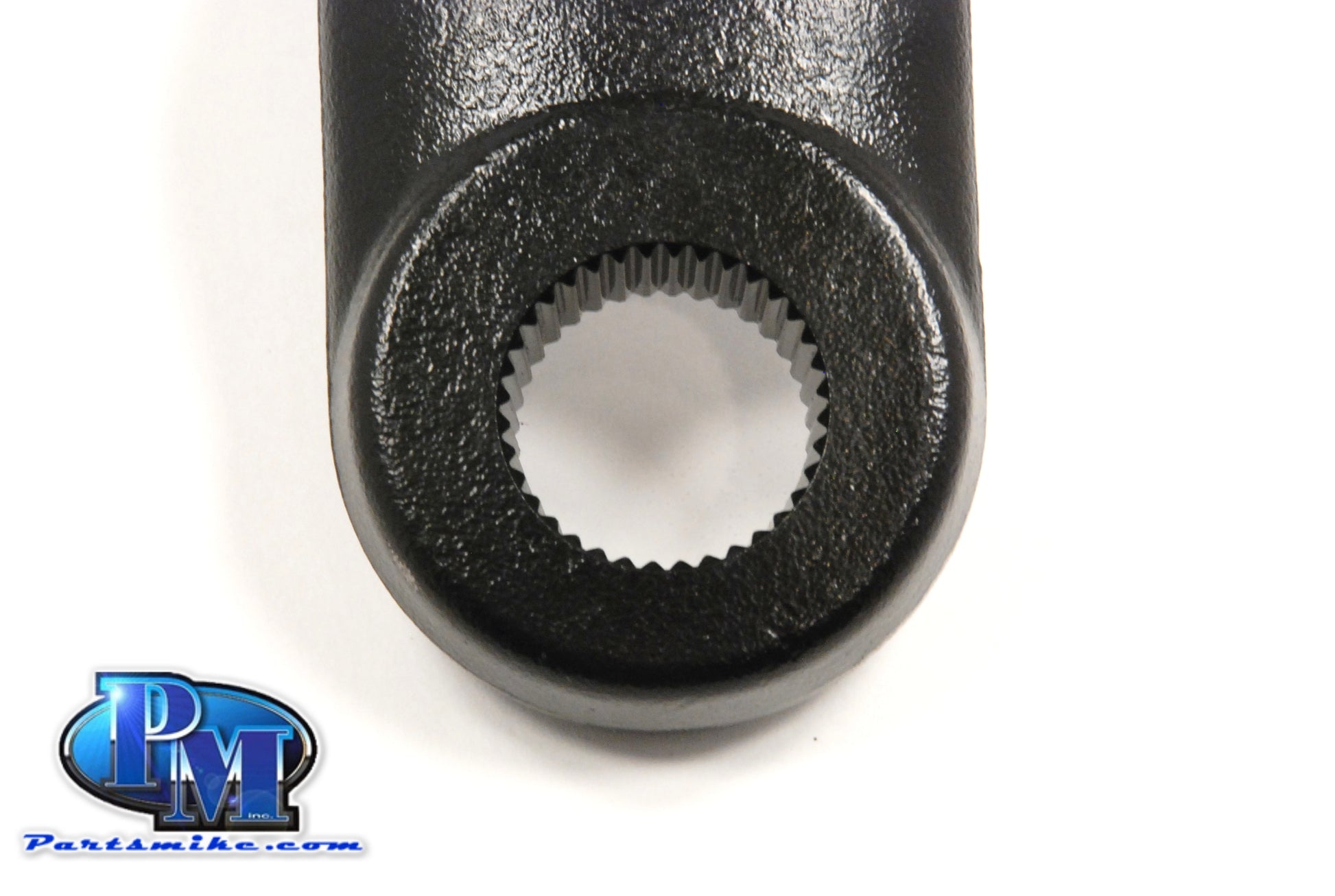

Sector shaft hole: 32 spline Saginaw power steering
