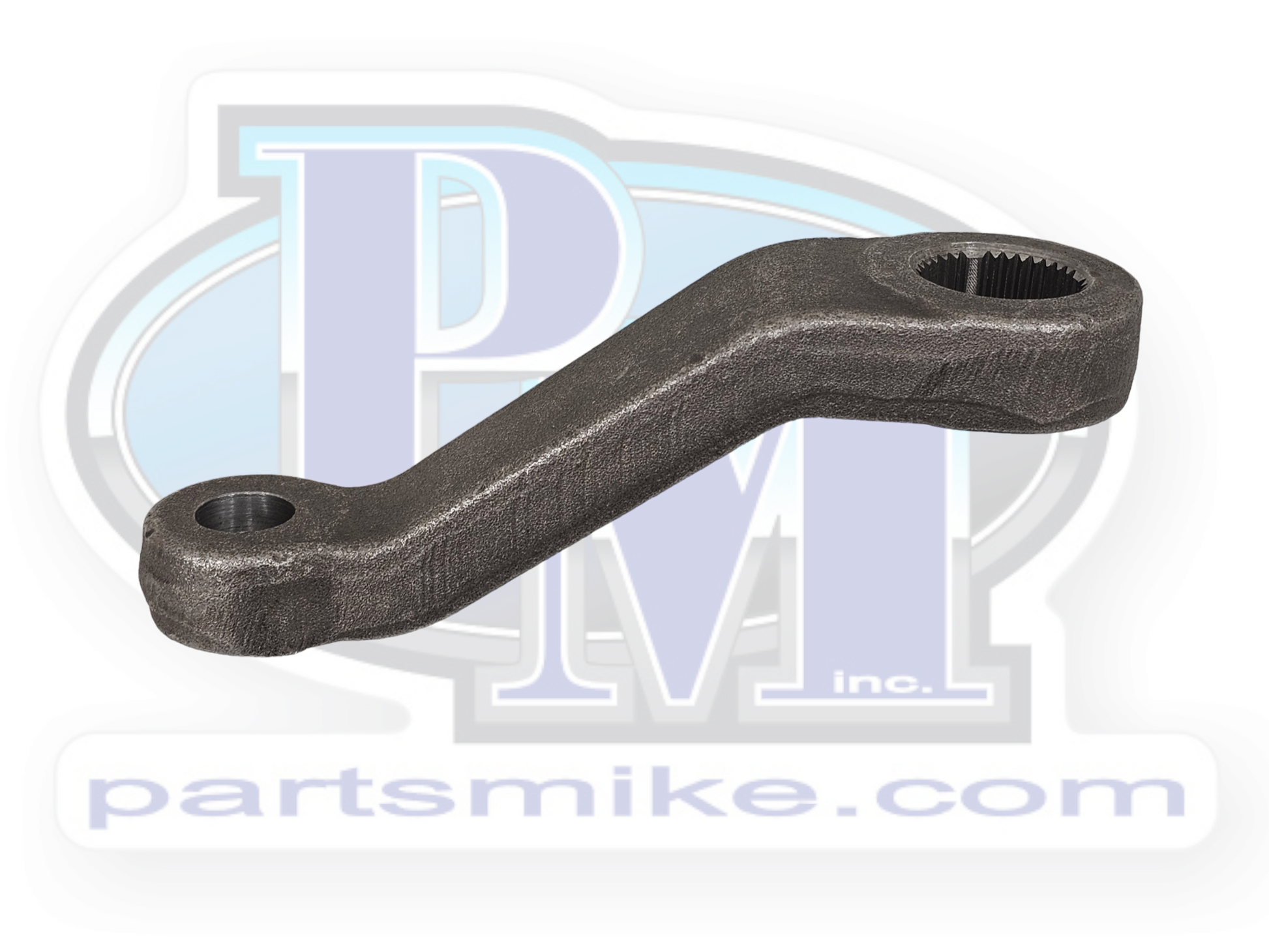

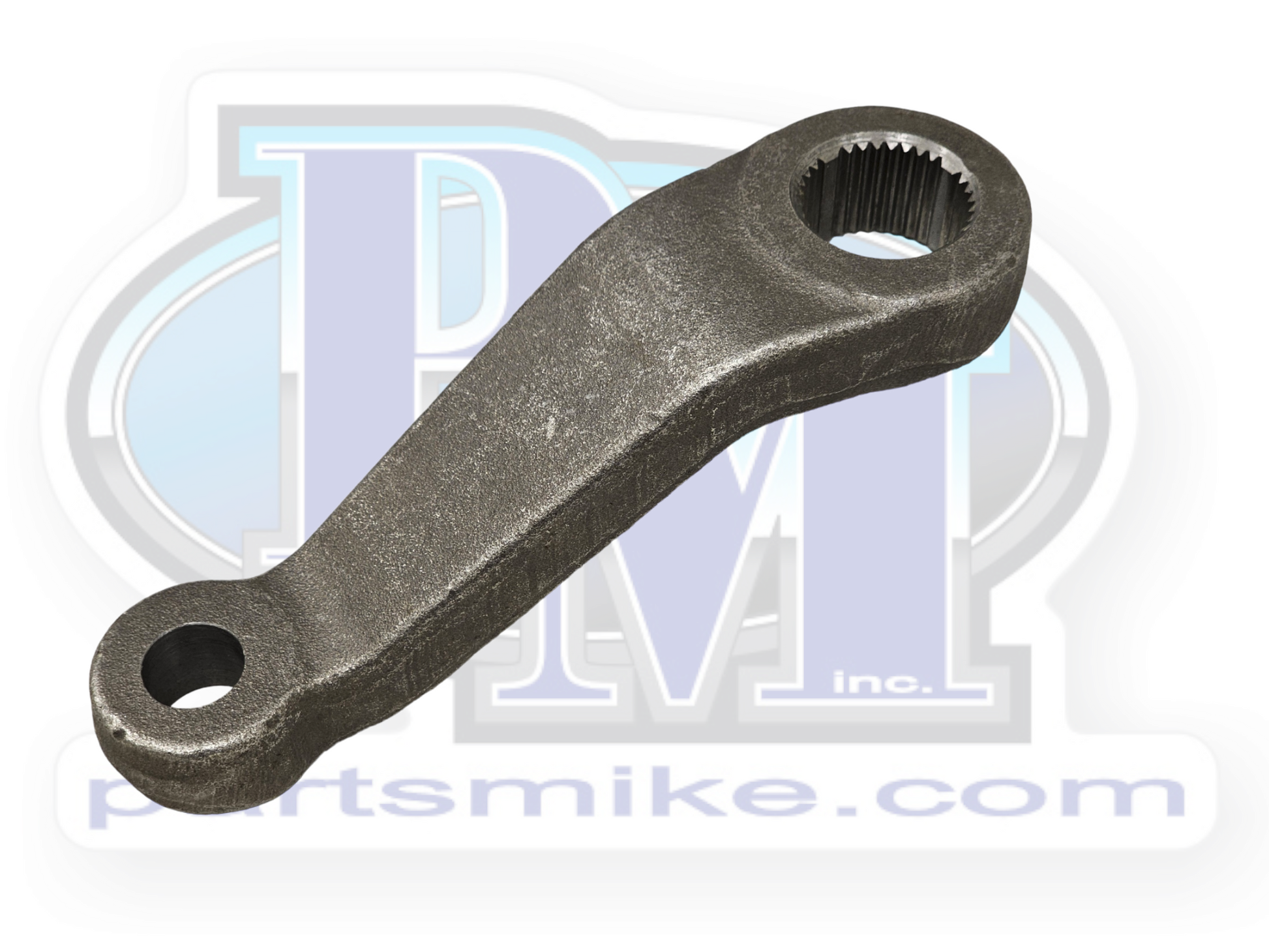

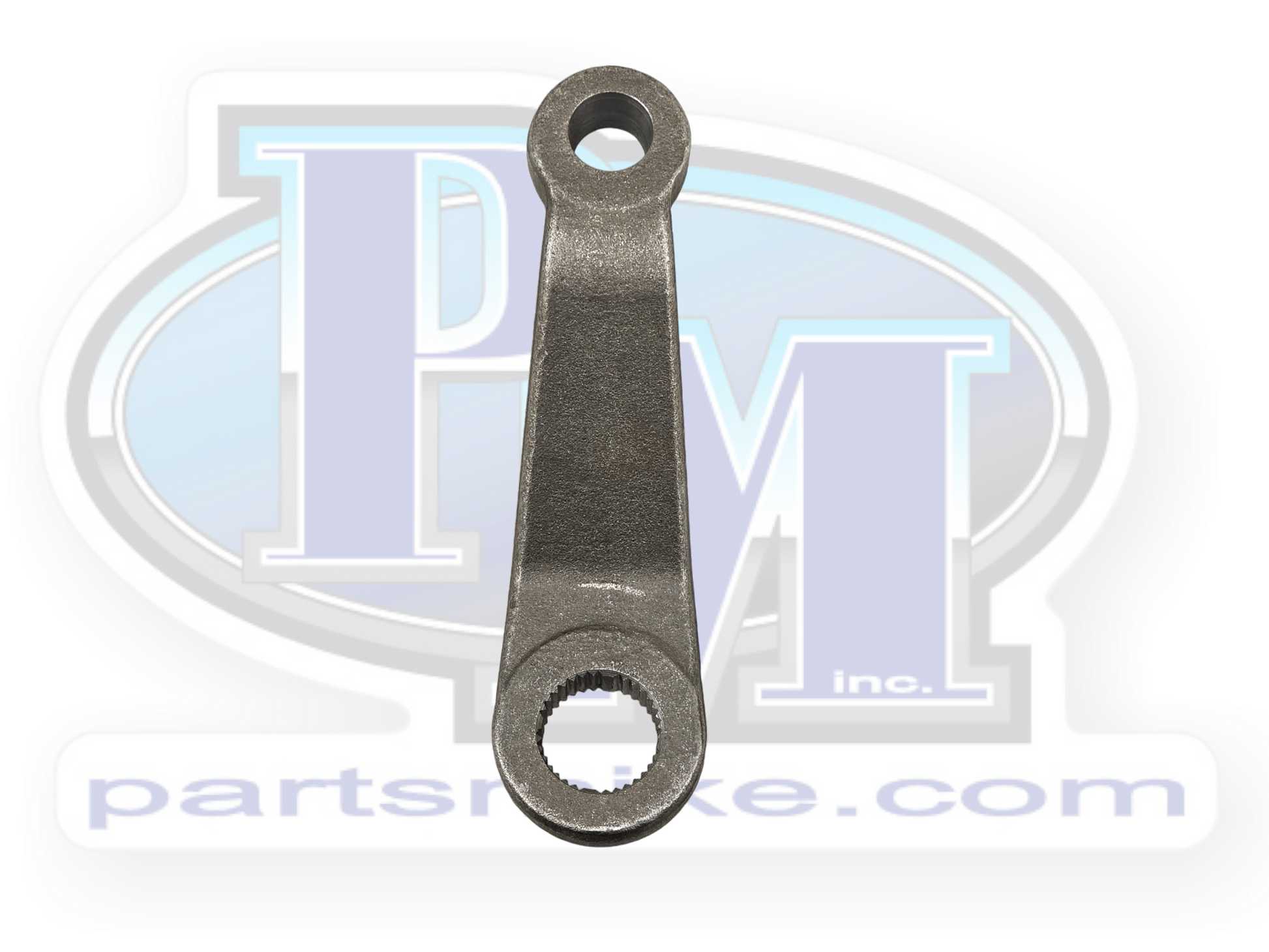

You've selected the pitman arm tapered for GM drag link (ES2026R, ES2027R, or ES2027L)
The center to center length of this pitman arm works great with our forged Dana 44 steering arm, or any other steering arm that's 6 inch long (center of ball joint to center of drag link hole). The splines are clocked for a YJ/TJ/XJ. If you to install this in your GM truck (or another manufacturer using the Saginaw box), you'll need to remove the master splines to clock it properly. We offer this pitman arm in stock form, or tapered for GM 3/4 ton drag link ends.
Specifications
Overall length (tip to tip): 7-1/8 inch
Drop: 1-7/8 inch
Center to center length (sector shaft to drag link hole): 5-1/2 inch
Sector shaft hole: 32 spline Saginaw power steering (TJ/YJ clocking)
