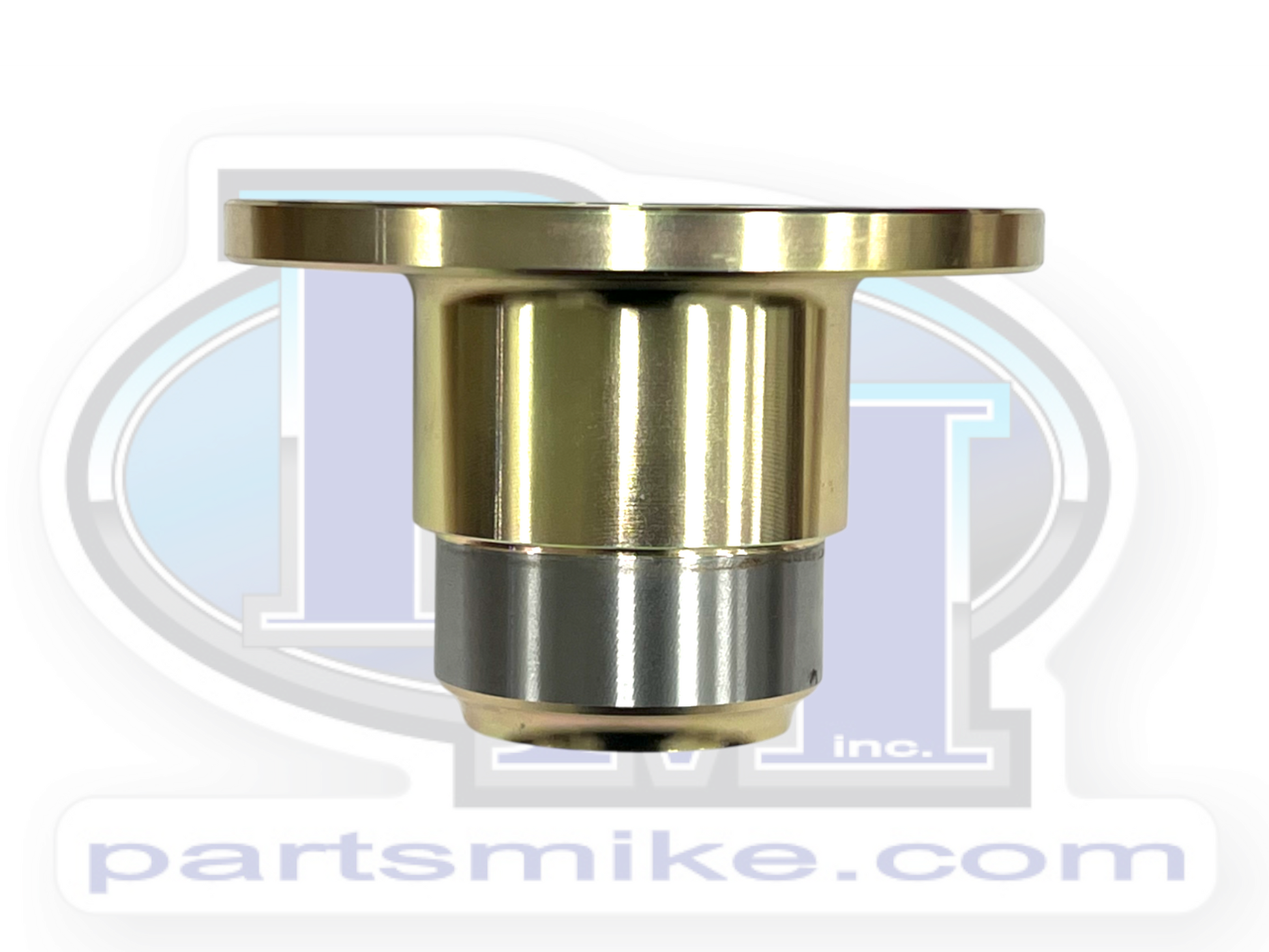

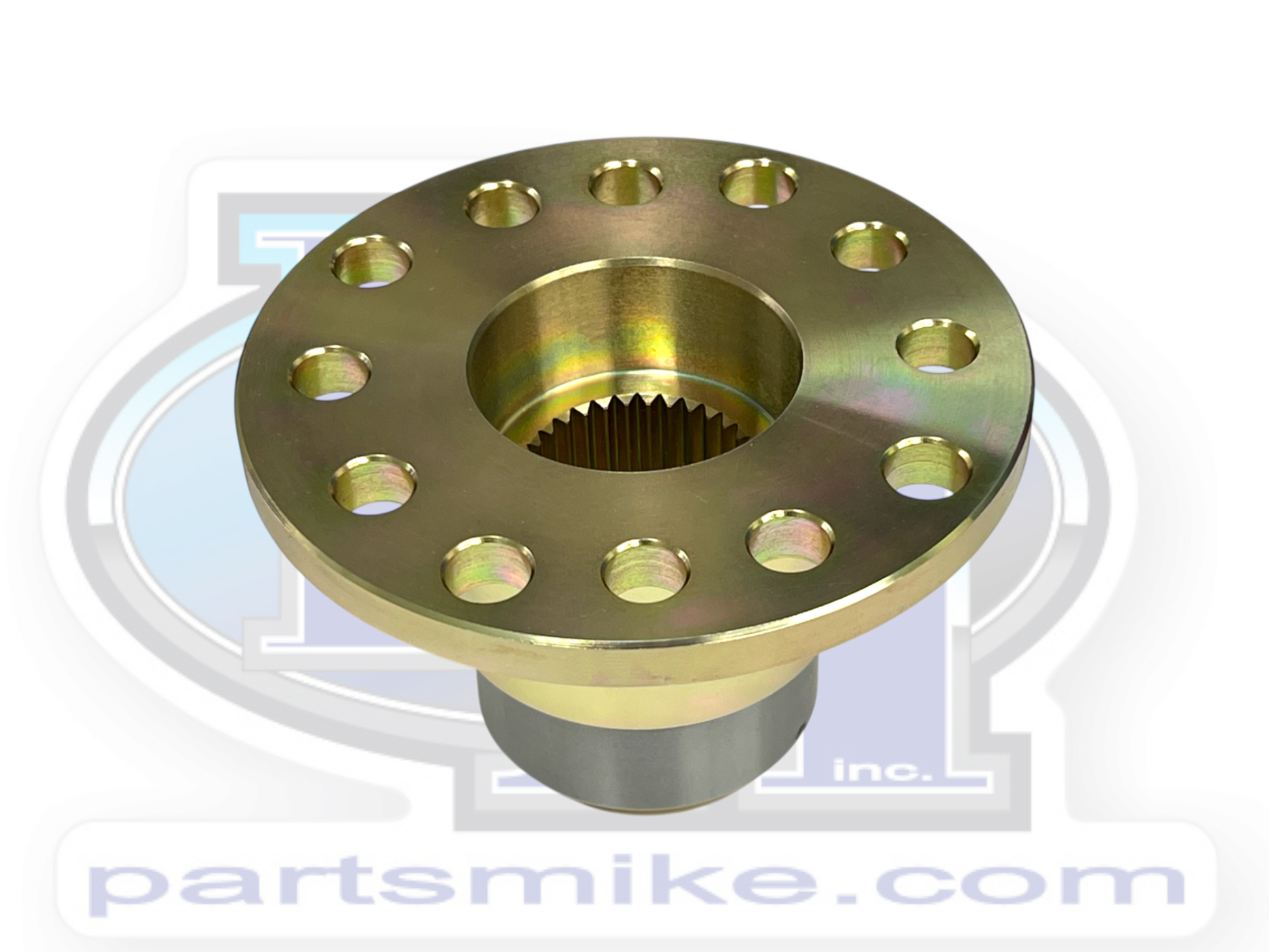

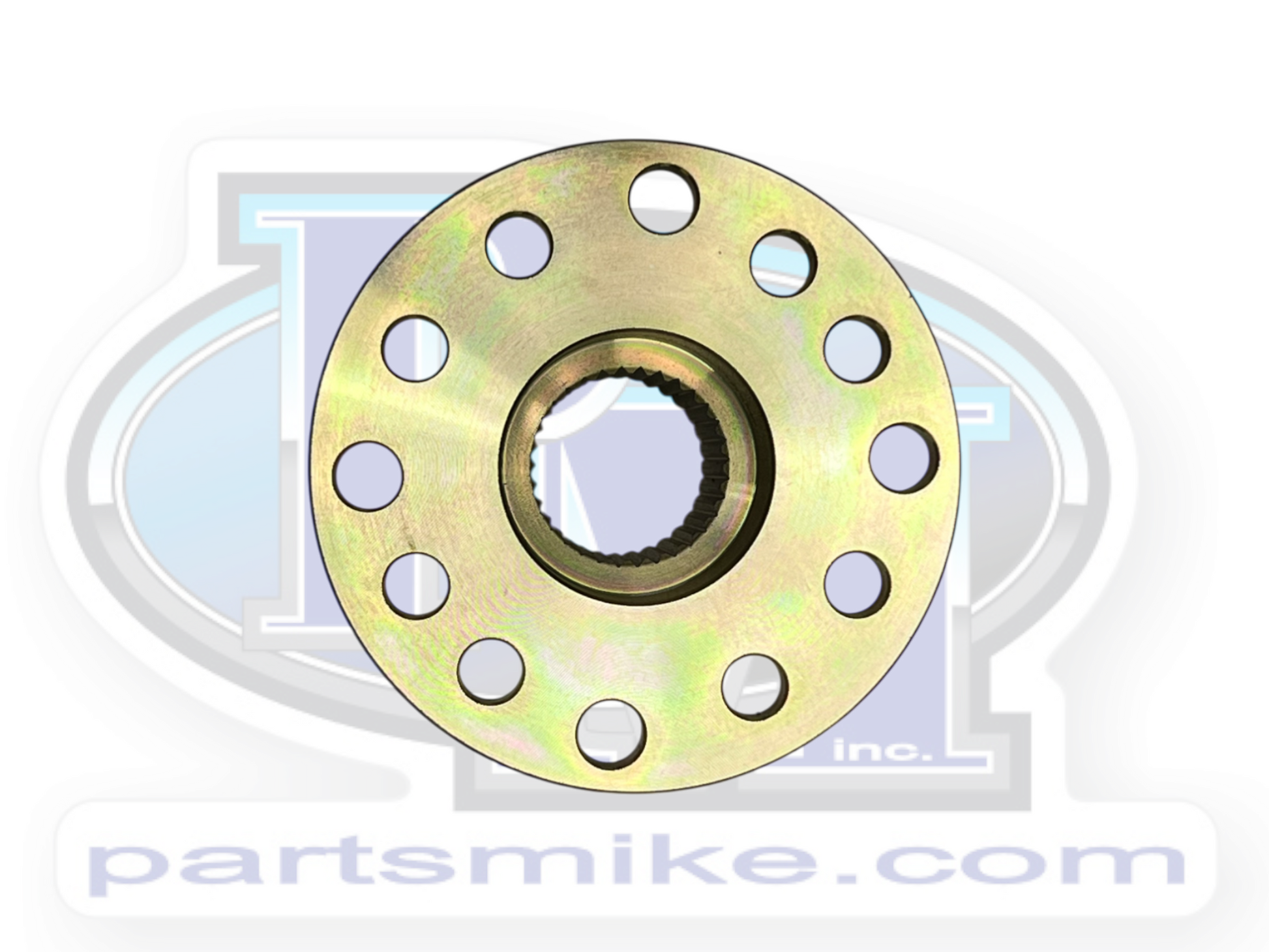

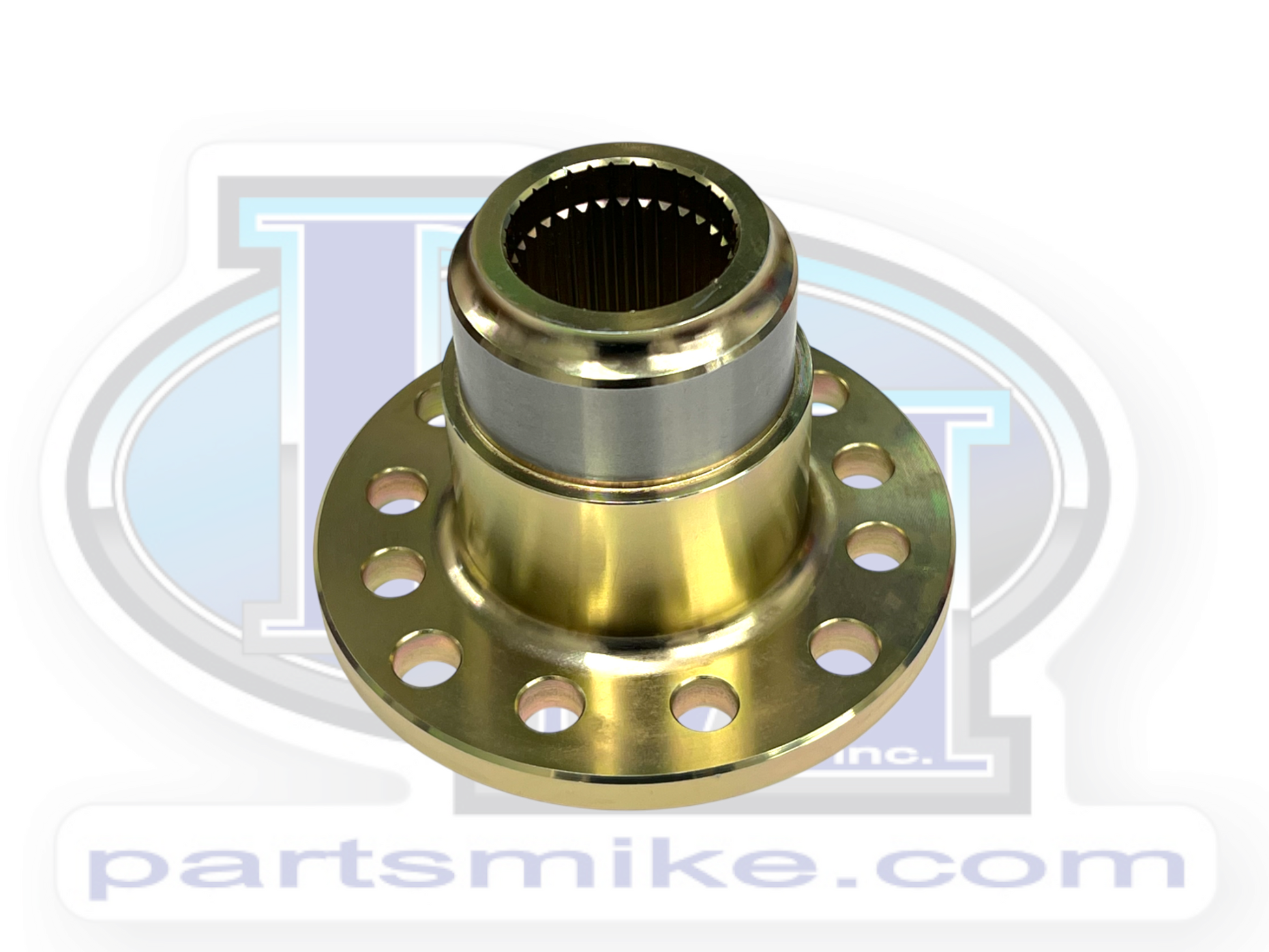

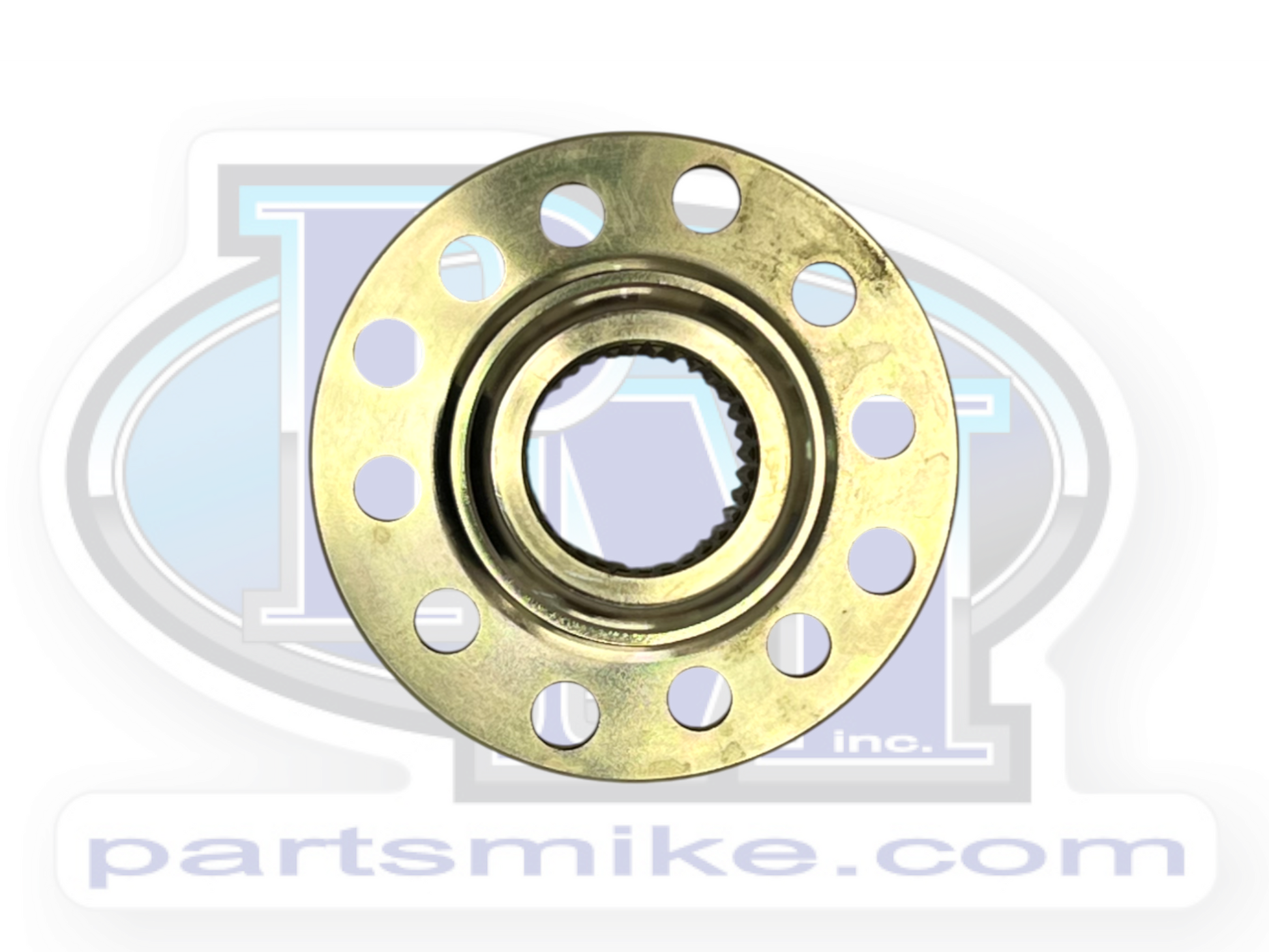

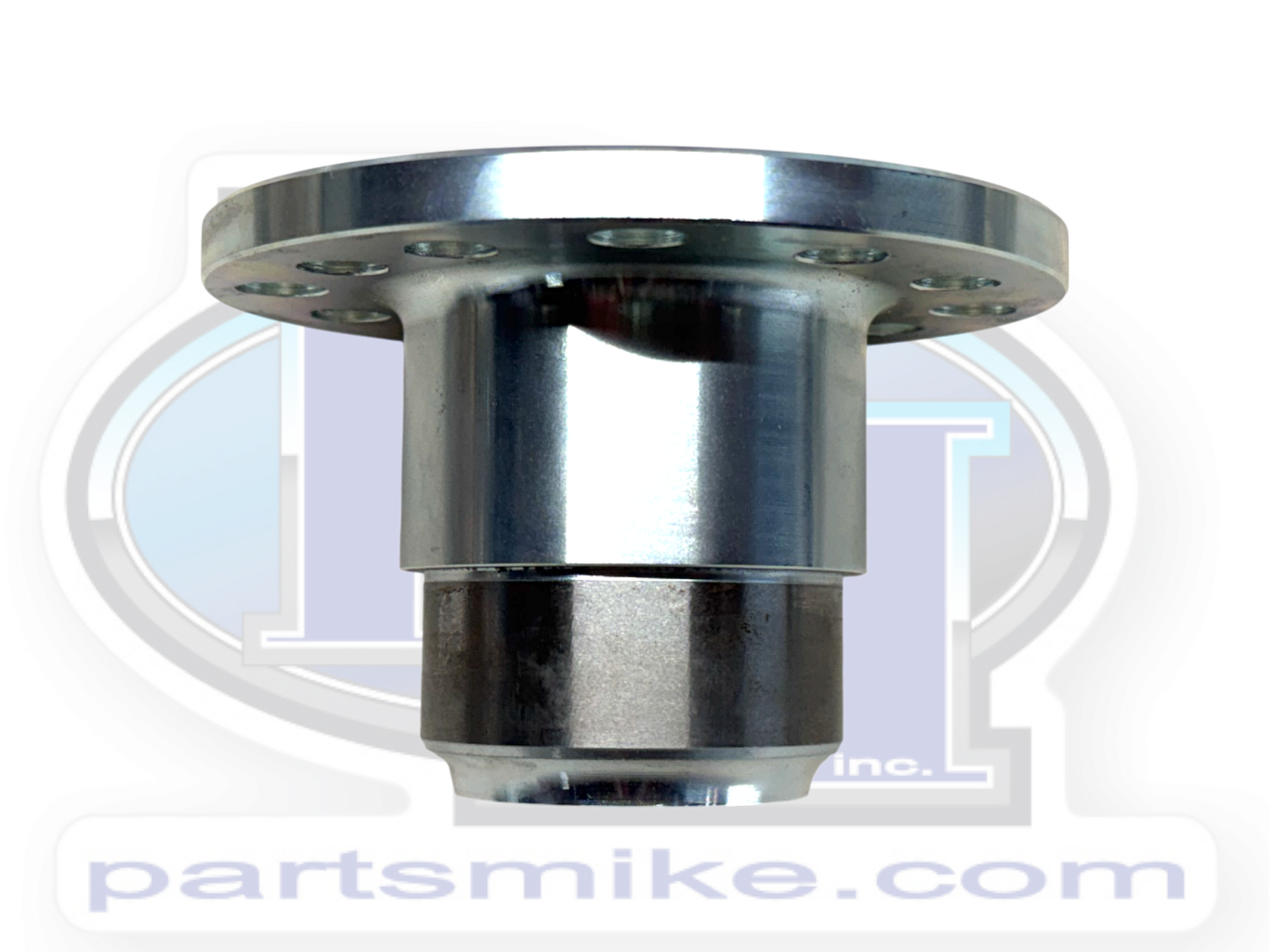

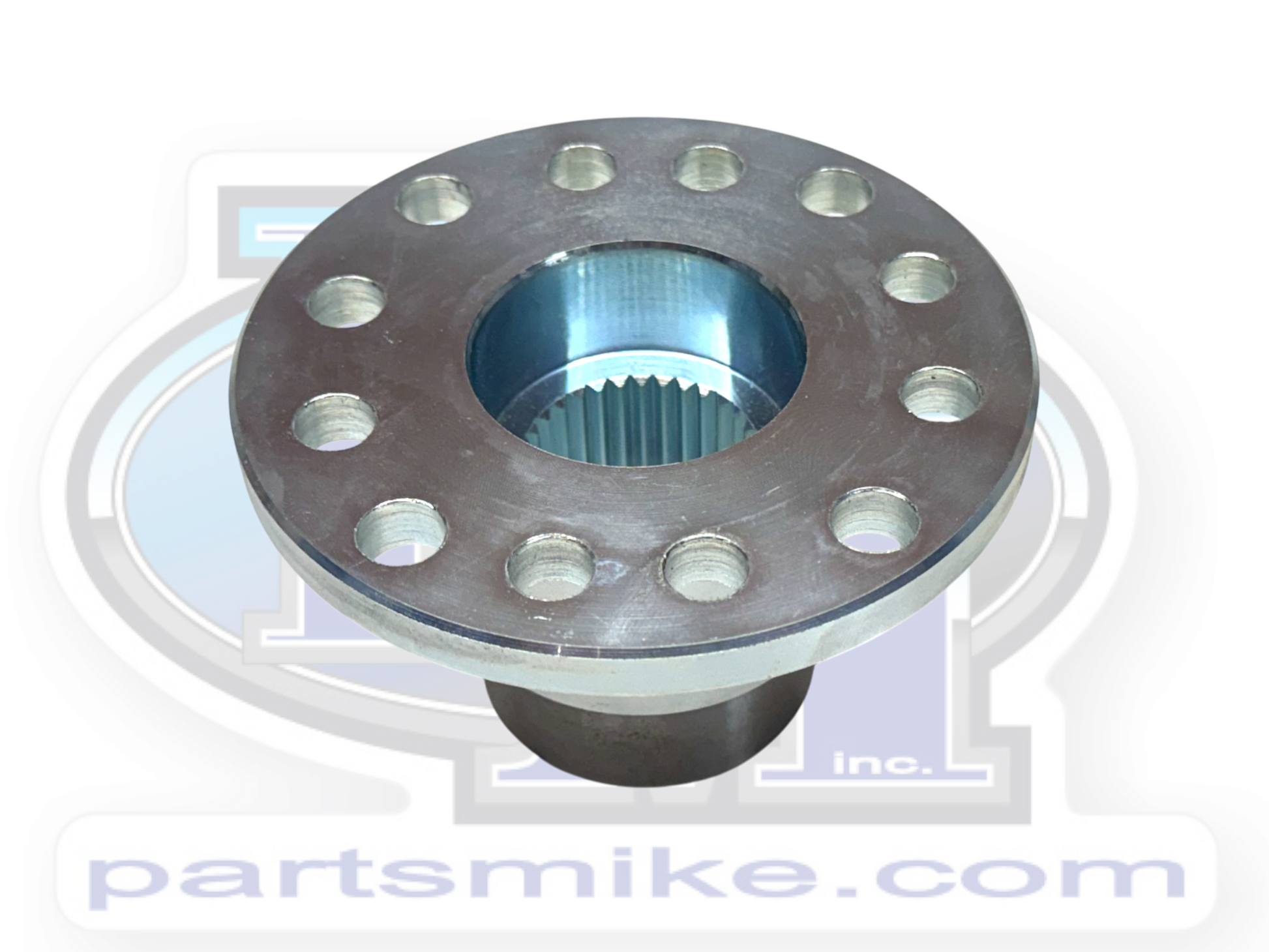

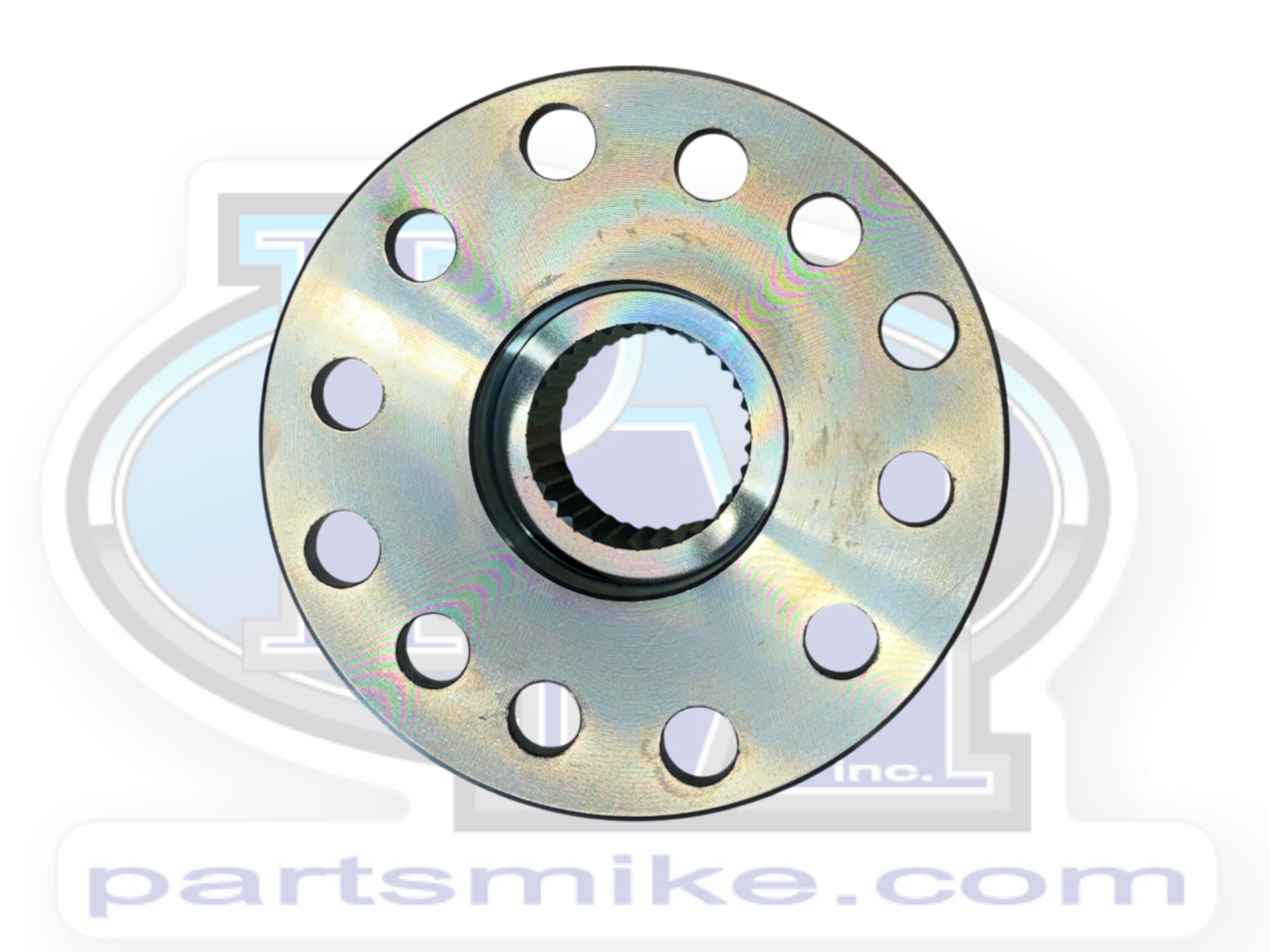

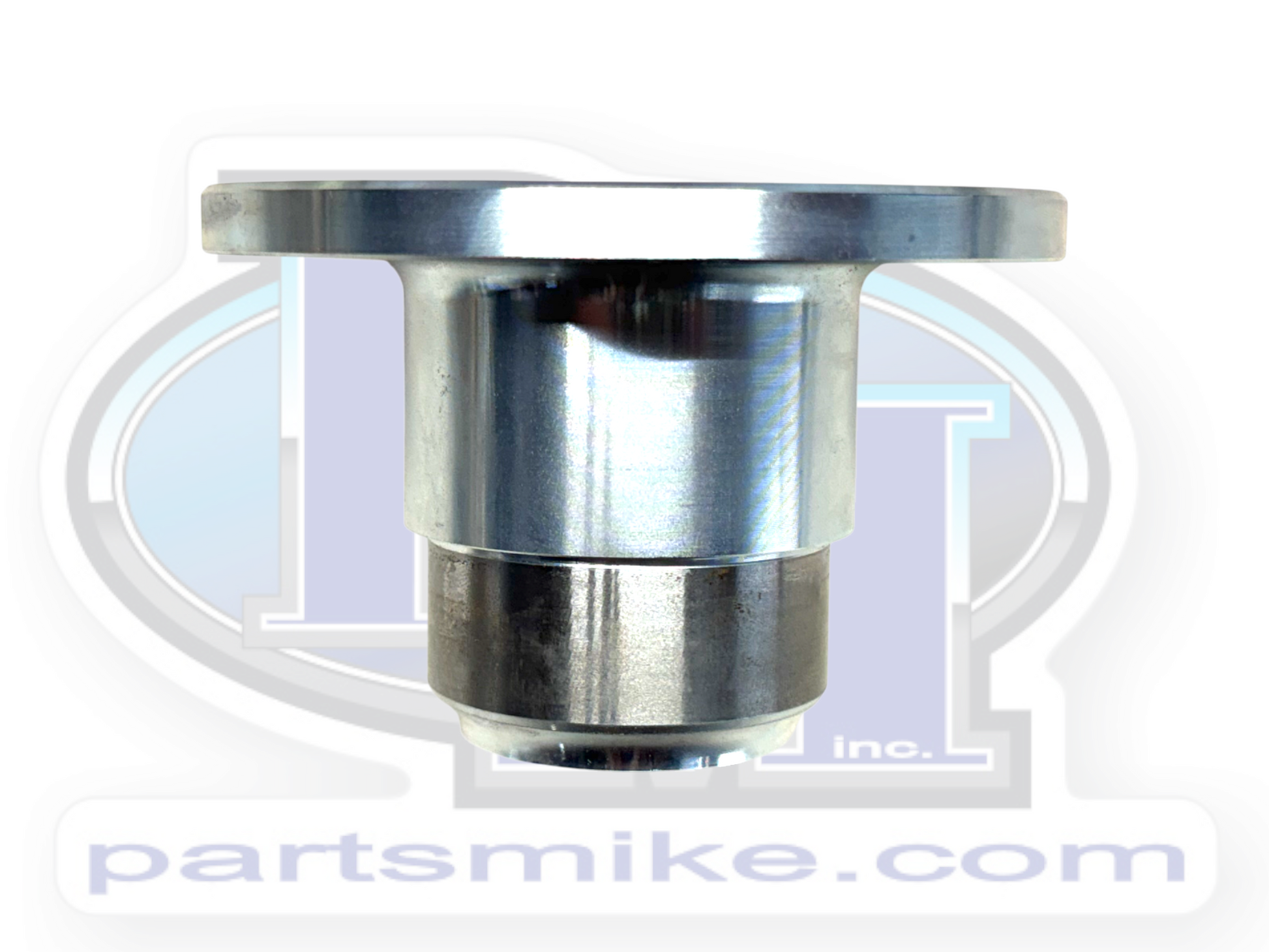

Atlas Transfer Case Companion Flange to Toyota Bolt Pattern, 32 Spline, 60MM X 60MM, 64MM x 56MM, 68.3MM x 60MM, (PM3111-TFLANGE)

Atlas Transfer Case Companion Flange to Toyota Bolt Pattern, 32 Spline, 60MM X 60MM, 64MM x 56MM, 68.3MM x 60MM, PM3111-TFLANGE

Dimensions

A: Pilot Diameter: 1.81" / 46mm

B: Seal Surface: 2.127" / 63.74mm

C: Through Hole: 2.000" / 50.8mm

D: End of Flange Face to end of Seal Surface: 2.820" / 71.628mm

Flange Face Outside Diameter: 4.378" / 111.20mm

Flange Face Thickness: .332" / 8.43mm

Spline Major Diameter: 1.403" / 35.63mm

Counter Bore: .275" / 6.985mm

Splines: 32

Total Bolt Holes: 12

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through holes )

Pattern 2:

64mm x 56mm Center to Center (4 Holes - 10mm through holes )

Pattern 3:

68.3mm x 60mm Center to Center (4 Holes - 11mm through holes)

Qty. 1
