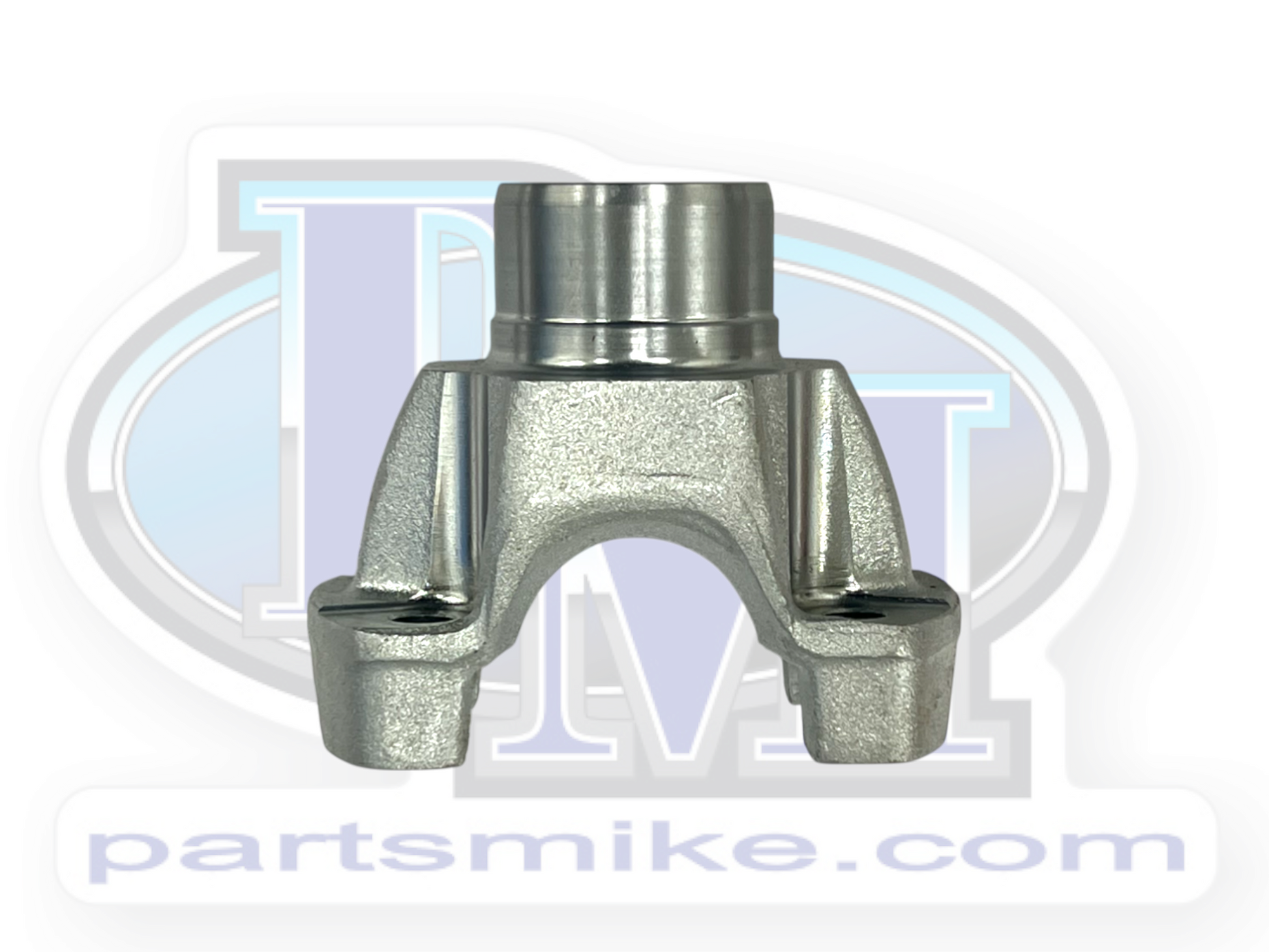

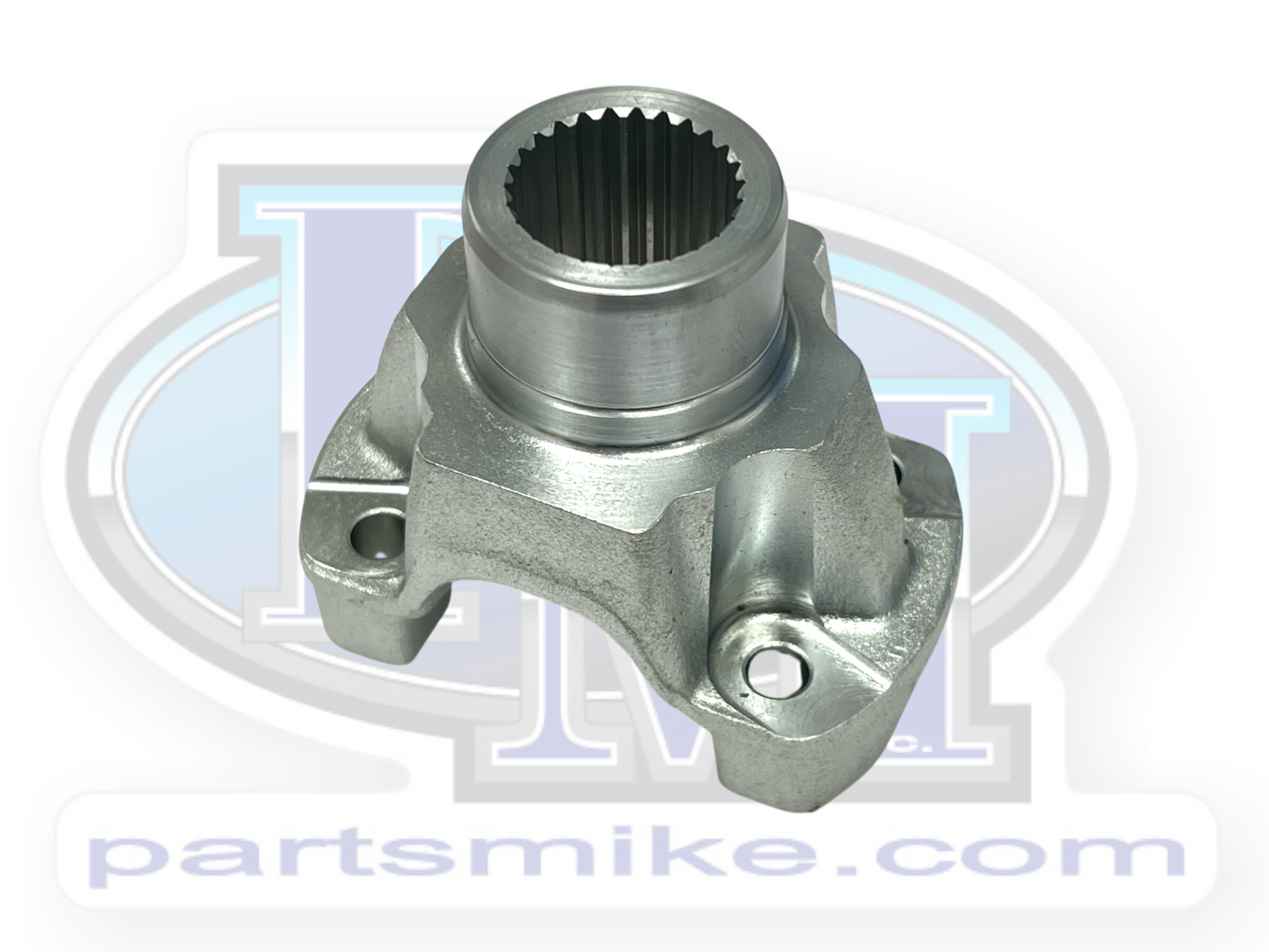

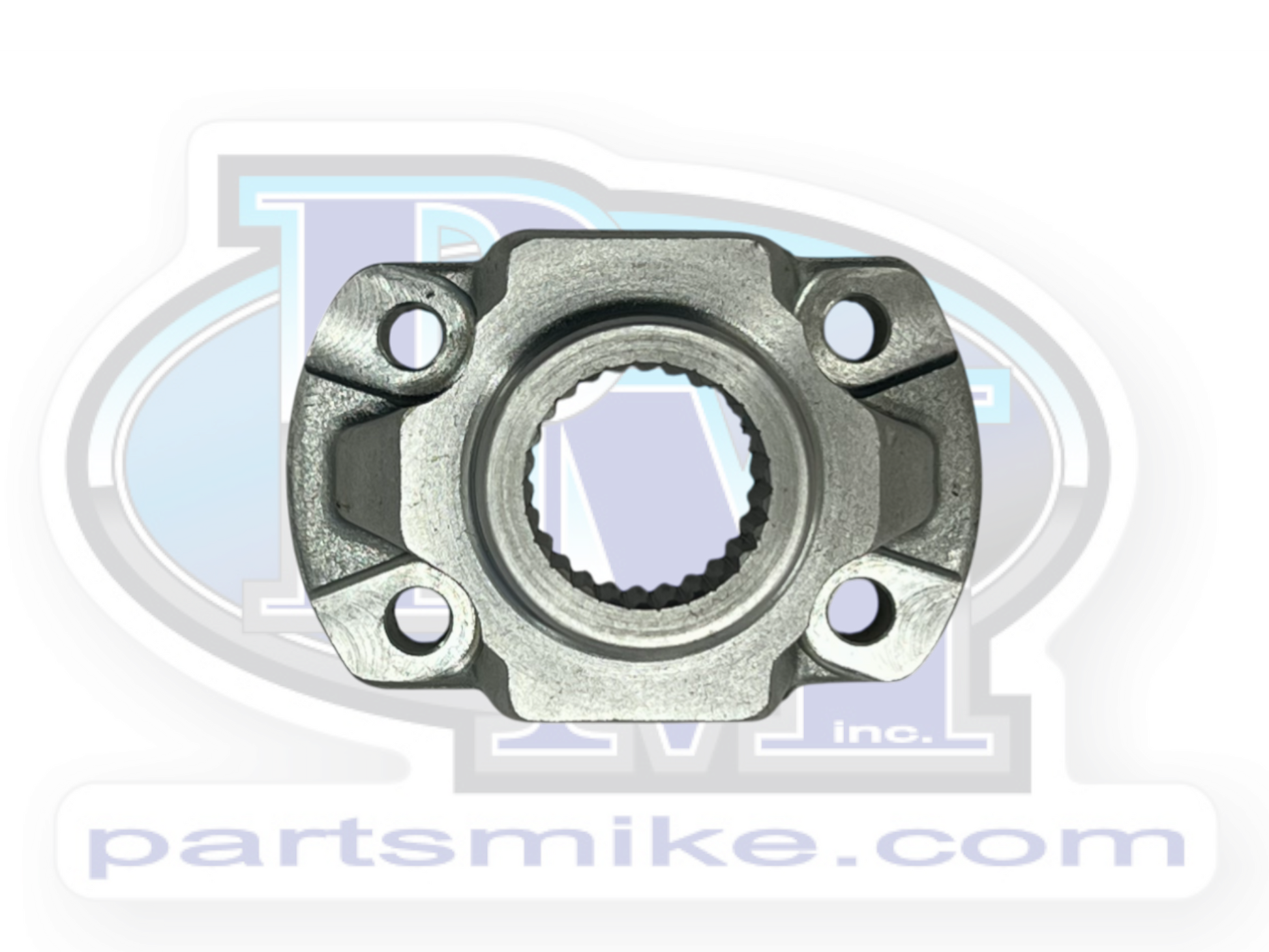

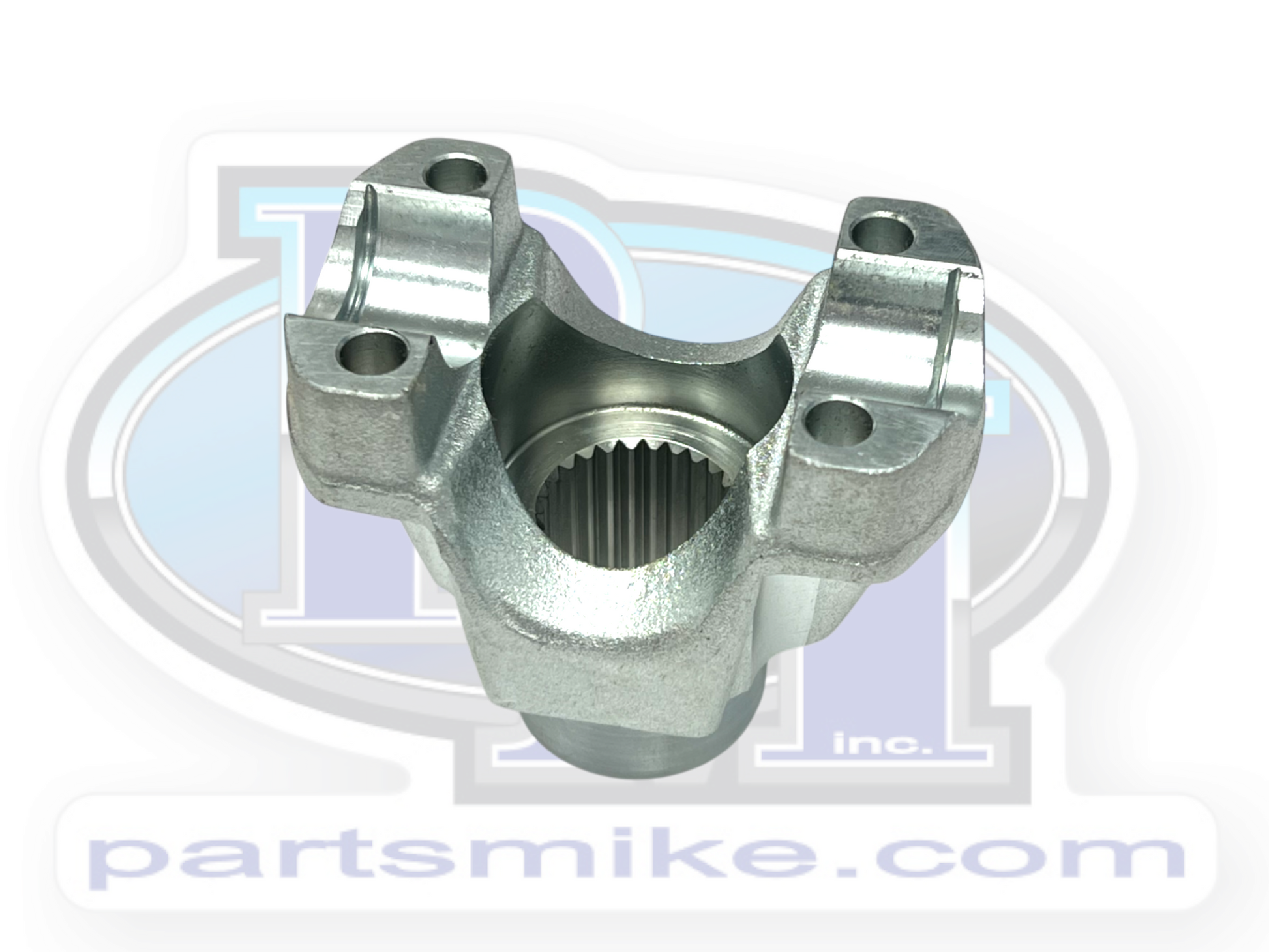

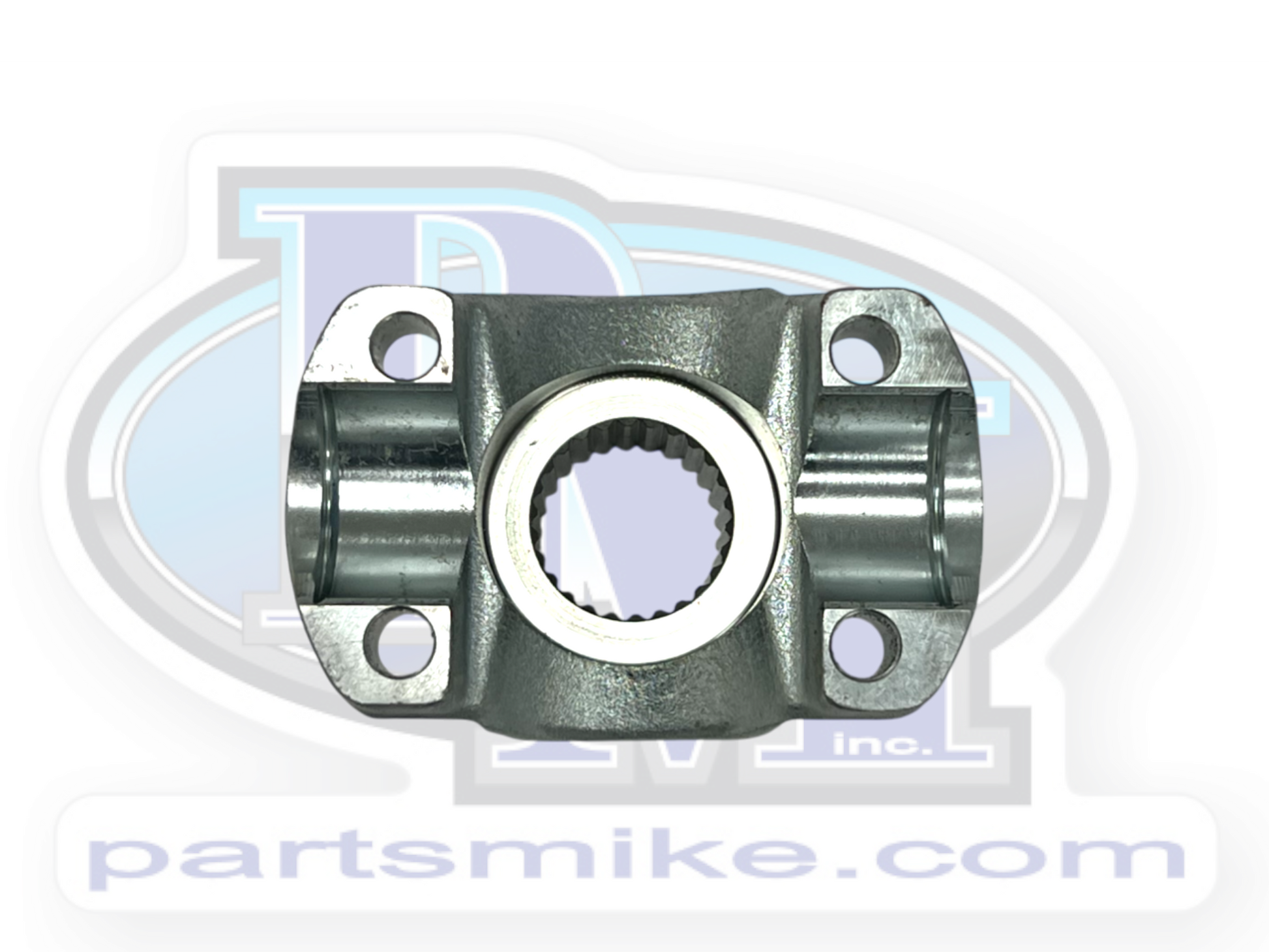

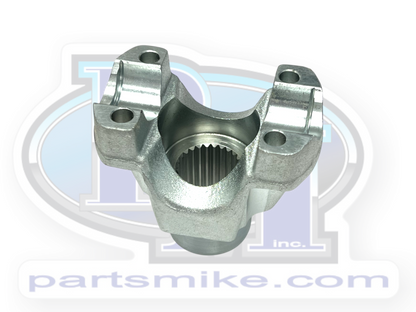

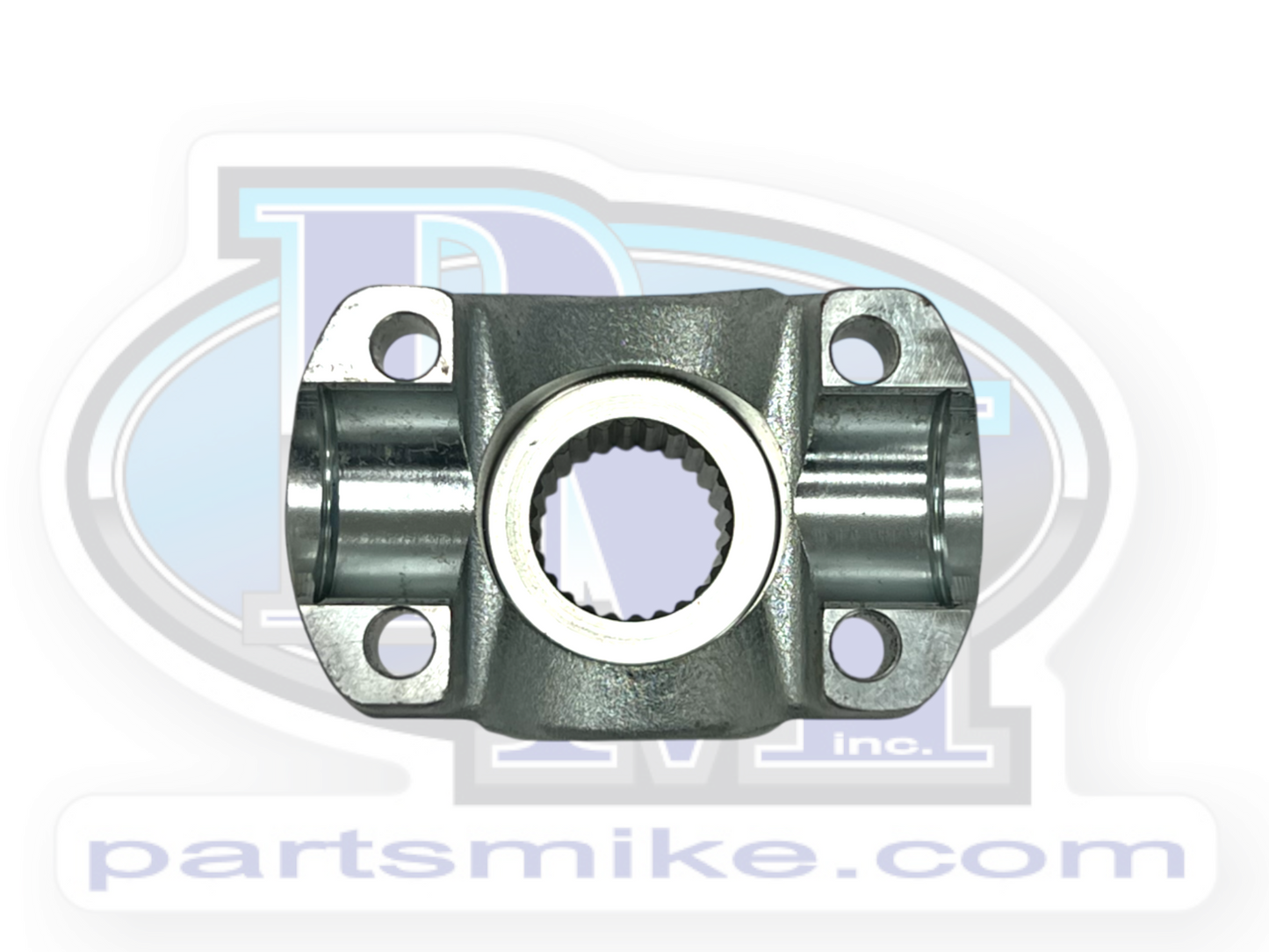

1310 End Yoke, 26 Spline, Fits Dana 300 & Jeep NP231, (PM3112-CV04) aka: 2-4-4341

1310 End Yoke, 26 Spline, PM3112-CV04

Constant Velocity, Fits Dana 300 & Jeep NP231 Front Output Shaft

Dimensions (Reference Image)

A: Seal Surface: 1.554"

B: Through Hole: 1.50"

C: Overall Length: 3.072"

D: U-Joint Width: 3.218"

Major Spline Diameter: 1.141"

Counter Bore: 0

Splines: 26

Does not come with bolts.

For bolts, order part number DL3113-12PTG

Cross Reference: 2-4-4341

Qty. 1
