U-bolt, Square Toyota Front Housing, (TG110110-1)

Square U-bolt, Toyota Front Housing

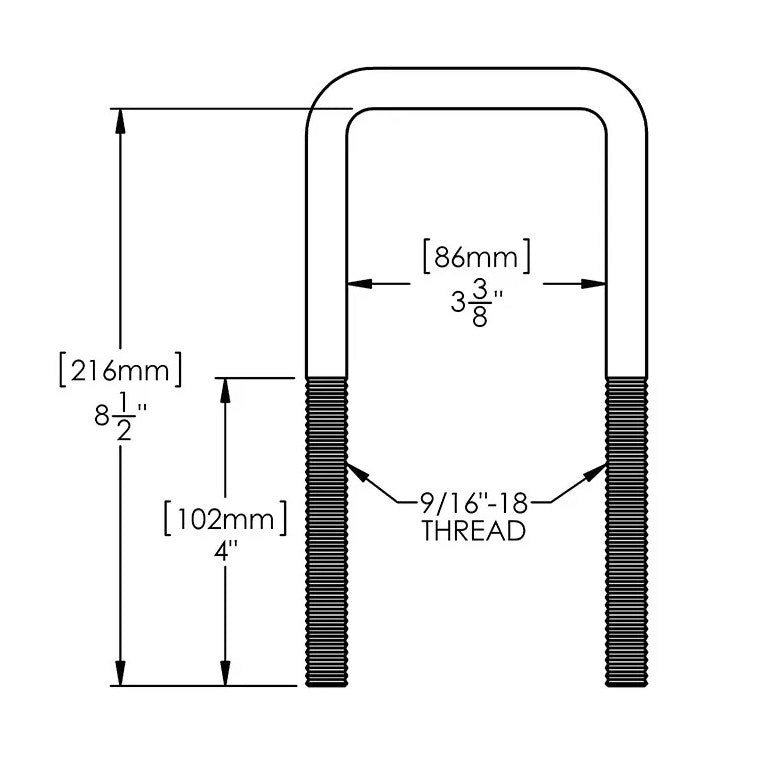

Grade 5 square U-bolt that is designed to fit a 2inch thick spring pack in the front. Made for a 3" OD axle tube diameter.

Measure from the bottom of the leaf spring to the top of your leaf spring plate.  The nut and washer will take up exactly 1" of threads, so be sure to include that.  For example, if you measure 6" (bottom of axle tube to top of spring plate), add 1" for the nut and washer, you'll have 1" of thread still showing on an eight inch u-bolt.

Qty. 1
