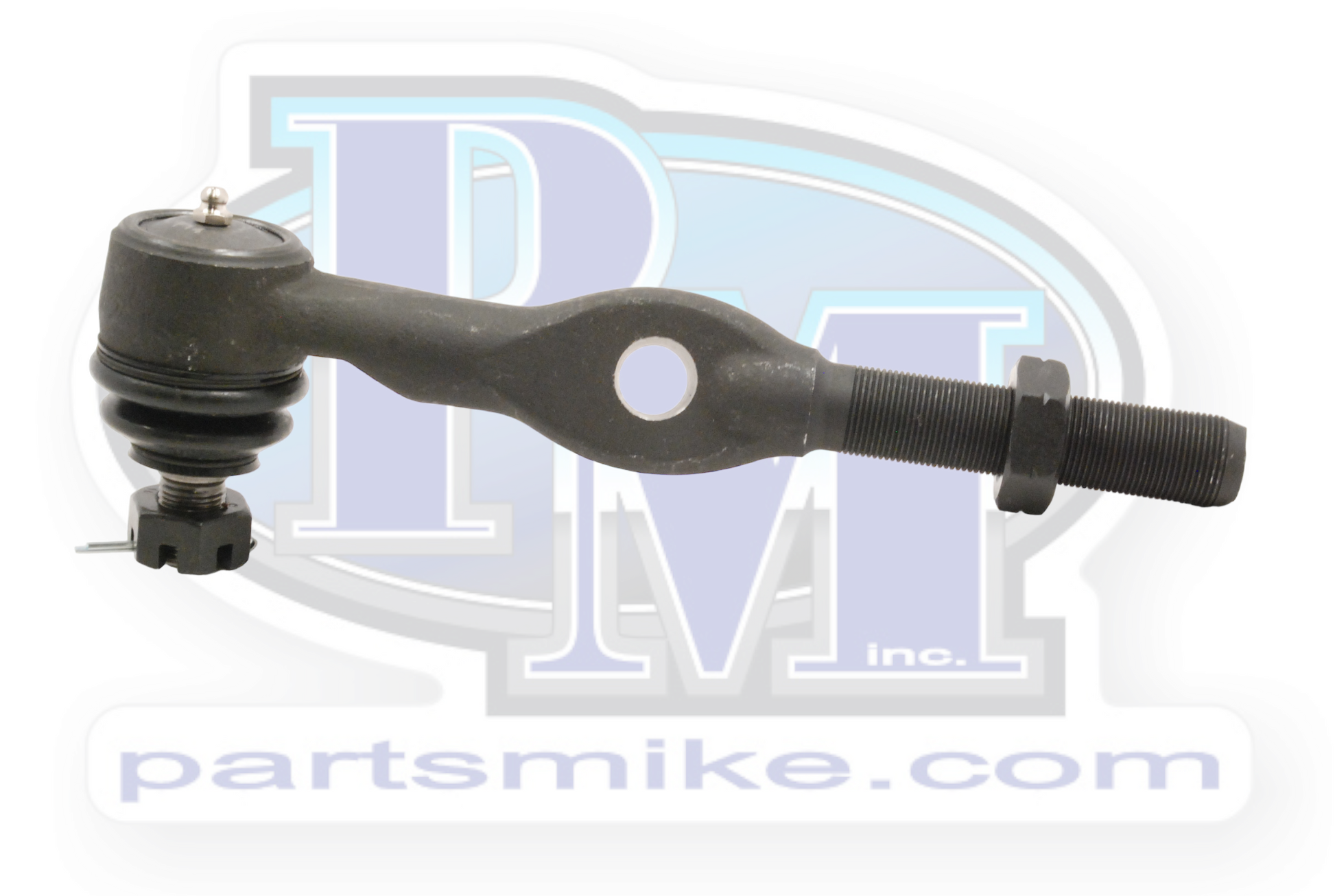

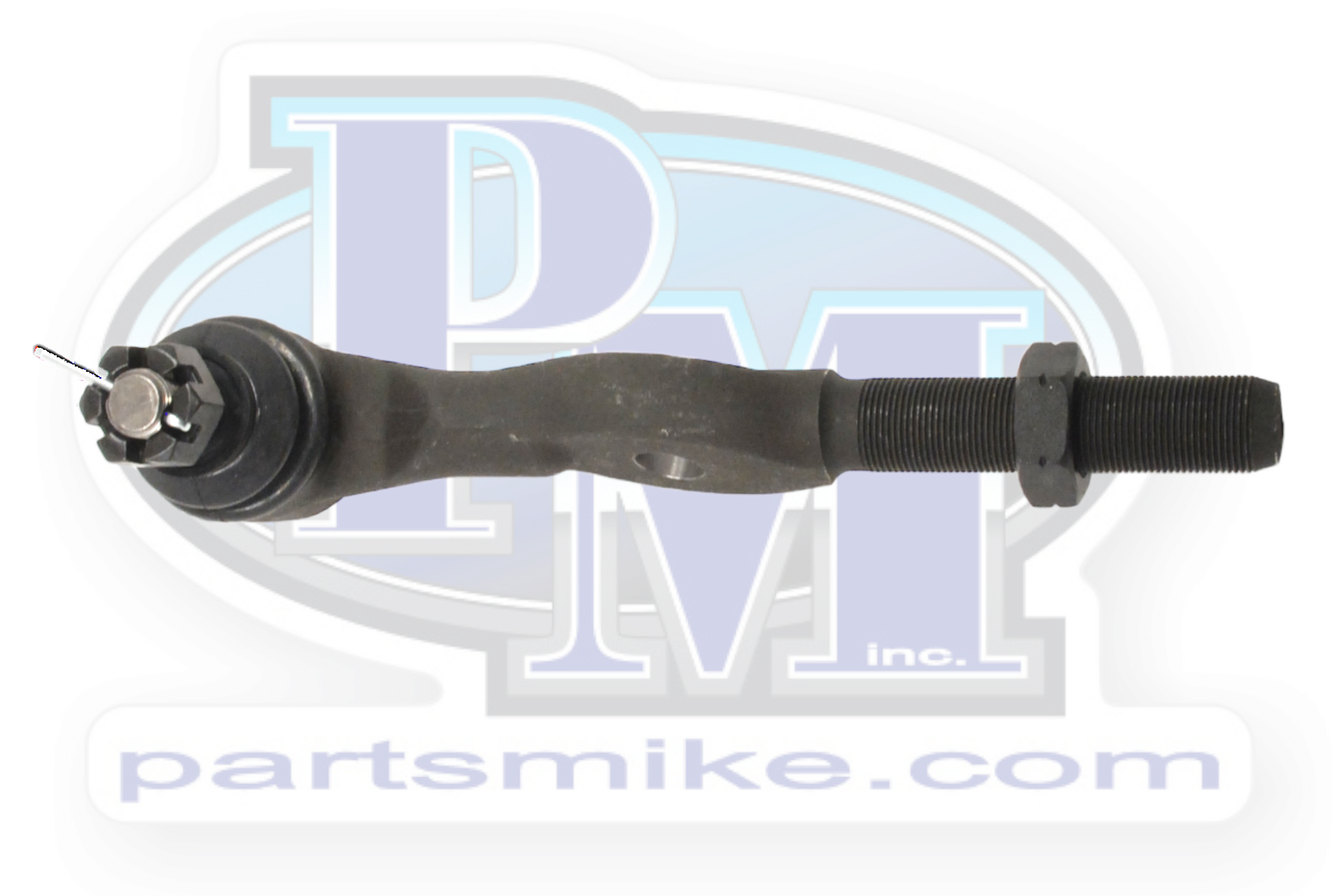

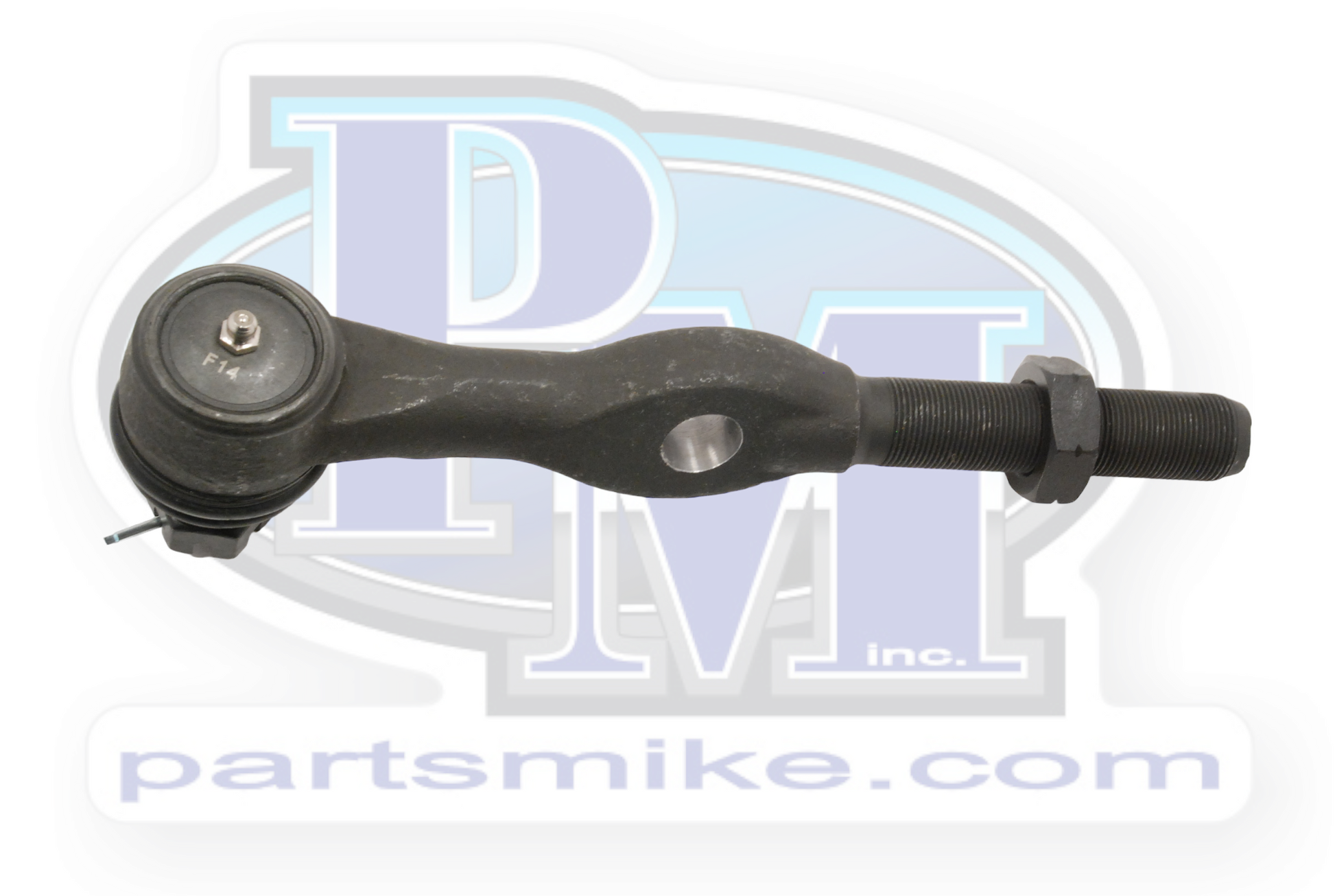

GM, Tie Rod End, Left Hand, Stock

GM, Tie Rod End, Left Hand, Stock

Parts Mike, Inc.

SKU:ES2233L

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Shipping calculated at checkout.

You've selected the stock, un-reamed version of the ES2233L (the original part).  You can't put your drag link in here.  It's the OE version, and the hole is tapered for a steering stabilizer.

GM 1 ton tie rod taper with 7/8"-18 left hand threads.  This IS not your typical tie rod end.  Check out the paragraph below the specifications to learn more about why these are the ends you want.

Specifications:

  • Overall length:  10-1/2"
  • Socket diameter: 2"
  • Taper: Chevy tie rod, 8:1 (or 1.5" over 12"), AKA 7 degrees (close, but not 7 ;)

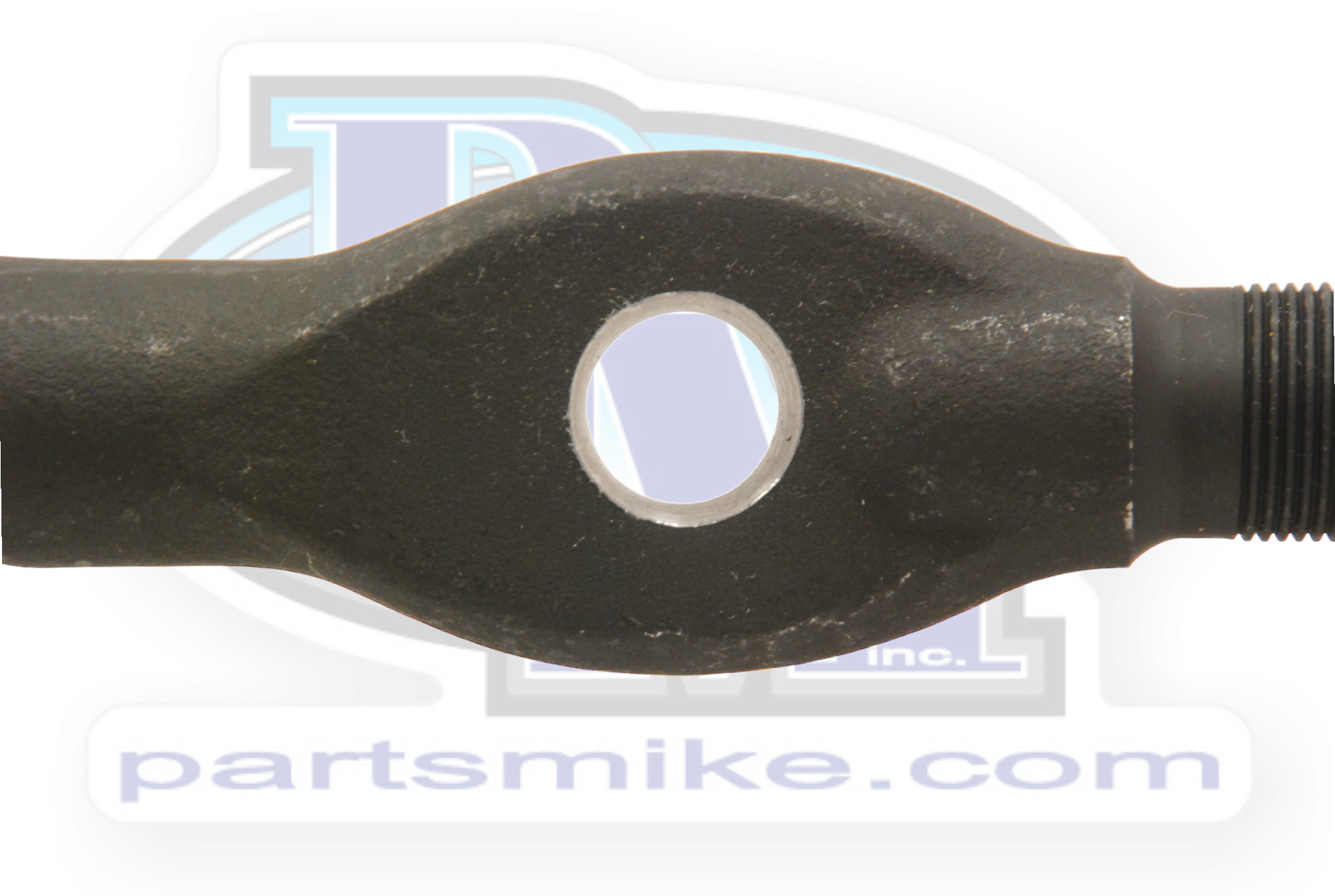

  • Hole taper:  GM steering stabilizer
  • Shank:  7/8"-18 left hand, 3-1/2" of threads
  • Jam nut:  7/8"-18 left hand, 1-5/16" wrench size



Well, if you've read this far, you're interested in what sets Parts Mike's ends apart from the competition.  Read on, you won't be disappointed.  Our ends are specifically manufactured to our specifications.  Our design utilizes a chromoly tapered shaft and metal on metal ball and socket design.  You read that right; chromoly shaft and metal on metal ball and socket.  All the ends you find at the auto parts store use a plastic bushing between the ball and the socket.  When you're driving down the trail and smack a rock with your tire, the shock load through the steering system can cause that plastic to dent/deform/break.  What you end up with is a loose tie rod end instantly.  Our metal on metal design (forged outer housing and chromoly ball and shaft) means no plastic to break. Inside the socket is a spring that preloads the ball (similar to the upper kingpin in a Dana 60).  This keeps the end tight as the parts wear.
