Pitman Arm, Flat, No Master Splines, Reamed GM Tie Rod Taper @ 5.625"

Pitman Arm, Flat, No Master Splines, Reamed GM Tie Rod Taper @ 5.625"

Parts Mike, Inc.

SKU:PM536FPA-2234@5.625A

Regular price $105.00 USD
Regular price $105.00 USD Sale price $105.00 USD
Sale Sold out
Shipping calculated at checkout.

You've selected the flat pitman arm reamed to a GM tie rod taper 5-5/8" from center of spline hole to center of tapered hole.

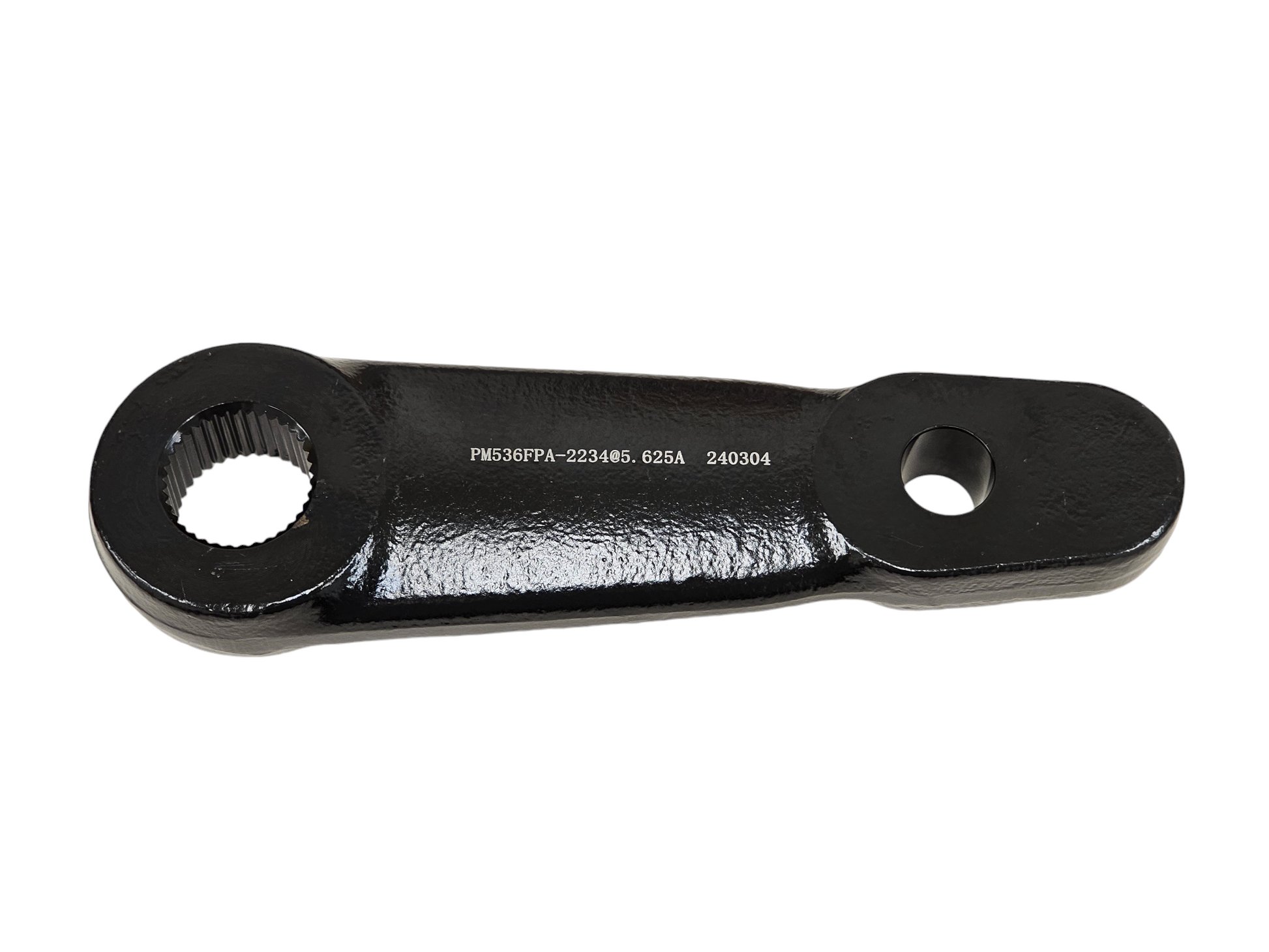

This is a flat pitman arm (no drop).  It comes tapered from the bottom up for a GM tie rod end (example part numbers:  ES2234R, ES2233L, ES2010L&R) at 5-5/8".  Typically used with a 6" steering arm (center of ball joint to drag link hole) for lock to lock steering.

WARNING:  If you're cutting off the excess material, you must leave 1/2" material around the around the big side of the tapered hole.

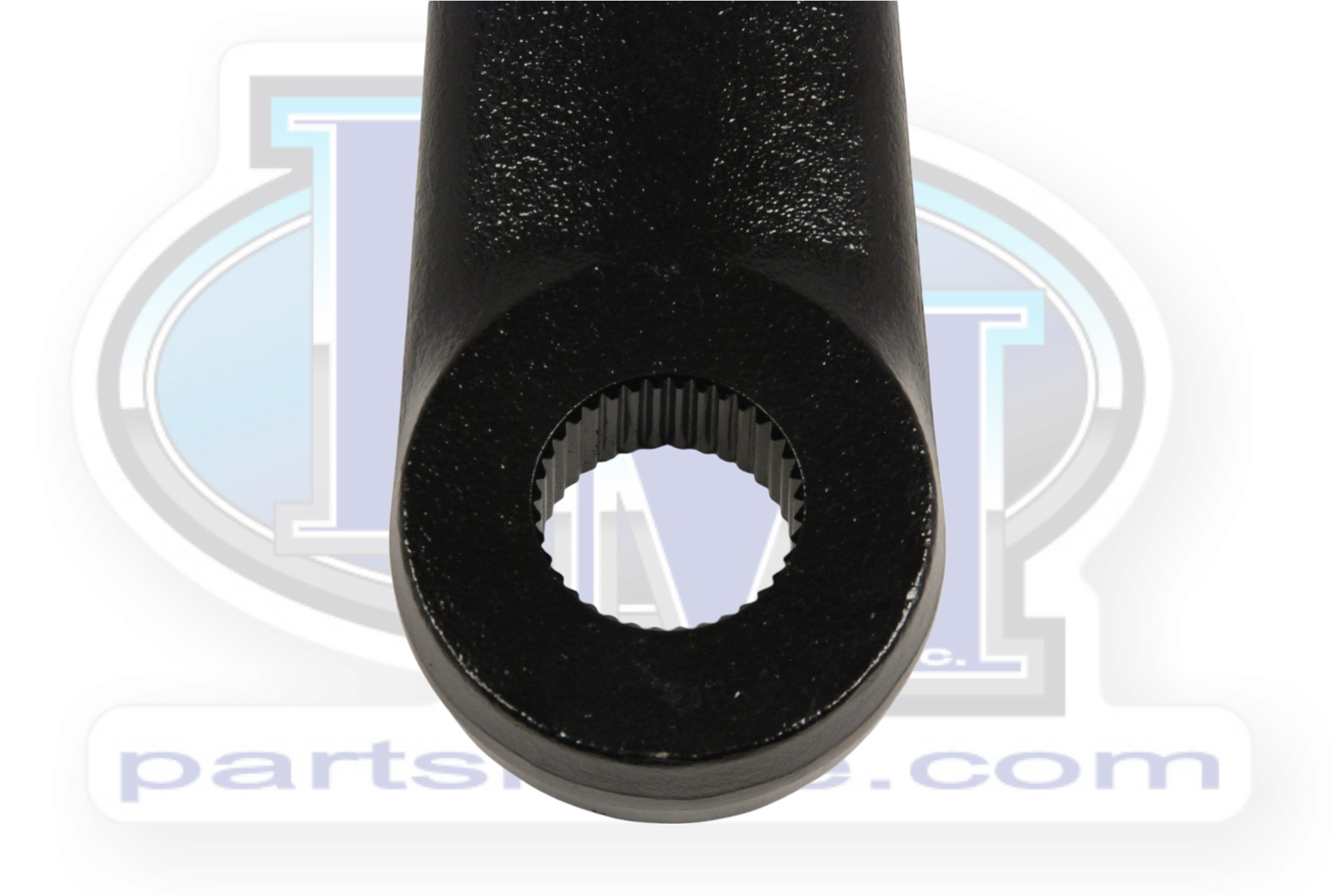

Made to fit a Saginaw 32 spline power box spline (no master/key way splines) which allows you to adjust steering wheel center as needed (no need to file the flats because it doesn't have any).

Specifications
  • Overall length (tip to tip):  8-3/4"

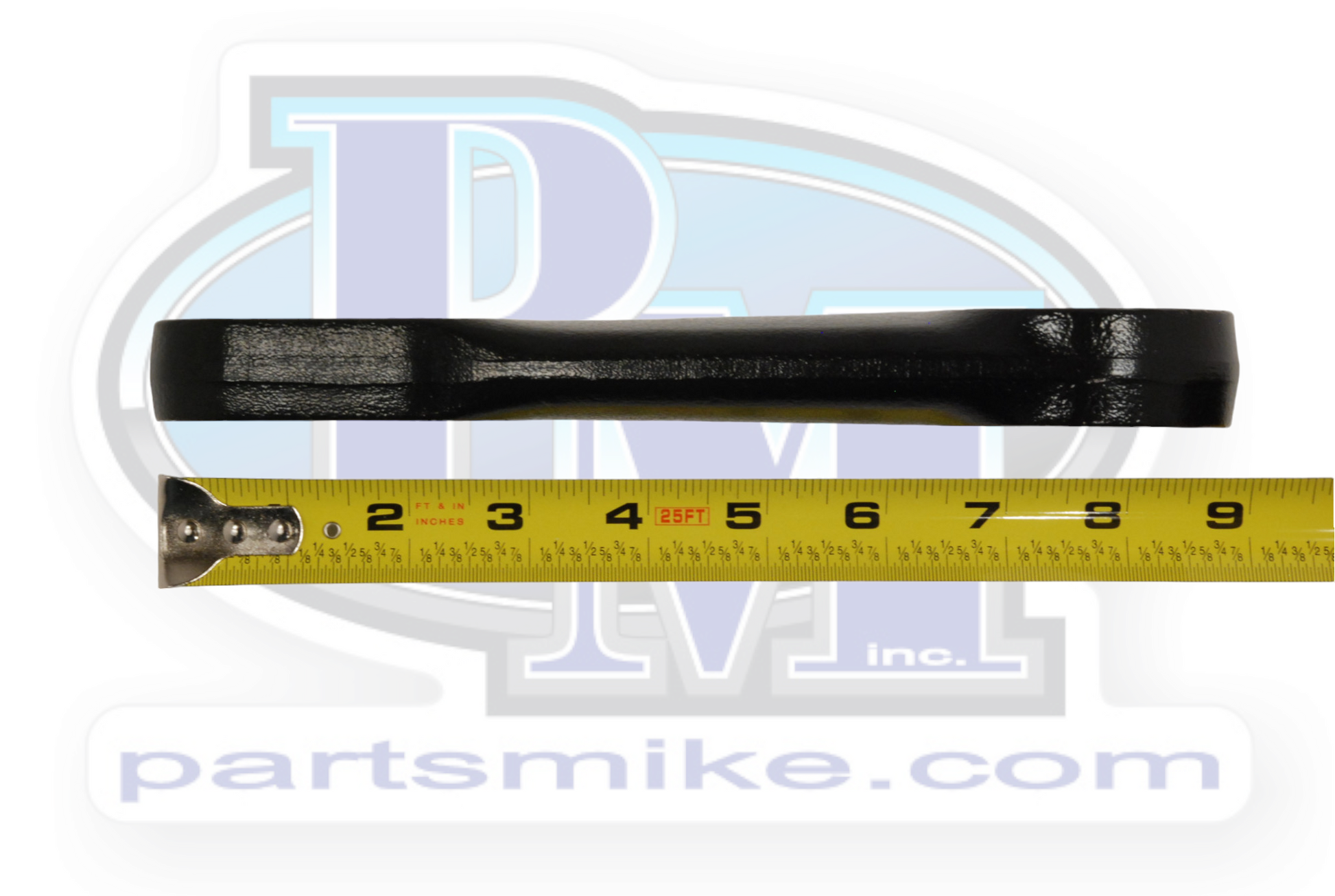

  • Drop:  none
  • Center to center length (sector shaft to drag link hole):  5-5/8" C-C for GM tie rod taper
  • Sector shaft hole:  32 spline Saginaw power steering
  • Drag link hole:  GM tie rod taper (fits:  ES2234R, ES2233L, ES2010L&R)
