Toyota Companion Flange, 29-Spline Quadruple-Drilled Differential Flange, (TG304184-1-KIT)

29-Spline Quadruple-Drilled Differential Flange

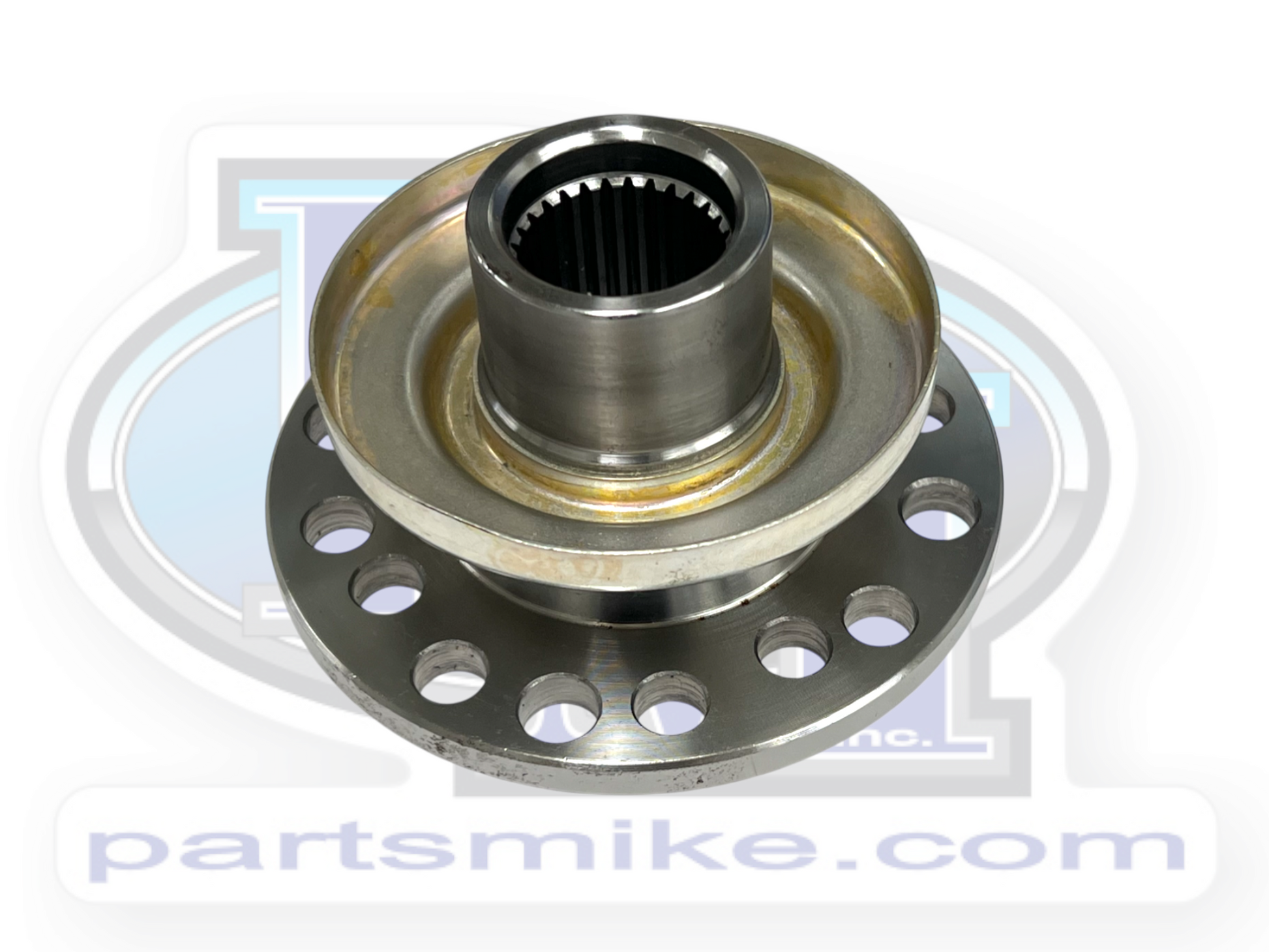

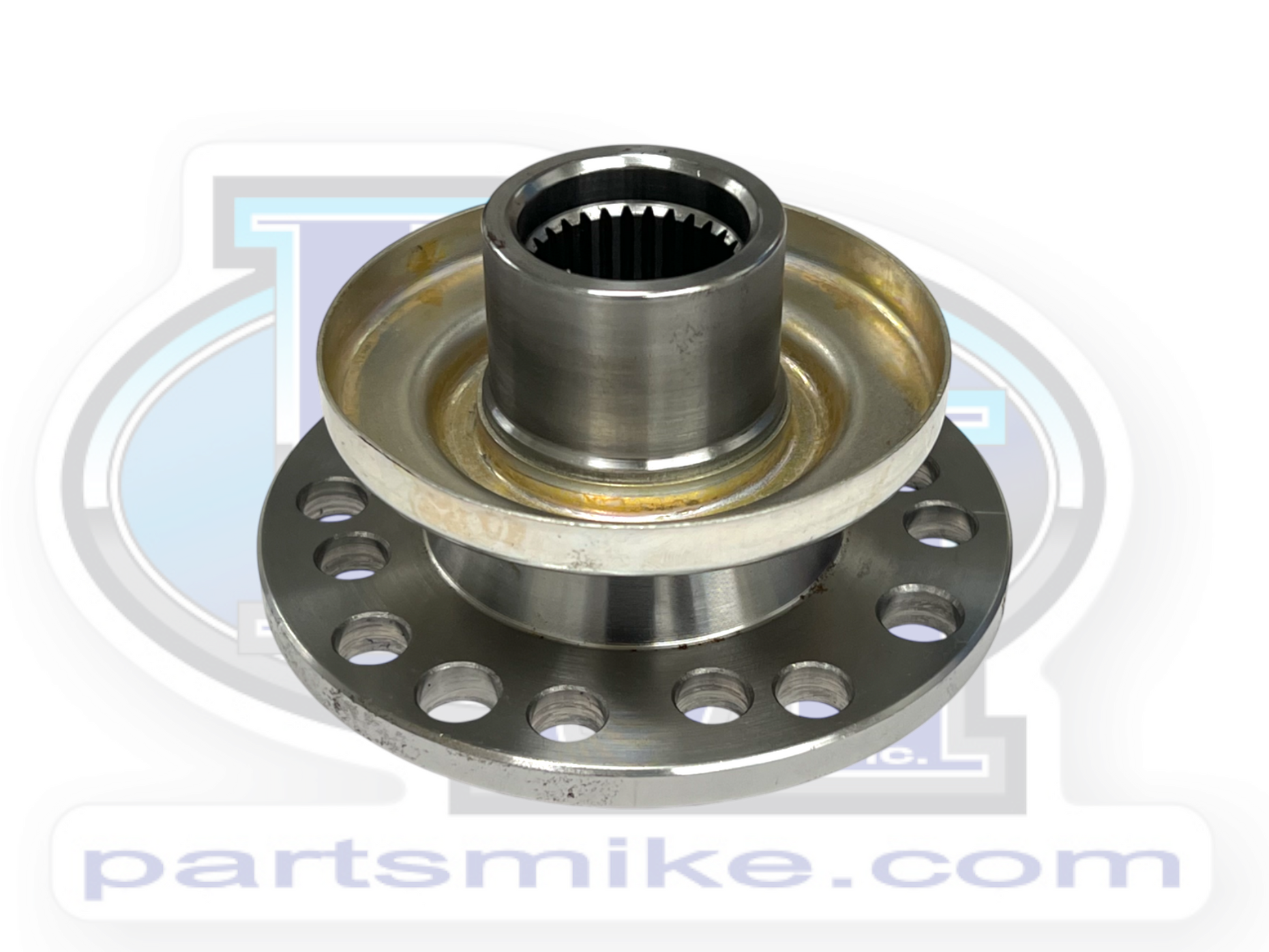

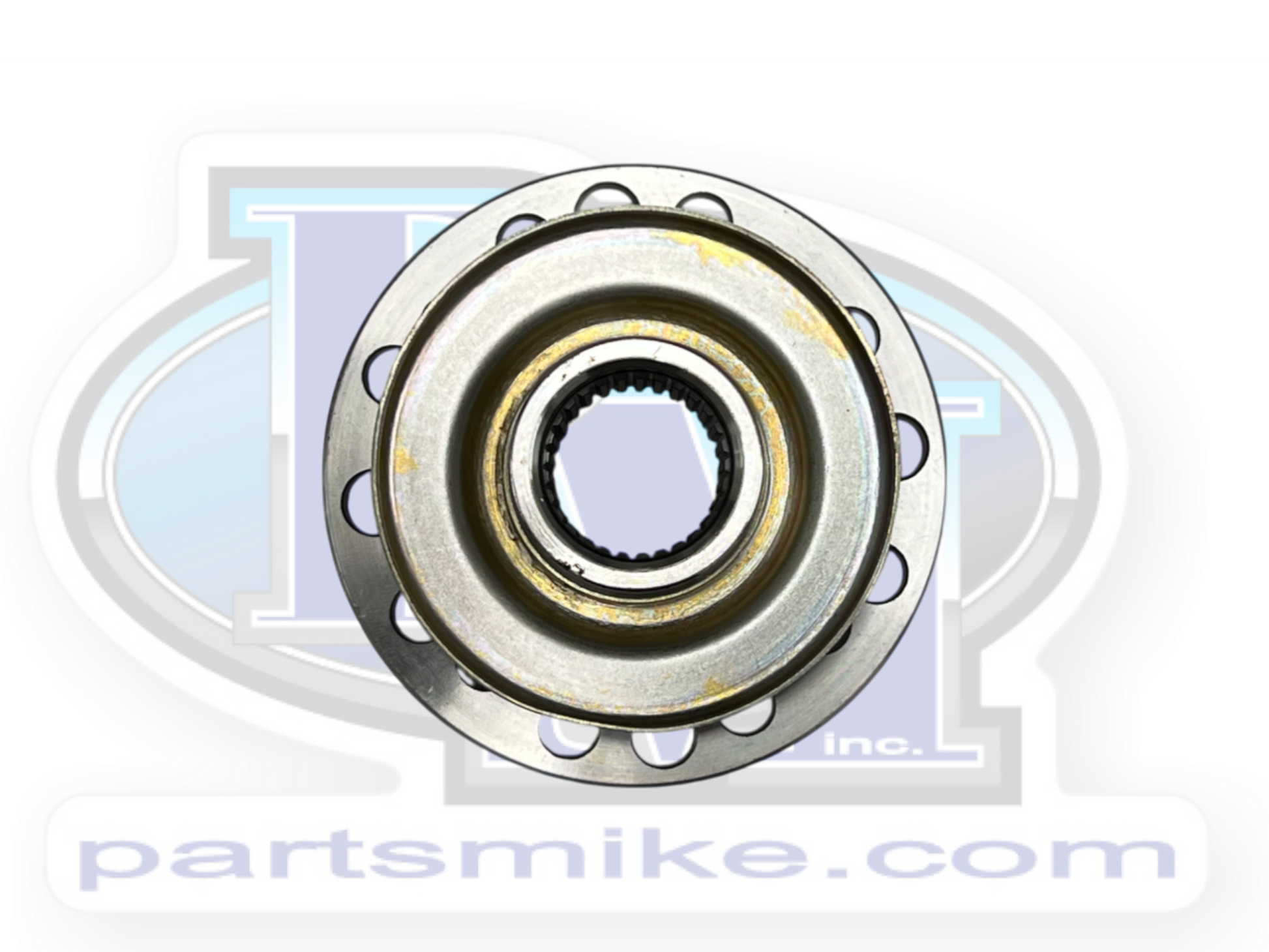

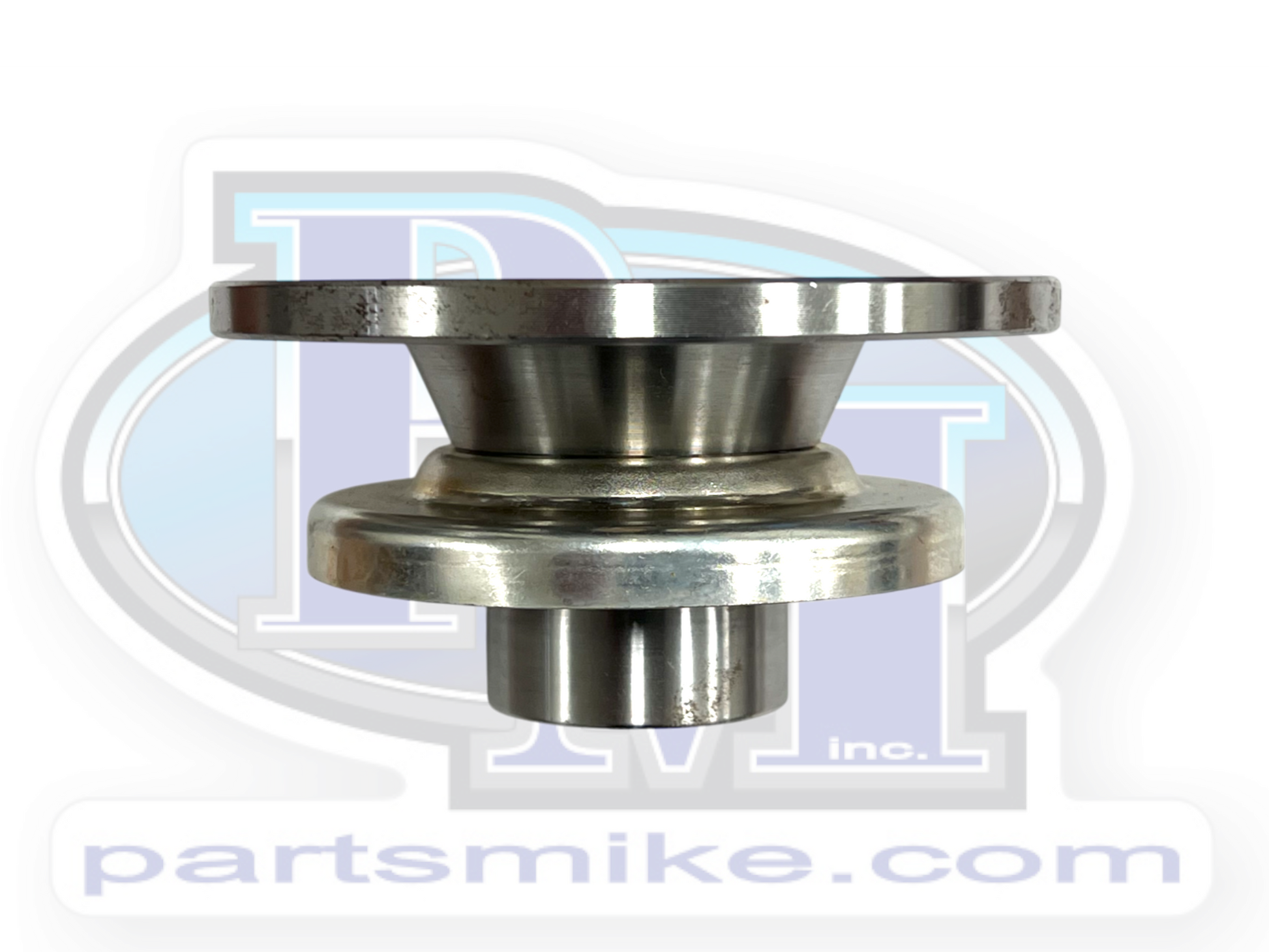

This forged 5140 chromoly steel 29-spline differential flange is predrilled with the most common Pickup/4Runner and Tacoma driveline patterns.  Fits 8" Toyota differentials with 29-spline pinion gears.  Available with or without installed differential dust shield.

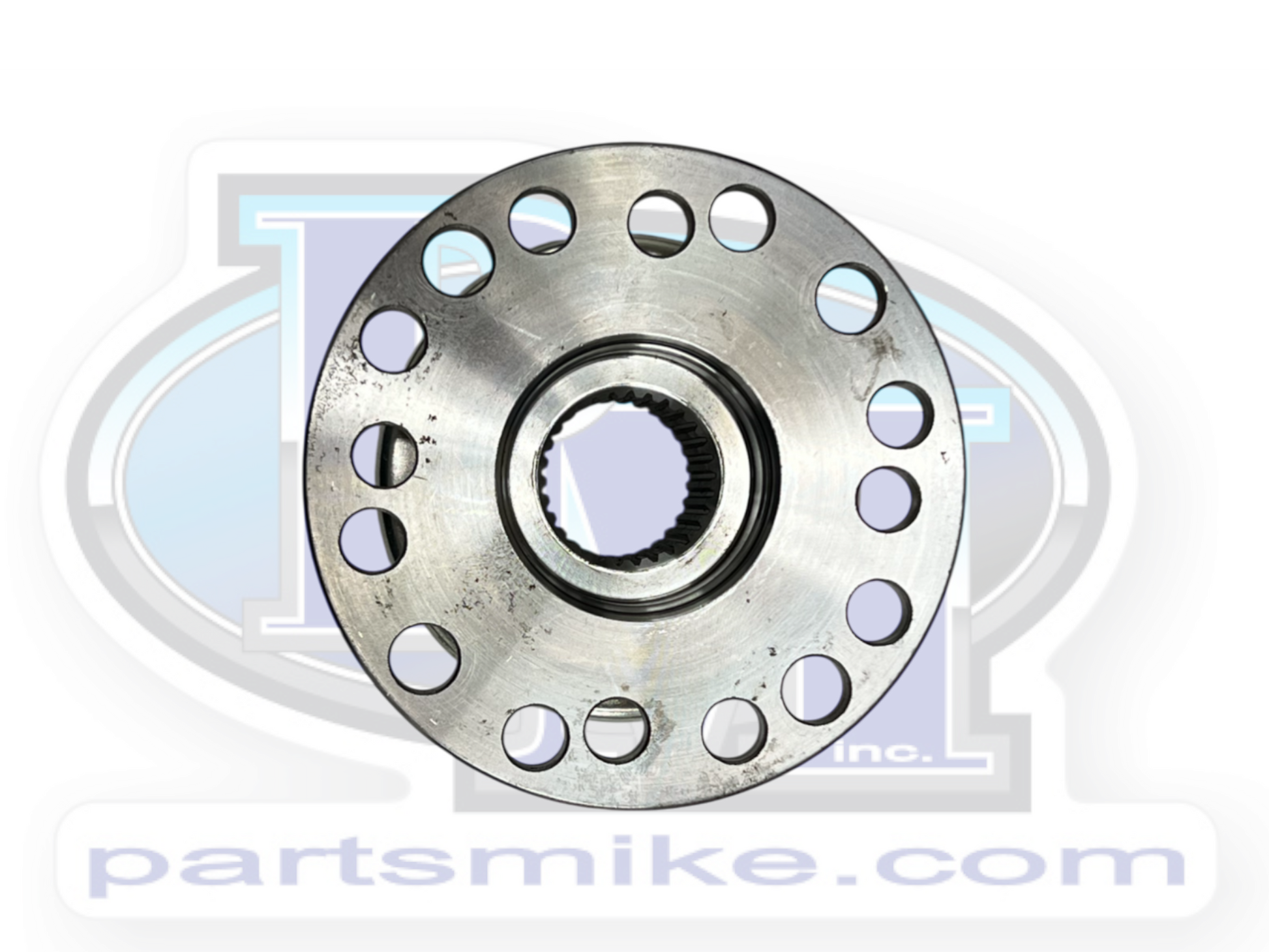

Included bolt patterns:  66mm x 66mm x 11mm, 60mm x 60mm x 10mm, 60mm x 68.3mm x 10mm, & 61.5mm x 70mm x 10mm.

Dimensions

A: Pilot Diameter: 1.810" / 45.97mm

B: Seal Surface: 1.619" / 41.12mm

C: Through Hole: 1.654" / 42.01mm

D: End of Flange Face to end of Seal Surface: 2.254" / 57.25mm

Flange Face Outside Diameter: 4.402" / 111.81mm

Flange Face Thickness: .290" / 7.366mm

Spline Major Diameter: 1.190" / 30.22mm

Counter Bore: .259" / 6.57mm

Splines: 29

Total Bolt Holes: 16

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through hole) Pickup/4Runner and TG Heavy Duty Driveline

Pattern 2:

60mm x 68.3mm Center to Center (4 Holes - 10mm through hole)

Pattern 3:

66mm x 66mm Center to Center (4 Holes - 11mm through hole) Tacoma

Pattern 4:

61.5mm x 70mm Center to Center (4 Holes - 10mm through hole)

NOTE: Will not fit on 27-spline pinions.

Specifications:

• Forged SAE 5140 chromoly steel.
• Fits Toyota 8” Differentials with 29-spline pinions.
• Dust shield pre-installed (304184-1-KIT only)

Application Data:

• 1979-1995 Toyota Pickup (Rear Diff with 29-spline Pinion)
• 1985-1996 Toyota 4Runner (Rear Diff with 29-spline Pinion)
