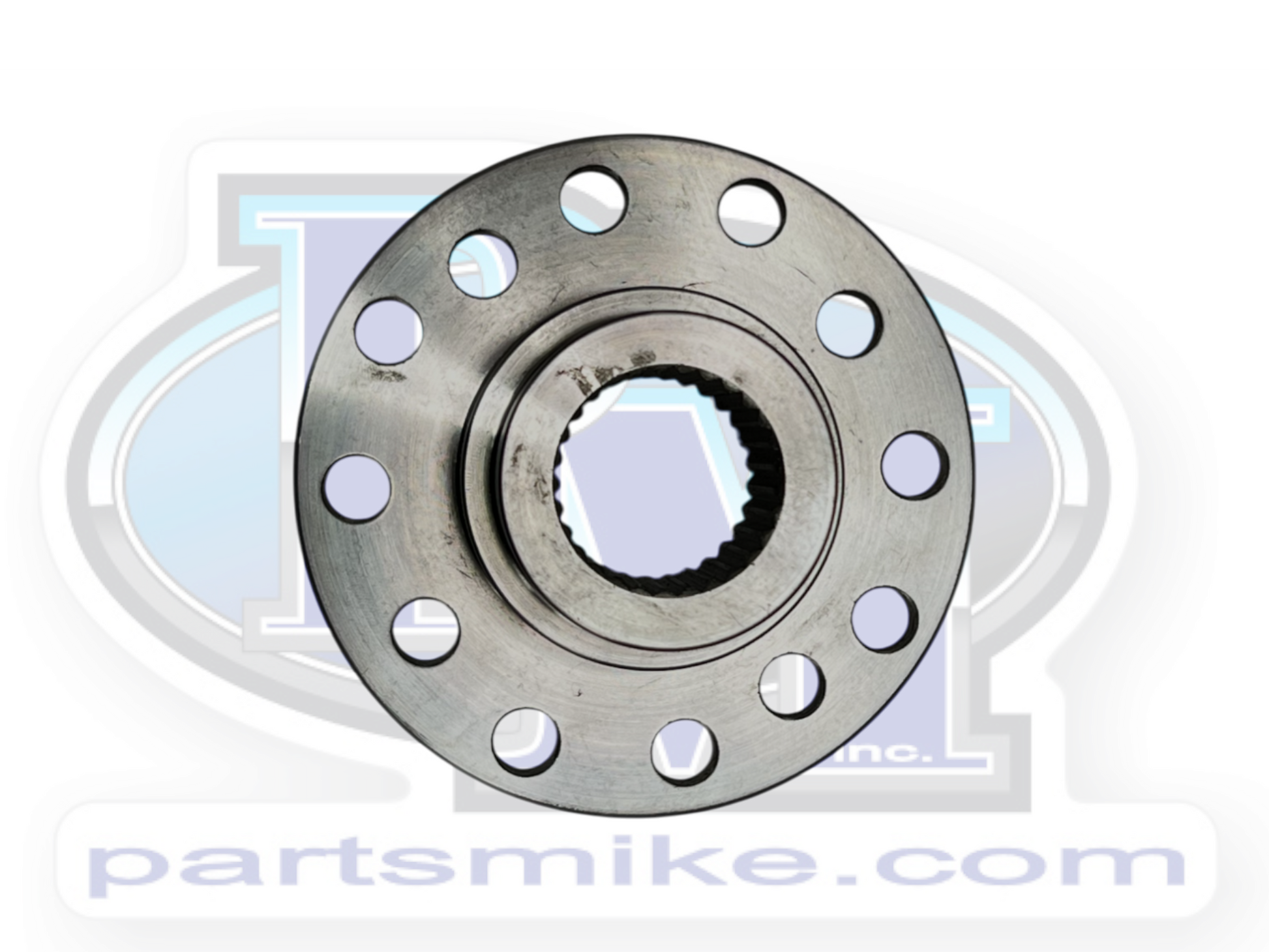

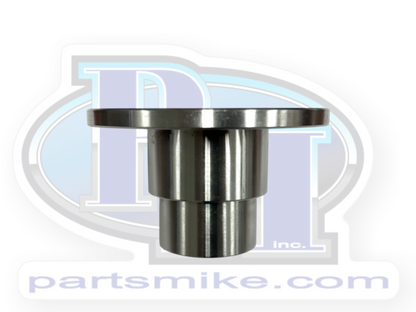

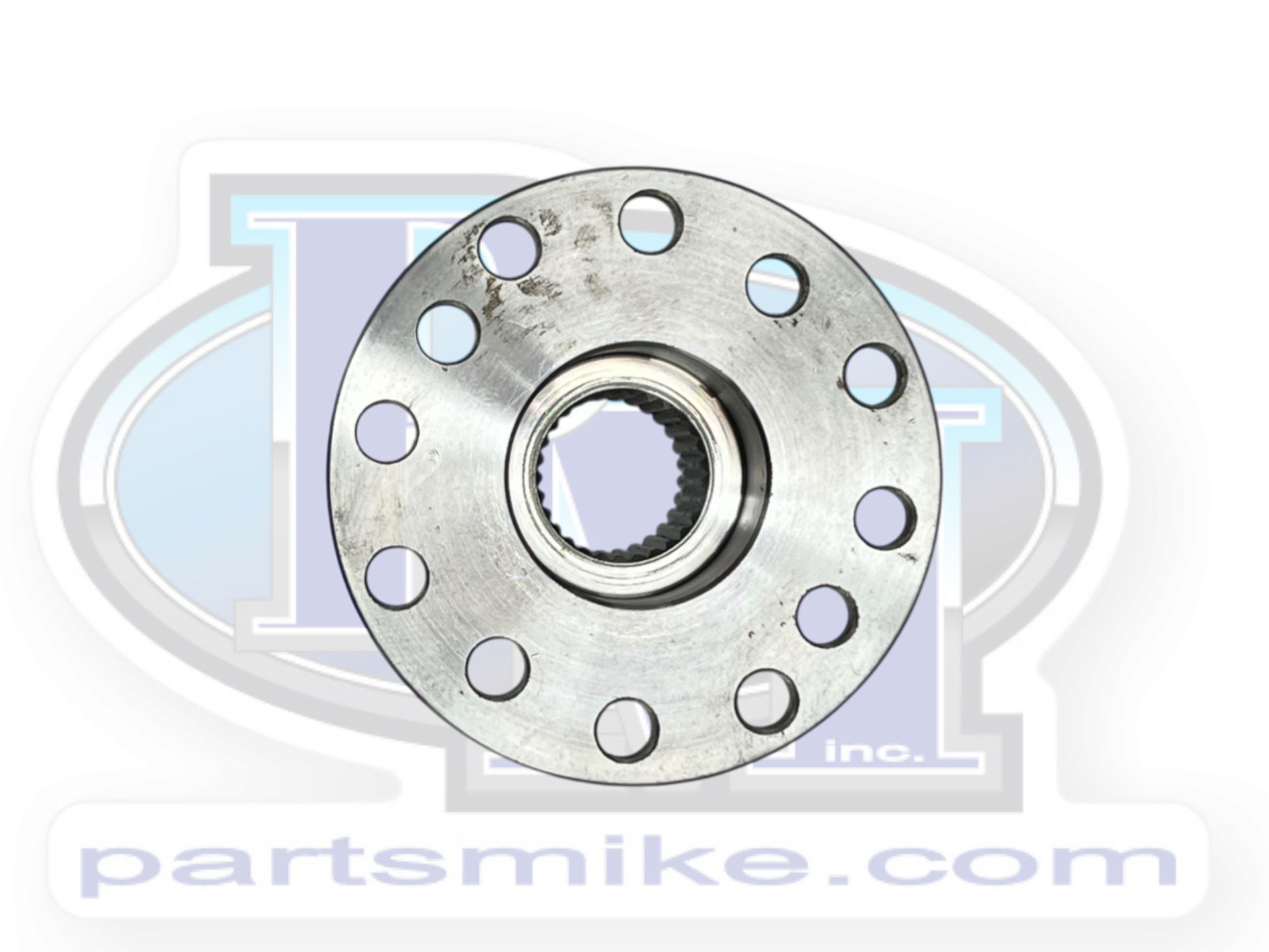

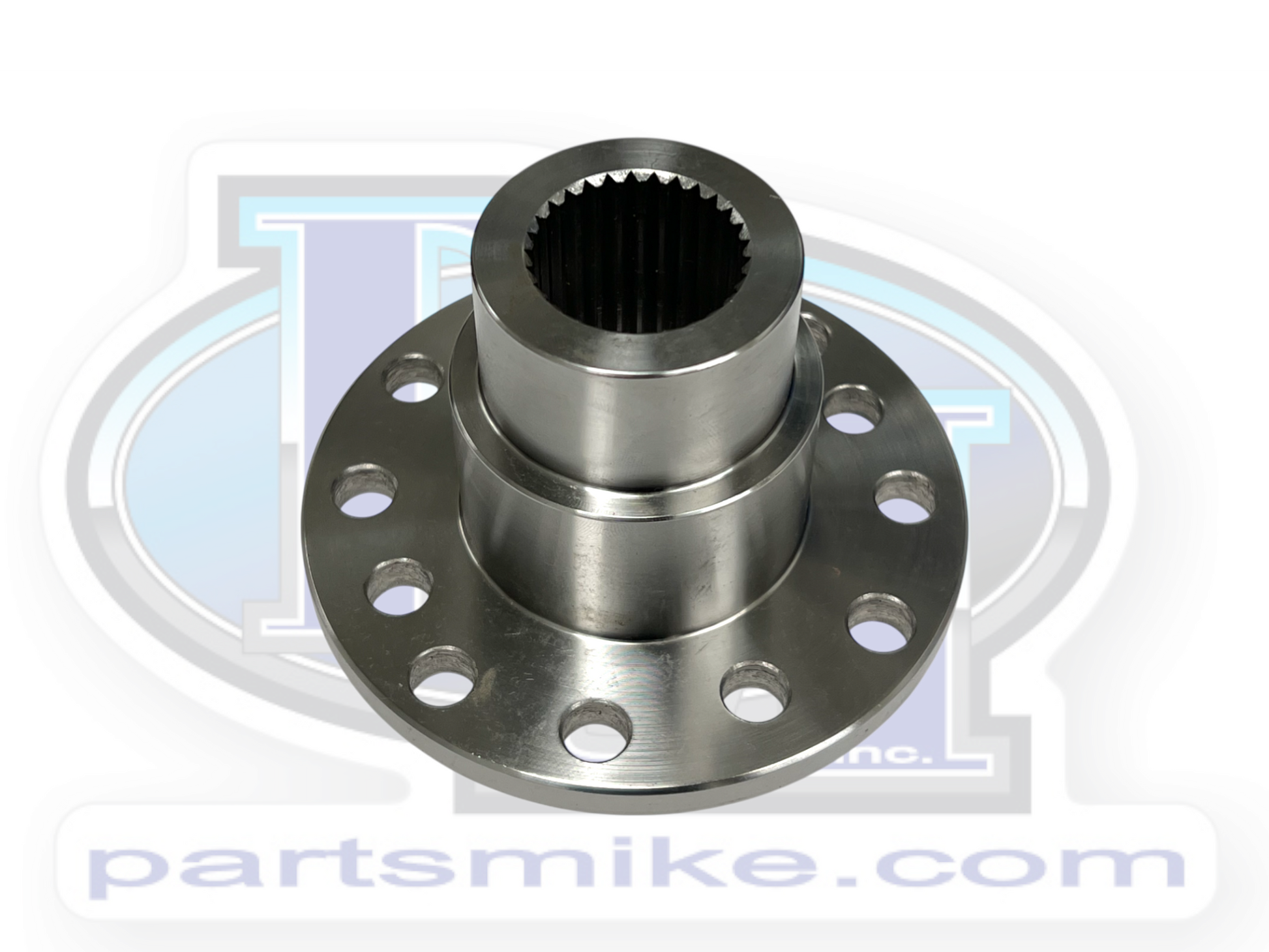

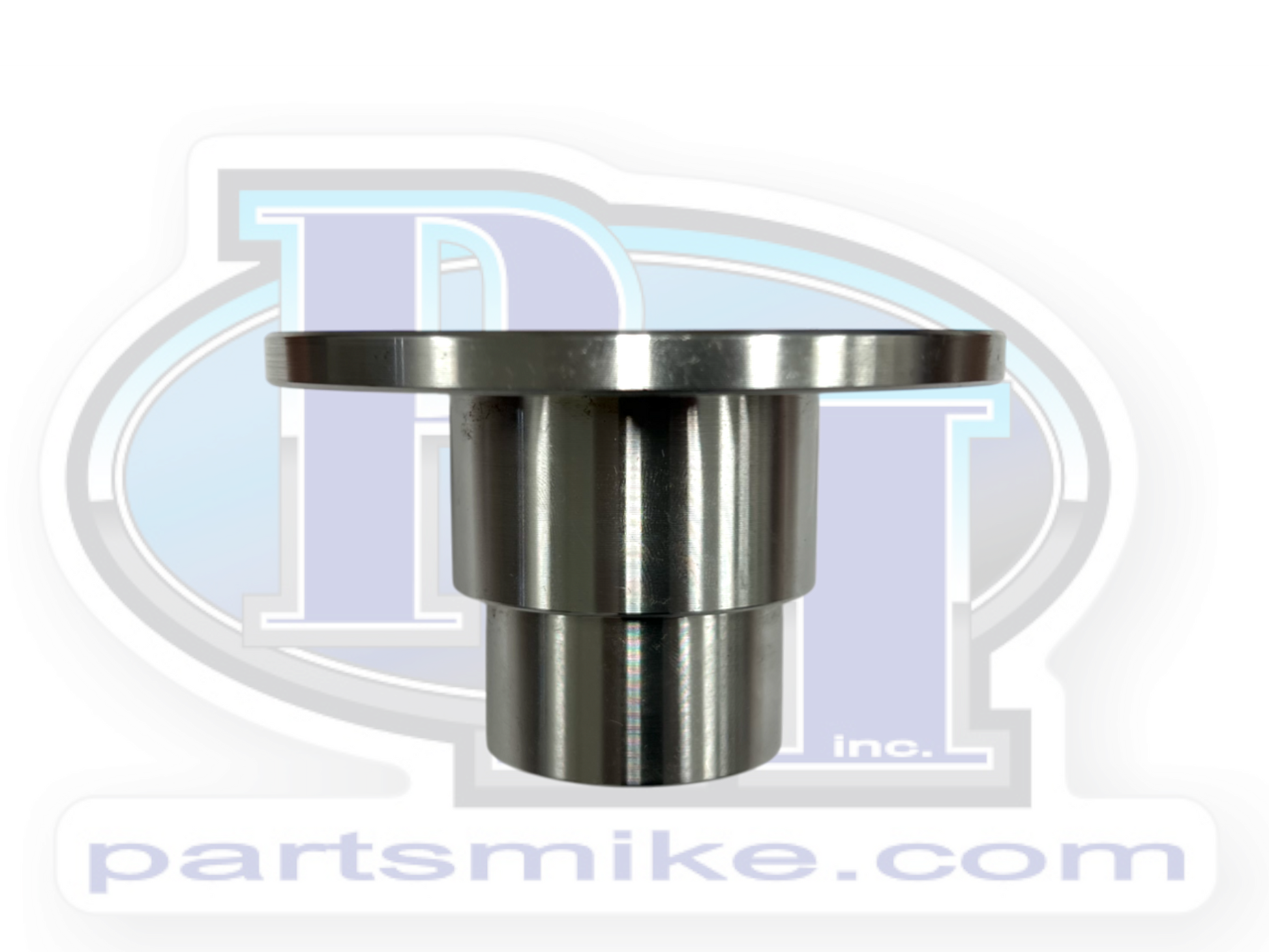

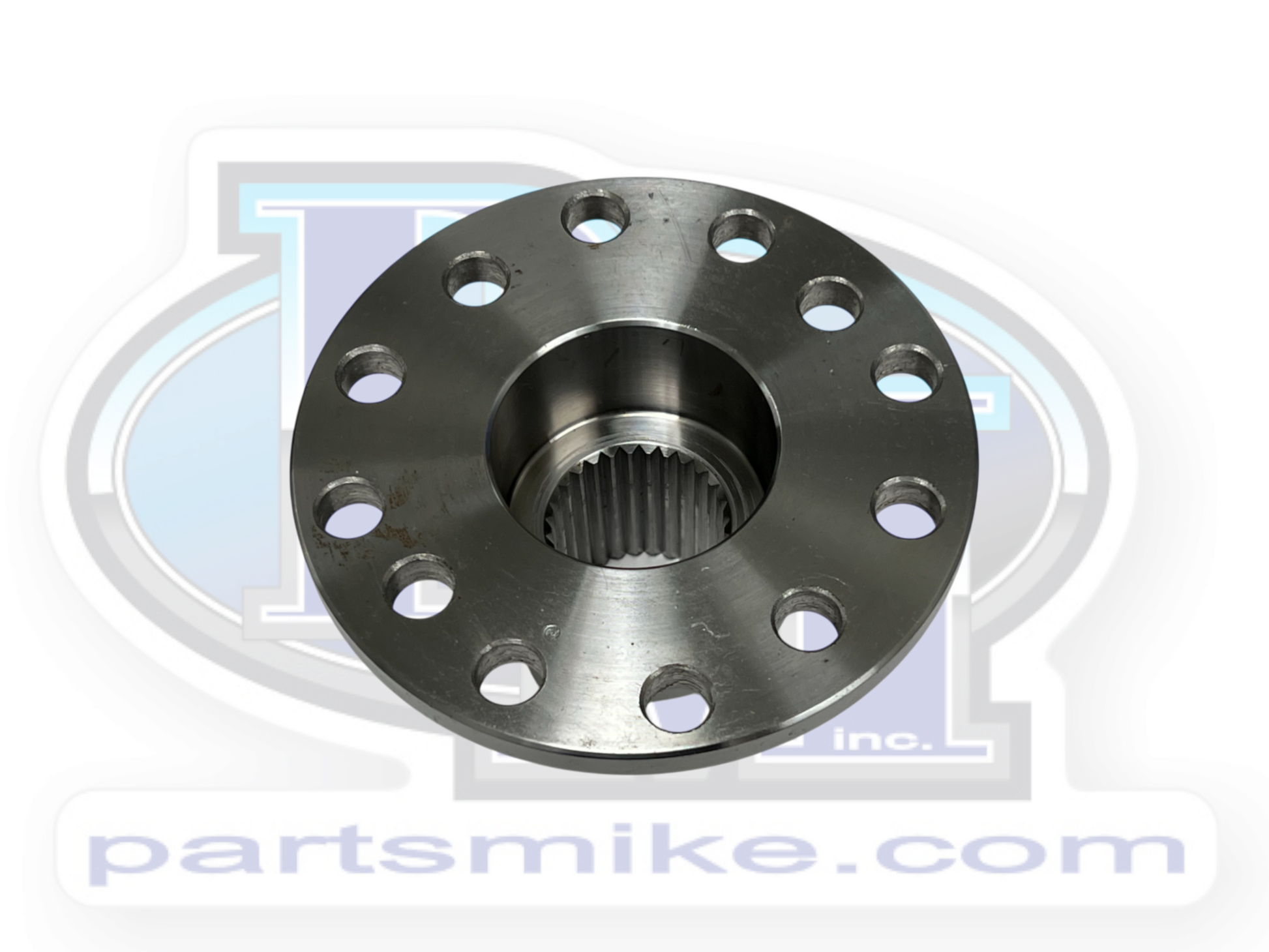

Toyota to Dana 60 Companion Flange, 8", 29 Spline, w dust shield, (TG144000-1-KIT)

Toyota Companion Flange, 8", 29 Spline, w dust shield, TG144000-1-KIT

Dimensions

A: Pilot Diameter: 1.819" / 46.20mm

B: Seal Surface: 1.887" / 47.92mm

C: Through Hole: 1.546" / 39.26mm

D: End of Flange Face to end of Seal Surface: 2.576" / 65.43mm

Flange Face Outside Diameter: 4.374" / 111.09mm

Flange Face Thickness: .307" / 7.79mm

Spline Major Diameter: 1.264" / 32.10mm

Counter Bore: 0

Splines: 29

Total Bolt Holes:

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through hole)

Pattern 2:

60mm x 68.3mm Center to Center (4 Holes - 10mm through hole)

Pattern 3:

61.5mm x 70mm Center to Center (4 Holes - 10mm through hole)

Dana 60 to Toyota Driveline Flange

This is the flange all you Dana 60 lovers have been waiting for. It is forged from 5140 high strength steel, CNC machined, and triple drilled to match all of the popular Toyota drive line bolt patterns. This flange will allow you to use your existing Toyota drive lines with a Dana 60 axle.

• Forged 5140 high strength steel
• CNC machined for a precise fit
• Triple drilled to fit all popular Toyota driveline patterns
• Fits Dana 60 (29 spline pinion)
• Uses factory Toyota driveline bolts

Note: These fit the big bearing 9" differentials

• Forged 5140 high strength steel
• CNC machined for a precise fit
• Triple drilled to fit all popular Toyota driveline patterns
• Fits Dana 60 (29 spline pinion)
• Uses factory Toyota driveline bolts

Application Data:

• Dana 60 (29 spline pinion)
• Rock Assault 9 Axle Housing
• Fits big bearing 9" differentials

Qty. 1
