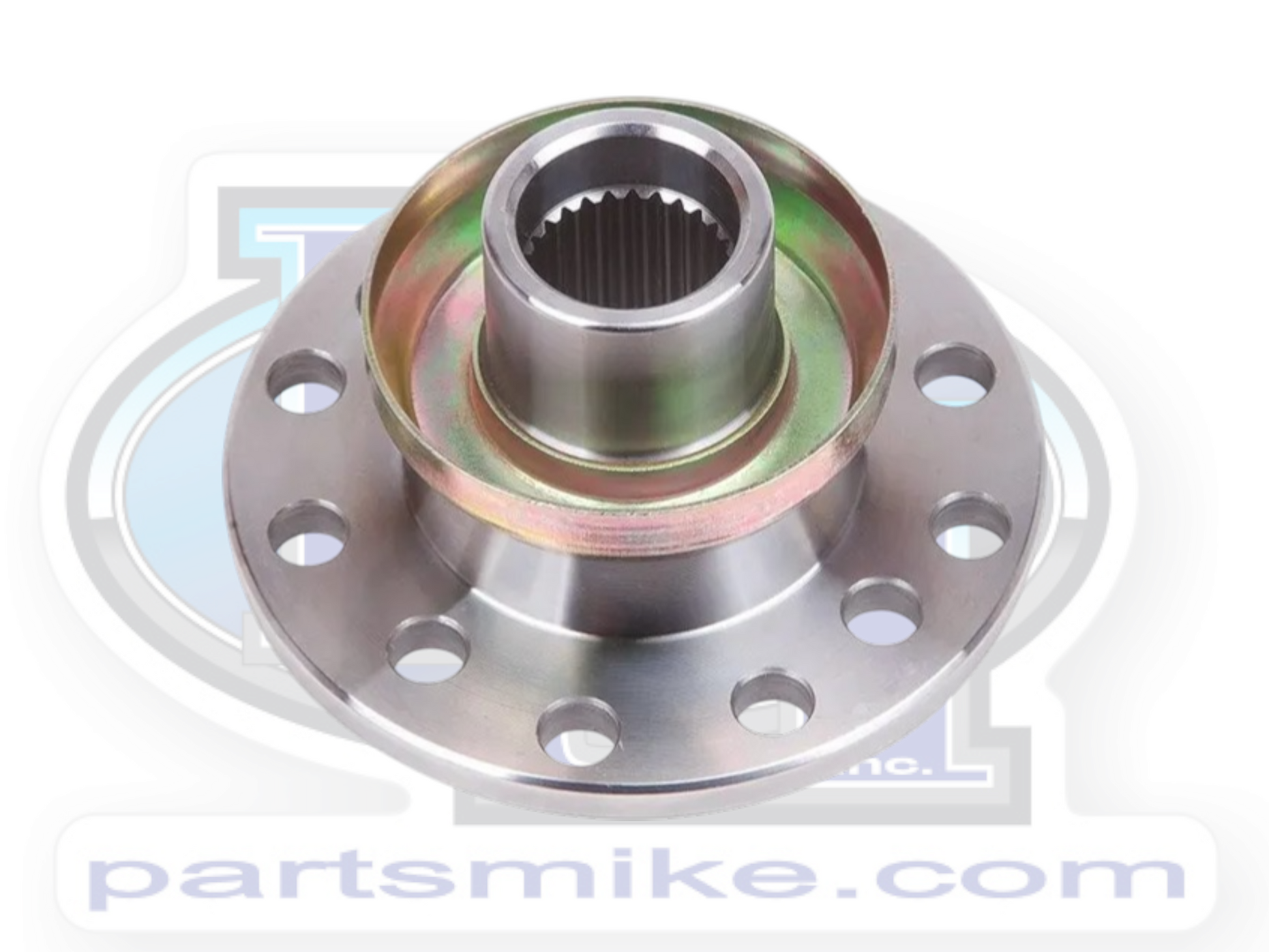

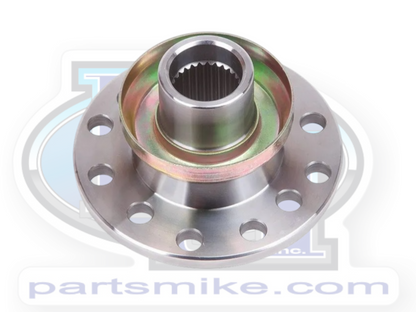

Toyota Companion Flange, 27 Spline, T-Case, Triple Drilled, (TG100004-1-KIT)

Triple Drilled Driveline Flange

Has all the common 1984-1995 patterns in one, universal output flange. Includes 4cyl CV and Non CV patterns as well as V6 CV pattern. Makes sourcing and reversing drive lines much easier. Fits gear-driven transfer cases and 8" differentials. Available with or without installed dust shield.

Dimensions

A: Pilot Diameter: 1.812" / 46.02mm

B: Seal Surface: 1.498" / 38.04mm

C: Through Hole: 1.644" / 41.75mm

D: End of Flange Face to end of Seal Surface: 2.255" / 52.27mm

Flange Face Outside Diameter: 4.376" / 111.15mm

Flange Face Thickness: .287" / 7.28"

Spline Major Diameter: 1.118" / 28.39mm

Counter Bore: .431" / 10.94mm

Splines: 27

Total Bolt Holes: 8

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through holes)

Pattern 2:

61.5mm x 70mm Center to Center (4 Holes - 10mm through holes)

Pattern 3:

60mm x 68.3mm Center to Center (4 Holes - 10mm through holes)

Available Options:

• 140063-1-KIT - Triple Drilled Driveline Flange - Differential with Dust Shield
• 100129-1-KIT - Triple Drilled Driveline Flange - No Dust Shield
• 100004-1-KIT - Triple Drilled Driveline Flange - T-Case with Dust Shield

• Has all the common 1984-1995 patterns in one, universal output flange
• Includes 4cyl CV and Non CV patterns as well as V6 CV pattern
• Fits gear driven transfer cases and 8" differentials
• Bolt Pattern: 70mm x 61.5mm, 68.3mm x 60mm, & 60mm x 60mm, all sized for 10mm driveline bolts

Applications:

• 1979-1985 Toyota Pickup (4cyl Engines Only)
• 1985 Toyota 4Runner (4cyl Engines Only)
• All 8" Drop Out 3rd Members
• Other vehicles with an RF1A Gear-Driven T-Case

NOTE: This will not work with 1979-1985 factory drivelines.
