Toyota Tacoma 2005 to Current, Companion Flange, (TG302910-1-KIT)

Toyota Tacoma 2005 to Current, Companion Flange, TG302910-1-KIT

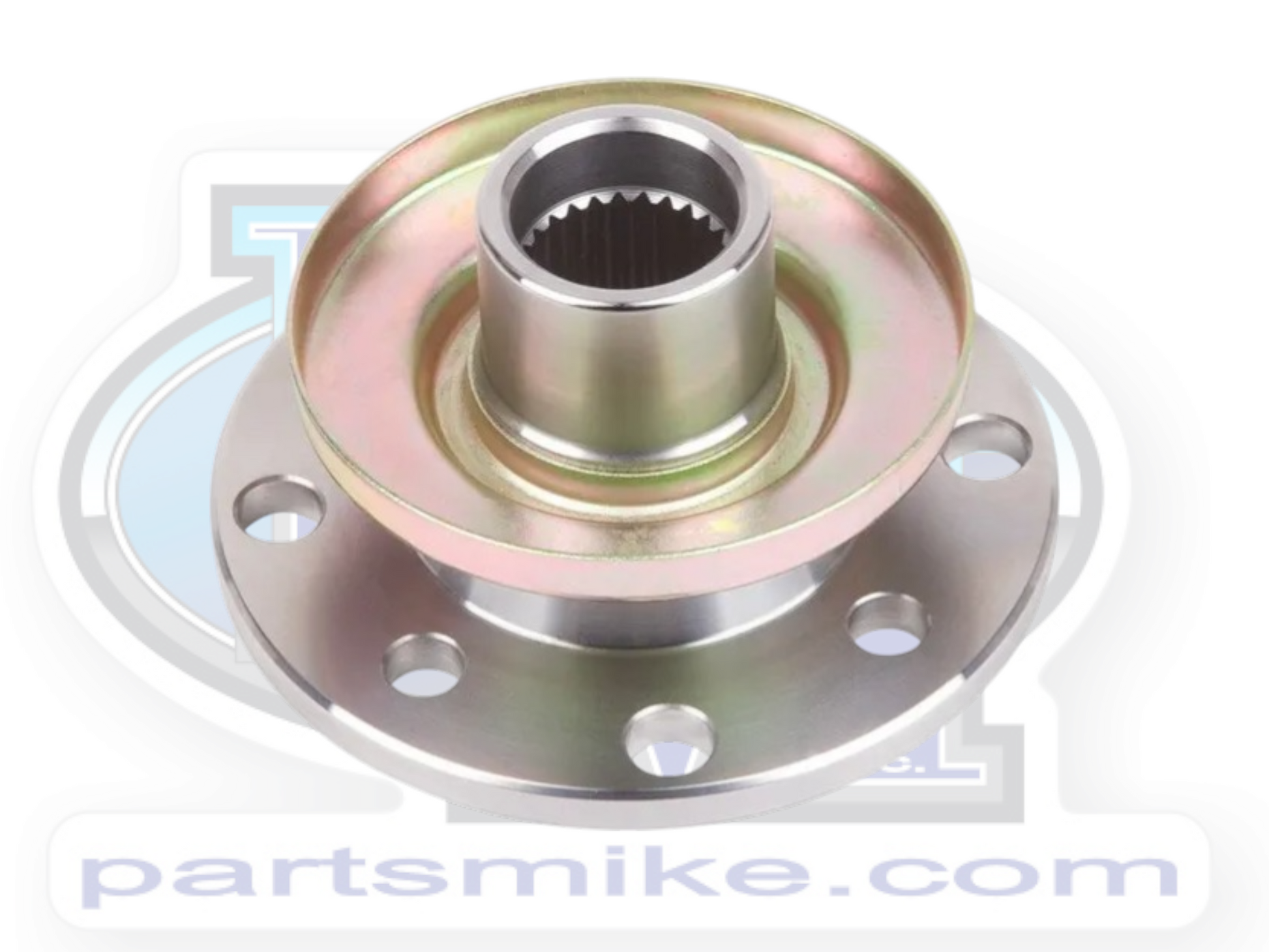

Tacoma Output Flange

Made out of forged 5140 chromoly steel, this Tacoma Output Flange is built to withstand any punishment. The flange was designed to fit on a Toyota RF1A transfer case with a 27-Spline output shaft, as well as a Toyota 8” differential. This flange is drilled for the following Tacoma and Toyota Pickup patterns:

Total Bolt Holes: 8

Bolt Hole Pattern

Pattern 1:

60mm x 60mm Center to Center (4 Holes - 10mm through holes) Tacoma

Pattern 2:

66mm x 66mm Center to Center (4 Holes - 11mm through holes) Pickup and TG Heavy Duty Driveline

 WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications:

• Made out of forged 5140 chromoly steel
• Designed to fit on a Toyota RF1A transfer case with a 27-Spline output shaft, as well as a Toyota 8” differential

Applications:

• 2005-Current Toyota Tacoma (with RF1A Gear-Drive Transfer Case Only)
• All 8" Drop Out 3rd Members
• Other vehicles with an RF1A Gear-Driven T-Case

Note: Will not fit stock Tacoma chain-drive T-case. Will not fit stock 8.4"/8.75" Tacoma differential.

Qty. 1
