Tacoma Output Flange

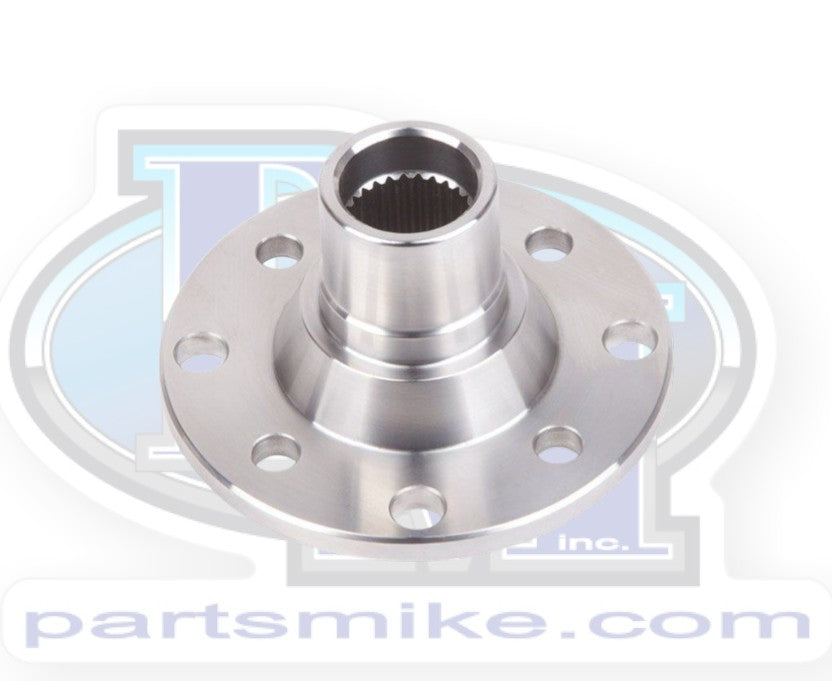

Made out of forged 5140 chromoly steel, this Tacoma Output Flange is built to withstand any punishment. The flange was designed to fit on a Toyota RF1A transfer case with a 27-Spline output shaft, as well as a Toyota 8” differential. This flange is drilled for the following Tacoma and Toyota Pickup patterns:

Dimensions

A: Pilot Diameter: 1.810" / 45.97mm

B: Seal Surface: 1.496" / 37.99mm

C: Through Hole: 1.645" / 41.78mm

D: End of Flange Face to end of Seal Surface: 2.251" / 57.17mm

Flange Face Outside Diameter: 4.404" / 111.86mm

Flange Face Thickness: .286" / 7.26mm

Spline Major Diameter: 1.111" / 28.21mm

Counter Bore: .416" / 10.56mm

Splines: 27

Total Bolt Holes: 8

Bolt Hole Pattern

Pattern 1:

66mm x 66mm Center to Center (4 Holes - 11mm through hole) Tacoma

Pattern 2:

60mm x 60mm Center to Center (4 Holes - 10mm through hole) Pickup and TG Heavy Duty Driveline

Application Data

• 2005-Current Toyota Tacoma (with RF1A Gear-Drive Transfer Case Only)
• All 8" Drop Out 3rd Members
• Other vehicles with an RF1A Gear-Driven T-Case

Qty. 1
