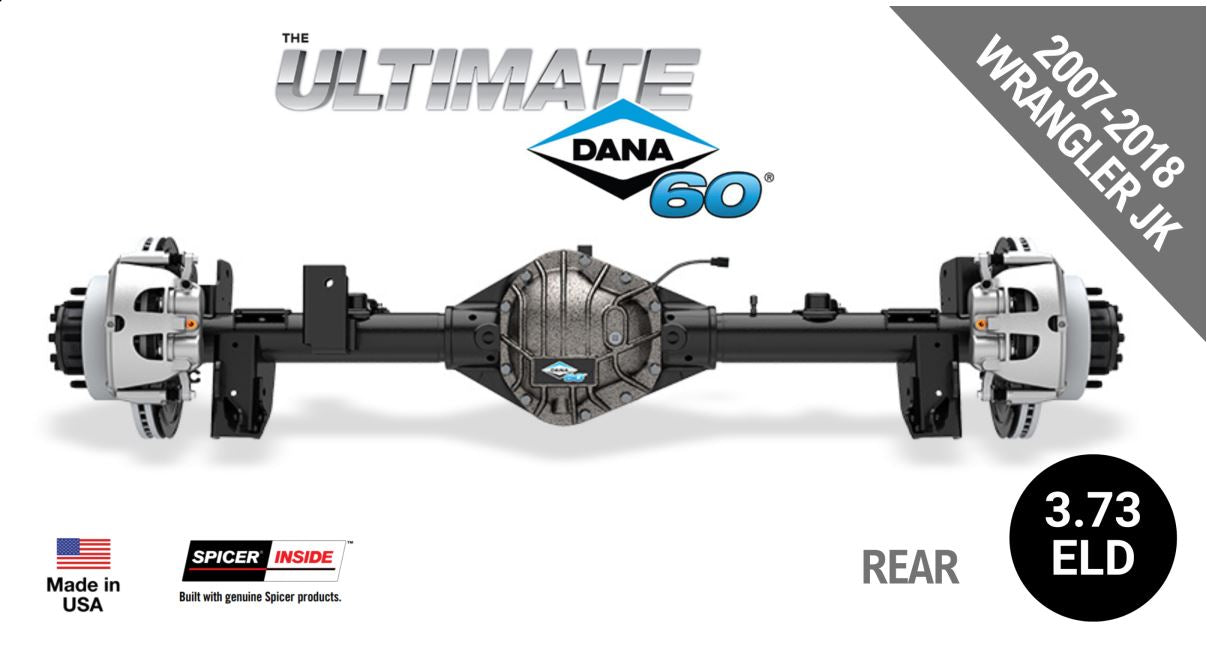

Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 3.73 Gear Ratio, Eaton ELocker® - 10034269

Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 3.73 Gear Ratio, Eaton ELocker® - 10034269

Dana

SKU:10034269

Regular price $8,499.99 USD
Regular price Sale price $8,499.99 USD
Sale Sold out
Shipping calculated at checkout.

Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 3.73 Gear Ratio, Eaton ELocker® - 10034269

Description

Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.

The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.

Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:

  • Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
  • Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
  • Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
  • Genuine “Made in the USA” gearing
  • Heavy-duty 8" x 6.5" wheel bolt pattern
  • Nodular iron diff cover
  • Selectable electronic locking differentials
  • Heavy-duty brackets
  • Spicer® 1350 strap-style/half-round end yoke
  • Upgraded heavy-duty brakes with plug-and-play ABS system

UD60 Call Outs



COMPATIBLE WITH APPLICATIONS

Year Range Make Model Submodel Notes
2007 - 2017 Jeep Wrangler -- Front,With Electronic Locking Differential,with 3.73 Gear Ratio,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle
2018 - 2018 Jeep Wrangler JK -- Front,With Electronic Locking Differential,with 3.73 Gear Ratio,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle



Details

  • Country of Origin: USA
  • Package Type: Each
  • Inner Axle Shaft Spline Count: 35
  • Wheel Bolt Pattern: 8 X 6.5
  • Vehicle Location: Rear
  • Traction Device: Eaton Electronic Locker
  • Package Quantity: 1
  • Outer Axle Spline Count: 35
  •  Mounting Bracket Included: Y
  • Axle Model: DANA 60
  • Hub Surface to Hub Surface(IN): 69.000
  • Gear Ratio: 3.73
  • End Yoke Style: Half Round
  • Drive Shaft U Joint Series: 1350
  • Brakes Included: Y
  • Axle Shaft U Joint Series: SPL70
  • Axle Shaft Material: Chromoly
