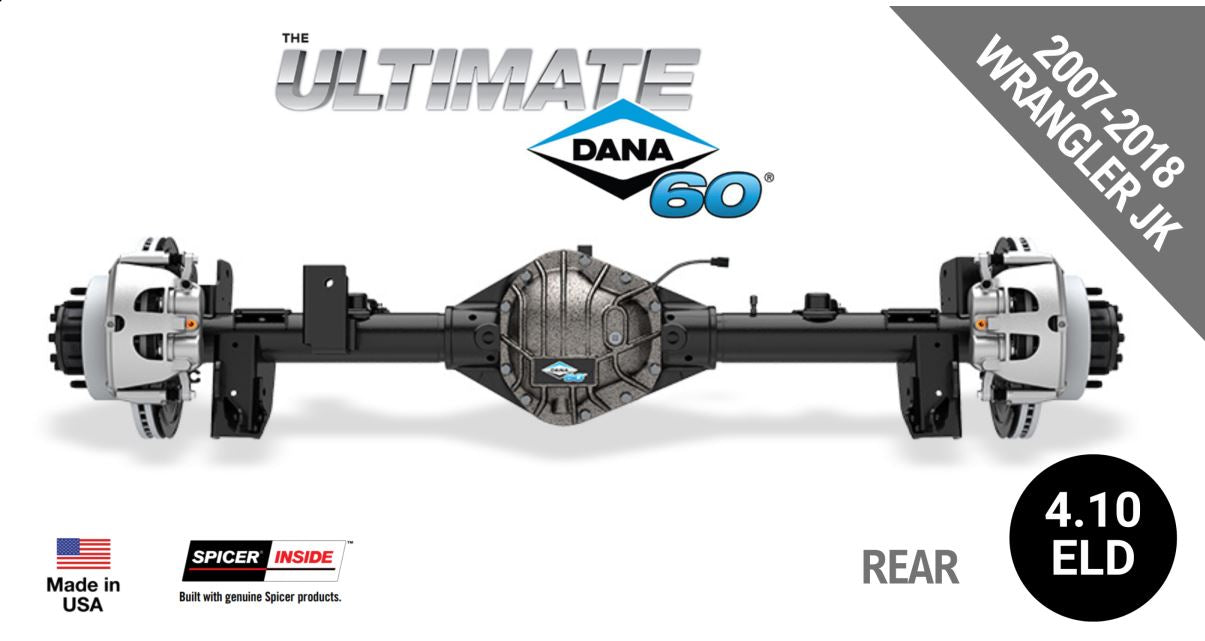

Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 4.10 Gear Ratio, Eaton ELocker® - 10034270
Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 4.10 Gear Ratio, Eaton ELocker® - 10034270
Dana
SKU:10034270
Regular price
$8,499.99 USD
Regular price
Sale price
$8,499.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ultimate Dana 60™ Crate Axle, Full Float, 69" WMS, Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 4.10 Gear Ratio, Eaton ELocker® - 10034270
Description
Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.
The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.
Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:
- Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
- Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
- Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
- Genuine “Made in the USA” gearing
- Heavy-duty 8" x 6.5" wheel bolt pattern
- Nodular iron diff cover
- Selectable electronic locking differentials
- Heavy-duty brackets
- Spicer® 1350 strap-style/half-round end yoke
- Upgraded heavy-duty brakes with plug-and-play ABS system
COMPATIBLE WITH APPLICATIONS
Year Range | Make | Model | Submodel | Notes |
---|---|---|---|---|
2007 - 2017 | Jeep | Wrangler | -- | Rear,With Electronic Locking Differential,with 4.10 Gear Ratio,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle |
2018 - 2018 | Jeep | Wrangler JK | -- | Rear,With Electronic Locking Differential,with 4.10 Gear Ratio,with Ultimate Dana 60 Axle,with Ultimate Dana 60 Crate Axle |
- Country of Origin:
- USA Package Type: Each
- Inner Axle Shaft Details
- Spline Count: 35
- Wheel Bolt Pattern: 8 X 6.5
- Vehicle Location: Rear
- Traction Device: Eaton Electronic Locker
- Package Quantity: 1
- Outer Axle Spline Count: 35
- Mounting Bracket Included: Y
- Axle Model: DANA 60 Hub Surface to Hub Surface (IN): 69.000
- Gear Ratio: 4.10
- End Yoke Style: Half Round
- Drive Shaft U Joint Series: 1350
- Brakes Included: Y
- Axle Shaft U Joint Series: SPL70
- Axle Shaft Material: Chromoly
-
